Leitz Dialux 20EB microscope
to request information & pricing for item 4717B SCOPE
American Instrument Exchange
Contact us for all your used lab equipment needs
1023 Western Ave.
Haverhill, MA 01832

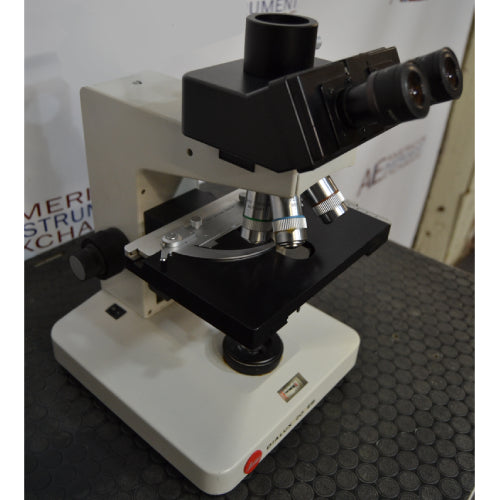

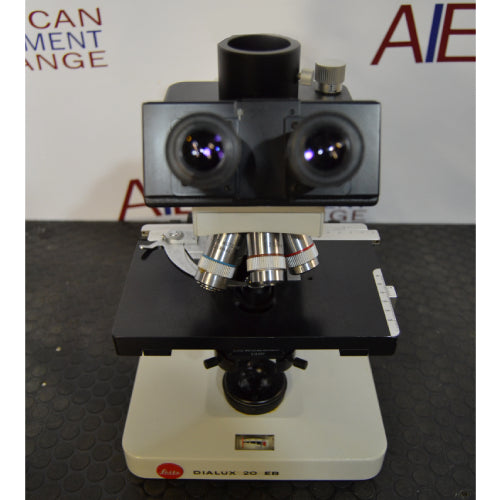

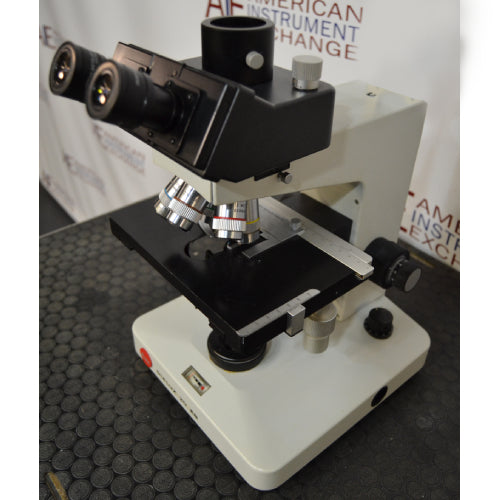

Leitz Dialux 20 EB Microscope
- 5 objectives
- Trinocular w/ 10x eyepieces
- 90-day warranty
The Leitz Dialux 20 Microscope has a trinocular head, NPL fluotars, and a 100W lamphouse (working bulb). Five objectives are included: 2.5x/0.08 PL, 4x/0.14 PL APO, 10x/0.30 NPL FLUOTAR, 25x/0.55 NPL FLUOTAR, and 40x/0.70 NPL FLUOTAR. The Trinocular head has Leitz Periplan x10 eyepieces, and an adjustable field iris.
Binocular observation- and phototube with adjustable eyepiece tubes for the mechanical compensation of the tube length with interpupillary distance adjustment. Tube factor 1x.
CLICK HERE to see the Leitz Dialux 20 on our YouTube channel
The mechanical stage measures 200 x 100mm and has coaxial controls for object movement within an area of 50 x 76mm.
This vertically adjustable dovetail changer has centering screws for the condenser and an adjustable vertical stop (arrow).
The coarse and fine adjustment, arranged on both sides of the stand, adjustment range 35mm, actuates the object stage. One interval on the fine adjustment corresponds to a vertical difference of 2 µm.
Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests, please let us know and we’ll work with you to make sure these requirements are addressed during testing.
The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
For inquiries about the Leitz Dialux 20 EB microscope, please give us a call at 978-521-2221, or fill out the form on this page.
