to request information & pricing for item 3686E OVEN
VWR 6291 Collection Vacuum Oven
- Catalog number: 89509-426
- Temperature range: Ambient +10°C to 220°C
- 0.8 Cu ft capacity
- 90-day warranty
VWR Collection Vacuum Ovens are designed for drying media under carefully controlled conditions - in a normal atmosphere, a vacuum of up to 30 inches Hg, or an inert gas atmosphere. The oven is primarily used for desiccating, vacuum embedding, plating and electronic component processing. Non-corrosive, nonflammable gases such as nitrogen and carbon dioxide can be used in the oven.
Uniform radiant wall heat, with no internally exposed heaters, optimizes chamber space. 3” (76mm) of glass wool insulation throughout helps maintain temperature uniformity effectiveness. Temperature is controlled by a hydraulic thermostat and can be read on the dial thermometer.
All controls and connections (except electrical power) are located on the front vertical panel - these include lighted power switch, vacuum gauge, temperature control, vacuum control valve and nickel-plated hose connectors. The silicone door gasket assures a tight seal at all vacuum levels. A high strength tempered glass window allows full view of oven contents. The shelf assembly removes for easy cleaning.
The chamber of the unit is not designed for exposure to concentrated solvents, oils, concentrated acids or dilute sodium hydroxide.
All of our equipment is used and reconditioned. Our technicians test ovens using a calibrated digital chart recorder to verify the accuracy of temperature controls and readouts and run the unit under vacuum to ensure chamber integrity. We typically leave an oven under vacuum for 24 hours to make sure the pressure holds. We replace any hardware or parts as is necessary and clean all incubators thoroughly prior to shipment.

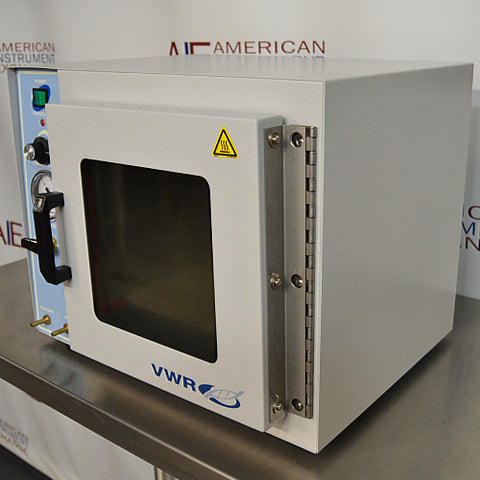

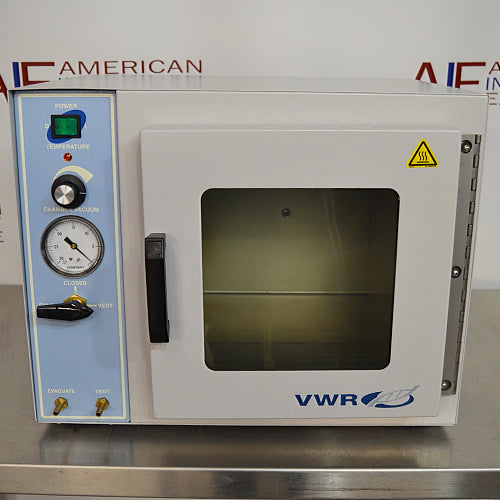

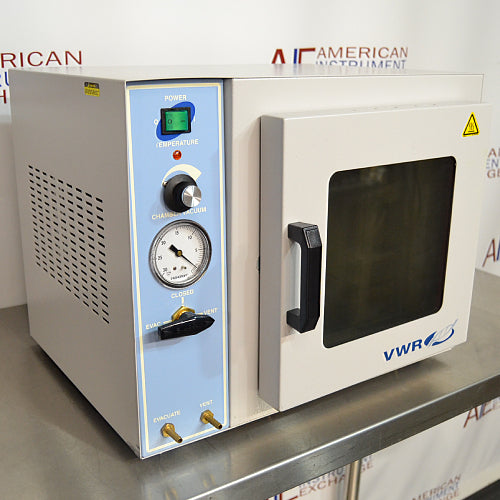

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
VWR 6291 Collection Vacuum Oven - Specifications
|Exterior dimensions||19.8”W x 16.25”D x 16”H|
|Interior dimensions||10”W x 10”D x 12”H|
|Capacity||0.8 Cu. Ft.|
|Temperature range||Ambient +10°C to 220°C|
|Electrical requirements||120 V, 50/60 Hz, 5 A|
For inquiries about the VWR 6291, please give us a call at 978-521-2221, or fill out the form on this page.
