Master flex 7540-30 Peristatic

Item: 4166W PUMP

  • Sale
  • Fully tested
  • Thoroughly cleaned
  • Ships from Haverhill, MA
90-Day Warranty




Contact Us

Call 978-521-2221
to request information & price


American Instrument Exchange
1023 Western Ave.
Haverhill, MA 01832

Phone: 978-521-2221
Fax: 978-521-8822

Email: info@americaninstrument.com

Shipping Policy

Cole Parmer Masterflex L/S Fixed-Speed Drive

  • Model HV-07540-30
  • Comes w/ pump head 7024-20
  • Fixed-speed: 30 rpm
  • 90-day warranty

The Masterflex L/S economy fixed-speed drives are compact and ideal where space is limited. These drives feature a lighted power switch on the front of the drive that lets you know when the pump is running. They accept five different pump head types: Standard, Easy-Load, Easy-Load II, Easy-Load 3, and Cartridge pump heads. Economy fixed-speed drives are stackable and ideal for lab, field, or process feed applications. Accepts up to 2 pump heads.

This Standard pump head accepts high-performance precision tubing— choose these pump heads for better pressure generation, suction lift, viscous fluid transfer, and longer tubing life.

Specifications:

Cole Parmer Masterflex L/S Fixed-Speed Drive

Dimensions 5.25”W x 6”D x 4.625”H
Drive IP rating IP 22
Speed  30 rpm
Electrical 115VAC, 60Hz, 0.9A



Cole Parmer Masterflex Standard Pump Head

Tubing size accepted   L/S 24
Volume per revolution (with L/S 24) 2.8 mL
Flow rate with the 7540-30 drive 84 mL/min
Suction lift 29 ft



Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests, please let us know and we’ll work with you to make sure these requirements are addressed during testing.

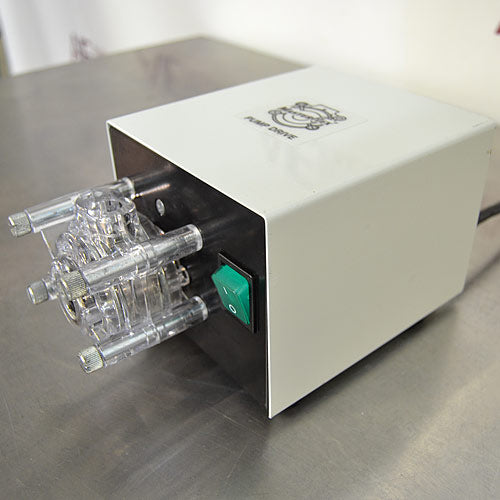

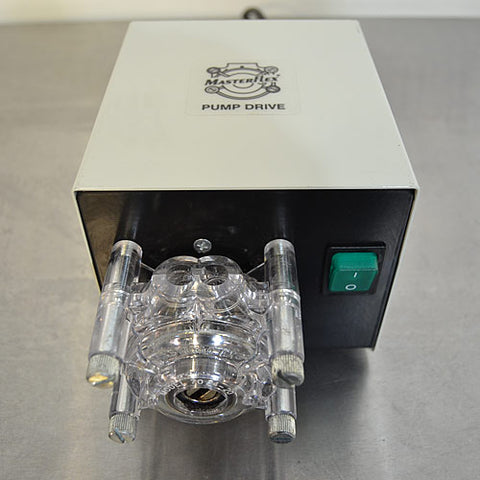

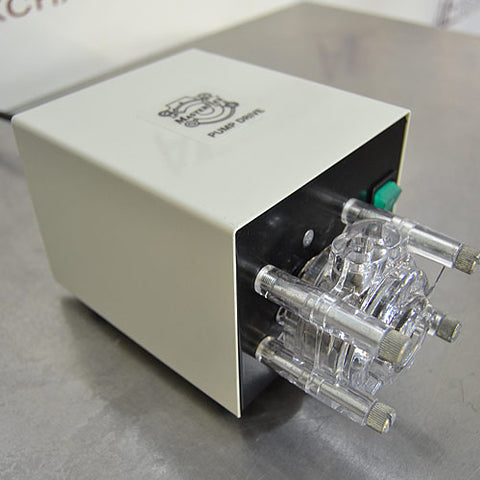

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

For inquiries about the Cole Parmer Masterflex L/S Fixed-Speed Drive, please give us a call at 978-521-2221, or fill out the form on this page.
