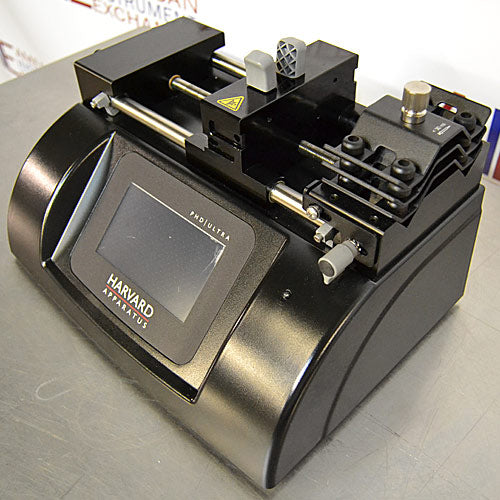

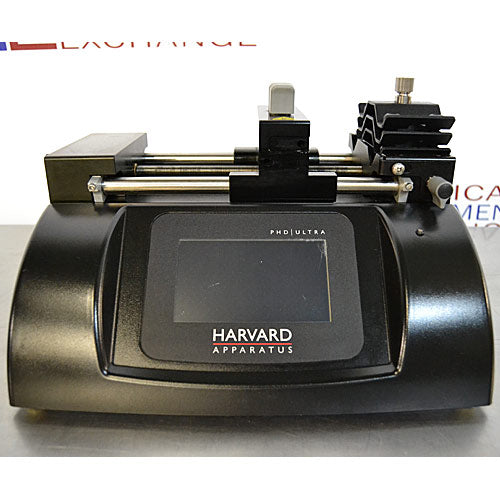

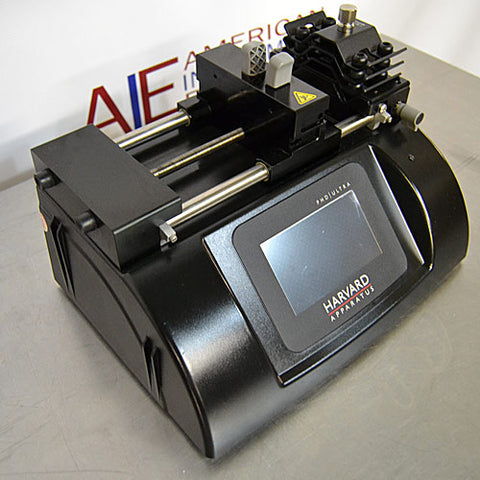

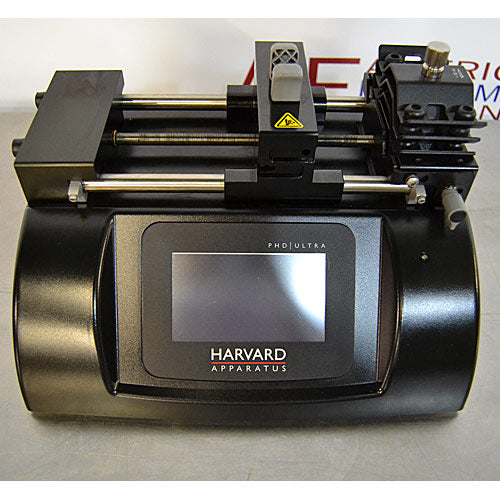

Harvard Apparatus Standard Infuse/Withdraw PHD ULTRA Syringe Pump
- Picoliter to 216 mL/min flow rates
- Linear force to 75 lbs
- No PC required
- 90-day warranty
The Harvard Apparatus PHD ULTRA is the solution for your most demanding fluidics applications. This pump represents the latest technology in syringe pumps and was developed utilizing the feedback of the world's largest populations of syringe pump users.
CLICK HERE to see a video of the PHD ULTRA on our YouTube channel.
Superior mechanical drive mechanism and syringe holding mechanics to achieve high performance. Integrated EZ PRO Software and user interface allow easy programming of methods from simple to complex, all without the use of a PC. Preprogrammed methods for simple to complex operations that allow you to be up and running with the push of a button. High resolution color LCD touchscreen for powerful functionality, yet easy to use. The PHD ULTRA has multiple levels of versatility. It has Push-Pull, standard, remote, high pressure, and multi rack configurations. It also has RS-232 and USP for PC connectivity; and RS-485 for pump to pump daisy-chaining.
The PHD ULTRA syringe pump family has a fluidics drive mechanism which assures ease of use and high performance, for smoother, more accurate flow rates than any other syringe pump. Flow rates are accurate within 0.25% and reproducibility within 0.05%. A microprocessor-controlled, small step angle stepping motor drives a lead screw and pusher block. Advanced micro-stepping techniques are employed to further reduce the step angle to eliminate flow pulsation.
Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests, please let us know and we’ll work with you to make sure these requirements are addressed during testing.
The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
Harvard Apparatus Standard Infuse/Withdraw PHD ULTRA Syringe Pump - Specifications
|Dimensions||12”W x 8.5”D x 7.25”H|
|Display||4.3” WQVGA w/touchpad|
|Flow rate maximum||216 ml/min using 140 mL syringe|
|Flow rate minimum||1.56 pL/min using 0.5 µL syringe|
|Pusher travel rate maximum||190.8 mm/min|
|Pusher travel rate minimum||0.18 µm/min|
For inquiries about the Harvard PHD ULTRA, please give us a call at 978-521-2221, or fill out the form on this page.
