Hanna HI190M-1Mini mag. stir

Item: 5106F STIRRER

  • Sale
  • Fully tested
  • Thoroughly cleaned
  • Ships from Haverhill, MA
90-Day Warranty




Contact Us

Call 978-521-2221
to request information & price


American Instrument Exchange
1023 Western Ave.
Haverhill, MA 01832

Phone: 978-521-2221
Fax: 978-521-8822

Email: info@americaninstrument.com

Shipping Policy

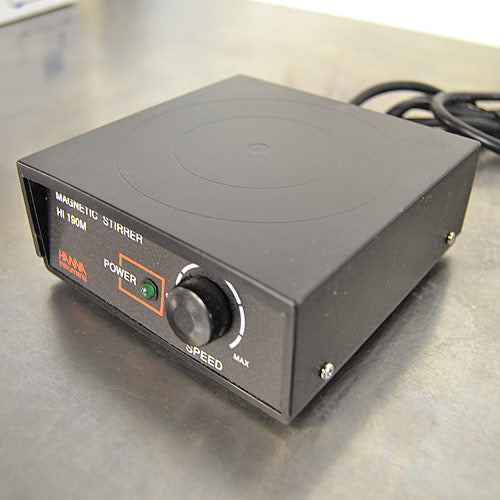

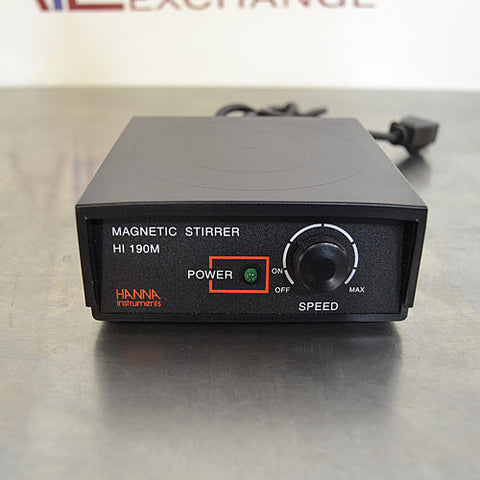

Hanna Mini Magnetic Stirrer

  • NEW IN BOX
  • Model HI190M-1
  • Speed range of 100-1000 rpm
  • 90-day warranty

The HI190M-1 small magnetic stirrer is compact and lightweight, allowing for easy handling in the laboratory environment. Limited area on laboratory benchtops is no longer a concern with this durable, space-saving stirrer. Power-indicating LED lights also assure users at a distance that the stirrer is in operation. The durable plastic covering will resist harmful effects of accidentally spilled chemicals. The HI190M-1 magnetic stirrer is cost-effective for the customer that does not need the added expense of a heating element. The design incorporates electronic controls that allow the user to easily regulate the speed with great precision.

To control the speed from changes in viscosity or removing of the load the HI190M-1 magnetic stirrer incorporates the Speedsafe mechanism, a speed sensing device (opto-sensor) is coupled with an FVC (frequency voltage converter) to monitor the stirring speed. As the speed reaches a preset maximum level, the speed limiter shuts down the VCO (voltage-controlled oscillator) to slow down the motor speed. This ensures that when the load is suddenly removed from the stirrer, the motor will not accelerate to such a high speed that will be hazardous to both the user and the stirrer.

Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests, please let us know and we’ll work with you to make sure these requirements are addressed during testing.

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Hanna Mini magnetic stirrer - Specifications

Unit dimensions 4.82”W x 4.8”D x 1.8”H
Speed range 100 – 1000 rpm
Max stirring capacity (H20) 1L
Power 110/115 Vac, 50/60 Hz



For inquiries about the Hanna Mini magnetic stirrer, please give us a call at 978-521-2221, or fill out the form on this page.
