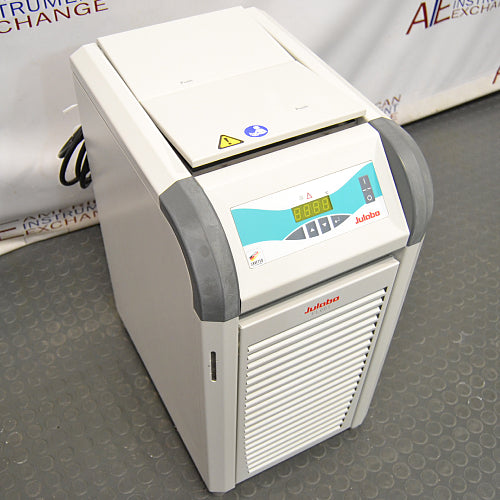

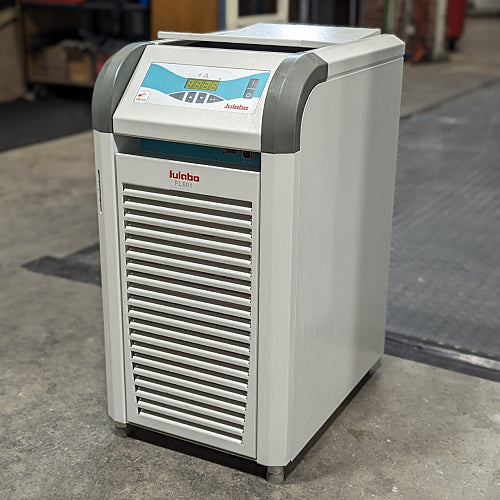

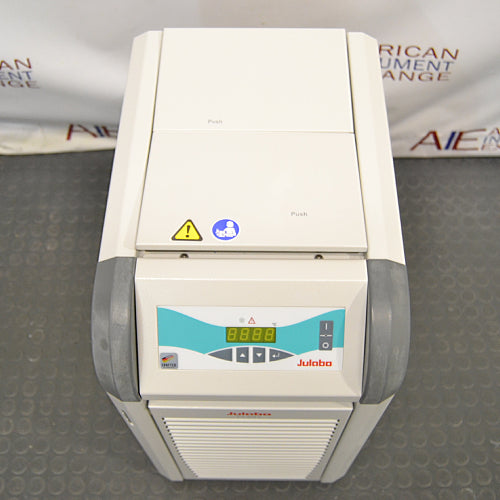

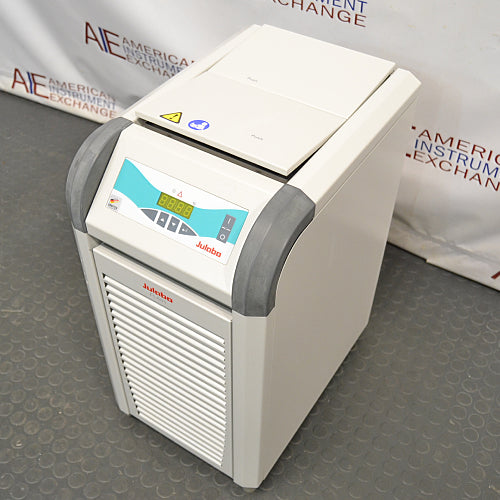

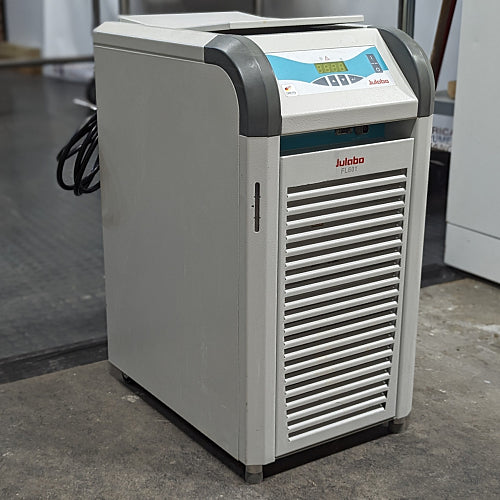

JULABO FL601 Recirculating Chiller
The JULABO FL601 Recirculating Chiller is a compact laboratory cooling system designed to provide reliable, temperature-controlled fluid circulation for analytical instruments, condensers, laboratory equipment, and process applications. With a -20°C to +40°C working temperature range, ±0.5°C temperature stability, and a centrifugal pressure pump capable of circulating up to 23 L/min, the FL601 provides a versatile closed-loop cooling solution for routine laboratory and industrial applications.
Available used and refurbished from American Instrument Exchange, the JULABO FL601 combines refrigeration, PID temperature control, a stainless steel reservoir, external circulation, and digital monitoring in a compact floor or under-bench configuration. The system can provide an economical alternative to once-through tap-water cooling while offering greater control over coolant temperature and operating conditions. A 90-day warranty is included.
Key Features
-20°C to +40°C working temperature range
±0.5°C temperature stability
Maximum circulation flow rate of 23 L/min
Maximum pump pressure of 14.5 psi
5.5–8 L bath filling volume
PID temperature control
Cooling capacity up to 0.6 kW at 20°C
Stainless steel internal reservoir
RS232 interface for connection to a computer or control system
Optical and audible low-liquid-level alarm
Compact design suitable for installation on or underneath a laboratory bench
Used, refurbished, and tested by American Instrument Exchange
90-day warranty included
Overview
The JULABO FL601 is a refrigerated recirculating chiller designed primarily to remove heat from externally connected laboratory equipment. The unit continuously cools and circulates a controlled volume of heat-transfer fluid through a closed loop, allowing laboratories to provide dedicated cooling without continuously consuming facility water.
Microprocessor-based PID temperature control maintains the selected coolant temperature, while a centrifugal pressure pump circulates fluid to the external application. The FL601 also incorporates a stainless steel internal tank, visible fluid-level indicator, low-level protection, accessible filling and draining, and a bright LED temperature display.
An RS232 interface allows the chiller to communicate with a computer or higher-level control system. An alarm output provides additional integration options for applications where operating status needs to be monitored externally.
The FL601 is now an older-generation JULABO model, but its combination of useful cooling capacity, compact size, and straightforward controls continues to make it a practical option for many laboratory cooling applications.
Key Specifications
Specification
Details
Manufacturer
JULABO
Model
FL601
Equipment Type
Recirculating cooler / laboratory chiller
Working Temperature Range
-20°C to +40°C
Temperature Stability
±0.5°C
Temperature Resolution
0.1°C
Temperature Control
Microprocessor PID
Temperature Sensor
Pt100
Maximum Pump Flow
23 L/min
Maximum Pump Pressure
14.5 psi
Pump Type
Centrifugal pressure pump
Bath Fill Volume
5.5–8 L
Cooling Capacity at +20°C
0.60 kW
Cooling Capacity at +10°C
0.50 kW
Cooling Capacity at 0°C
0.40 kW
Cooling Capacity at -10°C
Approx. 0.32–0.33 kW
Cooling Capacity at -20°C
0.10–0.20 kW, depending on configuration/refrigerant generation
Pump Connections
M16 × 1 male
Display
LED
Communications
RS232
Exterior Dimensions
12.6 in. W × 19.7 in. D × 23.6 in. H
Electrical Requirements
115 V, 60 Hz
Weight
106 lb
Warranty
90 days
Common Applications
The JULABO FL601 is suitable for routine laboratory applications requiring continuous removal of heat from externally connected equipment. Typical uses include rotary evaporator condensers, analytical instrumentation, reaction vessels, distillation equipment, vacuum systems, condensers, and other laboratory apparatus requiring a dedicated coolant supply.
The FL601 can also provide an alternative to once-through tap-water cooling in compatible applications. Rather than continuously using fresh water and sending it to drain, the chiller recirculates and refrigerates the same heat-transfer fluid.
Its combination of moderate cooling capacity and 23 L/min circulation makes the FL601 particularly useful for individual laboratory instruments and processes that do not require the capacity or footprint of a larger industrial chiller.
Ideal Laboratory Types
The JULABO FL601 is well suited for chemistry laboratories, pharmaceutical and biotechnology facilities, analytical laboratories, materials-science groups, industrial R&D facilities, quality-control laboratories, academic research departments, and other facilities requiring reliable equipment cooling.
Its compact configuration is particularly useful for laboratories where floor or bench space is limited. The absence of side ventilation also allows more flexibility when positioning the unit alongside other laboratory equipment.
Temperature Control & Stability
The JULABO FL601 provides a working temperature range of -20°C to +40°C with specified temperature stability of ±0.5°C. A microprocessor-based PID controller regulates refrigeration performance while a Pt100 temperature sensor monitors circulating-fluid temperature.
Cooling capacity varies substantially with operating temperature. The FL601 provides approximately 0.6 kW of refrigeration capacity at +20°C, 0.5 kW at +10°C, and 0.4 kW at 0°C. Available cooling capacity decreases further as the coolant approaches the bottom of the operating range.
This relationship is important when selecting a recirculating chiller. Laboratories should compare the thermal load generated by their equipment with the FL601's available cooling capacity at the intended operating temperature rather than selecting the chiller solely because it can reach -20°C.
Circulation & Pump Performance
The FL601 uses a centrifugal pressure pump capable of providing a maximum flow rate of approximately 23 L/min and maximum pressure of approximately 14.5 psi.
This combination provides substantial circulation for a compact laboratory chiller and allows the FL601 to supply coolant to a variety of compatible external instruments and processes.
Actual coolant flow through connected equipment will depend on tubing diameter and length, fittings, fluid viscosity, operating temperature, elevation differences, and resistance within the external system. Laboratories should verify both required flow and allowable pressure before connecting equipment to the chiller.
The FL601 uses M16 × 1 male pump connections and can accommodate appropriate tubing through compatible fittings.
Refurbishment & Testing
This used JULABO FL601 Recirculating Chiller is refurbished and tested by American Instrument Exchange before shipment. Our technicians inspect the refrigeration system, circulation pump, reservoir, temperature controller, display, alarms, electrical components, and fluid connections and operate the unit to confirm proper functionality.
Temperature-controlled equipment is tested using NIST-traceable probes and data loggers. The refrigeration system is operated to verify cooling and temperature regulation, while pump operation and fluid circulation are evaluated as part of the testing process. The stainless steel reservoir and fluid-contact areas are cleaned and inspected prior to shipment.
If your application requires a particular coolant temperature or has specific testing requirements, contact American Instrument Exchange before shipment. When practical, our technicians can incorporate customer-requested operating conditions into final testing.
A 90-day warranty is included with this refurbished JULABO recirculating chiller.
Choosing the Right Recirculating Chiller
When selecting a recirculating chiller, buyers should consider the target coolant temperature, heat generated by the connected equipment, available cooling capacity at that temperature, pump flow, pump pressure, reservoir volume, and electrical requirements.
The JULABO FL601 is particularly appropriate for moderate laboratory cooling loads requiring coolant temperatures between -20°C and +40°C. Its 23 L/min circulation capacity provides useful flow for a relatively compact chiller, while the 5.5–8 L reservoir keeps overall fluid volume manageable.
Applications requiring significantly greater cooling capacity, extremely tight temperature stability, or high-pressure circulation through highly restrictive fluid paths may require a different chiller configuration.
American Instrument Exchange can help compare available used and refurbished laboratory circulators based on your required coolant temperature, thermal load, circulation requirements, and application.
What is the temperature range of the JULABO FL601?
The JULABO FL601 has a working temperature range of -20°C to +40°C, making it suitable for both below-ambient and near-ambient laboratory cooling applications.
What is the maximum flow rate of the JULABO FL601?
The centrifugal pressure pump provides a maximum flow rate of approximately 23 L/min with maximum pressure of approximately 14.5 psi. Actual flow through connected equipment depends on the resistance of the complete circulation loop.
How much cooling capacity does the FL601 provide?
Cooling capacity varies with operating temperature. The FL601 provides approximately 0.6 kW at +20°C, 0.5 kW at +10°C, and 0.4 kW at 0°C, with available cooling capacity decreasing further at subzero temperatures.
Can the JULABO FL601 be used with a rotary evaporator?
Yes. Recirculating chillers such as the FL601 can provide controlled coolant to compatible rotary evaporator condensers. The evaporator's thermal load and required coolant temperature should be compared with the FL601's cooling performance before use.
Can the FL601 replace tap-water cooling?
In many compatible applications, yes. The FL601 can continuously refrigerate and recirculate heat-transfer fluid through laboratory equipment rather than continuously consuming facility water and sending it to drain.
Does the JULABO FL601 support computer control?
Yes. The FL601 includes an RS232 interface for connection to a computer or higher-level control system, as well as an alarm output for external monitoring.
What fluids can be used in the JULABO FL601?
Compatible fluids depend on the required operating temperature. JULABO specifies appropriate water, water/glycol mixtures, and compatible silicone-based heat-transfer fluids for FL-series applications. Fluid selection should always be matched to the intended operating temperature and equipment requirements.
Does this refurbished JULABO FL601 include a warranty?
Yes. This used JULABO FL601 is refurbished and tested by American Instrument Exchange and includes a 90-day warranty.
