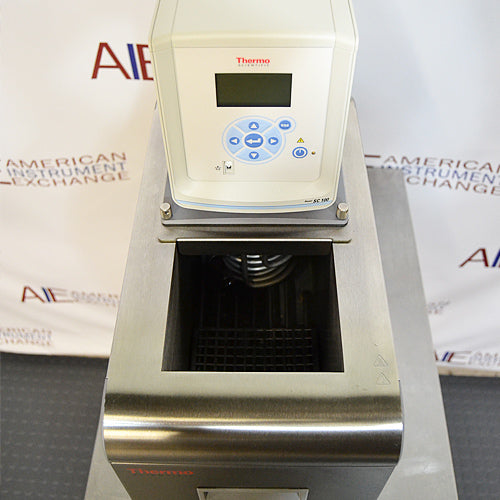

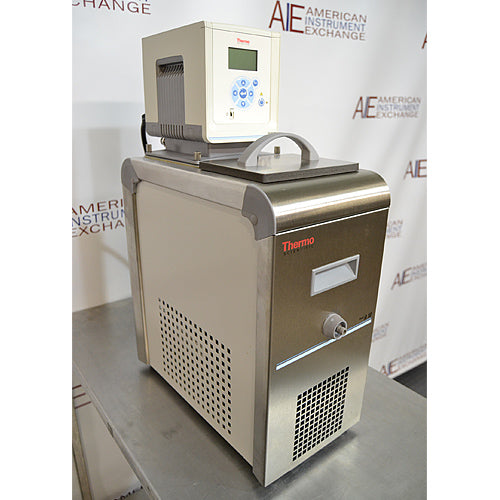

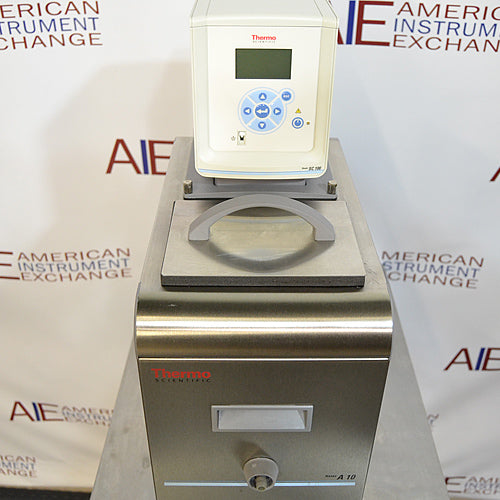

The Thermo Scientific Haake SC100-A10 Refrigerated/Heated Circulator is a compact 6 L laboratory bath designed for precise heating, cooling, and fluid circulation across a broad -10°C to +100°C temperature range. Combining the Haake A10 refrigerated bath with the SC100 digital controller, this system provides a versatile temperature-control platform for direct bath applications and compatible external equipment.
With temperature stability of approximately ±0.02°C, circulation flow up to 17 L/min, and maximum pump pressure of approximately 300 mbar, the SC100-A10 is well suited for laboratories that need accurate temperature control in a relatively compact footprint. Typical applications include sample conditioning, calibration, rotary evaporation, condenser cooling, bioreactor temperature control, viscosity studies, and temperature control of compatible jacketed vessels.
Available used and refurbished from American Instrument Exchange, this Thermo Scientific Haake A10 is tested for refrigeration, heating, circulation, temperature control, and overall operation. A 90-day warranty is included.
Key Features
-10°C to +100°C temperature range
6 L bath capacity
SC100 digital temperature controller
Approximately ±0.02°C temperature stability
Maximum circulation flow approximately 17 L/min
Maximum pump pressure approximately 300 mbar / 4.35 psi
Integrated heating and mechanical refrigeration
Suitable for open-bath and closed-loop applications
Compact 8.7"W × 16.3"D footprint
Adjustable controller position for easier viewing
Three-sided ventilation design
Designed for quiet laboratory operation
Front-accessible refrigerated bath
Used, refurbished, and tested by American Instrument Exchange
90-day warranty included
Overview
The Thermo Scientific Haake SC100-A10 combines a compact refrigerated bath with digital temperature control, heating, refrigeration, and active fluid circulation.
The A10 bath provides approximately 6 L of fluid capacity while maintaining a relatively small laboratory footprint. Mechanical refrigeration allows the system to maintain temperatures below ambient, while integrated heating extends the operating range to approximately +100°C.
This makes the SC100-A10 considerably more versatile than either a heating-only circulating bath or a cooling-only recirculating chiller.
Samples and compatible laboratory vessels can be temperature-controlled directly within the bath. Alternatively, the circulation system can supply temperature-controlled fluid to compatible external equipment.
The SC100 controller can also be rotated around the bath to improve visibility and access when the circulator is positioned in a crowded laboratory workspace.
Key Specifications
Specification
Details
Manufacturer
Thermo Scientific / Haake
Configuration
SC100-A10
Bath Model
A10
Controller
SC100
Equipment Type
Refrigerated/heated bath circulator
Temperature Range
-10°C to +100°C
Temperature Stability
Approx. ±0.02°C
Bath Capacity
6 L / 1.58 gal
Maximum Pump Flow
Approx. 17 L/min
Maximum Pump Pressure
Approx. 300 mbar / 4.35 psi
Heating
Integrated
Refrigeration
Integrated
Internal Bath Circulation
Yes
External Circulation
Yes
Overall Width
Approx. 8.7 in.
Overall Depth
Approx. 16.3 in.
Overall Height
Approx. 24.9 in.
Electrical Requirements
Verify individual unit nameplate
Warranty
90 days
Common Applications
The Thermo Scientific Haake SC100-A10 can support a broad range of laboratory procedures requiring controlled heating or cooling. Typical applications include sample conditioning, calibration, rotary evaporation, condenser cooling, chemical reaction control, viscosity measurements, materials testing, bioreactor temperature control, jacketed vessel circulation, and general laboratory research.
Its accessible 6 L bath allows samples and vessels to be immersed directly in temperature-controlled fluid.
External circulation provides another option. The SC100-A10 can supply conditioned fluid to compatible equipment such as rotary evaporator condensers, jacketed reactors, heat exchangers, analytical instruments, and other closed-loop laboratory systems.
The combination of heating and refrigeration can be particularly useful in laboratories where experimental procedures span temperatures both below and above ambient.
Ideal Laboratory Types
The Thermo Scientific Haake SC100-A10 is well suited for pharmaceutical laboratories, biotechnology facilities, chemistry laboratories, analytical laboratories, materials-science groups, quality-control departments, process-development laboratories, industrial R&D facilities, and academic research environments.
Its relatively small footprint makes it particularly attractive for laboratories where bench space is limited.
The broad -10°C to +100°C operating range can also reduce the need for separate heated and refrigerated baths for routine temperature-control applications.
Temperature Control & Stability
The SC100-A10 provides controlled operation across a temperature range of approximately -10°C to +100°C.
The SC100 digital controller regulates bath temperature while active circulation continuously moves heat-transfer fluid throughout the reservoir. This combination helps maintain consistent thermal conditions and improves heat transfer around immersed samples.
Temperature stability is approximately ±0.02°C under appropriate operating conditions, making the SC100-A10 suitable for many applications where repeatable temperature conditions are important.
Mechanical refrigeration provides active cooling below ambient temperature rather than relying on ice or an external cooling-water source.
At elevated temperatures, the integrated heater supplies the energy necessary to reach and maintain the selected setpoint.
Actual performance can be influenced by bath loading, ambient conditions, fluid selection, external heat load, circulation configuration, and whether the bath is covered.
Circulation & Pump Performance
The Thermo Scientific Haake SC100-A10 provides maximum circulation flow of approximately 17 L/min with maximum pump pressure of approximately 300 mbar, or 4.35 psi.
For direct bath applications, this circulation continuously mixes the heat-transfer fluid and helps maintain uniform conditions throughout the reservoir.
For external applications, the pump can circulate temperature-controlled fluid through compatible laboratory equipment before returning it to the A10 bath.
Actual external flow depends on the hydraulic resistance of the complete system. Tubing diameter and length, fittings, fluid viscosity, operating temperature, elevation, and restrictions inside the connected equipment can all reduce delivered flow.
Customers requiring a specific minimum flow or pressure should provide the requirements of their external equipment before purchase so American Instrument Exchange can help evaluate compatibility.
Compact Design & Laboratory Installation
One of the advantages of the Haake A10 is its compact footprint.
At approximately 8.7 inches wide and 16.3 inches deep, the system occupies relatively little bench space while still providing an approximately 6 L refrigerated bath.
Thermo designed the unit with a three-sided ventilation arrangement. This provides additional flexibility when positioning the circulator around other laboratory equipment.
The controller can also be turned for improved viewing from different positions around the bath.
These features make the A10 particularly useful in laboratories where available bench space and equipment placement are important considerations.
Adequate ventilation should still be maintained according to manufacturer recommendations so that heat removed by the refrigeration system can be effectively rejected into the surrounding room.
Refurbishment & Testing
This used Thermo Scientific Haake SC100-A10 Refrigerated/Heated Circulator is refurbished and tested by American Instrument Exchange before shipment. Our technicians inspect the refrigeration system, heater, circulation pump, SC100 controller, display, reservoir, condenser, electrical components, fluid connections, and applicable safety systems.
Temperature-controlled equipment is tested using NIST-traceable probes and data loggers. Because the SC100-A10 provides both heating and refrigeration, the system can be operated at multiple temperatures to evaluate temperature pull-down, heating performance, circulation, controller operation, and overall stability.
The reservoir and accessible fluid-contact components are cleaned and inspected before shipment, and circulating fluid is drained before transportation.
Customers requiring operation at a particular temperature or with specific external equipment are encouraged to provide their application requirements before shipment. When practical, American Instrument Exchange can incorporate those conditions into final testing.
A 90-day warranty is included with this refurbished Thermo Scientific Haake circulator.
Choosing the Right Circulator or Water Bath
The Thermo Scientific Haake SC100-A10 is particularly well suited for laboratories that need a compact circulator capable of both refrigerated and heated operation.
Compared with a heating-only circulating bath, the A10 provides active mechanical refrigeration and can maintain temperatures below ambient.
Compared with a dedicated recirculating chiller, the A10 provides an accessible 6 L working bath for direct sample immersion while still supporting compatible external circulation applications.
Its -10°C to +100°C range covers many routine laboratory temperature-control requirements, while its 17 L/min circulation capability provides useful flexibility for external equipment.
For applications requiring temperatures substantially below -10°C, greater bath volume, higher cooling capacity, or substantially greater pump pressure, a larger refrigerated circulator may be more appropriate.
American Instrument Exchange can help compare available Thermo Scientific Haake and other laboratory circulators based on temperature range, bath capacity, cooling requirements, pump performance, and intended application.
Related Equipment
American Instrument Exchange stocks a range of laboratory circulators, including Thermo Scientific Haake refrigerated/heated circulators, heated baths, recirculating chillers, and immersion circulators. Laboratories considering the SC100-A10 may also want to compare available laboratory water baths, reactors and fermenters, evaporators and extractors, and other refurbished laboratory equipment.
What is the temperature range of the Thermo Haake A10?
The SC100-A10 provides an operating temperature range of approximately -10°C to +100°C.
What is the capacity of the A10 bath?
The Haake A10 has an approximately 6 L, or 1.58 gal, bath capacity.
How stable is the SC100-A10?
This configuration provides approximately ±0.02°C temperature stability under appropriate operating conditions.
What is the pump flow rate?
Maximum circulation flow is approximately 17 L/min.
What is the maximum pump pressure?
Maximum pump pressure is approximately 300 mbar, equivalent to approximately 4.35 psi.
Can samples be placed directly in the A10 bath?
Yes. The A10 provides an accessible temperature-controlled bath suitable for compatible direct-immersion applications.
Can the SC100-A10 circulate fluid through external equipment?
Yes. The circulation system can supply temperature-controlled fluid to compatible external equipment, including jacketed vessels, condensers, heat exchangers, and other closed-loop systems.
Can the Haake A10 be used with a rotary evaporator?
Potentially, yes. The A10 can provide temperature-controlled fluid for compatible rotary evaporator condenser applications. The required coolant temperature, heat load, flow, and pressure should be compared with the A10's specifications.
What is the difference between this A10 and the AC200-A10?
The refrigerated bath platform is the same A10 family, but the controller differs. This unit uses the SC100 controller, while the AC200-A10 uses the more advanced AC200 controller. The AC200 version offers additional control and programming features and is specified by AIE with circulation up to approximately 20 L/min.
Does this refurbished Thermo Scientific Haake A10 include a warranty?
Yes. This used Thermo Scientific Haake SC100-A10 is refurbished and tested by American Instrument Exchange and includes a 90-day warranty.
CLICK HEREto see the Thermo Haake A10 with SC100 controller on our YouTube channel
