PHCBI Cell-IQ Series High Heat Sterilization CO2 Incubator

by American Instrument Exchange

SKU 3197AAA INC

FULLY TESTED & WARRANTIED*

Quantity

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

Contact Us

Call 978-521-2221
to request information & pricing for item 3197AAA INC

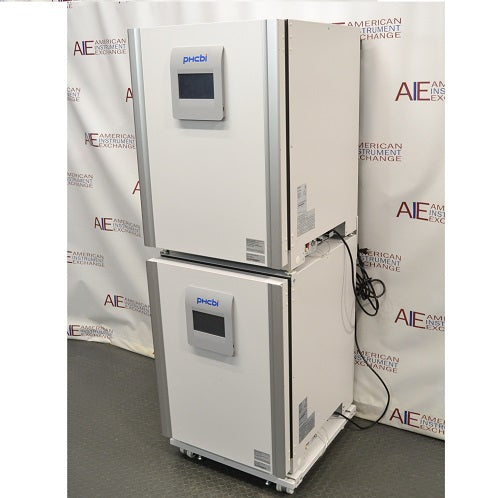

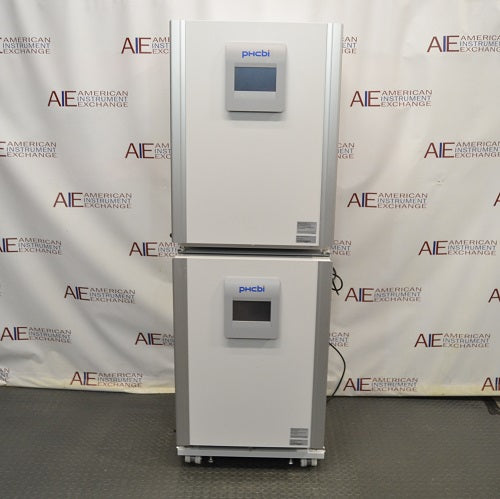

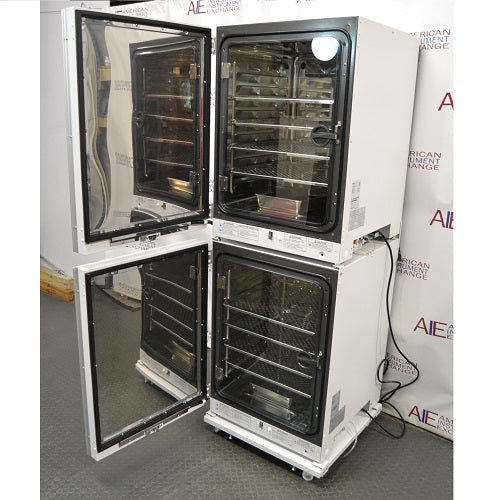

PHCBI Cell-IQ Series High Heat Sterilization CO2 Incubator

As a crucial piece of laboratory equipment, PHCBI Cell-IQ Series High Heat Sterilization CO2 incubators are designed to ensure highly accurate, reproducible chamber conditions. Our cell culture incubators provide a contamination-free environment while allowing precise CO₂ or CO2/O₂ control - essential for in vivo environment replication.

PHCBI Cell-IQ Series CO2 Incubator features

Model MCO-170AICUVDL-PA
5.8 cubic foot capacity per chamber
High contrast color LCD display
Temp range 5°C above ambient to 50°C.
90 day warranty

Uniform Consistent Environment: InCu-saFe and SafeCell UV function together to create contamination control against external microbes. A unique heating system and the dual filter infrared sensor precisely control temperature and CO₂ levels, respectively.

Rapid CO₂ Recovery with Dual-Wave Infrared (IR) Sensor: A dual filter infrared sensor signals the microprocessor controller to inject CO₂ to maintain desired setpoint conditions. Sensor response accelerates CO₂ recovery to setpoint without overshoot following frequent door openings.

Dual Heat Sterilization: An integrated auxiliary sterilization system is utilized together with the CO₂ incubator cultivation heaters to provide an effective, energy efficient sterilization process. The primary heater maintains precise temperature control over a setpoint range from 5°C above ambient to 50°C. The secondary heater is activated when the high heat sterilization cycle is initiated as both heaters combine to reach 180°C. Specialized melamine foam insulation minimizes heat leakage to adjacent incubators and dramatically reduces elevated external surface temperatures.

Incubator Decontamination with InCu-saFe and SafeCell UV: The PHCbi inCu-saFe copper enriched, stainless steel interior surfaces create a germicidal barrier to airborne contaminants that enter the dry heat incubator during door openings. The PHCbi inCu-saFe combines the germicidal properties of elemental copper with the corrosion and discoloration resistance of stainless steel. SafeCell UV lamp decontaminates circulated air and the humidity reservoir.

Triple Protection Incubator Decontamination: The MCO-170AICUVDL-PA automatic high heat sterilization CO₂ incubator is designed for use in medical and government research, pharmaceutical and biotech applications. This dry heat incubator includes three methods of protection against cell culture contamination. In addition to inCu-saFe and SafeCell UV contamination control, an optional, manually initiated high heat sterilization cycle provides a 180°C (355°F) decontamination process without the need to remove CO₂ incubator chamber components.

PHCBI Cell-IQ Series CO2 Incubator features specifications

EXTERIOR DIMENSIONS	24.4" W x 29.7" D x 35.6" H (620 x 755 x 905 mm) - Excludes handle and other external projections
INTERIOR DIMENSIONS	19.3" W x 20.6" D x 26.2" H (490 x 523 x 665 mm)
INTERIOR VOLUME	5.8 cu.ft. (165 L)
DATA ACQUISITION	USA data download
INNER DOOR	One - tempered glass - field reversible
SHELVES	4 copper enriched, stainless steel alloy (inCu-saFe)
ACCESS PORT	1: Rear upper left (1.2" (30 mm) diameter)
INSULATION	Melamine resin foam
AIR FILTER	0.3 um, Efficiency: 99.97 % or higher
UV LAMP	4W x 1 (ozone-free emission)
NET WEIGHT	176 lbs (80 kg)
TEMPERATURE CONTROL RANGE	+ 5°C Above ambient to +50°C (ambient temperature: 5°C to 35°C)
TEMPERATURE UNIFORMITY	±0.25ºC (ambient temperature: 23ºC, setting: 37ºC, CO₂: 5 %, no load)
MAXIMUM POWER CONSUMPTION	Max. 376 W
CO2 CONTROL RANGE	0% - 2 ±0.15%
CO2 CONTROLLER	Proportional
CO2 GAS CONNECTION	0.157 inch to 0.36 inch (4 mm to 6 mm) diameter tube can be connected
CO2 GAS PRESSURE	0.03 MPa(G) (0.3kgf/cm2(G),4.3 psi(G))
CO2 VARIATION	±0.15% (ambient temperature: 23ºC, setting: 37ºC, CO₂: 5%, no load)
CO2 SENSOR TYPE	Dual-wave infrared (IR)
DATA OUTPUT	USB
DECONTAMINATION METHODS	High Heat Sterilization
CONTAMINATION CONTROLS	InCu-SaFe copper enriched stainless steel interior and shelves, standard SafeCell UV light
DECONTAMINATION CYCLE TIME	~ 11.0 Hours
DISPLAY	LCD color touchscreen - readable in 0.1° increments
HEATING SYSTEM	Direct Heat and Air Jacket System
HUMIDIFYING SYSTEM	Natural evaporation with humidifying pan, 95 %R.H.±5 %R.H.

Testing

This PHCbi Incubator is used and reconditioned. Our technicians test CO2 incubators using a digital data logger to verify the accuracy of temperature controls and readouts, as well as using a Fyrite indicator to measure CO2 levels in the chamber. Additionally, if you have specific testing requirements or requests, please inform us. We will gladly work with you to ensure these requirements are addressed during testing.

We replace any hardware or parts as is necessary and clean all incubators thoroughly prior to shipment.

Pictures

The photos above represent our equipment, which is currently stored in our warehouse. Since we often stock multiple units of each model, we may not feature photos of every unit. However, if you request, we will provide photos of your specific equipment after we test and clean it.

For inquiries about the PHCbi Cell-IQ Series CO2 Cell Culture Incubator, call us at 978-521-2221 or fill out the form on this page.

Testing Procedures for Used and Refurbished CO₂ Laboratory Incubators
Ensure Atmosphere Control, Temperature Accuracy, and Regulatory Compliance

At American Instrument Exchange, all used and refurbished CO₂ incubators undergo a multi-step testing and calibration process. These procedures are designed to ensure precise environmental control, microbial safety, and long-term reliability—critical for cell culture, IVF, tissue engineering, and pharmaceutical R&D applications.

Why Testing Used CO₂ Incubators Is Essential

Before a CO₂ incubator is redeployed into a laboratory, it must be thoroughly tested for:
• CO₂ sensor accuracy and gas concentration control
• Temperature uniformity and stability
• Humidity system function
• HEPA filtration and contamination control
• Electrical and safety compliance

Proper testing ensures viable growth environments for sensitive cultures and prevents costly contamination or culture loss in high-stakes lab environments.

Our standardized refurbishment protocol ensures used CO₂ incubators deliver laboratory grade performance at a fraction of the cost of comparable new units.

Key Testing Procedures for Refurbished and Used CO₂ Incubators

1. Initial Visual Inspection
• Inspect the exterior for corrosion, dents, or door alignment issues
• Check door gasket integrity and hinge function
• Verify presence and condition of internal shelves, water pans, and humidity trays
• Examine power cords, gas connectors, and display interfaces for signs of wear

2. Functional Startup Test
• Power on the unit and check for successful system boot
• Verify touchscreen or keypad response, and test all user-programmable settings
• Check door alarms and temperature/CO₂ alerts

3. Temperature Control and Uniformity Testing
• Use temperature probes to verify internal temperature accuracy
• Monitor temperature uniformity across multiple chamber zones
• Ensure fast recovery times after door openings

4. CO₂ Sensor Testing and Gas Delivery System Test
• Test accuracy of infrared (IR) or thermal conductivity (TC) CO₂ sensors using certified reference gas and probes/Fyrite analyzers
• Test inlet pressure regulators and gas flow control systems
• Confirm stable CO₂ levels at multiple setpoints (e.g., 5%, 10%)
• Check for proper mixing and diffusion throughout the chamber

5. Humidity and Contamination Control Testing
• Test humidity generation (via water pan or active system) and verify chamber RH levels
• Inspect HEPA filters (if equipped) and airflow systems for particulate control
• Sanitize interior and confirm antimicrobial coatings or copper components are intact

6. Electrical Safety and Compliance Check
• Ensure proper grounding and insulation of all electrical components
• Perform leak and continuity testing
• Verify the unit meets electrical safety standards for laboratory environments

7. Final Quality Assurance and Performance Validation
• Run a 24-hour performance cycle with monitored CO₂, temperature, and RH
• Document data and final readings
• Complete service report

All refurbished CO₂ incubators sold by American Instrument Exchange are tested to meet the performance demands of today's advanced laboratory workflows—ensuring safety, precision, and peace of mind with every unit.

Repair and Refurbishment Protocol for Used Laboratory Incubators
Performance and Quality from American Instrument Exchange

At American Instrument Exchange, every used laboratory incubator we sell goes through a repair and refurbishment protocol. Whether it’s a standard, CO₂, or refrigerated incubator, our goal is to restore each unit to laboratory-level performance—ensuring temperature accuracy, environmental stability, and long-term reliability in your lab.

Why Choose a Refurbished Laboratory Incubator from American Instrument Exchange?

• Fully tested for performance and safety
• Backed by a warranty
• Cost-effective alternative to new equipment
• Environmentally sustainable through reuse and restoration
• Refurbished by expert technicians with decades of lab equipment experience

Step-by-Step Refurbishment Protocol

Every incubator at American Instrument Exchange follows this comprehensive, multi-stage process:

1. Initial Intake & Inspection
• Visual inspection for cosmetic wear, corrosion, dents, or broken components
• Mechanical assessment of door hinges, gaskets, seals, and chamber components
• Document any missing parts or issues requiring repair or replacement

2. Cleaning and Decontamination
• Thorough internal and external cleaning using non-abrasive solutions
• Decontamination/cleaning of surfaces to remove biological, chemical, or particulate residue
• Cleaning of removable parts (e.g., shelves, trays, etc.)

3. Mechanical and Electrical Repair
• Repair or replacement of worn mechanical components such as door latches, fans, hinges, and seals
• Evaluation and repair of control panels, switches, thermostats, and displays
• Inspection and testing of wiring, fuses, relays, and power supplies

4. Environmental Control System Assessment
• For CO₂ incubators: CO₂ sensors, regulators, and gas delivery systems are tested
• For refrigerated incubators: compressors, condensers, and cooling systems are evaluated for performance and leaks
• Fan motors and airflow systems are tested to ensure uniform environmental conditions

5. Temperature and Sensor Testing
• All temperature sensors and controllers are tested using thermometers/probes
• Uniformity and accuracy tested at multiple chamber locations
• For humidified or CO₂ incubators, humidity and CO₂ stability are verified

6. Safety System Testing
• Test of over-temperature protection systems and alarms
• Evaluation of door sensors, safety interlocks, and power failure recovery

7. Final Quality Control and Documentation
• Full performance test run over 24 hours
• Validation of setpoints for temperature, CO₂ (if applicable), and humidity (if applicable)
• Final inspection and cleaning before packaging
• Complete service report

Trust the Experts at American Instrument Exchange

With over 50 years in the lab equipment industry, American Instrument Exchange is a trusted source for high-quality refurbished laboratory incubators. Our proven refurbishment protocol ensures every unit is reliable, accurate, and ready to meet the demands of your lab from day one.

Warranty Information

All used equipment sold by American Instrument Exchange is refurbished/reconditioned, tested to meet specifications, cleaned, and comes with a 90-day warranty from the date of shipment unless otherwise specified. New products include a warranty from the manufacturer. Your warranty is only valid if you have paid your invoice. If your invoice is over 30 days old, warranty work will not be performed until your invoice is paid in full. American Instrument Exchange is not liable for any special or consequential damages that result from the use of, or the inability to use, the materials on this site or the performance of the products,

Exceptions include international sales and items that are agreed to be sold with a lesser warranty or items that are agreed to be sold “as is.”

Should there be visible shipping damage to packaging or concealed shipping damage to item(s) supplied, buyer must communicate such damage to the delivering entity or carrier upon receipt first and to American Instrument the same day item is accepted / signed for. Failure to do so voids warranty. Customer decision to involve / procure third party or OEM service other than American Instrument or AIE assigned vendors to resolve in-warranty instrument failure or defect without first placing a service call to American Instrument voids warranty.

Return & Cancellation Policy

American Instrument Exchange will authorize the return of and issue a full refund for any equipment that is not working as represented and could not be replaced or repaired to the customer’s satisfaction by AIE or a representative of AIE during the warranty period. Returns without prior authorization and an RMA number will not be accepted.

Customers are responsible for proper packaging of the equipment and all included accessories. American Instrument will pay for insurance and shipping costs. Non-inventory items bought specifically to fill customer orders may possibly be returned, but on a case by case basis.

Customers who cancel orders after refurbishing has begun or after delivery where there are no equipment performance issues may be subject to a Restocking/Cancellation Fee of 20% or more and responsible for shipping costs for both the delivery and return.

Ongoing and Extended Support Options

American Instrument Exchange is able to provide additional repair and support services outside the warranty terms for most products that sell.

For biosafety cabinets, clean benches, chemical fume hoods, and other clean air products our team at AIE Laboratory Services can provide certifications, repairs, decontaminations, and other services for customers throughout New England, and guidance and limited technical assistance for any customers in the US and Canada for new or refurbished biosafety cabinets purchased from American Instrument Exchange.

For all other products, the repair service team at American Instrument Exchange can provide both field and depot repair evaluations. We can easily schedule and coordinate the pick-up and transportation of your malfunctioning equipment. By offering hourly rates lower than most OEM service providers and eliminating travel time for technicians, we help reduce repair costs. Furthermore, our lab depot repair service minimizes or eliminates scheduling delays. Our experienced service technicians are qualified to restore your equipment to factory specifications.

Please contact our team at info@americaninstrument.com for more details.

FAQ

Does the equipment come with a warranty?

Yes, all equipment from American Instrument Exchange comes with a warranty.
Used/reconditioned/refurbished equipment is tested to make sure it operates to the manufacturer’s specifications and comes with a 90-day warranty (unless otherwise noted). New equipment comes with a warranty from the manufacturer.

How do you test and recondition the equipment?

Testing requirements vary across all the equipment categories we sell. Temperature controlled units are tested with NIST traceable probes and data loggers. Gaskets, external housing, glass, handles, controls and control screens are all thoroughly inspected for integrity and functionality.
We test all equipment using the manufacturer's parameters and specifications to confirm that the unit operates properly. While we may not be able to test for specific analytical applications we do our best to simulate the conditions under which the equipment will be used in your lab. If you have particular testing requirements please let us know and we’ll work with you to make sure these are addressed during testing.

How do products ship from American Instrument Exchange?

We can ship products both nationally and internationally using a well-established network of transporters. Smaller items will ship via UPS. Larger equipment will be palletized and shipped either LTL or air-ride, depending on the specific equipment and/or delivery requirements. In many cases we can offer inside delivery. Customers are also welcome to make pick-up arrangements using their own preferred carrier.

All shipments are FOB Haverhill, MA. American Instrument Exchange will take reasonable steps to protect the equipment during shipment and the equipment will be fully insured. The customer will be charged for all shipping and handling charges, and fees incurred in the process of delivering the order.

For local customers in and around New England we can offer shipping and delivery using a local moving company trained by our staff to handle and deliver lab equipment. Our local movers can provide either standard dock-to-dock delivery or bring the equipment into your lab and set it in place.

Prior to signing the POD (Proof of Delivery), you are responsible for inspecting the goods for any damage. You MUST note any damage on the POD prior to letting the driver leave. This is to protect you, the receiver of the goods in the unlikely event of any damage. Once you sign the POD free and clear from damage, the goods are then deemed delivered in good order and no further claims would be applicable. This is the standard for all transportation so we want to protect you, our valued client.

Return and order cancellation policy

American Instrument Exchange will accept the return of any product that is not working as represented and could not be replaced or repaired to the customer’s satisfaction by American Instrument or a technician hired by/vetted by American Instrument Exchange’s during the warranty period. The customer will be responsible for proper packaging of the equipment and all included accessories.

Customers who cancel orders after refurbishing has begun or after delivery where there are no equipment performance issues will be subject to a cancellation and restocking fee of between 20% and 40% and responsible for the full total of the shipping & handling costs for both the delivery and the return of the equipment.

Are discounts available for educational or non-profit institutions, or for bulk purchases?

Yes – call or email us today with a list of equipment you’re looking for and we can potentially put together a quote that includes a discount.

How does your price matching policy work?

We strive to keep our pricing competitive and reasonable. If you find comparable items for sale at a lower price from other vendors please send us a link and or quote for the item and we’ll do our best to match or beat the price.

Can I see the equipment in person before committing to a purchase?

Customers are welcome to make an appointment to view equipment in our warehouse. Given our workload we may not be able to test or clean the equipment prior to your arrival if you have not committed to an order.

1023 Western Avenue is a working warehouse, not a showroom, and customers should dress appropriately and wear closed toe shoes.

Can I ship products that I purchased elsewhere to American Instrument for repair?

Yes – please see our repair services page for more information.
