Esco Labculture Class II, Type A2 4' Biosafety Cabinet

Item: 0873D BIO CAB

  • Fully tested
  • Thoroughly cleaned
  • Ships from Haverhill, MA


Contact Us

Call 978-521-2221
to request information & pricing for item 0873D BIO CAB

90-Day Warranty

American Instrument Exchange
Contact us for all your used lab equipment needs

1023 Western Ave.
Haverhill, MA 01832

Phone: 978-521-2221
Fax: 978-521-8822

Email: info@americaninstrument.com

Shipping Policy

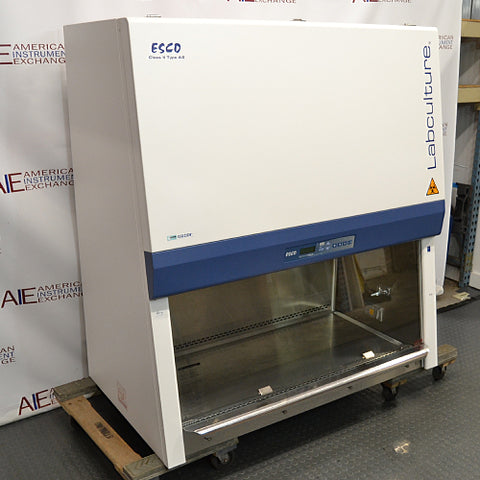

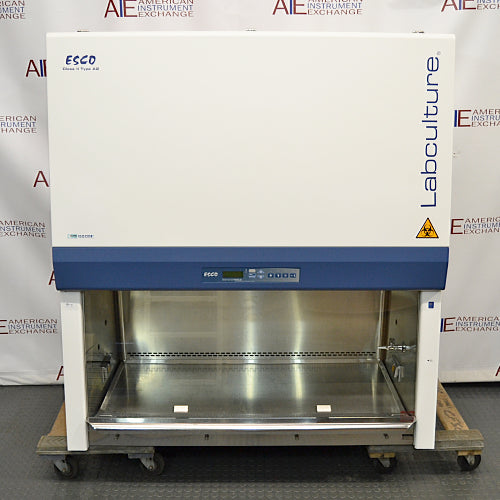

Esco Labculture 4’ Class II, Type A2 Biosafety Cabinet

  • Model LA2-4A2
  • 10” Sash opening
  • New HEPA filters included
  • Stand included
  • 90-day warranty

Esco brings decades of innovation and experience to biosafety cabinet design for enhanced operator and sample safety. Used in tens of thousands of labs worldwide, the Labculture Class II Biological Safety Cabinets blend the best in Operator and Ergonomic benefits with market-leading feature sets, quality, technology and value. A 10° sloped front window provides an ergonomic operator workstation with improved reach and comfort. The motor is quiet, durable, and energy efficient.

The Esco Labculture biosafety cabinet features the Sentinel Gold microprocessor controller; an energy efficient DC ECM motor; ULPA filtration; and ISOCIDE powder coating.

The Sentinel Gold microprocessor controller displays all safety information on one screen. It is centered and angled down for easy reach and viewing, and has a selectable Quickstart mode for fast operation.

The DC ECM motor provides 70% energy savings compared to AC motor; stable airflow, despite building voltage fluctuations & filter loading; and Night Setback mode to further reduce power consumption by 60%.

ULPA filters have 10x filtration efficiency of HEPA filters and creates an ISO Class 3 work zone instead of the industry-standard ISO Class 5. HEPA filters only offer 99.99% typical efficiency at 0.3 micron, while ULPA filters provide 99.999% typical efficiency for particle sizes of 0.1 to 0.3 micron.

The ISOCIDE powder coat is silver-ion impregnated which inhibits microbial growth to improve safety.

The design of the Esco Labculture biosafety cabinet was optimized to give large performance envelope, that provides operator and product protection at wide inflow and downflow variation from the nominal point.

Ambient air is pulled through the front grill to create inflow, without going into the work surface. Inflow is joined by half of the downflow, to create front air curtain that is fine-tuned to create a large performance envelope. The combined air stream travels through the back air column towards the blower.

Approximately ⅓ of the air in the common plenum is exhausted through the ULPA filter to the room. The remaining ⅔ of the air is passed through the downflow ULPA filter and into the work area as a vertical laminar flow air to create ISO Class 3 work surface and prevents cross contamination.

Near the work surface, the downflow splits. About half goes to the front grill, and half goes to the rear grill. A small portion enters the side capture zones to prevent dead air corners.

Our technicians test each bio safety cabinet to ensure that the controls and blower motor work properly. Unless otherwise specified all bio safety cabinets come with new HEPA filters installed by our technicians at our facility prior to shipment. Our testing procedure includes all the elements of a bio safety cabinet certification in order to ensure that the unit will pass certification once it is at your site.

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Esco Labculture 4’ Class II, Type A2 Biosafety Cabinet – Specifications

Dimensions 56.0"W x 33.5"D x 60.6”H
Interior dimensions 50.0"W x 24.5"D x 26.4"H
Average airflow volume 0.35 m/s (70 fpm)
Inflow / downflow / exhaust 328 / 476 / 328 CFM
Working Opening 10.8”
Shipping weight 624 lbs



For inquiries about the 4’ Esco Labculture A2 biosafety cabinet, please give us a call at 978-521-2221, or fill out the form on this page.
