VWR 7L Refrigerated Circulator with MX Controller

Sorry, this unit has just been sold. Please contact us for alternatives.

Item: 1509R CIRC

  • Fully tested
  • Thoroughly cleaned
  • Ships from Haverhill, MA

Contact Us

Call 978-521-2221
to request information & pricing for item 1509R CIRC

90-Day Warranty

American Instrument Exchange
Contact us for all your used lab equipment needs

1023 Western Ave.
Haverhill, MA 01832

Phone: 978-521-2221
Fax: 978-521-8822

Email: info@americaninstrument.com

Shipping Policy

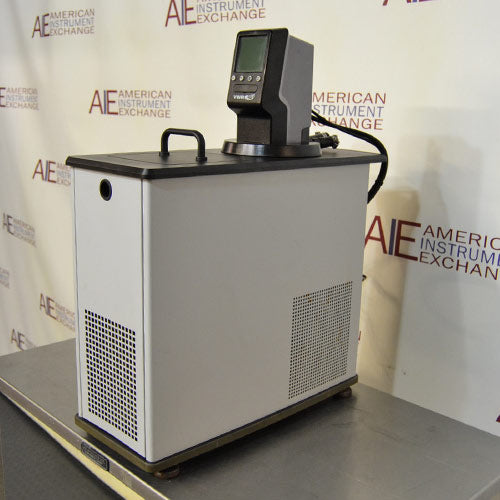

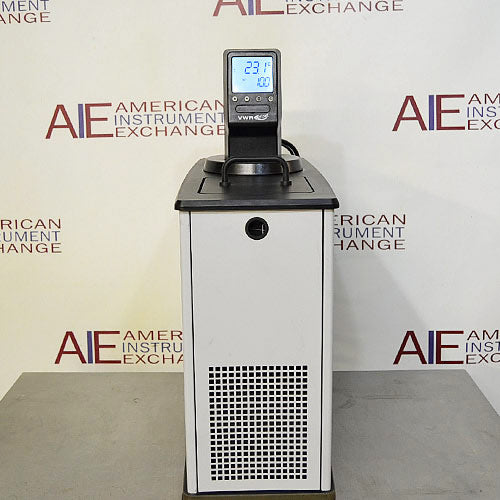

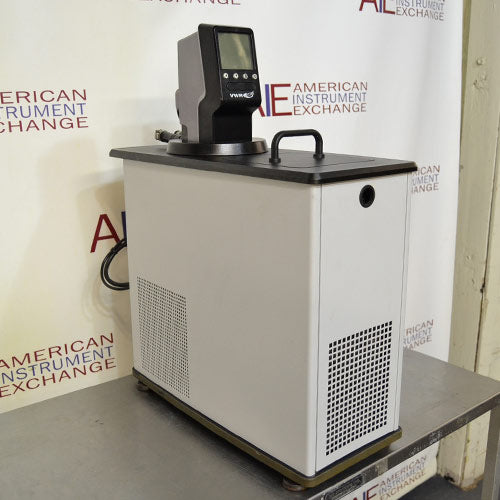

VWR 7L Refrigerated Circulator with MX Controller

  • Model 98202-966
  • Temperature range: -20°C to 135°C
  • Max flow rate: 3.6 gpm
  • Large LCD display
  • 90-day warranty

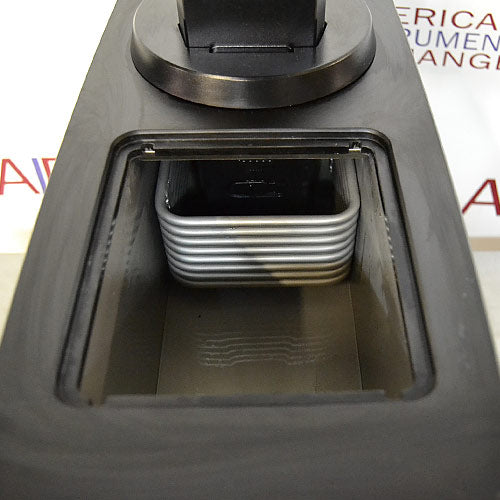

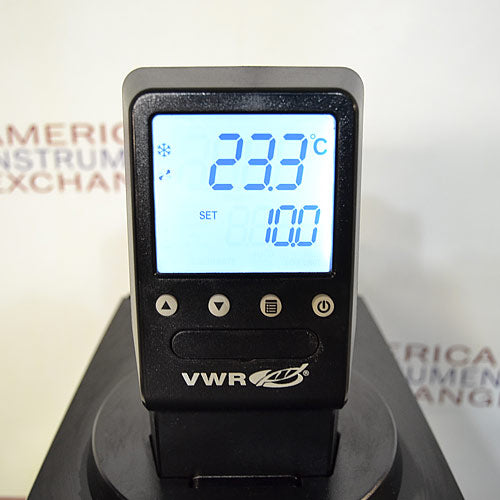

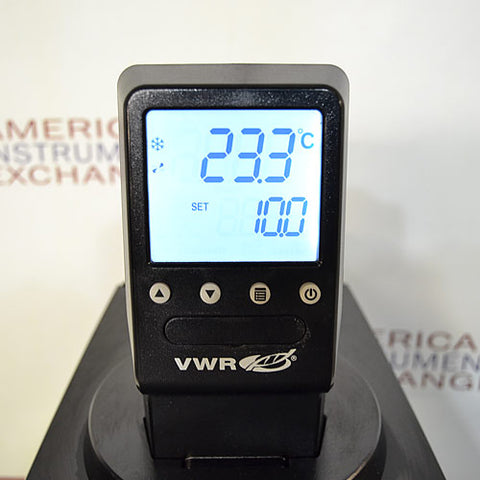

The large, LCD display on the MX temperature controller is easily viewed across the lab. The Advanced Digital temperature controller offers a touchpad, while the Advanced Programmable Temperature Controller includes a full touch-screen display, and programmability (ten 100-step programs). The MX provides working temperatures from -20°C to 135°C with single-point calibration. The VWR 7L refrigerated circulator includes the LidDock lid stowing system that gives the lid a convenient place to perch while you add liquid or work with samples, without interfering with the controller viewing or operation.  The DuraTop precision molded phenolic bath top, which remains cooler at high temperatures and resists laboratory chemicals. It is easy to clean, disinfect, and maintain.

CLICK HERE to watch a video of the VWR 7L refrigerated circulator with MX controller on American Instrument Exchange's YouTube channel.

Certifications: ETL listed. CE marked. MX Controller complies with DIN 12876-1 Class I safety requirements for use with non-flammable liquids. Advanced Digital and Advanced Programmable comply with DIN 12876-1 Class III safety requirements for use with flammable liquids. cETLus compliant.

All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

VWR 7L Refrigerated Circulator with MX Controller – Specifications

Dimensions 8.7”W x 21.3D x 25.4”H
Working access 5.59”W x 6.18”D x 5”H
Temperature range -20°C to 135°C
Temperature stability ±0.07°C
Max pressure 2.3 psi (0.16 bar)
Max pressure flow rate  3.6 gpm (13.5 l/min)
Electrical requirements 120V, 60Hz

For inquiries about the VWR 7L Refrigerated Circulator with MX Controller, please give us a call at 978-521-2221, or fill out the form on this page.
