Heidolph Rotary Evaporator
- Model Laborota 4000
- Rotation speeds: 20 to 270 RPM
- Max bath temp – water: 100°C
- Max bath temp – oil: 180°C
- 90-day warranty
The Heidolph rotary evaporators will meet the requirements of any laboratory. Designed for simple and complex distillations of volumes from 50 mL to 3L. Economic modular design allows for a choice of 5 interchangeable condenser assemblies with or without plastic safety coating, water or oil bath and manual or motor lift. Small footprint of 396 mm × 440 mm. Long lasting graphite-filled PTFE vacuum seal between drive and vapor tube provides leak-free, greaseless operation. Drive motor is quiet, brushless, sparkless and maintenance free. Rotary drive is electronically controlled, range from 20 to 270 rpm.
Non-stick, quick release, large bore vapor tube has a diameter of 26 mm for faster distillations. Quick release flask ejector easily expels any flask that may become stuck. Adjustable gliding water and oil baths have encapsulated heating elements to prevent scalding and feature optional digital bath temperature display. Self-explanatory control elements, large dials, and single-handed fixing of immersion of evaporating flask allow for ease of use.
All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

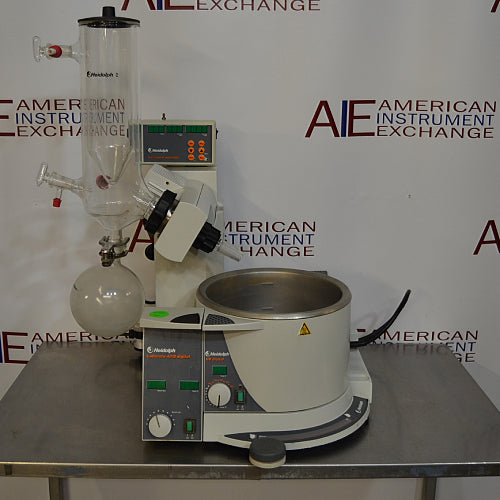

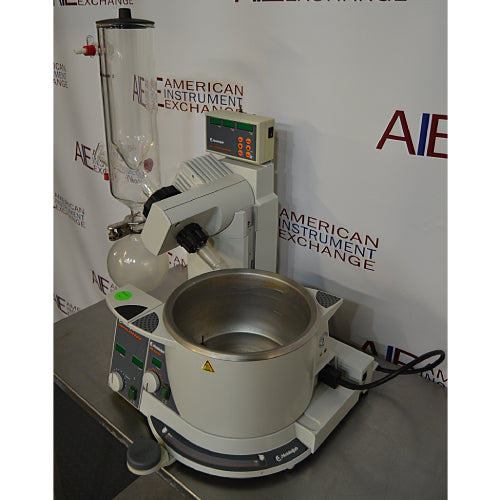

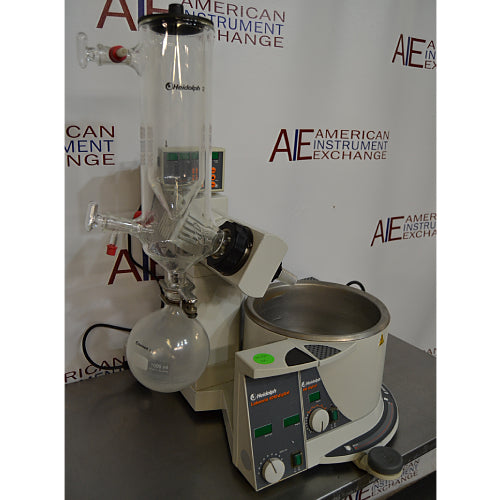

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
For inquiries about the Heidolph Rotary Evaporator, please give us a call at 978-521-2221, or fill out the form on this page.
