to request information & pricing for item 2326A FILTER
Millipore Labscale TFF
- 500 mL reservoir
- Min. recirculating volume: 20 mL
- 90-day warranty
The Millipore Labscale TFF is a high-performance, tangential flow filtration (TFF) system is ideally suited for process development at volumes from 50 to 1000 mL, process scale-up assisted by built-in controls, and sample preparation. The Labscale TFF System can be operated in either concentration or continuous diafiltration modes.
CLICK HERE to see the Labscale TFF on our YouTube channel

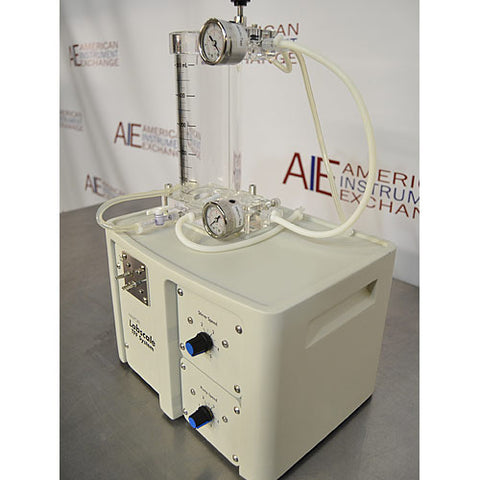

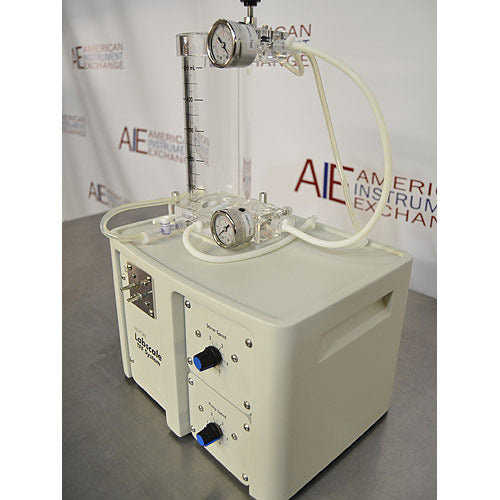

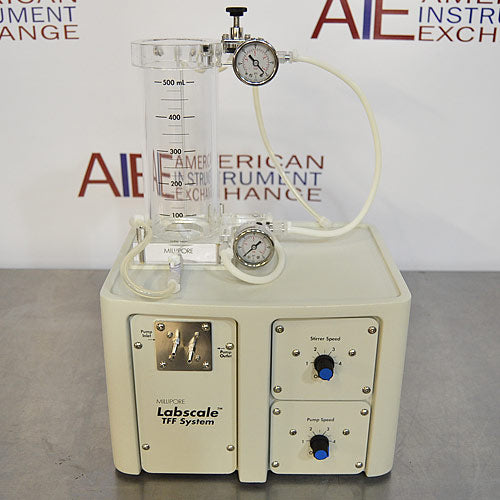

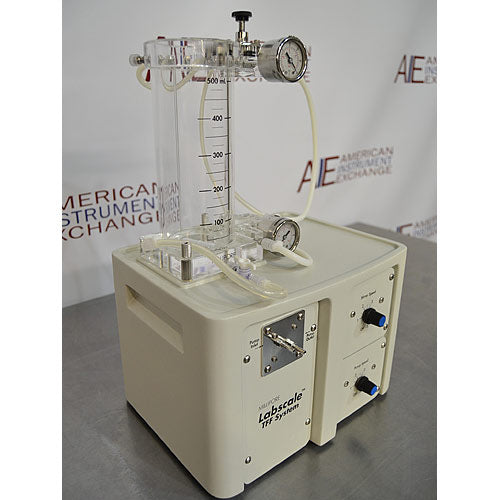

The system’s graduated 500 mL acrylic reservoir includes a retentate back pressure valve, feed and retentate pressure indicators, a stirrer assembly and diaphragm pump assembly. The system’s graduated 500 mL acrylic reservoir includes a retentate back pressure valve, feed and retentate pressure indicators, a stirrer assembly and diaphragm pump assembly.
All wetted parts meet the requirements of USP Class VI testing and CFR 21 regulations.
All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.
The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
Millipore Labscall TFF 29751 - Specifications
|Dimensions||11"W x 8.5"D x 18"H|
|Maximum inlet pressure||4.2 bar (60 psig)|
|Operating temperature range||4º - 45ºC|
|Feed flow rate||10 -100 mL/min at 60 psi|
|Electrical requirements||115V, 60Hz|
For inquiries about the Labscale TFF, please give us a call at 978-521-2221, or fill out the form on this page.
