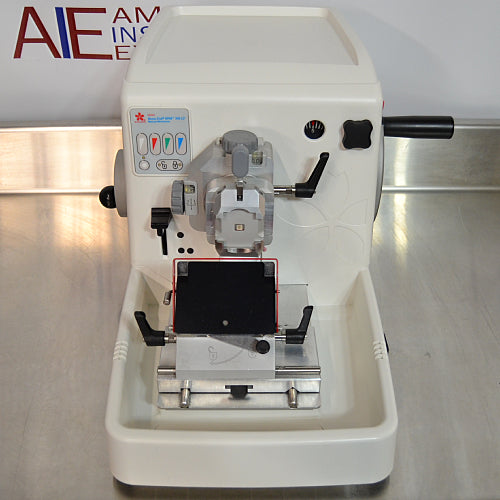

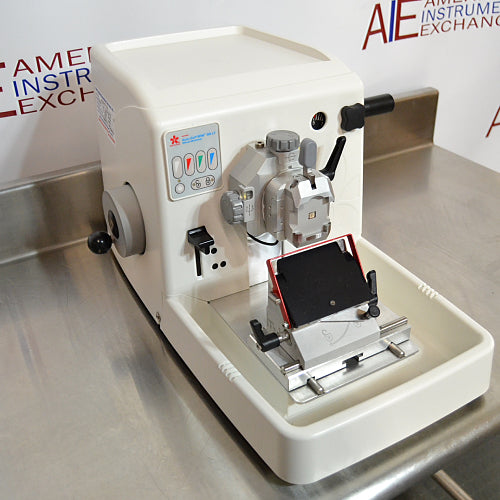

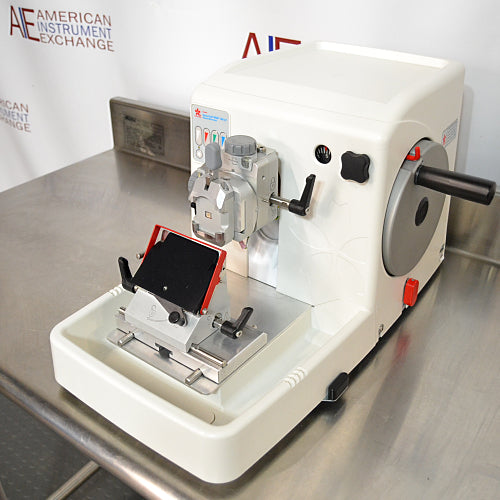

Sakura Accu-Cut SRM 300 LT Manual Microtome
- Section thickness: 1 to 40 microns
- 64 mm vertical stroke
- 9 mm horizontal stroke
- 90-Day warranty
The Accu-Cut SRM 300 LT Manual Microtome has a patented multi-colored LED backlit chuck to illuminate paraffin embedded tissue samples making them much easier to see and safer to section. The backlight increases contrast between specimens and paraffin so users can see exactly where the tissue is located to prevent cutting through a small biopsy or previously sectioned block.
The Accu-Cut SRM 300 LT features a 3D Precision Chuck for accurate alignment of the block face to the blade on all three axes (XYZ), which is crucial for recuts. The sturdy chuck retains its position when locked and unlocked, eliminating any time and effort spent realigning the cutting angle. The 3D Precision Chuck can quickly and accurately be returned to a zero position with the dial indicators.
CLICK HERE to see the Sakura AccuCut SRM 300 LT on our YouTube channel
The compact and ergonomic design helps to minimize cumulative stress on the user and increases both efficiency and productivity. The course hand wheel is optimally sized and positioned for comfortable trimming in either clockwise or counterclockwise rotation and is switchable by the user.
The Accu-Cut SRM 300 LT includes many exclusive features that reduce the risk of accidental injuries associated with blade exposure:
- The Brake Lock Indicator that displays that the chuck is locked and will not move while the user interacts with the microtome, providing users with peace-of-mind.
- The Red Blade Guard can be set in the UP position to protect the user from accidental exposure to the blade edge while sectioning.
- A Universal Blade Holder base, featuring lateral displacement, allows operators to use the full length of the microtome blade without releasing the blade clamping mechanism or direct blade manipulation.
- The Accu-Cut SRM 300 LT offers a space-saving Tool Organizer giving back precious bench space.
Compatible with Accu-Edge Disposable Blades, the Accu-Cut SRM 300 LT ensures superior sectioning in the precise art of cutting quality tissue samples section after section, time after time.
All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.
The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
Sakura Accu-Cut SRM 300 LT Manual Microtome – Specifications
|Dimensions||16.5”W x 20.7”D x 11.8”H|
|Section thickness||1 to 40 microns
1 to 10 microns in 1 micron increments
10 to 20 microns in 2 micron increments
20 to 40 microns in 5 micron increments
|Trimming thickness lever||10 or 40 microns|
|Stroke||64 mm vertical / 26.9 mm horizontal|
|Specimen orientation using the 3D precision chuck||±8° (XYZ axes)
Dial indicators show the exact angle of the chuck
For inquiries about the Sakura Accu-Cut SRM 300 LT Manual Microtome, please give us a call at 978-521-2221, or fill out the form on this page.
