Chemglass 50L Reactor

Chemglass 50L Custom Gas Scrubber

• 50L Reservoir
• Heavy-duty mobile support frame
• Yamada DP-5F High purity pump
• 90-day warranty

Laboratory scale gas scrubber for use in many air and exhaust cleanup tasks. Gas scrubbing takes place when the exhaust enters the inlet in the round bottom flask and travels upward through the absorption column. The scrubbing fluid is pumped from the round bottom flask upwards into the shower head adapter and then flows counter-current to the exhaust gas through the packed column thereby causing intensive contact between the two. Scrubber can be used by creating either a positive flow through the reaction vessel using a carrier such as nitrogen, or by connection of a vacuum source to the column adapter.

CLICK HERE to see the Chemglass 50L Custom Gas Scrubber on our YouTube channel

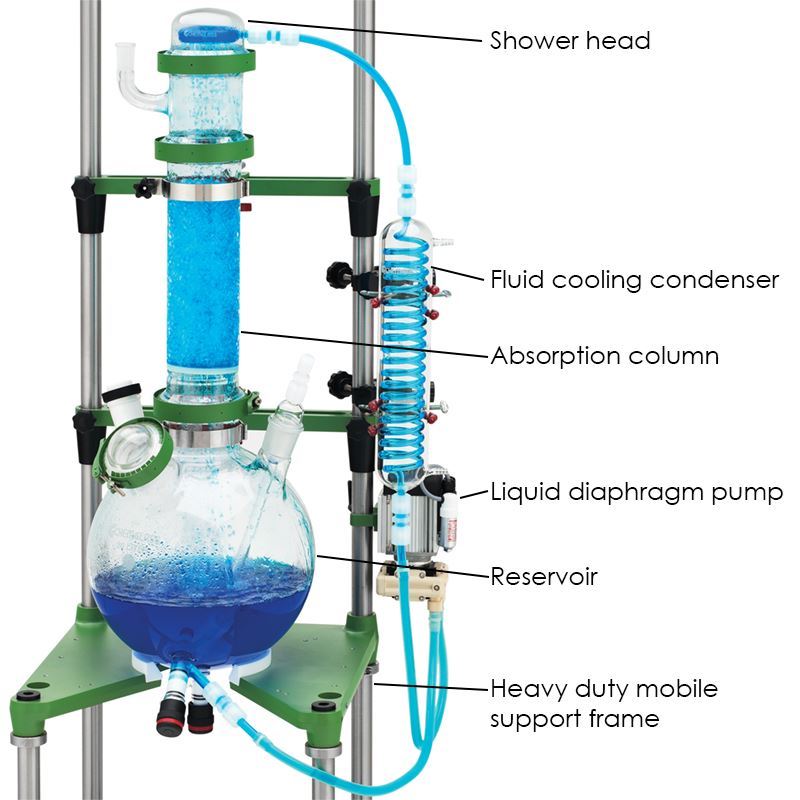

Complete scrubber consists of lower reservoir, absorption column with glass-filled TFE packing support disc, glass raschig rings column packing material, exhaust gas outlet column, top shower head adapter, Yamada DP-5F High purity pump, 3ea quick release column clamps, 3ea envelope style gaskets, fluid cooling condenser, gas inlet adapter, PTFE tubing and 5ea PFA compression fittings.

The Yamada DP-5F High purity pump has a Maximum flow up to 2.91 gal/min.

All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

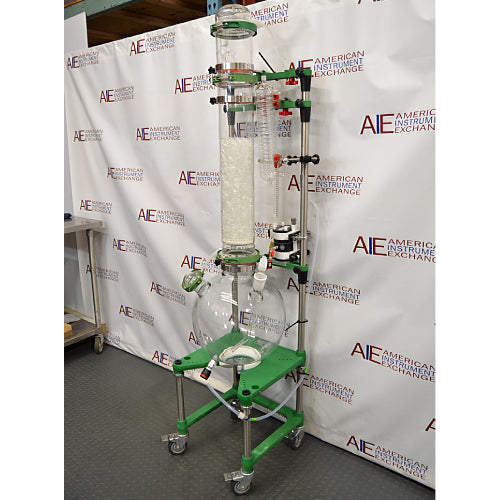

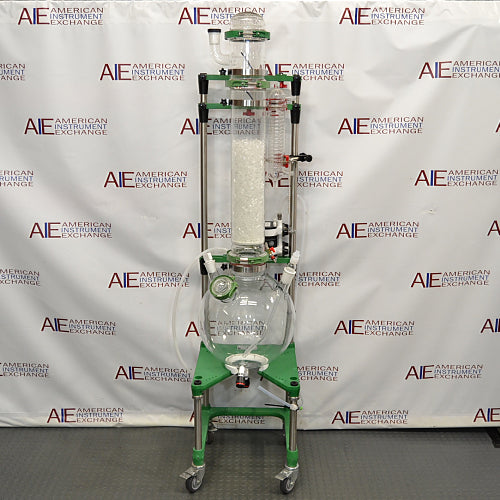

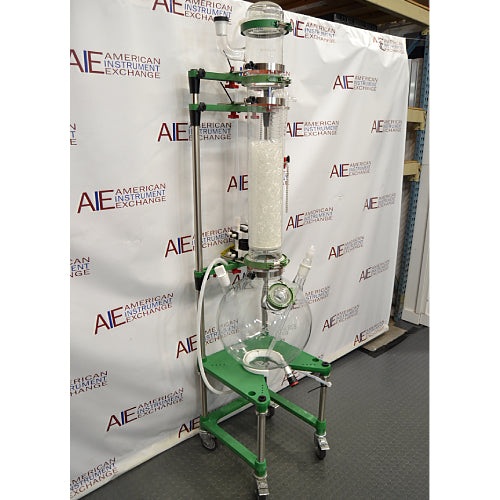

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

For inquiries about the Chemglass 50L Custom Gas Scrubber, please give us a call at 978-521-2221, or fill out the form on this page.
