Eberbach E5650 Benchtop Reciprocal Shaker
to request information & pricing for item 4822F SHAKER
Eberbach Benchtop Reciprocal Shaker
- Model E5650
- Speed range: 20 - 240 osc/min
- Stroke: adjustable at 1” or 1.5”
- 90-day warranty
Eberbach’s E5650 Digital Bench top Reciprocal Shaker is designed expressly to occupy a minimum of bench space while maintaining the versatility of our larger units. The unit is powered by a 1/17 hp Bodine DC motor which drives the platform through a filtered SCR controller. The speed is continuously variable between a range of 20 - 240 osc/min. Yet, at a given setting the speed is constant and is not affected by normal line voltage fluctuations. The horizontal stroke is adjustable at 1” or 1-1/2”. (factory set at 1”). This reciprocal shaker model will shake a load of 40 lbs at low speed and 20 lbs at maximum. Its bench top footprint measures 21”x 15”. A digital controller controls platform speed and allows for timed operations.
All of the equipment we sell is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

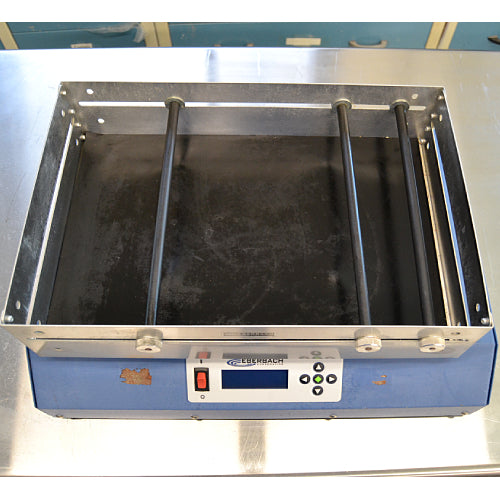

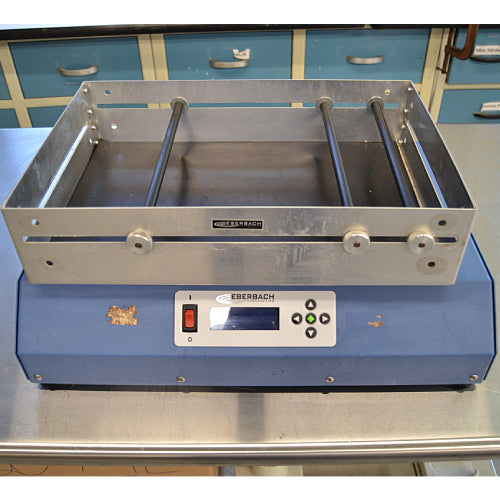

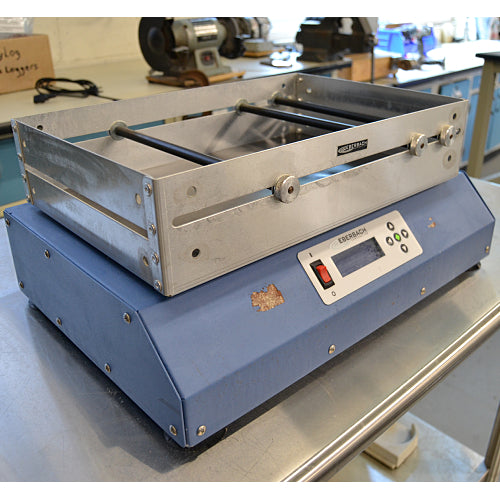

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
Eberbach Benchtop Reciprocal Shaker - specifications
|Exterior dimensions||21”W x 15”D x 6.3”H|
|Capacity||40 lbs at slow speeds / 20 lbs at high speeds|
|Speed range||20 - 240 osc/min|
|Stroke||adjustable at 1” or 1.5”|
|Electrical requirements||115 V, 50/60 Hz|
For inquiries about the Eberbach Benchtop Reciprocal Shaker, please give us a call at 978-521-2221, or fill out the form on this page.
