Thermo Scientific 20LREETSA Laboratory Refrigerator

Product Code : SKU 4388Z REFRIG

Sold Out

⚠

Currently Unavailable

This item is temporarily out of stock. Please contact us for availability updates or explore similar alternatives below.

View Similar Equipment Call 978-521-2221

We Can Help You Find:

Similar equipment currently in stock
Alternative brands with comparable specifications
Refurbished units (fully tested & warrantied)

Price Match Policy

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

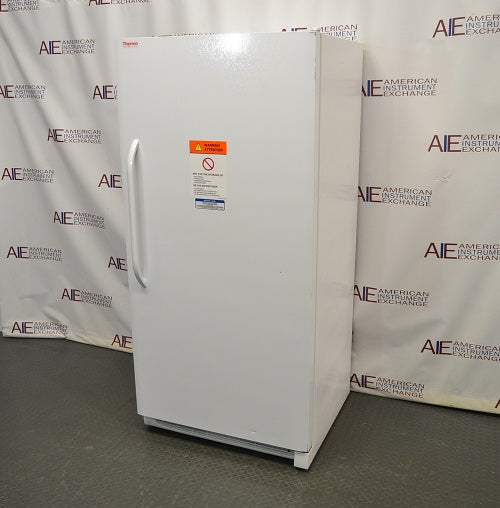

Thermo Scientific 20LREETSA General Purpose Laboratory Refrigerator

The Thermo Scientific 20LREETSA General Purpose Laboratory Refrigerator is a laboratory-grade refrigerator designed to provide dependable, energy-efficient refrigerated storage for research, clinical, pharmaceutical, and industrial laboratories. Featuring 20.3 cubic feet (575 L) of storage capacity and an operating temperature range of 1°C to 12°C, the 20LREETSA is well suited for storing laboratory reagents, biological specimens, vaccines, media, pharmaceuticals, and other temperature-sensitive materials that require reliable cold storage.

Engineered specifically for scientific environments, the 20LREETSA combines a digital microprocessor controller, positive forced-air circulation, comprehensive alarm monitoring, environmentally friendly R290 natural refrigerant, and a durable laboratory-grade cabinet. Unlike residential refrigerators, it is designed to provide excellent temperature uniformity, rapid recovery following door openings, and dependable long-term performance for valuable laboratory inventory.

Many laboratories pair the 20LREETSA with ultra-low freezers, laboratory freezers, biosafety cabinets, and centrifuges to create a complete laboratory cold-storage workflow.

Thermo Scientific 20LREETSA Key Features

Manufacturer: Thermo Scientific
Model: 20LREETSA
20.3 cu. ft. (575 L) storage capacity
Temperature range: 1°C to 12°C
Digital microprocessor temperature controller
Bright LED temperature display
Positive forced-air circulation
High/low temperature alarms
Door ajar alarm
Power failure alarm
Audible and visual alarm system
Built-in probe access port
Solid lockable door with magnetic gasket
Four adjustable wire shelves
Heavy-duty casters
Environmentally friendly R290 natural refrigerant
CFC- and HCFC-free insulation
Refurbished and performance tested by American Instrument Exchange
90-day warranty included.

Overview

The Thermo Scientific 20LREETSA is designed to provide reliable refrigerated storage for laboratories where temperature stability is essential. A microprocessor-based control system continuously monitors cabinet temperature while the forced-air refrigeration system rapidly distributes conditioned air throughout the storage chamber to promote excellent temperature uniformity and fast recovery after routine door openings.

The cabinet incorporates audible and visual alarms for high and low temperature conditions, door ajar events, and power failures, helping laboratories protect valuable samples and maintain regulatory compliance. Heavy-duty construction, adjustable shelving, and a lockable solid door make the 20LREETSA an excellent choice for everyday laboratory use.

Common Applications

The Thermo Scientific 20LREETSA is commonly used for storing laboratory reagents, biological specimens, cell culture media, vaccines, pharmaceutical products, proteins, antibodies, enzymes, diagnostic kits, calibration standards, and quality-control materials requiring dependable refrigerated storage. Its combination of laboratory-grade controls, alarm monitoring, and forced-air temperature uniformity makes it an excellent solution for research laboratories, hospitals, biotechnology companies, and pharmaceutical manufacturing facilities.

Ideal Laboratory Types

Biotechnology companies
Pharmaceutical manufacturers
Academic research laboratories
Clinical laboratories
Hospitals
Government laboratories
Environmental testing laboratories
Industrial quality assurance laboratories

Why Choose the Thermo Scientific 20LREETSA?

The 20LREETSA combines the dependable performance expected from Thermo Scientific laboratory refrigeration with modern safety and monitoring features. Microprocessor controls, forced-air circulation, comprehensive alarms, and environmentally friendly R290 refrigerant provide excellent temperature stability while reducing energy consumption. Its moderate 20 cubic foot capacity also makes it an ideal solution for laboratories requiring substantial refrigerated storage without the footprint of larger double-door models.

Typical Stored Materials

The Thermo Scientific 20LREETSA is commonly used to store laboratory reagents, biological specimens, vaccines, media, proteins, antibodies, enzymes, pharmaceutical products, diagnostic kits, calibration standards, quality-control samples, and other temperature-sensitive laboratory supplies.

Thermo Scientific 20LREETSA Key Specifications

Identification

Manufacturer: Thermo Scientific
Model: 20LREETSA
Product Type: General Purpose Laboratory Refrigerator

Capacity

20.3 cu. ft. (574.8 L)

Temperature Range

1°C to 12°C
Digital microprocessor control

Construction

Solid insulated door

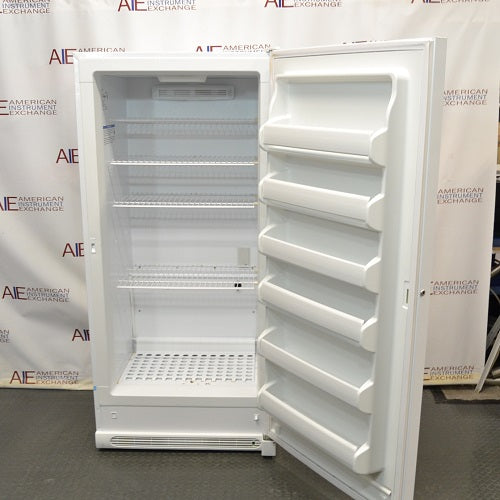

Four adjustable wire shelves
Heavy-duty casters
Lockable door with magnetic gasket
CFC- and HCFC-free insulation

Refrigeration System

Positive forced-air circulation
Hermetic compressor
R290 natural refrigerant
High-density polyurethane insulation

Monitoring & Controls

Digital microprocessor controller
LED temperature display
Audible and visual alarms
High/low temperature alarm
Door ajar alarm
Power failure alarm
Probe access port

Electrical Requirements

115V, 60 Hz
5.0 Amps
NEMA 5-15P plug

Exterior Dimensions

29.5" W × 30" D × 72.5" H

Interior Dimensions

23.5" W × 25" D × 58" H

Weight

Approximately 280 lbs.

Operating Costs & Energy Considerations

The 20LREETSA utilizes an energy-efficient refrigeration system with environmentally friendly R290 refrigerant and high-density insulation to reduce energy consumption while maintaining dependable temperature performance. Regular condenser cleaning, adequate ventilation, and periodic inspection of the door gasket will help maximize cooling efficiency and extend equipment life.

Specifications compiled from Thermo Scientific manufacturer literature and American Instrument Exchange product information.

Refurbishment & Testing Process

Every Thermo Scientific 20LREETSA received by American Instrument Exchange undergoes a comprehensive inspection before shipment. Our technicians verify temperature accuracy using calibrated monitoring equipment, inspect the refrigeration system, microprocessor controller, alarm functions, probe access port, shelving, door gasket, hinges, compressor, and overall cabinet condition. Each refrigerator is thoroughly cleaned, temperature tested, and verified for dependable laboratory operation prior to shipment.

Laboratories building complete cold-storage systems frequently purchase ultra-low freezers, laboratory freezers, biosafety cabinets, centrifuges, and additional laboratory refrigerators from American Instrument Exchange.

Shipping & Installation Considerations

The Thermo Scientific 20LREETSA ships by freight from American Instrument Exchange. Before installation, verify doorway clearances, available electrical service, and adequate ventilation around the cabinet. Allow the refrigerator to stabilize at operating temperature before loading valuable laboratory materials to ensure optimum temperature stability.

Frequently Asked Questions

What is the model number of this refrigerator?

This refrigerator is the Thermo Scientific Model 20LREETSA.

How much storage capacity does the 20LREETSA provide?

The refrigerator provides 20.3 cubic feet (574.8 liters) of laboratory refrigerated storage.

What temperature range does the 20LREETSA maintain?

The refrigerator maintains temperatures between 1°C and 12°C using a digital microprocessor control system with forced-air circulation.

How is the 20LREETSA tested before shipment?

Every refurbished Thermo Scientific 20LREETSA is inspected and temperature tested by American Instrument Exchange technicians. Refrigeration performance, controls, alarms, temperature stability, shelving, door operation, and overall cabinet functionality are verified before shipment.

Testing Procedures for Used and Refurbished Laboratory Refrigerators
Ensure Temperature Stability and Cold Storage Accuracy

Used and refurbished laboratory refrigerators from American Instrument Exchange are thoroughly tested to ensure reliable cold storage performance, temperature accuracy, and compliance with laboratory safety and storage standards. Each unit undergoes a detailed inspection and functional verification to meet the requirements of clinical, pharmaceutical, research, and industrial labs.

Why Testing Used Laboratory Refrigerators Is Essential

Before a laboratory refrigerator is reintroduced into any laboratory setting, it must be carefully tested for:

• Temperature uniformity and stability
• Cooling system integrity and compressor function
• Door seal performance and insulation effectiveness
• Electrical safety and compliance with lab standards

Thorough testing minimizes the risk of temperature excursions, product loss, and system failures—especially critical for storing reagents, vaccines, biological samples, pharmaceuticals, and temperature-sensitive materials.

Our structured testing protocol ensures refurbished lab refrigerators deliver consistent, dependable performance across all makes and models.

Key Testing Procedures for Refurbished and Used Laboratory Refrigerators

1. Initial Visual Inspection
• Check exterior surfaces, hinges, and door gaskets for wear, corrosion, or damage
• Inspect power cords, plugs, and control panels for fraying or visible defects
• Verify that shelves, racks, and internal compartments are present and functional

2. Functional Testing
• Power on the refrigerator and verify that display screens, alarms, and controls function properly
• Test door latches and sealing mechanisms to ensure secure closure and insulation
• Run preliminary temperature cycles to observe startup behavior and cooling response

3. Temperature and Stability Testing
• Test internal temperature sensors and controllers using thermometers/probes
• Monitor temperature at multiple points within the chamber over an extended period
• Verify accuracy across user-defined setpoints (e.g., +4°C, +2°C to +8°C range)

4. Cooling System and Compressor Evaluation
• Test compressor startup, cycling, and operating noise levels
• Inspect condenser coils and fans for proper function and cleanliness
• Check refrigerant pressure (if applicable) and confirm there are no leaks or system inefficiencies

5. Electrical Safety and Compliance Checks
• Ensure all internal and external electrical components are properly grounded
• Perform insulation resistance and leakage current tests
6. Final Quality Assurance Checklist
• Run full operational tests over a 24-hour period
• Document temperature logs, control responsiveness, and system performance
• Complete a detailed service report

All refurbished laboratory refrigerators from American Instrument Exchange are backed by our rigorous testing standards and quality commitment. From vaccine storage to reagent preservation, you can count on consistent cold storage performance from day one.

Repair and Refurbishment Protocol for Used Laboratory Refrigerators
Cold Storage Performance from American Instrument Exchange

At American Instrument Exchange, every used laboratory refrigerator we offer is subjected to a comprehensive repair and refurbishment protocol. Whether it’s a general-purpose lab refrigerator, pharmaceutical-grade unit, or undercounter model, our goal is to restore each system to peak performance—ensuring consistent temperature control and reliable to laboratory storage standards.

Why Choose a Refurbished Laboratory Refrigerator from American Instrument Exchange?

• Fully tested for cold storage accuracy and operational safety
• Backed by a warranty
• Cost-effective alternative to new refrigeration equipment
• Sustainably refurbished to reduce environmental impact
• Serviced by expert technicians with decades of laboratory equipment experience

Step-by-Step Refurbishment Protocol

Every laboratory refrigerator from American Instrument Exchange follows a detailed, multi-stage process to ensure top-tier performance and reliability:

1. Initial Intake & Inspection

• Visual inspection for dents, corrosion, or structural damage
• Mechanical check of door hinges, gaskets, seals, and internal components
• Documentation of missing parts or areas requiring repair or replacement

2. Cleaning and Decontamination

• Internal and external cleaning using non-abrasive, lab-safe cleaners
• Decontamination/cleaning of all surfaces to remove biological or chemical residues
• Thorough cleaning of shelving, drawers, and removable interior parts

3. Mechanical and Electrical Repairs

• Replacement or repair of worn mechanical parts (door latches, seals, hinges, etc.)
• Inspection and restoration of control interfaces, thermostats, sensors, and displays
• Evaluation of wiring, relays, fuses, and power supply components for safety and integrity

4. Refrigeration System and Compressor Evaluation

• Testing of compressor function, condenser coils, and evaporators
• Inspection for refrigerant leaks and pressure performance (if applicable)
• Verification of proper airflow, fan operation, and defrost cycles

5. Temperature and Performance Testing

• Testing of temperature sensors and control boards
• Verification of temperature stability and uniformity throughout the chamber
• Testing of multiple setpoints (e.g., +2°C to +8°C) over extended operating periods

6. Safety and Compliance Checks

• Inspection of grounding and electrical insulation per lab safety standards
• Testing of alarm systems (if applicable) for temperature excursions or power failure

7. Final Quality Control and Documentation

• Multi-day operational test under real-world conditions
• Final cleaning, inspection, and performance validation
• Detailed service report with temperature logs, repair notes, and certification of refurbishment

Trust the Experts at American Instrument Exchange

With over 50 years of industry experience, American Instrument Exchange is a leading provider of high-quality refurbished laboratory equipment. Our proven laboratory refrigerator refurbishment protocol ensures consistent, accurate cold storage—so you can safeguard your samples, reagents, and research materials with confidence.

Warranty Information

All used equipment sold by American Instrument Exchange is refurbished/reconditioned, tested to meet specifications, cleaned, and comes with a 90-day warranty from the date of shipment unless otherwise specified. New products include a warranty from the manufacturer. Your warranty is only valid if you have paid your invoice. If your invoice is over 30 days old, warranty work will not be performed until your invoice is paid in full. American Instrument Exchange is not liable for any special or consequential damages that result from the use of, or the inability to use, the materials on this site or the performance of the products,

Exceptions include international sales and items that are agreed to be sold with a lesser warranty or items that are agreed to be sold “as is.”

Should there be visible shipping damage to packaging or concealed shipping damage to item(s) supplied, buyer must communicate such damage to the delivering entity or carrier upon receipt first and to American Instrument the same day item is accepted / signed for. Failure to do so voids warranty. Customer decision to involve / procure third party or OEM service other than American Instrument or AIE assigned vendors to resolve in-warranty instrument failure or defect without first placing a service call to American Instrument voids warranty.

Return & Cancellation Policy

American Instrument Exchange will authorize the return of and issue a full refund for any equipment that is not working as represented and could not be replaced or repaired to the customer’s satisfaction by AIE or a representative of AIE during the warranty period. Returns without prior authorization and an RMA number will not be accepted.

Customers are responsible for proper packaging of the equipment and all included accessories. American Instrument will pay for insurance and shipping costs. Non-inventory items bought specifically to fill customer orders may possibly be returned, but on a case by case basis.

Customers who cancel orders after refurbishing has begun or after delivery where there are no equipment performance issues may be subject to a Restocking/Cancellation Fee of 20% or more and responsible for shipping costs for both the delivery and return.

Ongoing and Extended Support Options

American Instrument Exchange is able to provide additional repair and support services outside the warranty terms for most products that sell.

For biosafety cabinets, clean benches, chemical fume hoods, and other clean air products our team at AIE Laboratory Services can provide certifications, repairs, decontaminations, and other services for customers throughout New England, and guidance and limited technical assistance for any customers in the US and Canada for new or refurbished biosafety cabinets purchased from American Instrument Exchange.

For all other products, the repair service team at American Instrument Exchange can provide both field and depot repair evaluations. We can easily schedule and coordinate the pick-up and transportation of your malfunctioning equipment. By offering hourly rates lower than most OEM service providers and eliminating travel time for technicians, we help reduce repair costs. Furthermore, our lab depot repair service minimizes or eliminates scheduling delays. Our experienced service technicians are qualified to restore your equipment to factory specifications.

Please contact our team at info@americaninstrument.com for more details.

FAQ

Does the equipment come with a warranty?

Yes, all equipment from American Instrument Exchange comes with a warranty.
Used/reconditioned/refurbished equipment is tested to make sure it operates to the manufacturer's specifications and comes with a 90-day warranty (unless otherwise noted). New equipment comes with a warranty from the manufacturer.

How do you test and recondition the equipment?

Testing requirements vary across all the equipment categories we sell. Temperature controlled units are tested with NIST traceable probes and data loggers. Gaskets, external housing, glass, handles, controls and control screens are all thoroughly inspected for integrity and functionality.
We test all equipment using the manufacturer's parameters and specifications to confirm that the unit operates properly.

How do products ship from American Instrument Exchange?

We can ship products both nationally and internationally using a well-established network of transporters. Smaller items will ship via UPS. Larger equipment will be palletized and shipped either LTL or air-ride, depending on the specific equipment and/or delivery requirements.

Return and order cancellation policy

American Instrument Exchange will accept the return of any product that is not working as represented and could not be replaced or repaired to the customer's satisfaction during the warranty period. Customers who cancel orders after refurbishing has begun will be subject to a cancellation and restocking fee of between 20% and 40%.

Are discounts available for educational or non-profit institutions, or for bulk purchases?

Yes – call or email us today with a list of equipment you're looking for and we can potentially put together a quote that includes a discount.

How does your price matching policy work?

We strive to keep our pricing competitive and reasonable. If you find comparable items for sale at a lower price from other vendors please send us a link and or quote for the item and we'll do our best to match or beat the price.

Can I see the equipment in person before committing to a purchase?

Customers are welcome to make an appointment to view equipment in our warehouse. Given our workload we may not be able to test or clean the equipment prior to your arrival if you have not committed to an order.

1023 Western Avenue is a working warehouse, not a showroom, and customers should dress appropriately and wear closed toe shoes.

Can I ship products that I purchased elsewhere to American Instrument for repair?

Yes – please see our repair services page for more information.
