Labconco XPert 3950402 4' Filtered Balance System
Shipping
All products ship from our 30,000 sq. ft. Haverhill, MA warehouse
Shipping
All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

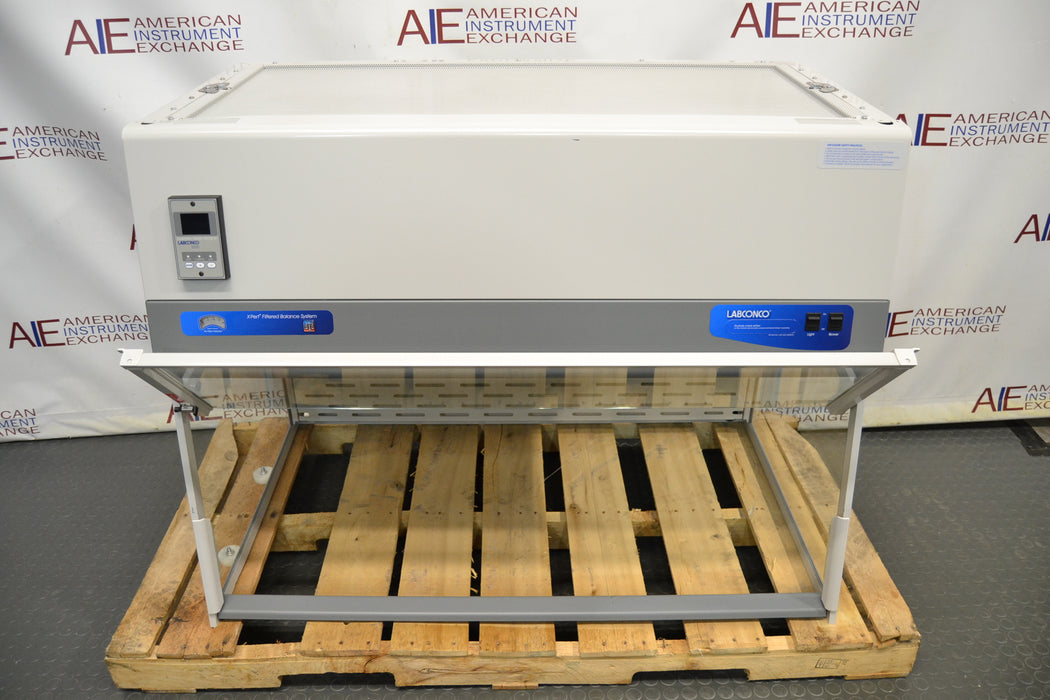

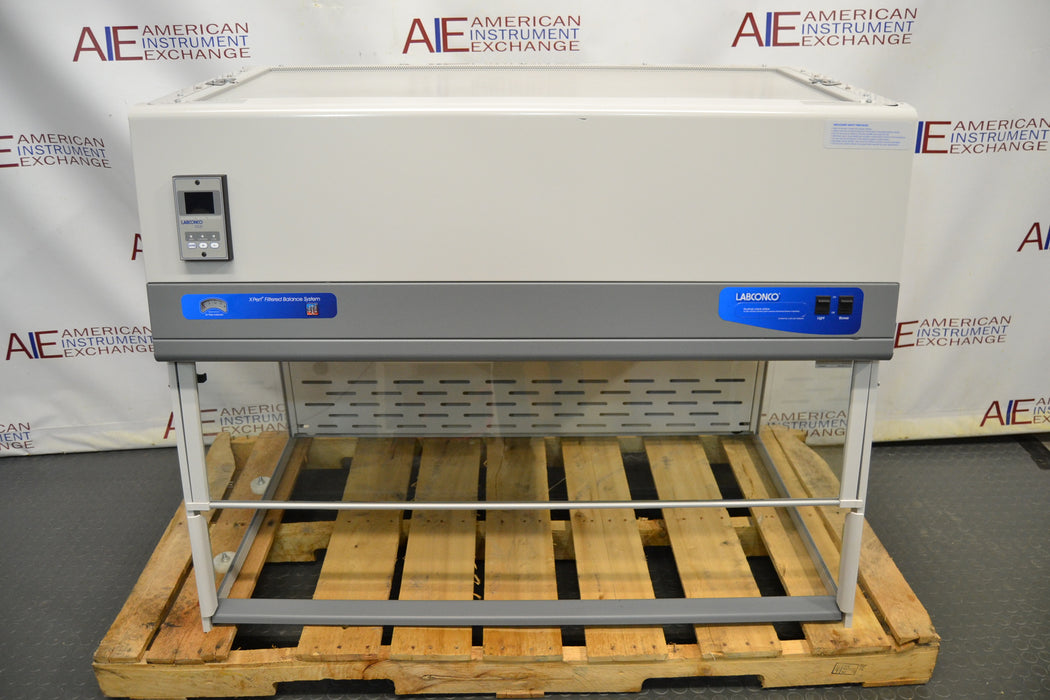

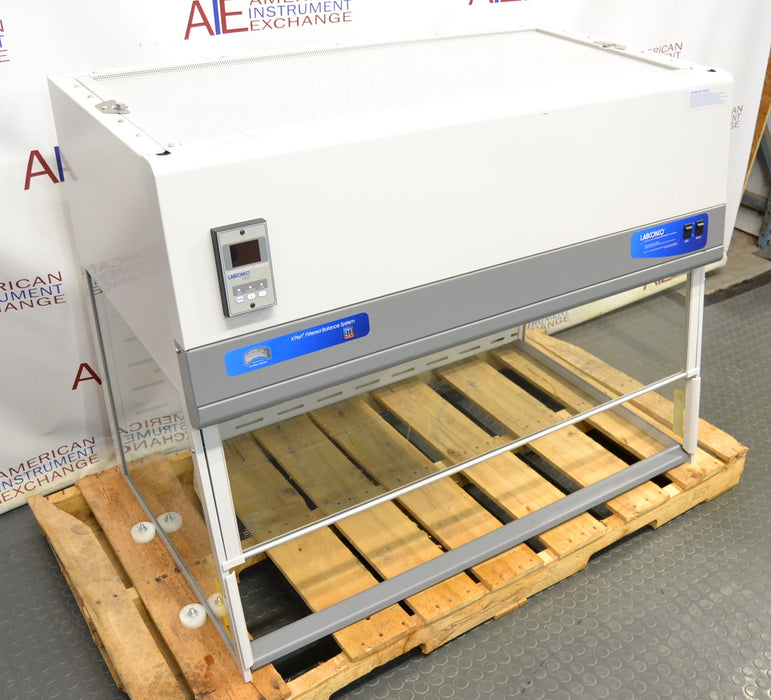

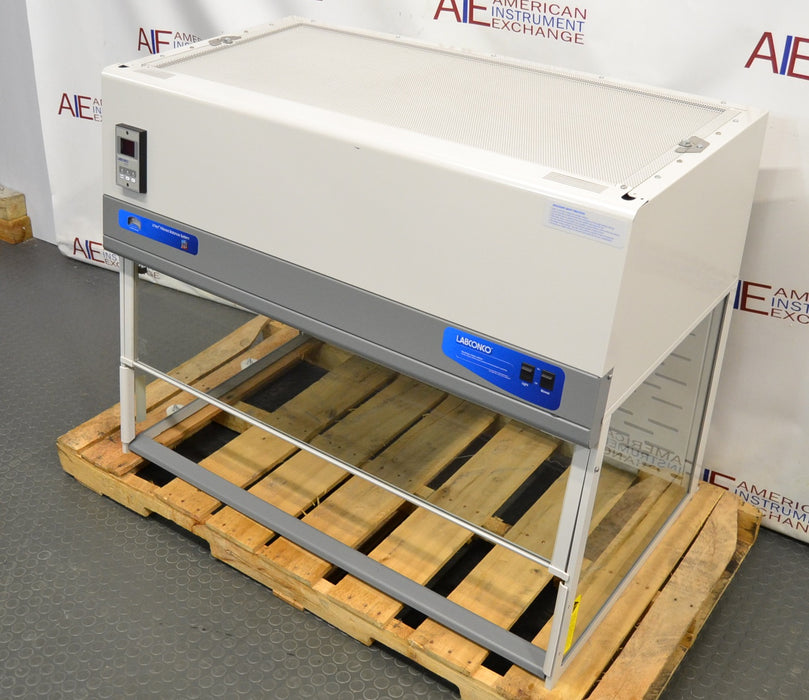

The Labconco XPert 3950402 Filtered Balance System is a 4-foot powder containment enclosure designed to protect laboratory personnel during weighing, transfer, and manipulation of powders and particulates. Combining a spacious balance-compatible work area with an integral blower, 99.99% efficient exhaust HEPA filter, and Guardian 1000 Digital Airflow Monitor, the XPert provides a self-contained solution for pharmaceutical powder weighing, analytical sample preparation, dry chemical handling, and other particulate-generating laboratory procedures.
Unlike an XPert Balance Enclosure that requires connection to a separate exhaust system, the Labconco 3950402 incorporates its blower and HEPA filtration system directly into the upper plenum. Contaminated air is drawn away from the operator, passed through the HEPA filter, and returned to the laboratory as filtered exhaust for appropriate particulate applications. This eliminates the need for external ductwork or a separate filtered exhauster during normal recirculating operation.
The 3950402 also incorporates Labconco's Guardian 1000 Digital Airflow Monitor. The monitor continuously measures airflow and displays actual face velocity while providing audible and visual warnings if airflow moves outside the established operating range. This gives laboratory personnel immediate feedback on one of the most important operating parameters of a powder containment enclosure.
With an overall width of 48 inches and an interior approximately 45.6 inches wide × 23.4 inches deep × 22.7 inches high, the XPert 3950402 provides enough room for many analytical balances, microbalances, precision balances, and supporting sample-preparation equipment. Labconco's aerodynamic Clean-Sweep airfoil, upper containment sash foil, upper dilution air supply, side-entry airfoils, and zone-perforated rear baffle help provide effective containment while limiting airflow disturbances around sensitive weighing instruments.
This Labconco XPert 3950402 is used and refurbished by American Instrument Exchange. AIE technicians inspect and test the system before shipment, including blower operation, airflow, Guardian 1000 monitor, lighting, controls, sash operation, and other installed functions. The enclosure is thoroughly cleaned and includes a 90-day warranty.
Labconco catalog number 3950402
4-foot XPert Filtered Balance System
Guardian 1000 Digital Airflow Monitor
Digital face-velocity display with audible and visual airflow alarm
Built-in blower and exhaust HEPA filter
HEPA filtration rated 99.99% efficient for 0.3-micron particles
No outside ducting required for normal recirculating operation
True bag-in/bag-out HEPA filter disposal system
Vibration-isolated motorized impeller
23.4-inch-deep balance-compatible interior
Clean-Sweep airfoil and zone-perforated rear baffle
Upper dilution air supply and upper containment sash foil
9.4-inch sash opening
115 V electrical configuration
Used and refurbished by American Instrument Exchange
90-day warranty included
The Labconco XPert Filtered Balance System was developed around a problem commonly encountered in pharmaceutical, biotechnology, chemical, and analytical laboratories: safely containing powders while maintaining an environment suitable for accurate weighing.
Powders can become airborne when containers are opened, material is scooped or transferred, samples are weighed, or residue is cleaned from laboratory surfaces. When the material is potent, toxic, irritating, or otherwise hazardous, even relatively small weighing procedures can create an occupational exposure concern.
A conventional chemical fume hood can provide containment, but its higher airflow and larger sash opening may create conditions that interfere with sensitive balance measurements.
The XPert takes a different approach.
The enclosure combines controlled inward airflow with a relatively small sash opening and aerodynamic airflow-management features specifically designed around laboratory weighing.
The 3950402 adds a built-in blower, exhaust HEPA filtration, and digital airflow monitoring, creating a complete powder-containment workstation without requiring a separate filtered exhauster.
The Labconco XPert 3950402 is well suited to pharmaceutical powder weighing, active pharmaceutical ingredient handling, dry chemical transfer, toxic-powder containment, analytical sample preparation, formulation research, quality-control testing, environmental sample weighing, gravimetric procedures, fine-chemical handling, research-compound preparation, mold and asbestos sample weighing, and other laboratory procedures involving appropriately filterable particulates.
Its 4-foot width also provides sufficient working space for procedures that require a balance plus sample containers, weighing vessels, transfer tools, or other small laboratory equipment.
The XPert is primarily a particulate containment system. Applications generating hazardous gases or significant chemical vapors require additional application assessment and an appropriate containment or exhaust strategy.
The XPert 3950402 is particularly well suited to pharmaceutical research and development laboratories, biotechnology companies, analytical laboratories, chemical laboratories, environmental testing facilities, industrial quality-control laboratories, formulation laboratories, contract research organizations, forensic laboratories, academic research facilities, and other laboratories routinely working with powdered materials.
Its combination of containment, digital airflow monitoring, and a large 4-foot work area also makes it attractive for laboratories establishing dedicated powder-weighing stations.
| Specification | Details |
|---|---|
| Manufacturer | Labconco |
| Product Family | XPert |
| Catalog Number | 3950402 |
| Equipment Type | Filtered Balance System / Powder Containment Enclosure |
| Nominal Width | 4 ft |
| Overall Dimensions | 48"W × 29"D × 37.1"H |
| Interior Dimensions | Approx. 45.6"W × 23.4"D × 22.7"H |
| Sash Opening Height | Approx. 9.4" |
| Sash Opening Width | Approx. 45.6" |
| Airflow Monitor | Guardian 1000 Digital |
| Airflow Display | Digital Face-Velocity Readout |
| Airflow Alarm | Audible / Visual |
| Blower | Built-In, Vibration-Isolated Motorized Impeller |
| Filtration | Exhaust HEPA |
| HEPA Efficiency | 99.99% at 0.3 Micron |
| Filter Disposal | True Bag-In / Bag-Out |
| Outside Ducting Required | No, for Normal Recirculating Operation |
| Lighting | Fluorescent |
| Sash | Tempered Safety Glass |
| Interior Depth | Approx. 23.4" |
| Electrical | 100–115 V, 60 Hz |
| Work Surface | Separate / Verify Included Components |
| Supporting Base | Separate / Verify Included Components |
| Approximate Weight | 280 lb |
| Condition | Used / Refurbished |
| Warranty | 90 Days from American Instrument Exchange |
The Guardian 1000 Digital Airflow Monitor is one of the most important features distinguishing catalog number 3950402 from other XPert configurations.
Rather than providing only a simple status indicator, the Guardian 1000 continuously monitors airflow and provides a digital readout of actual face velocity.
If airflow moves outside the established set-point range, the system alerts the operator with audible and visual alarms.
This gives laboratory personnel immediate information about containment conditions before and during a weighing procedure.
For facilities with documentation or monitoring requirements, the Guardian 1000 also provides an RS-232 communications capability for connection to a user-supplied computer.
The primary purpose of the XPert 3950402 is personnel protection during procedures that can release airborne powders or particulates.
The built-in blower draws room air inward through the sash opening.
This inward airflow helps create a barrier between material inside the enclosure and the operator's breathing zone.
Particles released during weighing or transfer are carried toward the rear baffle and through the exhaust HEPA filtration system.
For appropriate particulate applications, the HEPA-filtered air can then be returned directly to the laboratory.
The XPert 3950402 incorporates an exhaust HEPA filter rated 99.99% efficient for particles 0.3 micron in size.
HEPA filtration makes the system particularly useful for dry powders and other particulate contaminants.
Because the filtration system is incorporated into the enclosure, laboratories do not need to purchase and install a separate HEPA exhauster for normal operation.
HEPA filtration captures particles rather than chemical gases and vapors. Procedures involving volatile chemicals require a containment system appropriate for those contaminants.
A motorized impeller is incorporated into the XPert's upper plenum.
This allows the enclosure to generate its own containment airflow without connection to a separate remote blower.
Integrating the blower directly into the system simplifies installation and makes the XPert a relatively self-contained laboratory workstation.
The blower is dynamically balanced and mounted on vibration-isolation supports to minimize disturbance to sensitive balances positioned within the enclosure.
Balance performance can be affected by vibration as well as airflow.
This is especially important for analytical and microbalances capable of resolving very small changes in mass.
Labconco mounts the XPert's motorized impeller on isolation supports to reduce transmission of blower vibration into the work area.
This design helps make the system better suited to sensitive weighing procedures than a generic enclosure with a conventional blower mounted directly to its structure.
The XPert 3950402 provides an interior depth of approximately 23.4 inches.
This gives laboratories enough space to accommodate many large analytical, precision, and microbalances while maintaining room for weighing vessels, sample containers, spatulas, weigh boats, and related accessories.
The 4-foot model also provides approximately 45.6 inches of interior width, making it substantially more spacious than the 2-foot XPert configurations.
The 4-foot configuration is particularly useful when the laboratory needs more than a compact single-balance station.
Its larger work area can accommodate a substantial analytical balance along with sample containers and preparation accessories.
The additional width can also improve workflow when repeated weighing procedures require several containers, reference materials, or supporting tools to remain inside the enclosure.
Equipment should still be arranged so the front airfoil and rear baffle remain unobstructed.
The XPert 3950402 uses an approximately 9.4-inch-high working sash opening.
Keeping the opening relatively small reduces the amount of air that must be moved to establish the required inward airflow.
Lower airflow demand is particularly beneficial for weighing applications because excessive air movement can interfere with balance stability.
The hinged sash can also be raised when additional access is required for equipment loading.
Labconco's Clean-Sweep airfoil helps guide room air smoothly into the enclosure and across the work surface.
Smooth airflow at the front opening reduces turbulence while helping maintain containment.
This is particularly important around a sensitive balance, where unnecessary air disturbances can increase settling time or produce unstable measurements.
The front airfoil should remain free of containers, paperwork, equipment, and other obstructions during use.
The upper containment sash foil helps direct airflow into the enclosure near the upper portion of the front opening.
This helps move contaminants away from the operator's breathing zone and toward the enclosure's filtration system.
Together with the front airfoil and rear baffle, the sash foil forms part of the XPert's integrated aerodynamic containment design.
The upper dilution air supply introduces room air near the top of the sash.
This helps dilute contaminants in the upper region of the enclosure while bathing the rear surface of the sash with clean air.
The result is improved airflow management across an area that can otherwise become susceptible to stagnant zones.
A perforated rear baffle helps distribute airflow across the work area.
Instead of concentrating exhaust airflow at one small point, the baffle encourages relatively uniform movement toward the rear of the enclosure.
This promotes particulate capture while helping reduce areas of excessive air velocity around the balance.
The baffle pivots for easier cleaning.
Side-entry airfoils allow room air to sweep across the interior glass surfaces.
This helps improve containment around the sides of the enclosure and reduces stagnant regions adjacent to the glass.
The side-entry design works with the other aerodynamic features to maintain containment without relying solely on high exhaust velocity.
The XPert uses 1/4-inch-thick tempered safety glass for the front sash and side panels.
Tempered glass provides good scratch, fire, and chemical resistance while maintaining excellent visibility into the work area.
Glass also dissipates static charge more effectively than many plastic enclosure materials.
Static control can be especially relevant when manipulating fine powders that may otherwise adhere to surfaces or interfere with weighing procedures.
The XPert incorporates an approximately 10-degree angled front sash.
This improves the operator's view of the balance and sample while allowing a more comfortable working posture.
The sash is hinged and can pivot upward and lock for loading equipment into the enclosure.
A wiping seal helps maintain containment around the sash.
The XPert's blower and filtration arrangement is designed so that the positive-pressure impeller is surrounded by a negative-pressure plenum.
If leakage were to occur around the positive-pressure portion of the system, unfiltered air would be captured by the surrounding negative-pressure area and directed back through filtration.
This design provides an additional level of containment within the enclosure's exhaust system.
The XPert incorporates a true bag-in/bag-out system for HEPA filter removal.
This feature is particularly valuable when the filter has accumulated potent or hazardous powders.
The filter can be contained during removal rather than openly handled after it has collected contaminants.
Filter replacement involving hazardous materials should be performed using appropriate procedures and by personnel qualified for the application.
Pharmaceutical laboratories are one of the principal environments for XPert Filtered Balance Systems.
Opening containers, scooping powders, transferring active compounds, and weighing samples can all release fine airborne particles.
The XPert creates localized containment around these procedures while maintaining conditions intended to remain compatible with precision weighing.
Its 4-foot width can be especially useful in formulation, analytical development, and quality-control laboratories that require additional working space around the balance.
Potent active pharmaceutical ingredients may require strict control of occupational exposure.
The XPert 3950402 can form part of a containment strategy for appropriate API weighing and transfer procedures.
Suitability should be determined through a compound-specific risk assessment that considers potency, occupational exposure limits, quantity handled, particle characteristics, frequency of use, and the facility's required containment level.
The Guardian 1000 provides an additional operational safeguard by continuously displaying face velocity and warning personnel if airflow falls outside the intended range.
The XPert is specifically designed to accommodate analytical balances.
Its deep interior provides sufficient space for many balance platforms while leaving room for sample transfer and preparation.
Controlled airflow, aerodynamic containment features, and vibration isolation help reduce conditions that could negatively affect balance readings.
The laboratory should still verify measurement stability under actual operating conditions, particularly for high-resolution analytical work.
The interior can also accommodate many microbalances.
Microbalances are especially sensitive to vibration, air movement, static electricity, temperature gradients, and operator technique.
Labconco's low-disturbance airflow design and vibration-isolated blower help address several of these concerns.
For extremely high-resolution weighing, laboratories should validate balance performance within the enclosure before establishing routine analytical procedures.
Precision balances are another natural fit for the XPert 3950402.
These instruments generally tolerate airflow more readily than microbalances while still benefiting from localized powder containment.
The large 4-foot interior allows the laboratory to establish a complete weighing station with room for samples, containers, and transfer tools.
Chemical and industrial laboratories can use the XPert for compatible dry chemical weighing and transfer.
Powdered reagents, pigments, catalysts, standards, and fine chemicals may become airborne during normal handling.
Capturing these particles at the point of use helps reduce contamination of surrounding laboratory surfaces and personnel exposure.
Materials that release hazardous vapors require additional evaluation because HEPA filtration alone does not remove gases.
Labconco identifies mold and asbestos weighing among the particulate applications appropriate for XPert Filtered Balance Systems.
These materials can generate fine airborne particles that should be contained during sample preparation and weighing.
The enclosure's HEPA filtration and inward airflow provide a localized containment strategy for suitable laboratory procedures.
Facility-specific safety protocols should still govern handling, decontamination, and waste disposal.
Environmental laboratories frequently weigh filters, soils, sediments, dust, dried residues, and other particulate samples.
Handling these materials can release dust into the surrounding laboratory.
The XPert provides a dedicated area for gravimetric and sample-preparation procedures while helping protect personnel and limit contamination of the laboratory environment.
Quality-control laboratories may perform hundreds of repetitive weighing procedures using powdered raw materials, intermediates, or finished products.
A dedicated filtered balance system provides a consistent containment environment for these operations.
The Guardian 1000 Digital Airflow Monitor also allows operators to verify face velocity before or during each procedure.
Catalog numbers within the XPert family identify important configuration differences.
The 3950402 is the 4-foot, 115 V Filtered Balance System equipped with the Guardian 1000 Digital Airflow Monitor.
Versions without a built-in airflow monitor or with a different Guardian monitor should not be assumed to have the same monitoring capabilities.
Including the exact catalog number when purchasing used XPert equipment helps ensure the laboratory receives the intended configuration.
The difference between these two Labconco product families is important.
The XPert 3950402 Filtered Balance System includes its own blower and exhaust HEPA filter.
An XPert Balance Enclosure, such as models in the 3930 series, requires an external exhaust source such as building exhaust, a remote blower, or a compatible FilterMate.
The 3950402 is therefore a more self-contained solution for particulate weighing applications.
A conventional chemical fume hood is primarily designed to contain chemical gases and vapors and usually exhausts air outside the building.
The XPert 3950402 is optimized for powder and particulate containment.
Its lower-disturbance airflow, smaller sash opening, deep balance-compatible interior, and vibration-isolated blower make it particularly well suited to weighing procedures.
When hazardous gases or substantial chemical vapors are generated, an appropriate chemical fume hood or other containment system may be required.
The XPert 3950402 is not a Class II biological safety cabinet.
A biosafety cabinet uses specifically engineered HEPA-filtered airflow patterns for biological containment and, in Class II systems, also provides product protection.
The XPert is primarily designed to protect personnel during weighing and handling of powders and particulates.
Laboratories should select containment equipment according to the actual biological, chemical, or particulate hazard involved.
For appropriate particulate applications, the XPert returns HEPA-filtered exhaust air to the laboratory.
This eliminates the need to install external ductwork and avoids continuously exhausting conditioned laboratory air outdoors.
Installation can therefore be significantly simpler than adding a hard-ducted containment hood.
Recirculation should only be used when HEPA filtration is appropriate for all contaminants generated by the procedure.
XPert Filtered Balance Systems can also be configured for outside exhaust using appropriate accessories.
This may be useful when facility policies require external discharge or when the application benefits from exhausting filtered air outside rather than returning it to the room.
Any external exhaust configuration should be designed and balanced according to Labconco recommendations and facility requirements.
The XPert 3950402 requires an appropriate work surface and supporting base.
Labconco offers compatible dished epoxy and other work-surface configurations along with supporting cabinets and stands.
A stable, level surface is particularly important when an analytical or microbalance is installed.
Because used equipment configurations vary, customers should confirm exactly which work surface, stand, cabinet, and accessories are included with this American Instrument Exchange unit.
HEPA filter life depends on the type and quantity of particulate material handled, operating hours, loading rate, and laboratory procedures.
As filters load, airflow resistance increases.
The blower speed control and airflow-monitoring system help laboratories maintain appropriate operating conditions, but HEPA filters eventually require replacement.
Filters exposed to hazardous materials should be treated as contaminated components and replaced using appropriate containment procedures.
Balances should be positioned sufficiently inside the enclosure while maintaining clearance from the rear baffle.
Containers and instruments should not block the Clean-Sweep airfoil at the front of the enclosure.
Avoiding unnecessary clutter helps preserve the designed airflow pattern and makes routine cleaning easier.
The 4-foot model provides substantial working room, but the additional space should not be treated as storage during hazardous procedures.
American Instrument Exchange inspects and tests used filtered balance systems before shipment.
For the Labconco XPert 3950402, AIE technicians evaluate the built-in blower, airflow, Guardian 1000 Digital Airflow Monitor, controls, lighting, sash operation, HEPA filter housing, and other installed components.
Glass, baffles, airfoils, interior surfaces, and exterior components are inspected for condition, and accessible surfaces are thoroughly cleaned before shipment.
Customers should confirm the HEPA filter condition and any work surface, base, or accessories included with the individual unit before purchase.
The Labconco XPert 3950402 combines powder containment, sensitive balance compatibility, built-in HEPA filtration, integrated exhaust, and digital airflow monitoring in one laboratory system.
Its 4-foot workspace provides considerably more room than smaller balance enclosures, while the Guardian 1000 allows personnel to continuously verify face velocity.
For pharmaceutical, biotechnology, analytical, environmental, chemical, and quality-control laboratories, purchasing a used and refurbished XPert can provide a cost-effective way to establish a dedicated powder-weighing workstation without the expense and installation requirements associated with a new system.
American Instrument Exchange inspects, tests, and cleans the system before shipment and includes a 90-day warranty.
The Labconco XPert 3950402 measures approximately 48 inches wide × 29 inches deep × 37.1 inches high and weighs approximately 280 pounds before the addition of a work surface, base, balance, or accessories.
The unit operates on 100–115 V, 60 Hz electrical service.
An appropriate stable work surface and supporting base are required.
Because outside ducting is not necessary for normal HEPA-filtered recirculating operation, installation can be considerably simpler than a conventional externally exhausted hood.
After installation, airflow and monitor operation should be evaluated before hazardous powders are routinely handled.
Laboratories using the Labconco XPert 3950402 may also require analytical balances, precision balances, microbalances, powder-handling equipment, chemical fume hoods, ductless filtered enclosures, biosafety cabinets, laboratory refrigerators and freezers, centrifuges, water baths, shakers, incubators, and other equipment used for analytical sample preparation.
American Instrument Exchange supplies used and refurbished laboratory containment systems, analytical balances, fume hoods, biosafety cabinets, clean benches, and other laboratory equipment for pharmaceutical, biotechnology, chemical, environmental, industrial, academic, and research laboratories.
The Labconco 3950402 is a 4-foot XPert Filtered Balance System designed to protect personnel during laboratory weighing and handling of powders and particulates.
Yes. The 3950402 incorporates a built-in motorized impeller, so a separate blower is not required for normal recirculating operation.
Yes. It incorporates an exhaust HEPA filter rated 99.99% efficient for particles 0.3 micron in size.
The 3950402 is equipped with the Guardian 1000 Digital Airflow Monitor.
It continuously monitors airflow and provides a digital readout of actual face velocity.
Yes. Audible and visual alarms alert the operator when airflow moves outside the established set-point range.
No. For appropriate particulate applications, HEPA-filtered exhaust is returned to the laboratory, so normal operation does not require outside ducting.
It is a nominal 4-foot system with an overall width of 48 inches.
The system measures approximately 48"W × 29"D × 37.1"H.
The work area is approximately 45.6"W × 23.4"D × 22.7"H.
The standard working sash opening is approximately 9.4 inches high.
Yes. The XPert was specifically designed to accommodate large analytical and microbalances.
Yes, although laboratories performing very high-resolution measurements should verify weighing stability under actual operating conditions.
Yes. Precision balances are well suited to many XPert powder-weighing applications.
Yes. Pharmaceutical powder weighing is one of the primary applications for XPert Filtered Balance Systems.
It may be appropriate for compatible API weighing and transfer applications when the required containment level falls within the capabilities of the system and the facility's risk assessment.
Yes. The XPert can contain appropriately filterable dry chemical powders and particulates.
No. HEPA filters capture particles and should not be relied upon to remove hazardous gases or vapors.
Yes. Appropriate canopy and exhaust accessories can be used when filtered exhaust needs to be discharged outside the building.
The design allows a contaminated HEPA filter to be contained during removal, reducing direct exposure to material collected by the filter.
Sensitive analytical and microbalances can be affected by mechanical vibration. The XPert's motorized impeller is mounted on isolation supports to minimize vibration transmitted to the weighing area.
The Clean-Sweep airfoil helps room air enter smoothly across the front of the enclosure, improving containment while reducing disruptive turbulence.
No. It is primarily a powder and particulate containment system optimized for laboratory weighing.
No. The XPert is not a Class II biosafety cabinet and should not replace appropriate biological containment equipment.
Labconco specifies the work surface and supporting base as separate required accessories. Customers should verify exactly what is included with this individual AIE unit.
This configuration is designed for 100–115 V, 60 Hz operation.
Labconco specifies the enclosure at approximately 280 pounds.
Yes. This unit is used and refurbished by American Instrument Exchange.
AIE technicians inspect and test the blower, airflow, Guardian 1000 Digital Airflow Monitor, lighting, controls, sash operation, filtration housing, and other installed functions before shipment.
Yes. American Instrument Exchange includes a 90-day warranty with this refurbished XPert Filtered Balance System.
Yes, all equipment from American Instrument Exchange comes with a warranty.
Used/reconditioned/refurbished equipment is tested to make sure it operates to the manufacturer's specifications and comes with a 90-day warranty (unless otherwise noted). New equipment comes with a warranty from the manufacturer.
Testing requirements vary across all the equipment categories we sell. Temperature controlled units are tested with NIST traceable probes and data loggers. Gaskets, external housing, glass, handles, controls and control screens are all thoroughly inspected for integrity and functionality.
We test all equipment using the manufacturer's parameters and specifications to confirm that the unit operates properly.
We can ship products both nationally and internationally using a well-established network of transporters. Smaller items will ship via UPS. Larger equipment will be palletized and shipped either LTL or air-ride, depending on the specific equipment and/or delivery requirements.
American Instrument Exchange will accept the return of any product that is not working as represented and could not be replaced or repaired to the customer's satisfaction during the warranty period. Customers who cancel orders after refurbishing has begun will be subject to a cancellation and restocking fee of between 20% and 40%.
Yes – call or email us today with a list of equipment you're looking for and we can potentially put together a quote that includes a discount.
We strive to keep our pricing competitive and reasonable. If you find comparable items for sale at a lower price from other vendors please send us a link and or quote for the item and we'll do our best to match or beat the price.
Customers are welcome to make an appointment to view equipment in our warehouse. Given our workload we may not be able to test or clean the equipment prior to your arrival if you have not committed to an order.
1023 Western Avenue is a working warehouse, not a showroom, and customers should dress appropriately and wear closed toe shoes.
Yes – please see our repair services page for more information.
