4E's USA 40L Overhead Stirrer - Brand New
- Model OHS100140
- Speed range under normal load: 0/50-2000rpm
- Speed increments: Stepless, 10 rpm
- Wide LED display
- 90-day warranty
4E’s overhead stirrers are modern, robust, and intelligent. We manufacture 3 models to match your sample size and viscosity. Each stirrer is supplied with all components needed for operation. The through shaft design allows for adjustable impeller height and securely attaches the implement to the high-end brushless motor. The bright display alternates between the set speed and the actual speed to provide real-time process feedback.
4E’s USA Overhead Stirrers were designed with our engineering team working closely with customers mixing emulsions, suspensions, and water and oil mixtures. These stirrers use advance controls to provide constant mixing speed through low and high viscosity solutions. Whether you are working with polymers or polyphenols 4E’s USA stirrers were designed to exceed expectations.
4E’s USA has multiple safeties built in for the operator and the device. If the unit detects excess torque a proprietary overload safety kicks in. There are also auto cut off and temperature sensing circuits for additional protection. The intuitive interface has easy to read codes and an audible alarm for fault detection and diagnosis.
Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

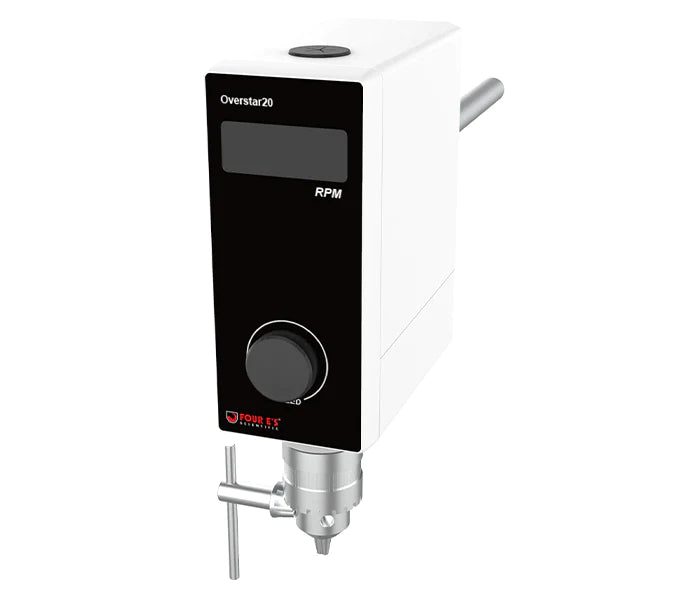

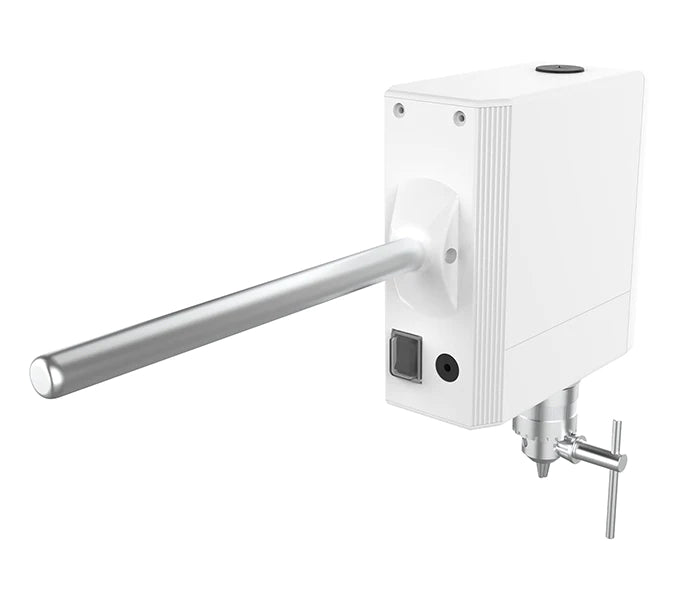

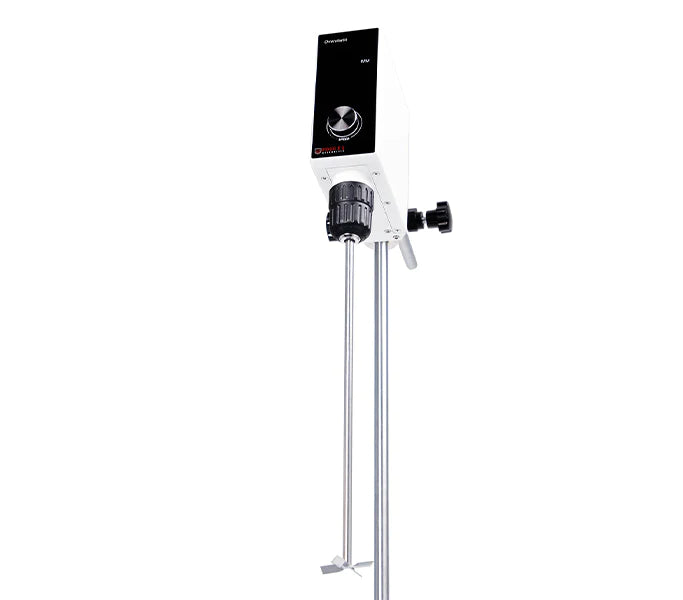

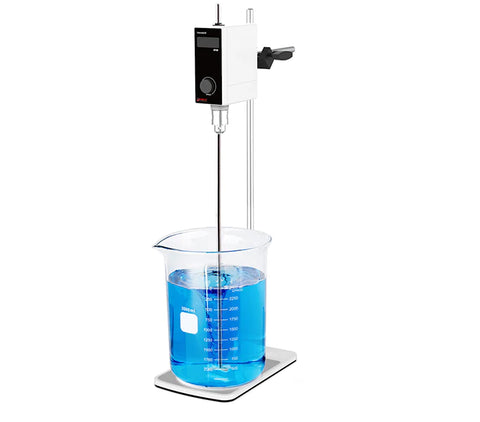

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
4E's USA 40L Overhead Stirrer – Specifications
|Dimensions||6.7”W x 2.8”D x 9.4”H|
|Speed range under normal load||0/50-2000 rpm|
|Speed increment||Stepless, 10 rpm|
|Max. torque at stirrer shaft||40 N.cm|
|Max. stirring volume||40L (H20)|
|Max Viscosity||5,000 mPas|
For inquiries about the 4E's USA 40L Overhead Stirrer, please give us a call at 978-521-2221, or fill out the form on this page.
