to request information & pricing for item 1467AAA CIRC

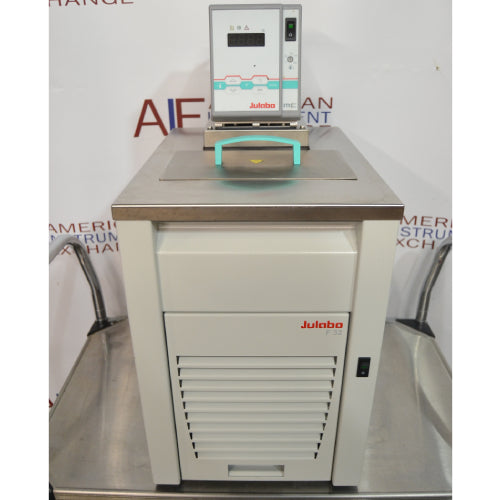

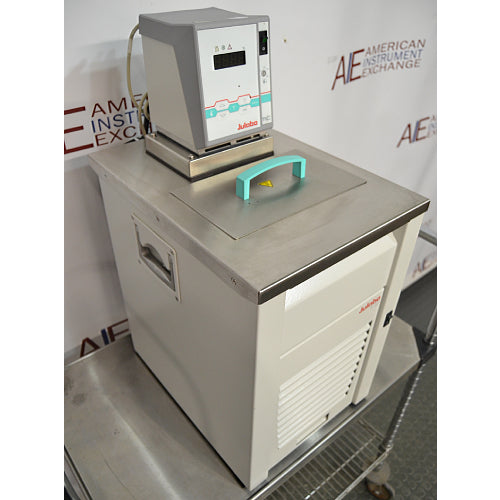

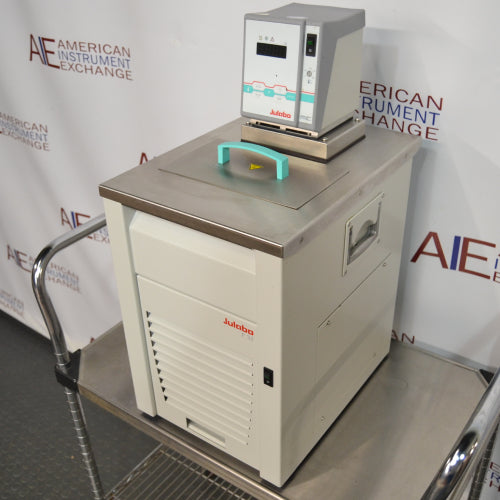

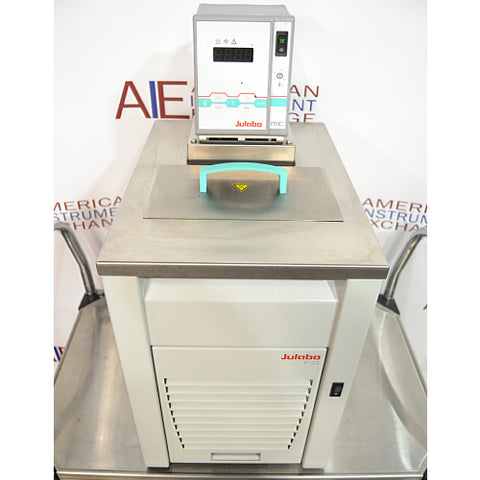

Julabo F32-MC Refrigerated / Heating Circulator
- Temperature range: -35°C to 200°C
- 8L capacity
- 90-day warranty

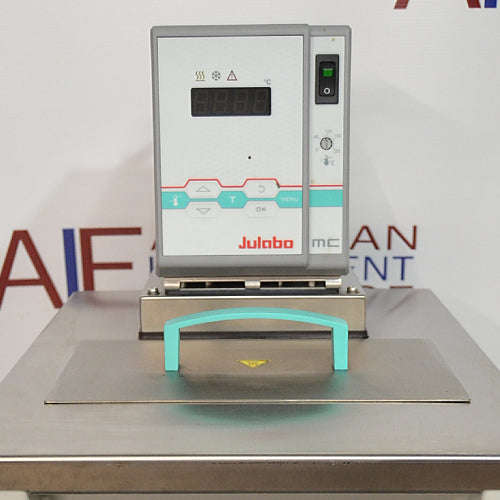

Julabo F32-MC circulators are operated via the splash-proof keypad. The implemented microprocessor technology allows to set and to store different values that can be indicated on the MULTI-DISPLAY (LED). Three menu keys facilitate adjusting setpoints, warning and safety functions and menu functions. The PID temperature control adapts the heat supplied to the thermal requirements of the bath.
CLICK HERE to see the Julabo F32-MC Circulator on our YouTube channel
Absolute Temperature Calibration (ATC3) provides a high temperature stability in the bath. With the 3-point calibration an offset is adjusted at three temperatures to ensure an accurate temperature pattern at the selected spot in the bath over the full temperature range.
Electrical connections: The serial interface RS232 allows modern process technology without additional interface. Alarm output for external alarm message or control of JULABO refrigerating baths or solenoid valve (cooling water). The excess temperature protection conforming to IEC 61010-2-010 is a safety installation independent from the control circuit. This protection can be indicated and set on the MULTI-DISPLAY (LED).
The early warning system for low level signals that bath fluid needs to be refilled before the low level protection conforming to IEC 61010-2- 010 causes a complete shut-down of the main functional elements. The pump capacity (electronically adjustable via the motor speed) enables to adapt to varying conditions for internal and external temperature applications.
All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.
The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
Julabo F32-MC Refrigerated / Heating Circulator – Specifications
|Overall dimensions||12.2”W x 16.5”D x 25.2”H|
|Working Access||7"W x 4.7"D x 5.9H"|
|Temperature range||-35°C to +200°C|
|Flow rate||16 L/min|
|Electrical requirements||Call to confirm|
For inquiries about the Julabo F32-MC Refrigerated / Heating Circulator, please give us a call at 978-521-2221, or fill out the form on this page.
