Polyscience AD07R-20-A12E 7L, Advanced Digital-Controlled, Refrigerated/Heated Circulator
- Temperature range: -20°C to +200°C
- 3.75” display
- Swivel 180 rotating controller
- 90-day warranty
The Polyscience AD07R-20-A12E 7L Space-Saving Refrigerated Circulator is intended for the precise temperature control of suitable liquids in a reservoir. Extremely easy to use and maintain, it combines design innovation with highly intuitive operation to deliver convenient and versatile liquid temperature control for a wide range of applications.
Maintains temperatures with ±0.01°C stability. Displays actual bath temperature to 1/1000° temperature resolution and temperature trends from 4 minutes to 10 days. For more precise performance, the Advanced Programmable Controller offers advanced fluid tuning, user-settable temperature averaging on the display and temperature control of an external application.
Extremely easy to use, the Advanced Programmable Controller’s time/temperature programming allows you to create and edit programs quickly and easily. Settable time or temperature priority ensures programs run as intended. Plus, for added convenience, you can preview, share or schedule a program to run automatically. The Controller can store 10 programs of up to 100 steps each.
Extensive connectivity capabilities enable you to control and communicate with your circulator in a wide variety of ways, including Ethernet, RS-232, addressable RS-485, USB-A and USB-B. For additional communications flexibility, you can even emulate the command protocols of other popular circulating baths and communicate with your circulator using an iPhone.
On-screen help and intuitive touch screen operation make using the Advanced Programmable Controller exceptionally easy. Set-point changes, programming and operational changes are simple and fast.
Class III flammability rating (per DIN 12876-1), redundant over-temperature protection, high and low temperature limits and alarms alert you instantly to conditions that fall outside normal operating parameters. Lockout capability prevents unauthorized operational changes.
All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

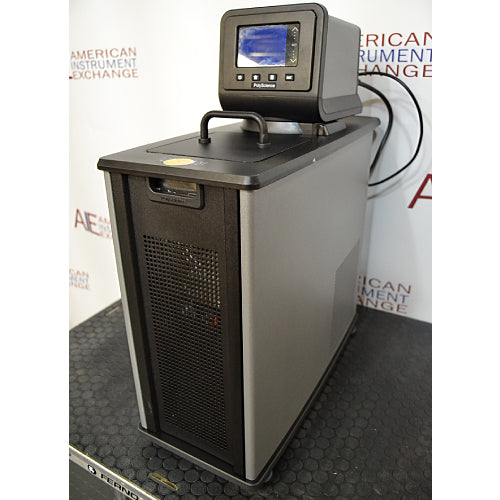

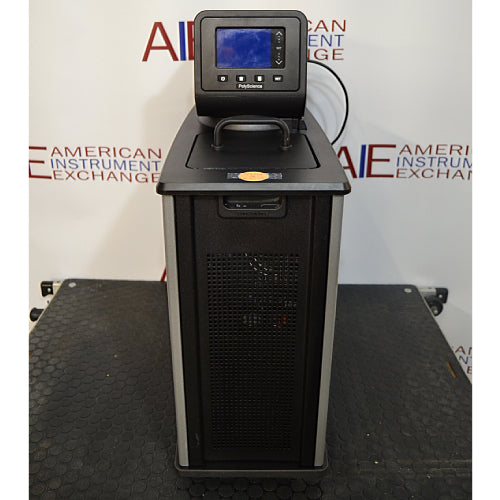

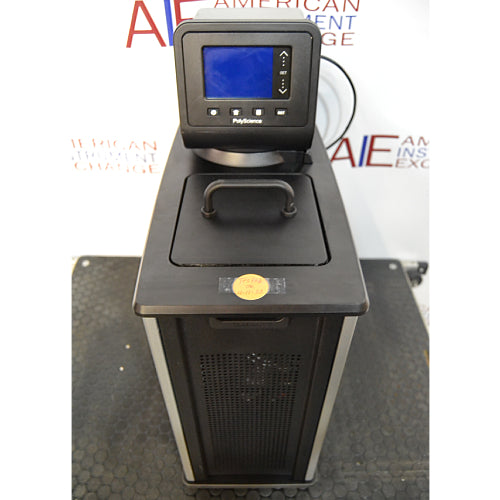

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
Polyscience AD07R-20-A12E – Specifications
|Overall dimensions||8.7”W x 21.3”D x 24.3”H|
|Working access||5.59”W x 6.18”D x 5”H|
|Temperature range||-20°C to +200°C|
|Cooling capacity||200 W|
|Heating capacity||2200 W|
|Electrical requirements||208-240 V|
For inquiries about the Polyscience AD07R-20-A12E 7L Advanced Digital-Controlled Refrigerated/Heated Circulator, please give us a call at 978-521-2221, or fill out the form on this page.
