VWR AP 7L R-20 circulator
to request information & pricing for item 1510I CIRC
VWR 7L Refrigerated Circulating Bath with Advanced Programable Controller
- Model 89202-974
- Temperature range: -20°C to +200°C
- Touchscreen display
- 90-day warranty
VWR Refrigerated Circulating Baths offer precise temperature control, at temperature ranges from -30° to 200°C. The Advanced Series Controllers offer Swivel 180 technology, which allows you to rotate the controller independently from the bath. The Advanced Programmable Temperature Controller includes a full touch-screen display, and programmability (ten 100-step programs). All heated circulating baths include LidDock lid stowing system and DuraTop, the precision molded phenolic bath top, which remains cooler at high temperatures and resists laboratory chemicals.
The VWR 89202-988 features connectors for USB-A and B, RS-232/RS-485, ethernet and external temperature probe. The Advanced Digital controller complies with DIN 12876-1 Class III safety requirements for use with flammable liquids, and is cETLus compliant.
CLICK HERE to see the VWR 89202-988 7L refrigerated circulator on our YouTube channel
All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

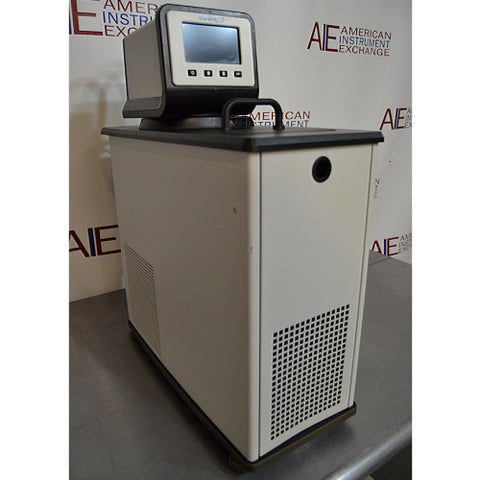

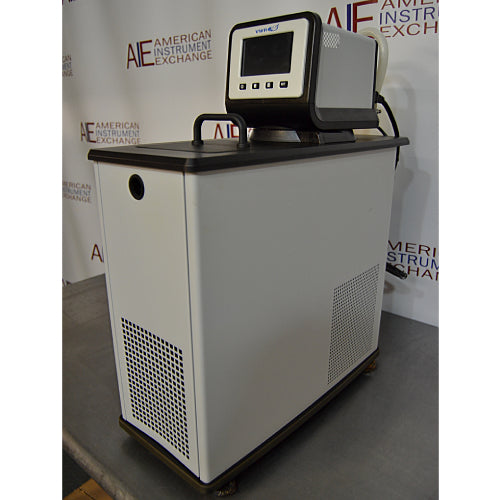

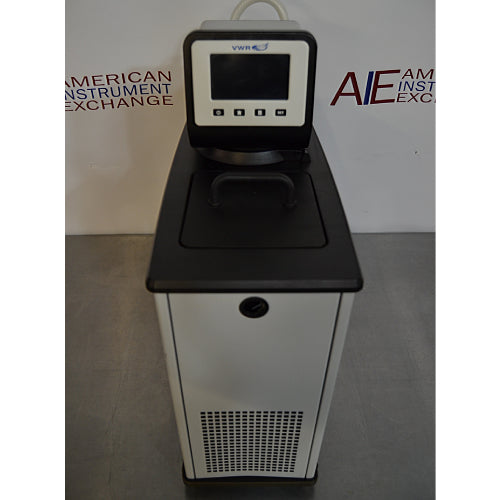

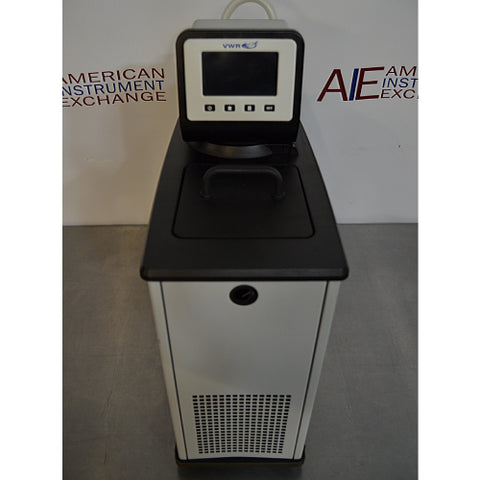

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
VWR 7L Refrigerated Circulating Bath with Advanced Programable Controller – Specifications
|Overall dimensions||8.7”W x 21.3”D x 24.3”H|
|Temperature range||-20°C to +200°C|
|Pressure flow rate||5.3 gpm (20.1 l/min)|
|Max pressure||4.3 psi (0.3 bar)|
|Cooling Capacity||200W (at 20°C)|
|Electrical requirements||120V, 60Hz|
For inquiries about the VWR89202-974 7L refrigerated circulator, please give us a call at 978-521-2221, or fill out the form on this page.
