Labconco FreeZone 12L

Item: 2212H F-DRY

  • Fully tested
  • Thoroughly cleaned
  • Ships from Haverhill, MA

Contact Us

Call 978-521-2221
to request information & pricing for item 2212H F-DRY

90-Day Warranty

American Instrument Exchange
Contact us for all your used lab equipment needs

1023 Western Ave.
Haverhill, MA 01832

Phone: 978-521-2221
Fax: 978-521-8822


Shipping Policy

Labconco FreeZone 12 with 14-Port Manifold

  • Cat. No.: 701211010
  • 14-position linear manifold
  • -50°C low collector temperature
  • Touchscreen control panel
  • 90-day warranty

FreeZone 12 Liter Console Freeze Dryers are designed for lyophilizing moderate to large sample loads or numerous small container batches. The console features a front viewing window, and interior space for a vacuum pump. The system removes a maximum of 8 liters of water in 24 hours and features brushed stainless steel and powder-coated steel exterior; stainless steel collector and coil; vacuum control/break valve; rear-mounted RS-232 port; automatic start-up switch for collector cool-down and vacuum pull-down; hot gas defrost and switch; and a retractable collector drain line.

The upright stainless steel collector coil holds 12 liters of ice before defrosting. A single 1 hp HCFC/CFC-free refrigeration system cools the collector to -50° C (-58° F), suitable for aqueous samples.

CLICK HERE to see the Labconco FreeZone 12 on our YouTube channel

The control panel utilizes the Lyo-Works OS, which provides a real time display of collector temperature, vacuum level, shown on a 5″ full color, capacitive touch screen.

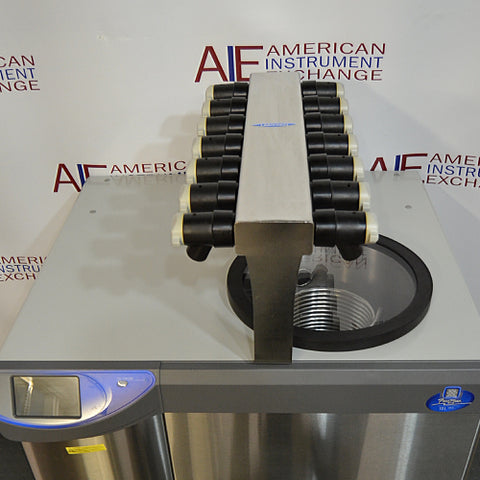

The 14-port manifold comes with neoprene valves with plastic knobs that accommodate both 1/2" and 3/4" adapters for connection of flask. Includes one latching pin. Manifolds are made of type 304 stainless steel and mount atop FreeZone Freeze Dryers.

All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests, please let us know and we’ll work with you to make sure these requirements are addressed during testing.

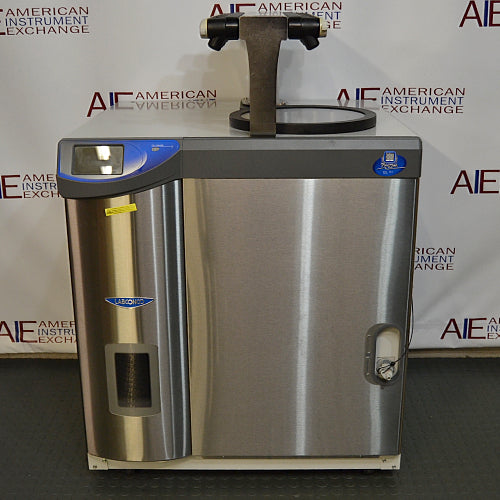

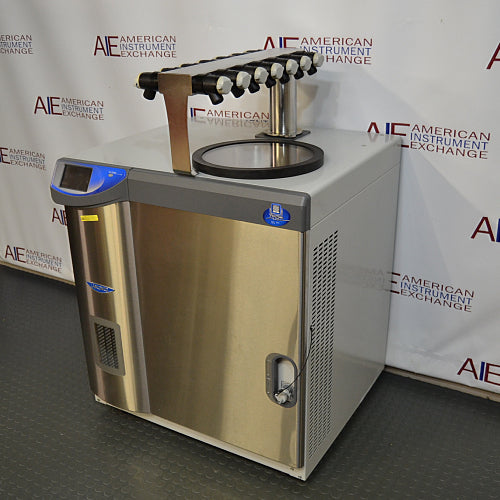

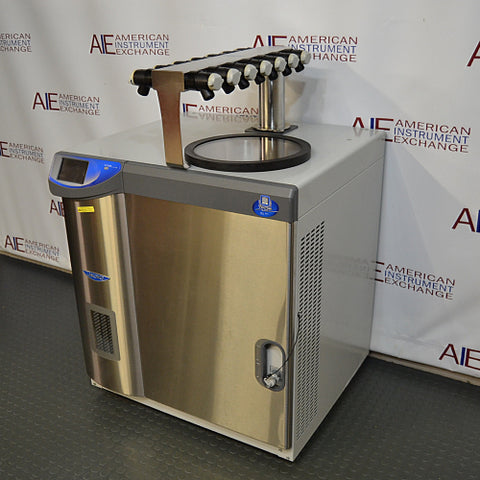

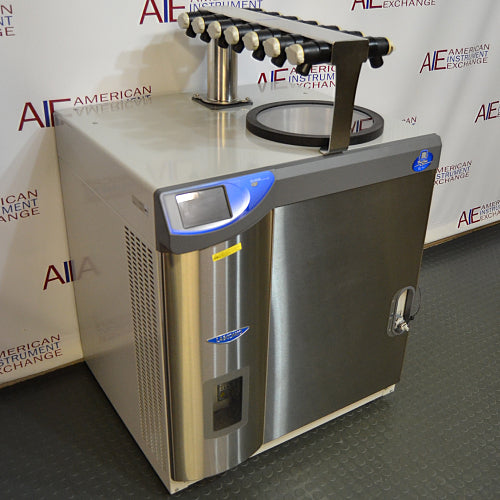

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Labconco FreeZone 12 - Specifications

Exterior dimensions 31.8”W x 29.6”D x 36.6”H
Vacuum Pump Displacement Required 98 L/min or larger displacement
Weight 331 lbs
Power requirements 230 volts, 60 Hz, 9.0 A

For inquiries about the Labconco FreeZone 12, please give us a call at 978-521-2221, or fill out the form on this page.
