Hamilton Safeaire 6' Fume Hood
to request information & pricing for item 2844H HOOD
Hamilton Safeaire 6’ VAV Chemical Fume Hood
- Variable Air Volume system
- Includes base cabinets
- Epoxy work surface
- 90-day warranty
This 6’ Hamilton fume hood has a Variable Air Volume (VAV) exhaust system which maintains constant face velocities by varying exhaust volume in response to changes in sash position. Maximum air is exhausted when the sash is open; minimum air is exhausted when the sash is closed. A minimum flow of 25 CFM per square foot of interior workspace, as stated by NFPA, should be maintained to achieve optimum containment and satisfactory dilution with the sash closed. All VAV systems should be used with a restricted bypass fume hood. Since only the amount of air needed to maintain the specified face velocity is pulled from the room, significant energy.
CLICK HERE to see the Hamilton Safeaire 6' VAV fume hood on our YouTube channel
The Safeaire High-line features adjustable baffle positioning to control the airflow patterns through the hood; a combination sash with 4 horizontal-sliding glass panels that raise vertically in one frame; the ability to accommodate apparatus up to 48” tall; a polyresin interior which has high illumination, cleans with ease, strength, and high resistance to chemicals; one single and three duplex outlets on the front; a cup sink with faucet, and three additional gas/vacuum lines.
All of our equipment is used and reconditioned. Our technicians inspect all fume hoods to make sure that the baffles are present and intact, the interior lights are functioning, and that the sash is intact and runs smoothly on the tracks along with the counterweights. We can also provide information on the fixtures installed on each hood. Please note that we do not provide blower motors with fume hood sales. For more information on blower motor selection please feel free to call or email us; we recommend speaking with an HVAC specialist regarding your particular motor needs.

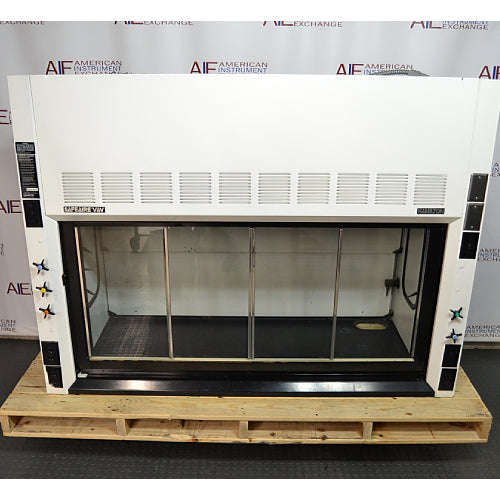

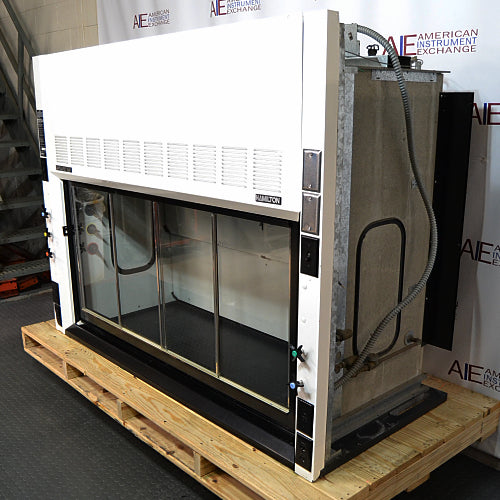

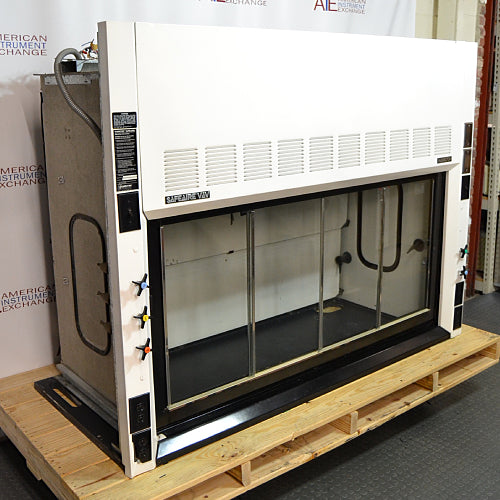

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
Hamilton Safeaire 6’ VAV Chemical Fume Hood - specifications
|Exterior dimensions (hood only)||72”W x 32”D x 54.25”H|
|Work area||61”W x 22”D x 48.25”H|
For inquiries about the Hamilton Safeaire 6’ VAV Chemical Fume Hood, please give us a call at 978-521-2221, or fill out the form on this page.
