to request information & pricing for item 2859D HOOD
Kewaunee Supreme Air Venturi 6’ General Purpose Bench Fume Hood
- Model V06
- Combination Sash
- 28” sash opening
- 90-day warranty
Venturi fume hoods come with fixed slots in the rear baffles. The size of the slots are optimized to provide the best performance for general purpose use. The Venturi baffle technology works in both heavier-than-air and lighter-than-air applications. Therefore, there is not a need for baffle adjustment.
Features of the Venturi General Purpose Bench Fume Hood include four 120 VAC, 20 amp GFCI protected duplex receptacles; LED light fixture with 15 intensity and 3 color settings; one electromechanical sash stop with push button override; three service fittings on each side, along with a gasketed access panels; a 12” exhaust collar; and an Air Alert 600 Airflow Monitor.
CLICK HERE to see the Kewaunee Supreme Air V06 Venturi 6' chemical fume hood on our YouTube channel
Combination vertical rising/horizontal sash hoods, as the name implies, provide the benefits of both the vertical and horizontal sash hoods. For normal operation the sash can be partially raised vertically, or the horizontal panels can be used. The sash can be fully opened vertically for loading equipment into the hood. There are four horizontal panes measuring 15.5”W each.
Air Alert 600 Fume Hood Monitor consists of a thermistor sensor mounted on the fume hood interior wall and connected to fume hood containment cavity by a sensor port. A tube to the fume hood fascia completes monitored air path. The monitor measures and records the fume hood face velocity and sounds an alarm when the airflow falls below safe levels. An LCD displays a velocity readout and a visual one-hour “Event Timeline” that records alarm occurrences and their length for a continually updated one-hour time interval. The display background displays green, amber, or red to signal safe, marginal, and low face velocity conditions. The alarm and display offers the hood user a variety of alarm features including alarm set points, metric or classical units, alarm delay intervals, nighttime setback, and muting options.
All of our equipment is used and reconditioned. Our technicians inspect all fume hoods to make sure that the baffles are present and intact, the interior lights are functioning, and that the sash is intact and runs smoothly on the tracks along with the counterweights. We can also provide information on the fixtures installed on each hood. Please note that we do not provide blower motors with fume hood sales. For more information on blower motor selection please feel free to call or email us; we recommend speaking with an HVAC specialist regarding your particular motor needs.

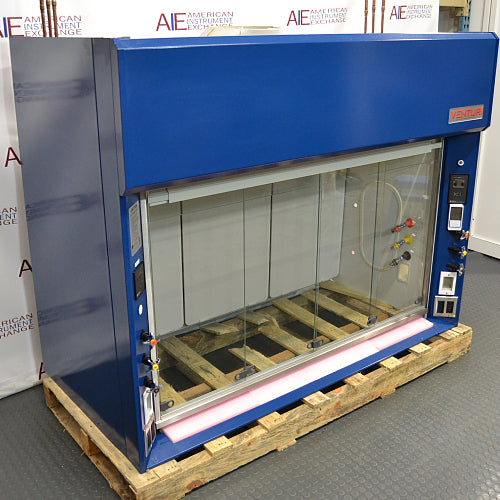

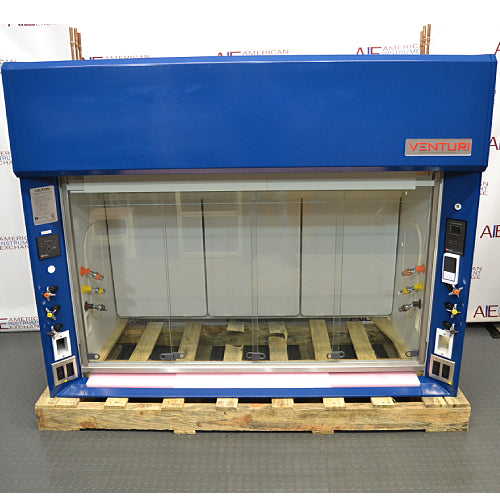

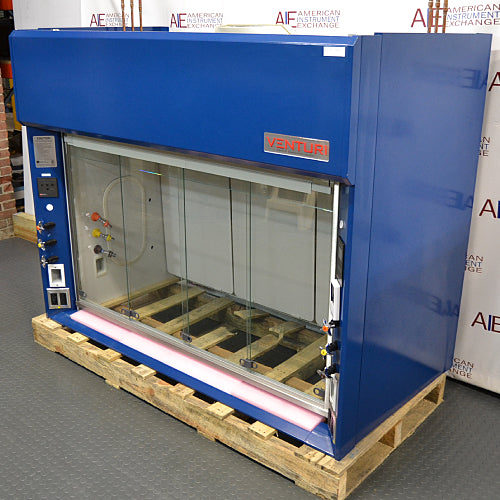

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
Kewaunee Supreme Air Venturi 6’ General Purpose Bench Fume Hood - specifications
|Exterior dimensions||72”W x 36”D x 51”H|
|Work area||63”W x 24”D|
|ANSI Z9.5 minimum flow rate @ 150/375 air changes per hour||120/300 CFM|
|Face velocity: 100 / 80 / 60 / 50 FPM requirements||810 / 650 / 490 / 410 CFM|
For inquiries about the Kewaunee Supreme Air Venturi 6’ General Purpose Bench Fume Hood, please give us a call at 978-521-2221, or fill out the form on this page.
