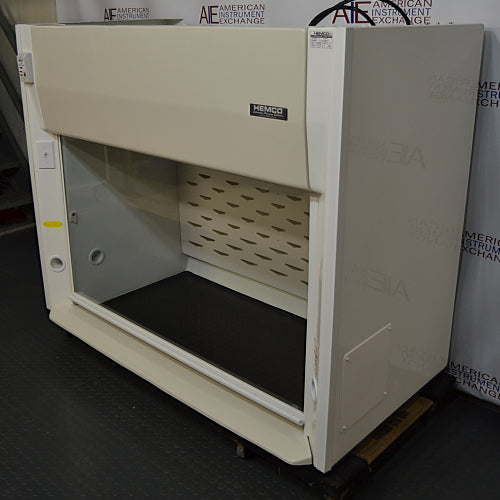

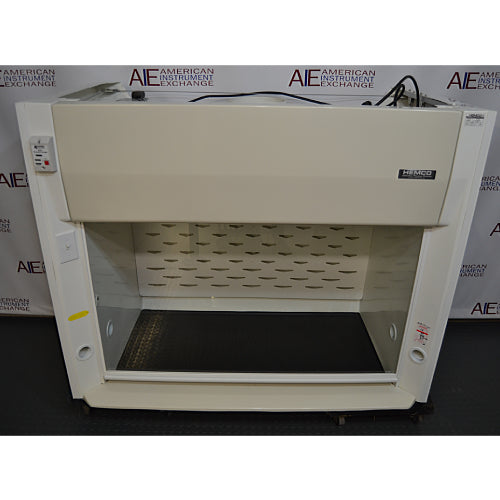

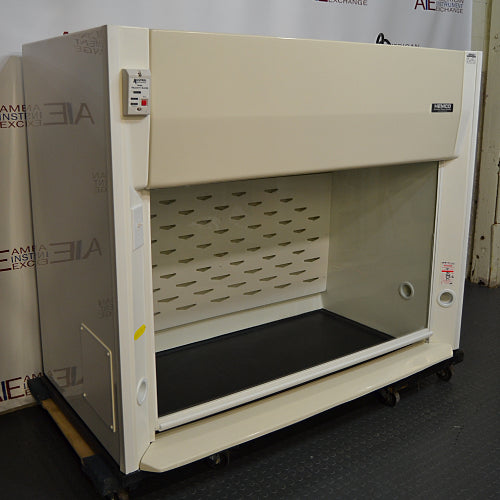

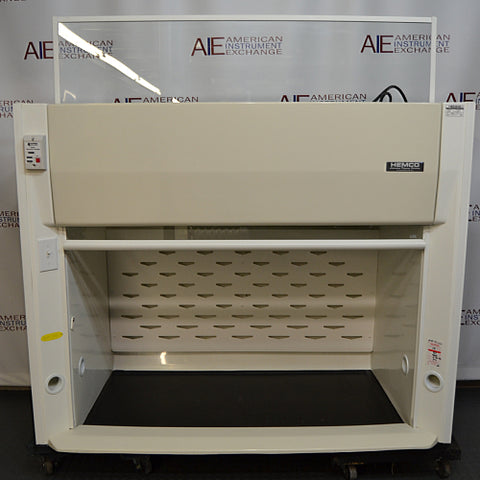

HEMCO 5’ UniFlow LE AireStream Laboratory Fume Hood
- Model 35561
- Non-metallic construction
- Vector baffle system
- Blower motor not included
- 90-day warranty
UniFlow LE AireStream Fume Hoods are low-flow, constant volume for energy savings and maximum user protection. The aerodynamic face opening with airfoil provides uniform air flow through the fume chamber. The Vector Baffle System directs the air through the fume chamber to the bell-shaped exhaust collar with minimum turbulence.
The UniFlow AireStream Vector Baffle System features vector air flow slots for low flow and high performance. Maintains uniform air flow thru the baffle system to bell shaped exhaust collar outlet.
The UniFlow Superstructure is constructed from non-metallic materials, aiding in total chemical and corrosion resistance, superior durability, and long life. Interior fume chamber one-piece glass smooth, all coved corners for ease of cleaning. Unitized construction reduces weight for ease of installation.
The sash is perfectly counter balanced, 3/16 tempered safety glass, coated stainless steel cable with stainless steel pulley assembly. Framed in nonmetallic PVC framing, track, and aerodynamic sash lift for ease of movement and air flow efficiency. The 28” vertical sash height that provides ease of access for apparatus set-up in fume chamber. The angled picture frame opening the aerodynamic face opening with air foil provides uniform air flow into the fume chamber and thru the Vector AireStream Baffle System.
The UniFlow LE AireStream fume hood also has a vapor-proof LED light fixture with polished stainless-steel reflectors, and light switch on left column; and an air flow monitor that continuously monitors face velocity air flow.
All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.
The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
HEMCO 5’ UniFlow LE AireStream Laboratory Fume Hood – Specifications
Exterior dimensions | 60”W x 30.25”D x 49.5”H |
Work area | 49.5”W x 23”D x 44.25”H |
Working sash height | 15” |
Exhaust collar | 9.75” diameter |
For inquiries about the 5’ Hemco 35561 fume hood, please give us a call at 978-521-2221, or fill out the form on this page.
