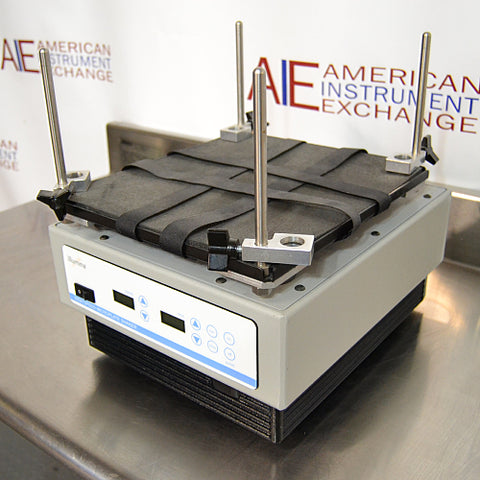

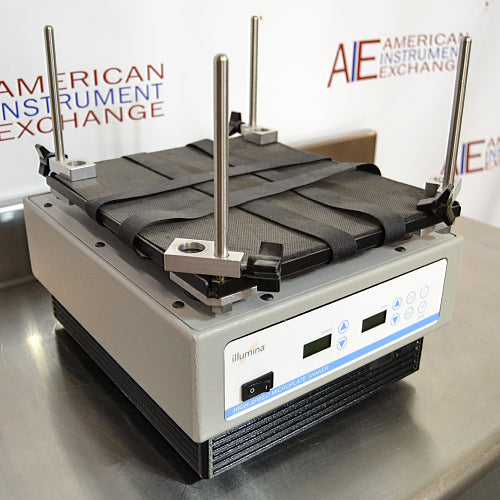

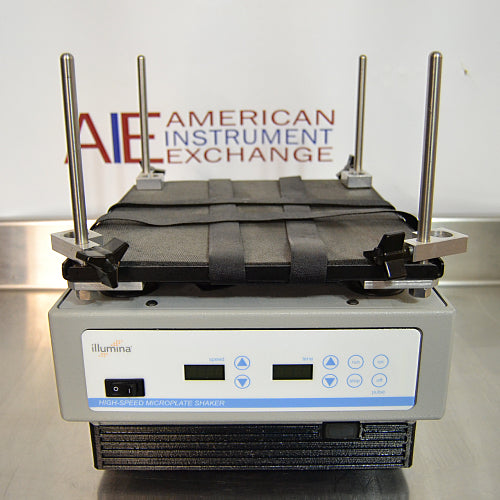

Illumina High-Speed Microplate Shaker

  • Model 945190
  • Speed range: 600 to 2500 rpm
  • Orbit: 3.6 mm
  • Weight capacity: 7 lbs
  • 90-Day warranty

The Illumina High-Speed Microplate Shaker, Model 945190, is ideal for molecular biology applications, mechanical and chemical cell lysis, mixing tissue samples, mixing cytogenetic suspensions, and vortexing cell suspensions. It holds up to 48 microplates; is designed to Shake Microplates Up to 12.7 cm (5") high; and has programmable digital Speed Control from 600 to 2500 rpm (±25 rpm); programmable digital timed mode from 1 to 9999 Seconds (166 Minutes); and a programmable “Pulsing” feature to enhance mixing action. Speed and time are easily adjusted with the up/down arrows on the front panel. Length of time is displayed for continuous mode, and time remaining is displayed for timed mode.

The 945190 High-Speed Shaker is also ideal for emulsification of bipolar viscous fluids and for mixing fluids in small diameter tubes.

The tray can be modified for other vessels up to 12.7 cm (5") high and 3.2kg (7lbs.) in weight. Tray assembly height is adjustable from 3.2mm (1/8") to 12.7 cm (5") to accommodate most microplates, especially deep-well microplates. The unit’s 12 suction cup feet and 22.7kg (50lbs.) weight prevent shaker from “walking” across the lab bench.

The Pulsing feature allows the user to program the unit to stop and start at a wide range of intervals. The repetitive stopping and starting action enhances the mixing action and is needed for difficult mixing applications, such as emulsification of highly viscous liquids or bipolar liquids. Shaker comes with an RS-232 interface.

All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Illumina High-Speed Microplate Shaker – Specifications

Dimensions 12”W x 15.5”D x 12.75”H
Platform dimensions 12.25”W x 11”D
Speed range 600 to 2500 rpm, programmable in 1 rpm increments
Orbit 3.6 mm
Weight capacity 7 lbs
Weight 50 lbs
