VWR 414004 vacuum oven

Item: 3733M OVEN

  • Sale
  • Fully tested
  • Thoroughly cleaned
  • Ships from Haverhill, MA
90-Day Warranty




Contact Us

Call 978-521-2221
to request information & price


American Instrument Exchange
1023 Western Ave.
Haverhill, MA 01832

Phone: 978-521-2221
Fax: 978-521-8822

Email: info@americaninstrument.com

Shipping Policy

VWR 20L Vacuum Oven

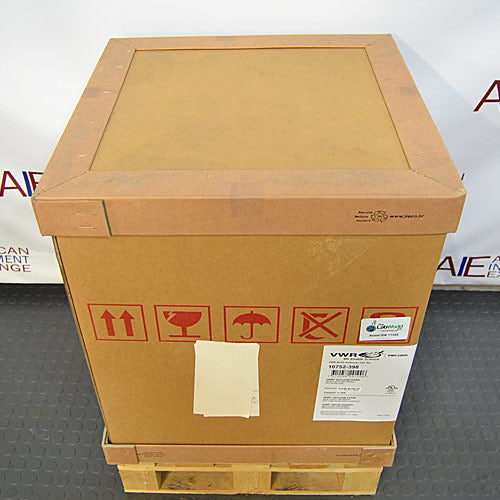

  • NEW-IN-BOX

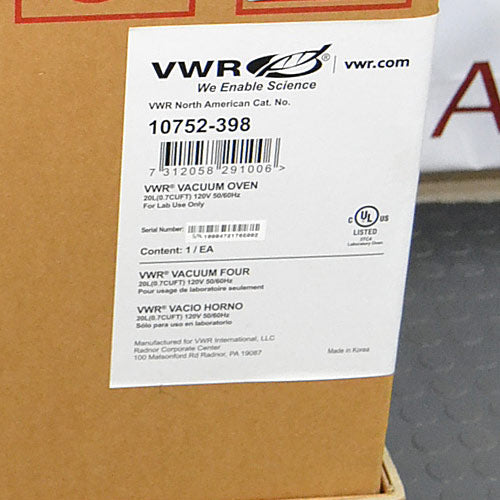

  • Cat. No. 10752-398
  • Temperature range: ambient +10°C to 200°C
  • 0.7 cu. ft. (20L) capacity
  • Timer up to 99 hr 59 min (w delay / continuous run)
  • 90-day warranty

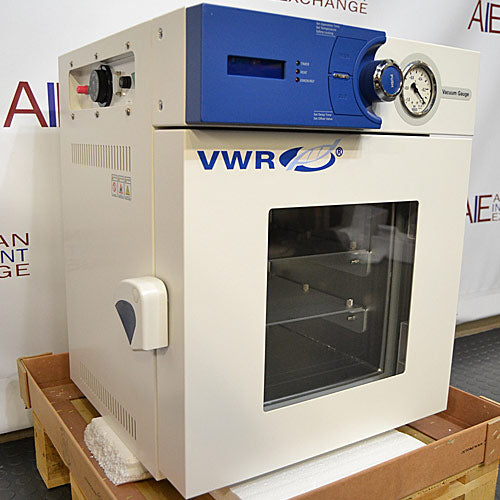

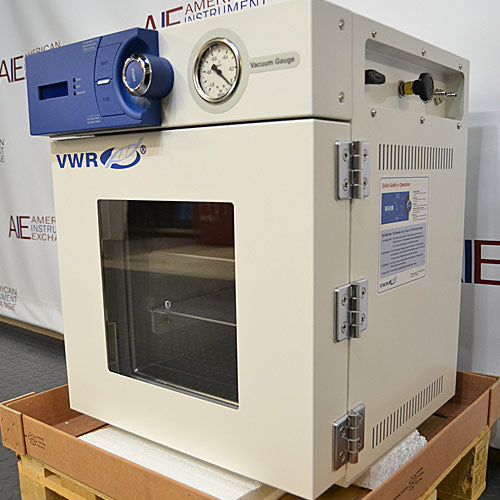

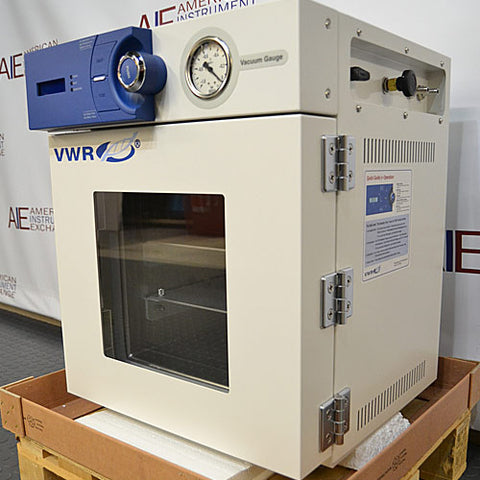

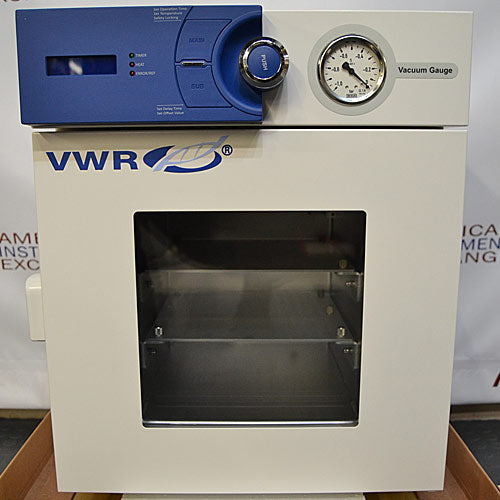

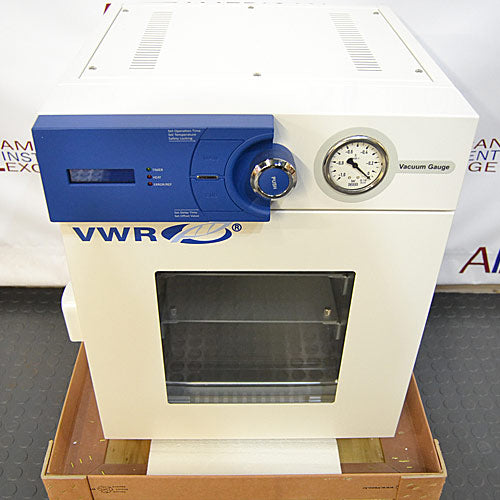

This VWR vacuum oven features a side-mounted three-way valve for evacuation, venting and purging of inert gases (e.g., Nitrogen or Argon) with vacuum fittings on the side of the unit; silicone door gasket and positive latch door that maintains a seal at all vacuum levels; built-in over-temperature protection; vacuum level is displayed on the gauge from -1 to 0 in Bars in 0.2 increments; powder-coated heavy-gauge steel exterior for durability; easy-to-clean type 304 stainless-steel interior chamber; and a radiant warm-wall heating system optimizes uniformity and conserves chamber space for drying, curing, vacuum embedding and plating applications.

CLICK HERE to see the VWR 20L Vacuum Oven on our YouTube channel

All of our equipment is used and reconditioned. Our technicians test ovens using a calibrated digital chart recorder to verify the accuracy of temperature controls and readouts and run the unit under vacuum to ensure chamber integrity. We typically leave an oven under vacuum for 24 hours to make sure the pressure holds. We replace any hardware or parts as is necessary and clean all incubators thoroughly prior to shipment.

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

VWR 20L Vacuum Oven - Specifications

Exterior dimensions 17”W x 19”D x 22”H
Interior dimensions 10”W x 9”D x 10”H
Capacity 0.7 Cu. Ft.
Temperature range ambient +10°C to 200°C
Temperature uniformity ± 2.2°C @ 100°C / ± 3.5°C @ 150°C
Heat time 75 min to 100°C / 105 min @ 150°C
Electrical requirements 120 V, 50/60 Hz



For inquiries about the VWR 20L vacuum oven, please give us a call at 978-521-2221, or fill out the form on this page.
