Heidolph 5206 pump drive

Item: 4164H PUMP

  • Sale
  • Fully tested
  • Thoroughly cleaned
  • Ships from Haverhill, MA
90-Day Warranty




Contact Us

Call 978-521-2221
to request information & price


American Instrument Exchange
1023 Western Ave.
Haverhill, MA 01832

Phone: 978-521-2221
Fax: 978-521-8822

Email: info@americaninstrument.com

Shipping Policy

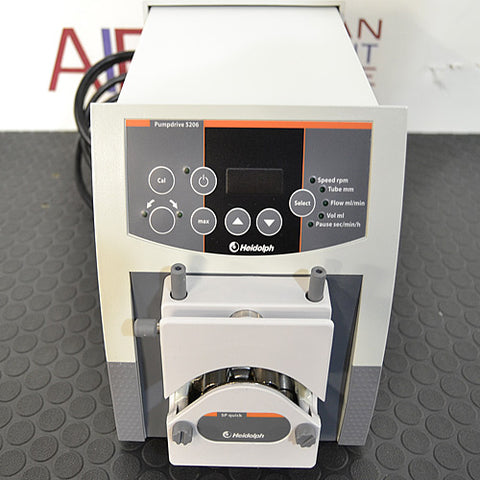

Heidolph Pumpdrive 5206 Peristaltic Pump

  • 24-600 rpm
  • Flow rate of 1.3 to 3.9mL/min
  • Microprocessor-controlled drive
  • 90 day warranty

The Heidolph Pumpdrive 5206 Peristaltic Pump with SPQuick single channel pump head features f low rates of 1.3 to 3.900mL/min. with single-channel pump heads and high speed range from 24 to 600rpm. The flow characteristic of pump head in combination with various tubing diameters is pre-programmed for accurate flow rate numbers. The 5206 has digital readout of speed (rpm), tubing diameter, flow rate in (mL/min.), dosing volume, interval dosing, pause function and offers electronic speed control with accuracy of ±2%.

Microprocessor-controlled drive features calibration of flow rate and flow volume. The pump drives feature a four-digit display for speed, flow rate, interval dosing, and pause setting. Flow rates of the pump heads in combination with various tubing arrangements are saved in the program to enable direct digital readout of flow rate per minute. Saved dosing volumes are also selectable and interval dosing is possible by entering a time interval.

Heidolph Pumpdrive 5206 Peristaltic Pump - specifications

Exterior dimensions 6.53”W x 10.07”D x 8.85”H
Motor speed 24 to 600 rpm
Flow rate 1.3 to 3.9mL/min
Temperature range 0?C to 40?C
Electrical Requirements 115V, 50/60Hz, 140W



All of our equipment is used and reconditioned.  Our technicians use calibrated digital chart recorders to verify the accuracy of temperature controls and readouts of all ultralow freezers, making sure that the units hold temperature to within the manufacturer specified tolerance. We replace any hardware or parts as is necessary and if needed replace refrigerant. We clean all freezers thoroughly prior to shipment.

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

For inquiries about the Heidolph Pumpdrive 5206 Peristaltic Pump, please give us a call at 978-521-2221, or fill out the form on this page.
