Cole Parmer L/S Digital Miniflex Pump

Item: 4166AA PUMP

  • Fully tested
  • Thoroughly cleaned
  • Ships from Haverhill, MA

Contact Us

Call 978-521-2221
to request information & pricing for item 4166AA PUMP

90-Day Warranty

American Instrument Exchange
Contact us for all your used lab equipment needs

1023 Western Ave.
Haverhill, MA 01832

Phone: 978-521-2221
Fax: 978-521-8822


Shipping Policy

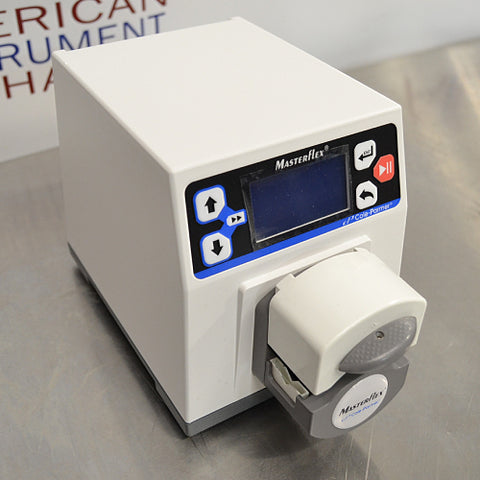

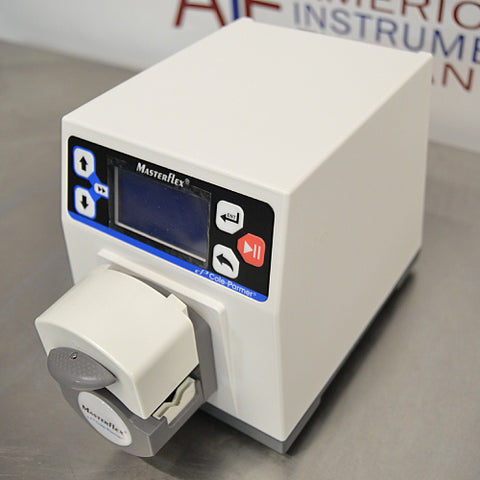

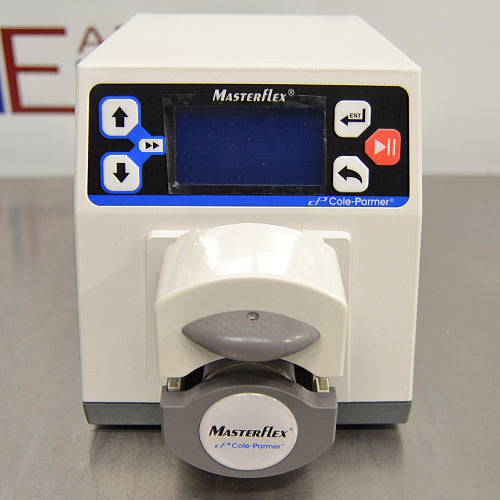

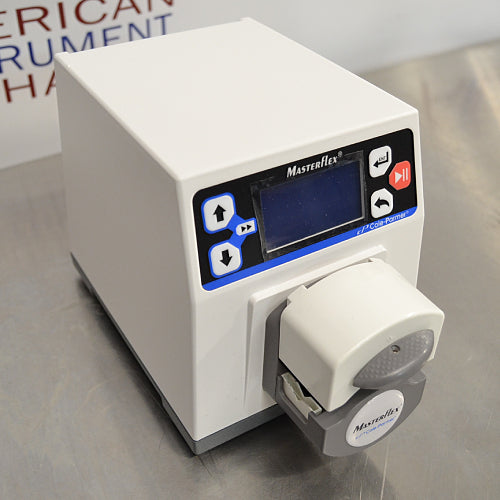

Cole Parmer Masterflex L/S Digital Miniflex Pump System

  • Model 07525-20
  • 01. to 300 rpm
  • 3000 to 1 turndown ratio
  • ±0.1% speed control accuracy
  • 90-day warranty

Cole-Parmer Masterflex L/S Digital Miniflex Pump Systems deliver accurate low flow rates in a small footprint. They’re complete systems which include a pump head and drive.

The precision digital drive offers a maintenance-free high accuracy motor and an icon-driven interface that makes setup and operation easy and intuitive. The high-contrast graphical LCD shows operating parameters: flow rate, drive speed, continuous run, and copy dispense, allowing you to view pump performance continually. The brushless motor offers ±0.1% speed control accuracy with a 3000 to 1 turndown ratio for a wider flow range.

Dispensing features include a copy/repeat setting with programmable batch count and a programmable dispense interval that allows hands-free dispensing and filling. An integrated open-head sensor shuts down the drive if the pump head is opened while running. Remote control capabilities allow easy integration into automated processes.

Created for transferring, feed, sampling, or filling applications in laboratories and research settings, the new pump systems deliver repeatable low flow rates with flow ranges of 0.004 to 315 mL/min (depending on the model and tubing size selected). Pumps operate with continuous tubing to save costs by eliminating leakage and the need for fittings or connections, thus providing a cleaner fluid path.

All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Cole Parmer Masterflex L/S Digital Miniflex Pump System – specifications

Dimensions 5.5”W x 9.38”D x 6.19”H
Display 128 x 64 LCD w/ LED Backlight
Pump speed 01. to 300 rpm
Power supply 24V adapter
Weight 4.8 lbs

For inquiries about the Cole Parmer Masterflex L/S Digital Miniflex Pump System, please give us a call at 978-521-2221, or fill out the form on this page.
