4E's USA - Hematocrit Centrifuge - Brand New

Brand : 4E's USA

Product Code : SKU 0150A CENTRI

$2,050.00

Price Match Policy

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

4E's USA CFG400101 Hematocrit Centrifuge – Brand New

The 4E's USA CFG400101 Hematocrit Centrifuge is a high-speed benchtop centrifuge designed specifically for hematocrit determination, packed cell volume testing, micro blood separation, and other small-volume blood processing applications. Equipped with a 24-capillary-tube hematocrit rotor, this compact centrifuge reaches speeds up to 12,000 rpm and a maximum relative centrifugal force of 14,800 × g, providing the performance required for fast and efficient hematology workflows.

Available brand new from American Instrument Exchange, the CFG400101 combines dedicated hematocrit performance with modern microprocessor controls, a 5-inch HD touchscreen, programmable operating parameters, a brushless DC motor, and integrated safety features. It is an excellent choice for clinical laboratories, veterinary laboratories, research facilities, blood testing laboratories, educational institutions, and other facilities requiring reliable microhematocrit centrifugation.

Key Features

Brand-new 4E's USA hematocrit centrifuge
Model CFG400101
Maximum speed of 12,000 rpm
Maximum RCF of 14,800 × g
Includes 24-capillary-tube hematocrit rotor
Microhematocrit tube reader included
5-inch HD touchscreen control interface
Microprocessor-controlled operation
Brushless DC motor for stable, low-noise performance
Speed accuracy of ±30 rpm
Programmable run times from 1 second to 99 minutes, 59 seconds
10 selectable acceleration rates
11 selectable deceleration rates
Multiple user-defined program options
Door lid interlock for operator safety
Compact benchtop design
Optional 12-capillary-tube rotor available
Two-year manufacturer warranty

Overview

The 4E's USA CFG400101 Hematocrit Centrifuge is purpose-built for laboratories that routinely process blood samples in capillary tubes. Unlike general-purpose clinical centrifuges designed around larger blood collection tubes, the CFG400101 provides the high rotational speed and dedicated capillary-tube rotor configuration needed for efficient microhematocrit testing.

The centrifuge reaches a maximum speed of 12,000 rpm with a maximum RCF of 14,800 × g when using the hematocrit rotor. Its standard rotor accommodates as many as 24 capillary tubes simultaneously, allowing laboratories to process multiple samples during a single run.

A supplied microhematocrit tube reader provides a convenient method for interpreting centrifuged capillary tubes following sample separation.

Modern electronic controls distinguish the CFG400101 from many traditional hematocrit centrifuges. A 5-inch HD touchscreen provides an intuitive interface for entering and viewing operating parameters, while microprocessor control helps provide consistent centrifugation from run to run.

Hematocrit and Packed Cell Volume Testing

Hematocrit testing measures the proportion of red blood cells, or erythrocytes, within a blood sample. After a capillary tube containing blood is centrifuged at high speed, the blood components separate according to density, allowing the packed red blood cell fraction to be evaluated.

The CFG400101 is designed specifically for this type of high-speed capillary tube separation. Its combination of 12,000 rpm maximum speed and 14,800 × g maximum RCF provides the centrifugal force needed to rapidly separate small-volume blood specimens.

The system can be used for determination of erythrocyte volume fractions in blood as well as separation of micro blood samples and solutions. It can also support workflows involving photometric assessment of bilirubin levels in neonatal blood specimens when used as part of an appropriate laboratory testing procedure.

Common Applications

The 4E's USA CFG400101 is well suited for hematocrit determination, packed cell volume testing, capillary blood sample processing, microhematocrit analysis, erythrocyte volume fraction determination, micro blood separation, veterinary hematology, clinical diagnostic workflows, neonatal blood sample preparation, and educational hematology applications.

Its dedicated rotor and relatively high centrifugal force make it particularly useful for facilities that routinely perform hematocrit testing rather than relying on a general-purpose centrifuge for every sample-processing procedure.

Ideal Laboratory Types

The CFG400101 is a practical choice for clinical laboratories, veterinary hospitals and diagnostic laboratories, physician office laboratories, hospitals, blood testing facilities, biomedical research laboratories, medical and veterinary schools, academic laboratories, and other facilities performing routine hematology testing.

Its compact benchtop dimensions also make it well suited for laboratories where workspace is limited or where a dedicated hematocrit centrifuge is preferred over tying up a larger multipurpose centrifuge.

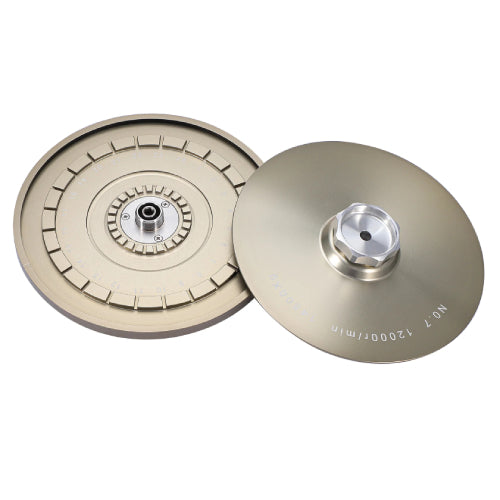

24-Capillary-Tube Hematocrit Rotor

The CFG400101 comes equipped with a 24-capillary-tube hematocrit rotor, allowing laboratories to process as many as 24 capillary tubes during a single centrifugation cycle.

This capacity can be particularly valuable in clinical and veterinary environments where multiple blood specimens need to be processed efficiently.

A microhematocrit tube reader is also included, providing laboratories with the equipment needed to interpret packed cell volume after centrifugation.

For laboratories with different throughput requirements, a 12-capillary-tube rotor is available as an optional configuration.

Touchscreen Controls and Programmable Operation

A 5-inch HD touchscreen provides access to centrifuge operating parameters through an intuitive graphical interface. Compared with traditional centrifuges relying entirely on mechanical knobs or membrane keypads, the touchscreen allows users to quickly enter and review centrifugation settings.

The CFG400101 also provides multiple user-defined program options, allowing frequently used operating parameters to be stored for repeat laboratory procedures.

This can be particularly helpful in busy clinical environments where standardized centrifugation protocols are performed repeatedly throughout the day.

Acceleration and Deceleration Control

Different samples and laboratory protocols can benefit from controlled acceleration and braking characteristics.

The CFG400101 provides 10 acceleration rates and 11 deceleration rates, allowing the operator to customize how quickly the rotor reaches operating speed and how aggressively it slows at the end of the run.

This level of control provides greater flexibility than a basic hematocrit centrifuge with a single fixed acceleration and braking profile.

Brushless Motor and Low-Noise Operation

The CFG400101 uses a DC brushless motor designed for stable, reliable, and relatively quiet centrifuge operation.

Brushless motors eliminate the motor brushes found in conventional brushed designs, reducing a potential maintenance item while supporting consistent performance during routine laboratory use.

Operating noise is rated at 65 dB(A) or less, helping make the centrifuge suitable for busy laboratories where multiple instruments may be operating simultaneously.

Safety Features

High-speed centrifuges require effective safeguards to help prevent access to the rotor while it is operating.

The CFG400101 incorporates a door lid interlock as part of its safety system. The interlock helps prevent the centrifuge lid from being opened while the rotor is spinning, providing an important layer of operator protection during high-speed operation.

The centrifuge is designed to conform to applicable international safety standards and regulations for laboratory centrifugation equipment.

Key Specifications

Specification	4E's USA CFG400101
Manufacturer	4E's USA
Model	CFG400101
Equipment Type	Hematocrit Centrifuge
Condition	Brand New
Installation	Benchtop
Refrigerated	No
Maximum Speed	12,000 rpm
Maximum RCF	14,800 × g
Standard Rotor	24-Capillary-Tube Hematocrit Rotor
Maximum Capacity	24 capillary tubes
Optional Rotor	12-Capillary-Tube Rotor
Speed Accuracy	±30 rpm
Timer Range	1 sec–99 min 59 sec
Display	5-inch HD touchscreen
Control	Microprocessor
Motor	DC brushless
Acceleration Profiles	10
Deceleration Profiles	11
Noise Level	≤65 dB(A)
Electrical	AC 110V, 60 Hz / 220V, 50 Hz
Dimensions (W × D × H)	320 × 370 × 235 mm (12.6 × 14.6 × 9.3 in.)
Net Weight	11 kg (24.3 lb.)
Included Accessories	24-capillary-tube rotor and microhematocrit tube reader
Warranty	Two-year manufacturer warranty

Choosing a Dedicated Hematocrit Centrifuge

Laboratories performing hematocrit testing regularly may benefit from using a dedicated hematocrit centrifuge rather than relying exclusively on a multipurpose clinical centrifuge.

Dedicated systems such as the CFG400101 are designed around the specific requirements of capillary tubes and microhematocrit testing. The 24-position rotor allows numerous capillary samples to be processed simultaneously, while the high-speed 12,000 rpm / 14,800 × g performance provides the centrifugal force required for efficient packed cell volume separation.

Using a dedicated hematocrit centrifuge can also keep larger clinical centrifuges available for serum tubes, plasma preparation, blood collection tubes, conical tubes, and other routine laboratory workflows.

Brand-New 4E's USA Centrifuges from American Instrument Exchange

American Instrument Exchange offers brand-new 4E's USA centrifuges alongside our extensive inventory of refurbished laboratory centrifuges from manufacturers including Thermo Scientific, Sorvall, Beckman Coulter, Eppendorf, and other leading laboratory equipment manufacturers.

The 4E's USA line provides laboratories with an attractive option when factory-new equipment, modern controls, warranty coverage, and cost-effective acquisition are priorities.

The CFG400101 is supplied brand new with a two-year manufacturer warranty, making it particularly attractive for startup laboratories, expanding clinical facilities, educational institutions, veterinary laboratories, and established laboratories replacing older hematocrit centrifuges.

Related Laboratory Equipment

Laboratories performing hematology and blood-processing workflows can also explore American Instrument Exchange's selection of clinical centrifuges, benchtop centrifuges, microcentrifuges, and refrigerated centrifuges.

American Instrument Exchange also offers additional brand-new centrifuges from 4E's USA for laboratories requiring different rotor capacities, speeds, temperature control, or sample-processing capabilities.

For complete laboratory buildouts, AIE supplies a broad range of additional new and refurbished laboratory equipment, including biosafety cabinets, laboratory refrigerators, laboratory freezers, incubators, balances, mixers, shakers, and other benchtop laboratory instruments.

Frequently Asked Questions

What is the 4E's USA CFG400101 Hematocrit Centrifuge used for?

The CFG400101 is designed primarily for hematocrit determination, packed cell volume testing, and separation of small-volume blood samples in capillary tubes. It can be used in clinical, veterinary, research, and educational hematology applications.

What is the maximum speed of the CFG400101?

The hematocrit rotor has a maximum operating speed of 12,000 rpm.

What is the maximum RCF?

The CFG400101 produces a maximum relative centrifugal force of 14,800 × g with its hematocrit rotor.

How many capillary tubes can the centrifuge hold?

The included hematocrit rotor accommodates up to 24 capillary tubes per run.

Does the centrifuge include a microhematocrit reader?

Yes. The CFG400101 comes with both a 24-capillary-tube hematocrit rotor and a microhematocrit tube reader.

Does the CFG400101 have a touchscreen?

Yes. The centrifuge features a 5-inch HD touchscreen for setting and viewing centrifugation parameters.

Can acceleration and braking be adjusted?

Yes. The CFG400101 provides 10 acceleration rates and 11 deceleration rates, allowing users to customize rotor acceleration and braking characteristics.

Is the 4E's USA hematocrit centrifuge refrigerated?

No. The CFG400101 is a non-refrigerated benchtop hematocrit centrifuge intended primarily for rapid capillary blood separation and related applications.

Is this centrifuge new or refurbished?

This CFG400101 is brand new, not refurbished or previously used.

What warranty is included?

Brand-new 4E's USA equipment is supplied with a two-year manufacturer warranty.
