to request information & pricing for item 5547E VAC PUMP
Edwards 18 Rotary Vane Vacuum Pump
- Model E1M18
- Pumping speed: 12.1 cfm
- Ultimate vacuum: 3.2x10-2 Torr
- 90-day warranty
The Edwards 18 E2M18 single stage rotary vane mechanical vacuum pump offers an excellent ultimate pumping speed. The Edwards 18 E2M18 has superior vapor handling capabilities, while operating quietly. They are very reliable and have accessories to match any application. Applications Include use with Refrigeration dehydration, brake line evacuation, epoxy degassing, sterilization, mass spectrometry, vacuum ovens, lasers, backing combinations, thin film coating, vacuum distillation, freeze drying, space research and other vacuum processes. The Edwards 18 E1M18 vacuum pumps have a pumping speed displacement at 60Hz of 12.1 CFM and an ultimate pressure of 3.2 x 10-2 Torr.
All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

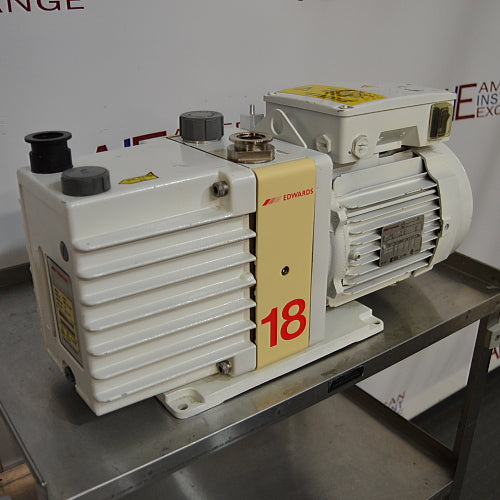

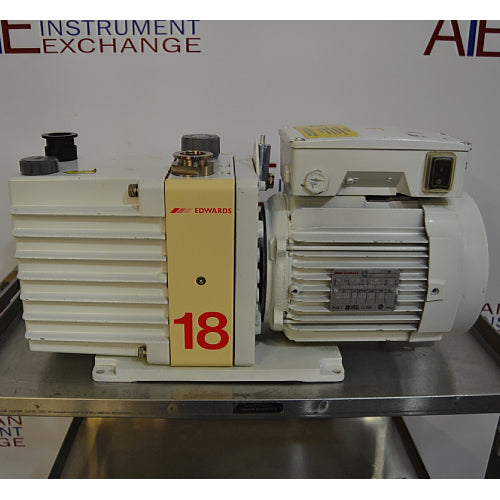

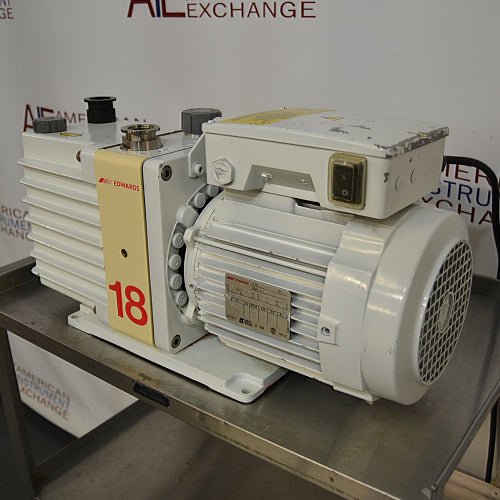

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
Edwards 18 Rotary Vane Vacuum Pump – Specifications
|Peak pumping speed||12.1 CFM @ 60 Hz|
|Ultimate pressure||3.2x10-2 Torr (4.3x10.2 mbar)|
|Oil capacity/type||Min. 1.4L / Ultragrade 19|
|Physical data||6.4”W x 19.7”L x 10.5”H / 83.6 lbs|
|Electrical requirements||Call to verify|
For inquiries about the Edwards 18 Rotary Vane Vacuum Pump, please give us a call at 978-521-2221, or fill out the form on this page.
