Analytik Jena UVP 3UV Triple-Wavelength UV Lamp

Product Code : SKU 5490K UV

Price Match Policy

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

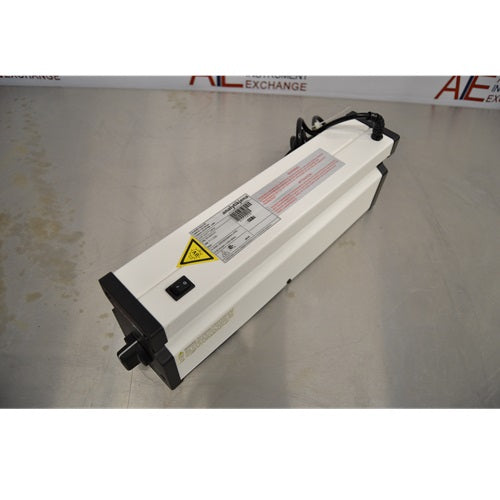

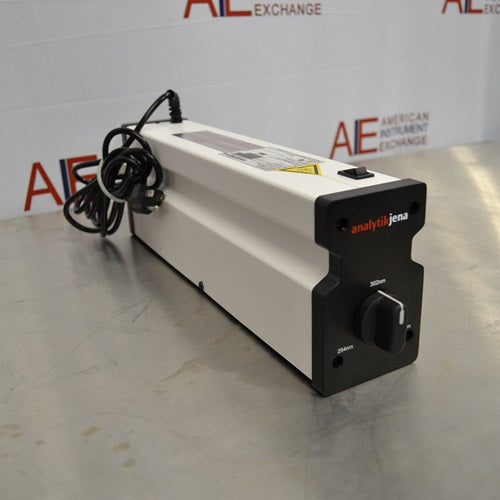

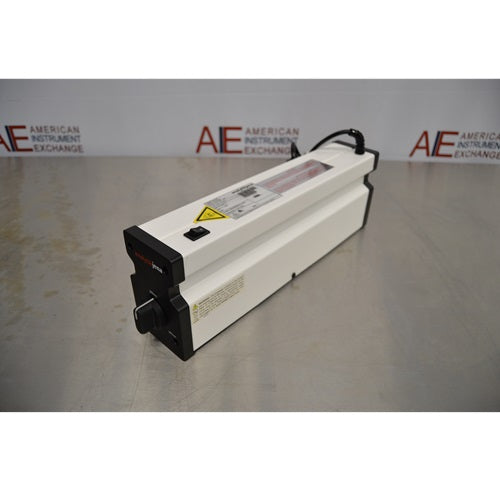

Analytik Jena UVP 3UV Triple-Wavelength UV Lamp

The Analytik Jena UVP 3UV Triple-Wavelength UV Lamp is a portable laboratory ultraviolet light source designed for fluorescence analysis, nucleic acid visualization, thin-layer chromatography (TLC), forensic investigations, industrial inspection, and quality control applications. Featuring three selectable ultraviolet wavelengths in a single handheld instrument—254 nm, 302 nm, and 365 nm—the UVP 3UV provides exceptional versatility for laboratories that routinely work with fluorescent dyes, UV-reactive compounds, and molecular biology workflows. This refurbished Analytik Jena UVP 3UV Lamp from American Instrument Exchange offers a cost-effective alternative to new equipment while delivering reliable UV illumination for research and analytical applications.

Analytik Jena UVP 3UV Triple-Wavelength UV Lamp Key Features

Analytik Jena UVP 3UV portable UV lamp
Triple ultraviolet wavelengths in one instrument
Selectable 254 nm, 302 nm, and 365 nm UV output
8-watt ultraviolet illumination
Compact handheld design
Individual reflectors maximize UV intensity
Ideal for fluorescence applications
Suitable for TLC plate visualization
Designed for DNA and RNA visualization workflows
Excellent for forensic and industrial inspection
Refurbished and tested by American Instrument Exchange
90-day warranty included from American Instrument Exchange

Analytik Jena UVP 3UV Triple-Wavelength UV Lamp Overview

The UVP 3UV combines three commonly used laboratory UV wavelengths into a single portable instrument, eliminating the need for multiple dedicated UV lamps. The shortwave 254 nm setting is commonly used for TLC visualization and material inspection, the midrange 302 nm wavelength is frequently selected for nucleic acid visualization following electrophoresis, and the longwave 365 nm output is widely used for fluorescent dye excitation, mineral inspection, leak detection, and forensic analysis. Individual reflectors behind each UV tube help maximize light output while providing consistent illumination across the working area. The compact housing makes the lamp easy to transport between laboratories, cleanrooms, production facilities, and field applications.

Common Applications for the Analytik Jena UVP 3UV Triple-Wavelength UV Lamp

The UVP 3UV is commonly used for DNA and RNA gel visualization, fluorescent protein detection, thin-layer chromatography (TLC), fluorescence microscopy support, UV-reactive dye inspection, pharmaceutical quality control, forensic evidence examination, counterfeit detection, mineral inspection, contamination detection, photochemistry, and general laboratory fluorescence analysis. The three selectable wavelengths allow laboratories to optimize excitation for a wide variety of fluorescent compounds and analytical techniques.

Ideal Lab Types for the Analytik Jena UVP 3UV Triple-Wavelength UV Lamp

This UV lamp is well suited for molecular biology laboratories, biotechnology companies, pharmaceutical manufacturers, forensic laboratories, university research facilities, environmental testing laboratories, quality control departments, and industrial inspection laboratories. Facilities utilizing biosafety cabinets, gel documentation systems, PCR equipment, electrophoresis systems, and laboratory incubators frequently incorporate portable UV lamps into their analytical and research workflows.

Analytik Jena UVP 3UV Triple-Wavelength UV Lamp Key Specifications

Specification	Details
Manufacturer	Analytik Jena (UVP)
Model	UVP 3UV Lamp
Equipment Type	Portable Triple-Wavelength UV Lamp
UV Wavelengths	254 nm, 302 nm, 365 nm
Lamp Power	8 Watts
Electrical Requirements	115V, 60 Hz
Current Draw	0.20 A
Housing	Portable Handheld Design
Reflectors	Individual Reflectors Behind Each UV Tube
Primary Applications	Fluorescence, TLC, Gel Visualization, Inspection
Condition	Refurbished

Specifications compiled from Analytik Jena manufacturer literature, distributor technical references, and American Instrument Exchange product information.

Refurbishment and Testing Process

At American Instrument Exchange, each refurbished UV lamp is inspected and evaluated by our technicians prior to shipment. Testing procedures may include verification of all three UV wavelengths, ballast operation, switch functionality, housing inspection, electrical safety testing, and general operational evaluation. Components showing excessive wear are addressed as needed to help ensure dependable laboratory performance. Final cleaning and inspection are completed before packaging and shipment.

Shipping and Installation Considerations

The Analytik Jena UVP 3UV is designed as a portable laboratory instrument and requires only a standard 115V electrical outlet for operation. Buyers should follow established laboratory safety procedures when working with ultraviolet light, including the use of appropriate UV-blocking face shields, eyewear, and protective equipment. The lamp is carefully packaged to protect the housing, UV tubes, and electrical components during shipment.

Related Laboratory Equipment

Laboratories purchasing UV lamps often also require electrophoresis systems, gel documentation systems, PCR equipment, biosafety cabinets, centrifuges, and incubators. American Instrument Exchange offers a wide selection of refurbished laboratory equipment to support molecular biology, analytical chemistry, quality control, and biotechnology research.

Analytik Jena UVP 3UV Triple-Wavelength UV Lamp Frequently Asked Questions

Why does the UVP 3UV include three different UV wavelengths?

Different laboratory applications require different UV wavelengths. The 254 nm setting is commonly used for TLC and material inspection, 302 nm is widely used for nucleic acid visualization, and 365 nm is ideal for many fluorescence and forensic applications.

Can this lamp be used for DNA gel visualization?

Yes. The 302 nm wavelength is commonly used to visualize DNA and RNA gels stained with UV-excitable dyes while helping reduce DNA damage compared to shorter UV wavelengths.

Is this a transilluminator?

No. The UVP 3UV is a portable handheld UV lamp. It is intended for direct UV illumination and inspection rather than serving as a benchtop UV transilluminator.

Has this UV lamp been tested by American Instrument Exchange?

Yes. Each refurbished UVP 3UV Lamp is inspected and operationally tested by American Instrument Exchange technicians prior to shipment.

What warranty is included?

This refurbished Analytik Jena UVP 3UV Triple-Wavelength UV Lamp includes a 90-day warranty from American Instrument Exchange.
