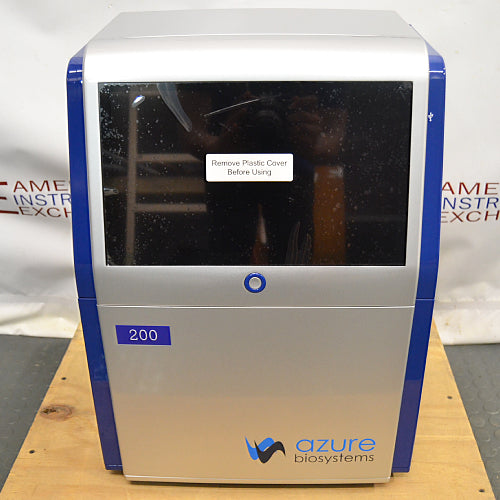

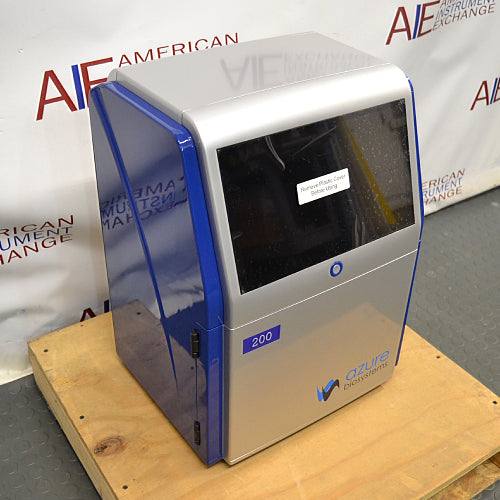

Azure Biosystems 200 Gel Imaging Workstation
The Azure Biosystems 200 Gel Imaging Workstation is a user-friendly gel documentation imaging system designed for various applications. It features a dual-wavelength UV transilluminator (302 nm and 365 nm) for capturing ethidium bromide-stained DNA gels, as well as blue light imaging.
The system automatically keeps gel images in focus, regardless of gel size, and offers high-resolution imaging with a 5.4-megapixel camera. Safe dye detection is achieved using EPI Blue LEDs, reducing background noise. Connectivity options include Wi-Fi, Ethernet, and USB, making it an affordable choice for routine DNA and protein gel imaging.
Imaging with infrared dyes offers signal stability and low background fluorescence. Additionally, imaging with NIR dyes allows you to study multiple proteins in a blot, even if those proteins overlap in molecular weight.
Azure Biosystems 200 Gel Imaging Workstation - specifications
Catalog number: AZI2000-01
5.4 MP camera
20 x 15 cm field of view
90-day warranty
Azure Biosystems 200 Gel Imaging Workstation - features
The Azure 200 imaging system includes the following key components:
Cabinet – The cabinet is a light tight image station. It includes the camera and lens, light sources, filter wheel, integrated tablet, and USBs for data collection.
Camera – High resolution camera, preinstalled in the system.
UV Transilluminator – The UV illuminator provides 302nm and 365nm trans illumination. It is mounted on a pull-out tray.
EPI LEDs – The LED module allows you to take Blue Light and Color images.
Filter Wheel – The 7-position filter wheel is automated. It includes the standard orange filter for most UV fluorescent applications, and additional Red, Green, Blue, and/or IR filters for multichannel systems.
Integrated Computer – The touch screen PC is completely integrated for system control and image acquisition.
Black Tray – Stored in the front door, the Black Tray (also called Blot Tray) is required for imaging all blots. For fluorescent blots, it is placed on the UV transilluminator. For Chemi blots, it can be placed on the UV transilluminator, or on the chemi shelf in the cabinet.
Trans White Table – The Trans White Table can be plugged into the system with the cable behind the UV transilluminator. This table is placed on top of the UV transilluminator and provides an even light source that can be used for Coomassie imaging. The Trans White Table will only turn on when the system door is closed.
USB Ports – There are 3 USB ports for data transfer. One located on the front panel, and two on the lower right side of the cabinet.
CLICK HEREto see the Azure Biosystems 200 Gel Imaging Workstation on our YouTube channel
Testing
This Azure 200 gel imaging workstation is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. We can’t test for a specific analytical application. We do our best to simulate the conditions under which the equipment will run.
If you have particular testing requirements or requests please let us know/ We’ll address these requirements during testing.
Pictures
The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment.
We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after testing and cleaning.
Azure Biosystems 200 Gel Imaging Workstation – additional specifications
Dimensions
16”W x 13”D x 22”H
Camera
5.4 MP
Pixel resolution
16-bit, 65,536, Grayscale
Lighting
UV, blue light, true color, trans white
Weight
44 lbs
For inquiries about the Azure Biosystems 200 Gel Imaging Workstation, please give us a call at 978-521-2221, or fill out the form on this page.
The Azure Biosystems Azure 200 is a compact gel imaging workstation designed for routine DNA and protein gel documentation. With a 5.4-MP camera, multiple illumination options (UV, blue, and white light), automated imaging controls, and built-in analysis software, it provides a flexible and user-friendly solution for molecular biology laboratories.
What types of gels and stains can the Azure 200 image?
The system supports multiple imaging modes to detect common nucleic acid and protein stains, including:
Coomassie Blue or silver-stained protein gels (white light imaging)
The workstation automatically selects the correct light source and filters based on the selected application.
Does the Azure 200 require manual focusing?
No. The system uses a fixed focus optical design that automatically keeps gels in focus regardless of their placement inside the imaging chamber. This eliminates the need for frequent manual adjustments and simplifies routine imaging workflows.
What is the field of view for imaging gels?
The Azure 200 provides an imaging area of approximately 20 × 15 cm, which accommodates many common agarose or polyacrylamide gels used in laboratory experiments.
