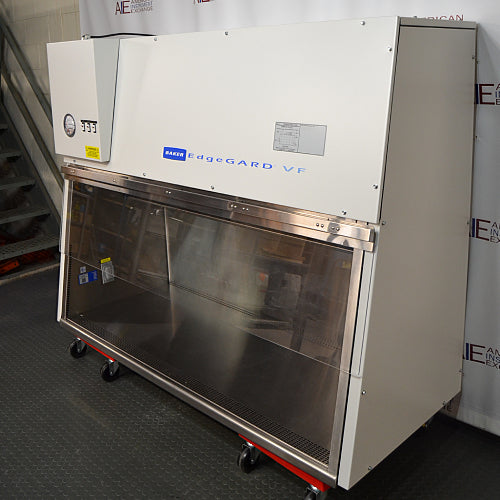

The Baker EdgeGARD EGVF601 is a 6-foot vertical-flow recirculating clean bench designed to provide exceptional product protection for nonhazardous samples, materials, and procedures requiring stringent particulate control. Unlike conventional horizontal-flow clean benches, the EdgeGARD VF directs HEPA-filtered air vertically over the entire work surface, providing ISO Class 4 (Class 10) cleanliness within the work area.
With a spacious 70-inch-wide stainless-steel interior, 14-inch working access opening, specialized airflow design, and supporting stand, the EGVF601 provides a large contamination-controlled workspace for pharmaceutical, biotechnology, research, electronics, and other clean applications. Its vertical airflow configuration can be particularly useful for procedures involving taller equipment or workflows where horizontal airflow could be obstructed.
Available used and refurbished from American Instrument Exchange, this Baker EdgeGARD EGVF601 is inspected and tested before shipment and includes a 90-day warranty.
Key Features
6-foot vertical-flow recirculating clean bench
ISO Class 4 (Class 10) cleanliness for 0.5 µm particles
HEPA-filtered unidirectional vertical airflow
70-inch-wide stainless-steel interior workspace
14-inch working access opening
30-3/8-inch opening for loading and cleaning
High-velocity return air slots help minimize entry of contaminated room air
Momentum air curtain along the viewscreen
Slanted 10-degree viewscreen
Stainless-steel work area
Differential pressure gauge for filter monitoring
Washable prefilter helps extend HEPA filter life
Internal GFCI duplex electrical outlet
Supporting stand included
115 V, 60 Hz electrical configuration
Refurbished and tested by American Instrument Exchange
90-day warranty included from American Instrument Exchange
Overview
The Baker EdgeGARD EGVF601 uses a carefully controlled vertical airflow system to create an exceptionally clean environment for nonhazardous products and procedures. Room air enters through a prefilter at the top of the cabinet before being moved by the blower into the supply plenum and through the HEPA filter above the work area.
HEPA-filtered air then moves downward through the workspace at a nominal velocity of approximately 50–65 feet per minute. Most of this clean air travels vertically over the work surface before exiting through the front access opening, while a portion of the airflow is recirculated through the cabinet.
A distinctive element of Baker's design is its higher-velocity air curtain immediately behind the viewscreen. Baker specifies a nominal velocity of approximately 100 feet per minute in this area. High-velocity return slots along the work surface and side walls also help reduce the potential for contaminated room air to enter the clean workspace.
The result is an ISO Class 4 environment, historically referred to as Class 10, providing a higher air-cleanliness classification than the ISO Class 5 environment commonly specified for many general-purpose laminar flow clean benches.
Common Applications
The Baker EdgeGARD EGVF601 is intended for nonhazardous procedures where protecting samples, products, or processes from airborne particulate contamination is the primary objective. Applications can include sterile preparation procedures, nonhazardous pharmaceutical compounding, media preparation, plant and tissue culture, medical device assembly, electronics work, optical component handling, and other contamination-sensitive laboratory or manufacturing processes.
Vertical airflow can be particularly useful when procedures involve taller equipment, containers, or assemblies. Rather than moving horizontally from the rear of the cabinet toward the operator, filtered air descends from above, helping maintain clean airflow around vertically oriented equipment and procedures.
The large 70-inch-wide workspace also provides substantial room for multiple pieces of equipment, containers, and materials.
Ideal Laboratory Environments
The Baker EdgeGARD EGVF601 is well suited for pharmaceutical facilities, biotechnology laboratories, hospital and pharmacy environments performing appropriate nonhazardous work, medical device manufacturers, university research laboratories, tissue culture laboratories, electronics facilities, quality-control departments, and other contamination-sensitive environments.
Its six-foot work area makes it particularly useful for laboratories requiring considerably more room than a compact 3-foot or 4-foot clean bench provides.
The combination of a large work area and vertical airflow can also make the EGVF601 an attractive choice when taller instruments or equipment need to remain within the clean zone without substantially disrupting the primary airflow path.
Key Specifications
Specification
Baker EdgeGARD EGVF601
Equipment Type
Vertical-flow recirculating clean bench
Nominal Width
6 ft
Airflow
Vertical, unidirectional and recirculating
Cleanliness Classification
ISO Class 4 / Class 10
Filtration
HEPA
HEPA Filter Efficiency
99.99% minimum at 0.3 µm
Nominal Work Area Downflow
50–65 ft/min
Nominal Air Curtain Velocity
Approx. 100 ft/min
Exterior Dimensions with Stand
77.5"W × 32"D × approx. 89.1–97.6"H
Interior Dimensions
70"W × 25.125"D × 31.8"H
Working Access Opening
14"H
Loading/Cleaning Opening
Approx. 30.4"H
Interior Construction
Stainless steel
Filter Monitoring
Differential pressure gauge
Internal Outlet
GFCI duplex receptacle
Stand
Included
Weight
Approx. 564 lb
Electrical Requirements
115 V, 60 Hz, 20 A circuit
Manufacturer
Baker
Model
EGVF601 / EG6VF
Refurbishment & Testing
Used vertical-flow clean benches should be thoroughly evaluated before being returned to laboratory service. American Instrument Exchange technicians test the Baker EdgeGARD EGVF601 to verify proper operation of the controls and blower motor and evaluate the HEPA filter for suitability in laboratory conditions.
AIE's clean bench testing incorporates the major elements used during certification with the goal of preparing the unit to pass final testing following delivery and installation. The stainless-steel workspace, lighting, viewscreen, controls, blower system, filter-monitoring system, and overall cabinet condition are also inspected during the refurbishment process.
The clean bench is thoroughly cleaned before shipment. Customers can request photographs of the specific equipment included with their order after testing and cleaning have been completed.
This refurbished Baker EdgeGARD EGVF601 includes a 90-day warranty from American Instrument Exchange.
Certification Readiness & Service
Proper downflow velocity, airflow balance, and HEPA filter integrity are critical to maintaining the controlled environment expected from the EdgeGARD EGVF601. Baker's factory testing includes filter leak checks, electrical testing, downflow velocity measurements, smoke-pattern evaluation, and airflow balancing.
Following transportation and installation, the clean bench should be evaluated according to the laboratory's applicable procedures before being placed into critical service.
American Instrument Exchange works with AIE Laboratory Services to support clean benches and other laboratory airflow equipment throughout Greater Boston and New England. Services can include airflow testing, HEPA filter evaluation and replacement, troubleshooting, preventative maintenance, and repair.
Final testing after relocation is particularly valuable because transportation, installation conditions, room airflow, and filter condition can affect clean bench performance.
Shipping & Installation
The Baker EdgeGARD EGVF601 is a large 6-foot clean bench measuring approximately 77.5 inches wide by 32 inches deep. With its supporting stand, the adjustable overall height is approximately 89.1 to 97.6 inches.
The cabinet itself is designed so that it can be moved through a standard 80-inch-high doorway, simplifying installation compared with equipment that must remain fully assembled during transport. The supporting stand can then be configured at the final installation location.
Laboratories should verify doorways, corridors, elevators, loading areas, ceiling height, and the final equipment location before delivery. The approximately 564-pound cabinet also requires appropriate material-handling equipment and delivery planning.
American Instrument Exchange can assist with freight coordination and provide additional dimensional information to help customers prepare for installation.
Related Equipment
Laboratories considering the Baker EdgeGARD EGVF601 can explore additional clean benches and laminar flow hoods available from American Instrument Exchange, including both horizontal- and vertical-flow configurations.
For applications involving infectious agents, biological hazards, or other materials requiring personnel and environmental containment, AIE also carries refurbished biosafety cabinets from Baker, Thermo Scientific, Labconco, Nuaire, and other major manufacturers.
The Baker EdgeGARD EGVF601 is a vertical-flow clean bench, not a biosafety cabinet. Its purpose is to protect nonhazardous samples, products, and processes from particulate contamination.
Although its airflow travels vertically rather than horizontally, the EdgeGARD VF does not provide personnel or environmental protection against biological, chemical, radiological, or other hazardous substances. Baker specifically warns against using the cabinet for hazardous work.
Laboratories working with infectious agents or other materials requiring biological containment should instead select an appropriate Class II biosafety cabinet.
For nonhazardous applications where product cleanliness and particulate control are the primary objectives, a clean bench or laminar flow hood such as the EdgeGARD EGVF601 may provide the appropriate working environment.
Baker EdgeGARD EGVF601 Frequently Asked Questions
What is the Baker EdgeGARD EGVF601?
The EGVF601 is a nominal 6-foot vertical-flow recirculating clean bench designed to protect nonhazardous products and procedures from airborne particulate contamination.
What cleanliness classification does the EGVF601 provide?
Baker specifies ISO Class 4, historically referred to as Class 10, air cleanliness for 0.5 µm particles within the work area.
How large is the Baker EGVF601 work area?
The interior workspace measures approximately 70 inches wide by 25-1/8 inches deep by 31-13/16 inches high. The normal working access opening is 14 inches high.
What is the advantage of vertical airflow?
Vertical airflow travels downward from the HEPA filter above the work area. This configuration can be useful for procedures involving taller equipment or vertically oriented processes that might obstruct horizontal airflow. The most appropriate airflow configuration ultimately depends on the laboratory's application and workflow.
How does the EdgeGARD VF help prevent room air from contaminating the workspace?
The EGVF601 incorporates high-velocity return air slots at the leading edges of the work surface and side walls as well as a higher-velocity downward air curtain behind the viewscreen. These features are designed to reduce backwash and intrusion of contaminated room air into the clean workspace.
Is the Baker EdgeGARD EGVF601 a biosafety cabinet?
No. The EGVF601 is designed for product protection and particulate control. It does not provide the personnel or environmental protection associated with an appropriate biosafety cabinet.
Can the EGVF601 be used with hazardous biological materials?
No. Baker states that the EdgeGARD VF does not provide personnel or environmental protection from biological, chemical, radiological, or other hazardous substances.
Does this Baker EGVF601 include a stand?
Yes. The unit offered by American Instrument Exchange includes the supporting stand shown in the listed configuration.
Does American Instrument Exchange test the Baker EGVF601 before shipment?
Yes. AIE technicians test the controls and blower operation and evaluate the HEPA filter for suitability in laboratory conditions. The clean bench is also inspected and thoroughly cleaned before shipment.
Does the Baker EdgeGARD EGVF601 include a warranty?
Yes. This refurbished Baker EdgeGARD EGVF601 includes a 90-day warranty from American Instrument Exchange.
