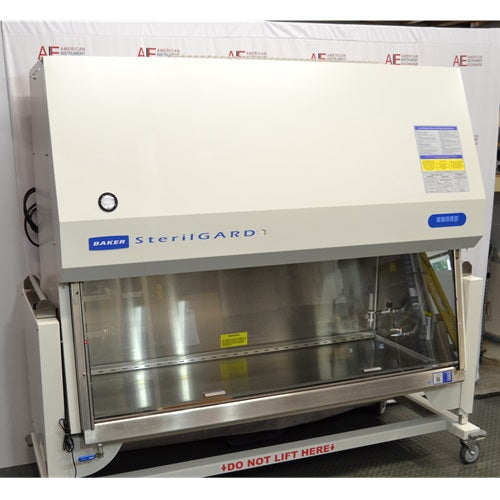

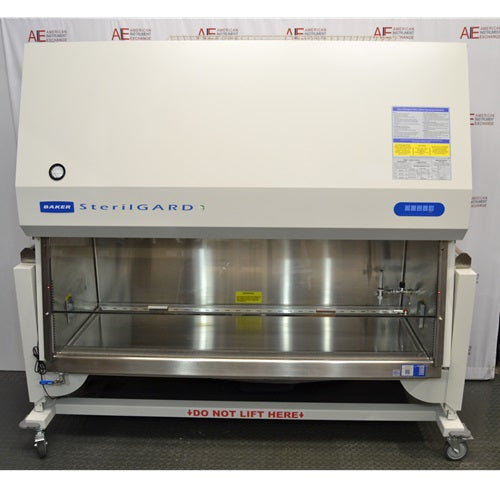

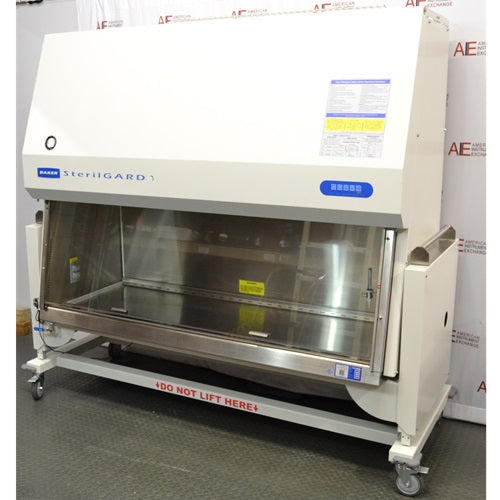

Baker SterilGARD e3 SG604M Biosafety Cabinet with Hydraulic Adjustable-Height Stand

Baker SterilGARD e3 SG604M 6' Biosafety Cabinet with Hydraulic Adjustable-Height Stand & 12" Sash

Refurbished Baker SterilGARD e3 SG604M Biosafety Cabinet for Sale

The Baker SterilGARD e3 SG604M is a premium 6-foot Class II Type A2 biosafety cabinet designed for laboratories that need maximum working space, dependable biological containment, and greater operator flexibility. This particular SG604M configuration adds two especially useful features to Baker's large 6-foot platform: a 12-inch working sash opening and a push-button electric/hydraulic adjustable-height stand.

For this SG604M, the “M” model designation does not change the cabinet's operating specifications from the corresponding SG604 configuration. Laboratories familiar with the SG604 can therefore expect the same fundamental dimensions, airflow platform, stainless steel work chamber, and containment capabilities while matching the specific SG604M model designation found on the cabinet.

The combination of a 12-inch opening and powered adjustable-height stand makes this SG604M particularly well suited to laboratories performing large, equipment-intensive, or ergonomically demanding workflows. The 12-inch sash provides greater vertical access to the work chamber than 8-inch or 10-inch configurations, while the powered hydraulic stand allows operators to raise or lower the entire cabinet to establish a more comfortable working height.

The Baker SterilGARD e3 SG604M Biosafety Cabinet with Hydraulic Stand provides an approximately 70-inch-wide interior chamber and 68-inch-wide usable work surface, giving researchers substantially more room than a conventional 4-foot BSC. The additional space can accommodate multiple culture vessels, large sample racks, media containers, aspiration equipment, and appropriately sized laboratory instruments while allowing operators to maintain an organized workflow inside the cabinet.

Combined with Baker's electronically commutated motor technology, ReadySAFE energy-saving mode, airflow monitoring, ergonomic sloped front, and proven SterilGARD e3 containment platform, this SG604M provides an unusually versatile workstation for biotechnology, pharmaceutical, cell culture, research, and other demanding laboratory environments.

At American Instrument Exchange, this Baker SG604M is professionally inspected, cleaned, refurbished, and tested prior to shipment. Unless otherwise specified, new HEPA filters are installed at our facility before delivery. The cabinet is backed by a 90-day warranty from American Instrument Exchange and is prepared for field certification following installation.

Key Features

• Class II Type A2 biosafety cabinet

• Baker SterilGARD e3 SG604M model

• Large 6-foot cabinet configuration

• 12-inch working sash opening

• Push-button electric/hydraulic adjustable-height stand

• Continuously adjustable working height

• Approximately 70-inch-wide interior chamber

• Approximately 68-inch-wide usable work surface

• 304 stainless steel work chamber

• HEPA-filtered supply and exhaust airflow

• Electronically commutated motor technology

• Automatic compensation for increasing HEPA filter resistance

• ReadySAFE energy-saving standby mode

• Ergonomic 10-degree sloped viewscreen

• Digital cabinet controls and airflow monitoring

• Large workspace for equipment-intensive procedures

• Hydraulic lift capacity up to approximately 1,000 lb

• 115V electrical configuration

• New HEPA filters included unless otherwise specified

• 90-day warranty from American Instrument Exchange

Overview

The Baker SterilGARD e3 SG604M is a large 6-foot Class II Type A2 biosafety cabinet providing approximately 70 inches of interior chamber width.

That additional working space can make a meaningful difference in laboratories performing high-throughput cell culture, pharmaceutical research, biotechnology, microbiology, vaccine development, cell and gene therapy research, and other biological procedures. Rather than crowding vessels, racks, pipettes, media, and equipment into a smaller cabinet, researchers have substantially more room to establish organized workflows.

As a Class II Type A2 biosafety cabinet, the SG604M is designed to provide personnel, product, and environmental protection. Inward airflow at the front opening helps protect the operator, while HEPA-filtered vertical downflow helps protect samples and materials inside the work area. Exhaust air passes through HEPA filtration before leaving the cabinet.

The SterilGARD e3 platform incorporates Baker's electronically controlled motor and airflow-management technology to maintain appropriate operating conditions as resistance across the HEPA filters changes over time. ReadySAFE mode provides a reduced-energy operating condition during periods when the cabinet is not actively being used.

This particular SG604M adds considerably more ergonomic and workflow flexibility through its 12-inch working opening and powered hydraulic lift.

What Does the “M” Mean on the Baker SG604M?

The model designation on this particular cabinet is SG604M rather than SG604.

For this unit, the “M” designation does not change the cabinet's specifications or fundamental performance characteristics. The SG604M retains the same basic 6-foot SterilGARD e3 Class II Type A2 platform and specifications as the corresponding SG604.

This distinction is nevertheless worth identifying clearly on a refurbished-equipment page because laboratories may search specifically for an SG604M when replacing an existing cabinet, researching a unit already installed in their facility, locating service information, or attempting to match equipment across several laboratory rooms.

American Instrument Exchange therefore identifies this cabinet using its SG604M model designation while retaining the applicable SG604 technical specifications.

Why Choose This Baker SterilGARD e3 SG604M Biosafety Cabinet with Hydraulic Stand Configuration?

Not every Baker SterilGARD e3 6-foot cabinet is configured the same way.

This particular SG604M combines a 12-inch working opening with a push-button electric/hydraulic adjustable-height stand, making it an especially versatile version of Baker's large Class II Type A2 platform.

The 12-inch opening provides substantially more vertical access than an 8-inch configuration. This can be useful when transferring taller vessels, larger sample racks, instruments, or other appropriately sized materials into and out of the work chamber.

The powered stand addresses another limitation of conventional biosafety cabinets: fixed working height.

Operators vary considerably in height and working preference, and laboratories may have several researchers sharing the same BSC throughout the day. A cabinet positioned comfortably for one researcher may be too high or too low for another.

With the push-button hydraulic system, the working height can be adjusted rather than requiring every operator to adapt to the cabinet.

For laboratories where researchers spend hours performing repetitive procedures inside the BSC, this can make the SG604M a considerably more adaptable workstation.

Push-Button Hydraulic Adjustable-Height Stand

The powered hydraulic stand is one of the most important features of this particular Baker SG604M.

An electric motor drives the hydraulic lift system, allowing the cabinet height to be adjusted through push-button controls. The system provides continuous height adjustment rather than limiting the cabinet to several predetermined positions.

This allows laboratories to configure the work surface for different operators and procedures. A researcher performing detailed pipetting while seated may prefer one height, while another procedure or operator may benefit from raising or lowering the cabinet.

Adjustable height can be particularly valuable in shared laboratories, pharmaceutical facilities, university core labs, and other environments where multiple researchers use the same BSC.

The lift system is built around a heavy-duty frame and is rated for a gross lift capacity of up to approximately 1,000 lb. Once positioned, the hydraulic system maintains the selected height even when electrical power to the lift is removed.

The lift also allows the cabinet to be lowered when needed, reducing its overall height and center of gravity. This can be useful during equipment positioning or relocation, although moving a biosafety cabinet should always be performed using appropriate equipment and procedures.

For laboratories prioritizing ergonomics, accessibility, and workstation flexibility, the powered hydraulic stand represents a significant advantage over a conventional fixed-height SG604M.

Why Choose a 12-Inch Sash Opening?

Baker offered the SterilGARD e3 platform with multiple working-access heights, including 8-inch, 10-inch, and 12-inch configurations.

This SG604M uses the larger 12-inch working opening.

The additional vertical access can be particularly useful when laboratory workflows involve taller vessels, large racks, specialized instruments, or other equipment that may be cumbersome to move through a smaller opening.

A larger opening can also make setup and breakdown of complex workflows easier because operators have additional clearance when introducing equipment and materials into the chamber.

The correct sash configuration should always be determined by the cabinet's certified design rather than simply raising the sash of another configuration farther than its designated operating position. This SG604M is specifically configured to operate with the 12-inch working access opening.

For laboratories replacing an existing 12-inch-opening BSC or requiring additional vertical working access, this configuration can therefore provide a meaningful advantage over more commonly encountered 8-inch cabinets.

Maximum Workspace for High-Throughput Laboratories

The Baker SterilGARD e3 SG604M Biosafety Cabinet with Hydraulic Stand provides the substantial work area expected from Baker's 6-foot SterilGARD e3 platform.

Its interior measures approximately 70 inches wide by 24 9/16 inches deep by 27 7/16 inches high, with approximately 68 inches of usable work-surface width.

That additional space can be valuable when workflows involve numerous culture vessels, larger sample batches, multiple reagent containers, extensive racks, or small instruments that must remain inside the containment area.

It can also allow operators to establish clearer separation between clean materials, active work areas, and waste streams rather than unnecessarily overcrowding the work surface.

This makes the SG604M particularly attractive for pharmaceutical development, biotechnology research, cell and gene therapy workflows, vaccine research, production support, quality-control laboratories, and other facilities where throughput and organization are important.

The combination of a large work area and 12-inch access opening makes this particular cabinet especially suitable for workflows that would feel constrained inside a conventional 4-foot BSC.

Operator Comfort & Ergonomics

Biosafety cabinet ergonomics become increasingly important when researchers spend several hours each day performing repetitive procedures.

The SterilGARD e3 platform incorporates a 10-degree sloped front viewscreen designed to improve visibility and operator positioning. The work chamber provides substantial horizontal space, reducing the need to crowd materials directly in front of the operator.

The powered hydraulic stand takes this ergonomic design considerably further by allowing the entire cabinet to be positioned at a working height appropriate for the individual user.

Rather than relying exclusively on chair adjustment or requiring shorter and taller operators to work at the same fixed surface height, laboratories can adjust the BSC itself.

This can be especially valuable in facilities where the cabinet is shared by several technicians or researchers over multiple shifts.

The 12-inch sash opening also provides generous access to the chamber, creating an SG604M configuration designed around both large-scale workflow flexibility and operator comfort.

Baker SG604M with Hydraulic Lift vs. Standard Fixed-Height Configuration

The underlying biosafety cabinet remains Baker's large SterilGARD e3 Class II Type A2 platform, but the stand and sash configuration can substantially change how the cabinet functions as a laboratory workstation.

An SG604M installed on a fixed stand maintains a predetermined working height. This is entirely appropriate for many laboratories.

The hydraulic-lift configuration allows the cabinet height to be changed whenever operator or workflow requirements change.

This can be particularly useful in shared laboratories, university core facilities, accessibility-focused laboratory designs, and facilities where technicians perform long procedures at the BSC.

The 12-inch opening provides another distinction from cabinets configured around smaller working apertures.

For laboratories that genuinely benefit from both features, this SG604M represents a more adaptable workstation rather than simply a standard BSC placed on a different stand.

Baker SG604M vs. Baker SG604

For this cabinet, the SG604M designation does not represent a different set of technical specifications from the corresponding SG604.

Both use the same fundamental 6-foot SterilGARD e3 Class II Type A2 platform, and the SG604 specifications apply to this SG604M.

The model designation can still matter when researching existing laboratory equipment, matching asset records, ordering service, replacing an installed cabinet, or searching specifically for another SG604M.

When comparing refurbished SG604 and SG604M cabinets, laboratories should therefore pay greater attention to the actual equipment configuration—including sash height, stand type, electrical requirements, accessories, condition, and filtration—rather than assuming that the “M” designation itself indicates different containment performance or dimensions.

Common Applications

The Baker SterilGARD e3 SG604M is well suited to mammalian cell and tissue culture, stem cell research, microbiology, molecular biology, virology, vaccine development, biotechnology research, pharmaceutical research and development, cell and gene therapy workflows, quality-control procedures, clinical research, sample preparation, and other applications requiring Class II Type A2 containment.

Its 6-foot workspace and 12-inch opening can be particularly useful for higher-throughput procedures, larger experimental setups, and workflows requiring more materials or appropriately sized equipment inside the cabinet.

Baker SterilGARD e3 SG604M Biosafety Cabinet with Hydraulic Stand Ideal Laboratory Environments

This Baker SG604M is particularly well suited for biotechnology companies, pharmaceutical laboratories, cell and gene therapy facilities, vaccine-development laboratories, contract research organizations, university core facilities, hospital research laboratories, government laboratories, and other organizations requiring a large Class II Type A2 containment workstation.

The combination of the 6-foot chamber, 12-inch operating aperture, and push-button adjustable-height stand can be especially valuable in shared laboratories where several researchers use the same cabinet or where ergonomics and accessibility are important equipment-selection considerations.

Compatible Laboratory Equipment

The Baker SterilGARD e3 SG604M Biosafety Cabinet with Hydraulic Stand fits naturally into cell culture, biotechnology, pharmaceutical, and production-support workflows involving multiple pieces of laboratory equipment.

For cell culture applications, the SG604M can be paired with CO₂ incubators for maintaining cultures, refrigerated centrifuges for harvesting and processing samples, laboratory refrigerators for media and reagent storage, and ultra-low temperature freezers for long-term biological sample preservation.

Inverted microscopes, laboratory autoclaves, water baths, cryogenic storage systems, and additional biosafety cabinets can further support complete laboratory workflows.

American Instrument Exchange maintains a broad inventory of professionally refurbished laboratory equipment, allowing laboratories to source multiple pieces of compatible equipment through a single supplier.

Key Specifications

Specification	Details
Manufacturer	Baker
Model	SterilGARD e3 SG604M
Cabinet Type	Class II Type A2 Biosafety Cabinet
Nominal Width	6 ft
Working Sash Opening	12"
Interior Dimensions	Approximately 70" W × 24 9/16" D × 27 7/16" H
Usable Work Surface	Approximately 68" W × 19 5/8" D
Cabinet Exterior Dimensions	Approximately 77 3/4" W × 30 11/16" D × 61 3/4" H
Interior Construction	304 Stainless Steel
Airflow	HEPA-Filtered Vertical Laminar Flow
Supply Filtration	HEPA
Exhaust Filtration	HEPA
Motor Technology	Electronically Controlled High-Efficiency Motor
Energy-Saving Operation	ReadySAFE Mode
Stand	Push-Button Electric/Hydraulic Adjustable-Height Lift
Lift Capacity	Up to Approximately 1,000 lb
Cabinet Weight	Approximately 771 lb
Powered Lift Weight	Approximately 222 lb
Combined Cabinet & Lift Weight	Approximately 993 lb
Electrical	115V AC, 20A Circuit
HEPA Filters	New Filters Included Unless Otherwise Specified
Warranty	90 Days from American Instrument Exchange

The SG604M designation on this cabinet does not change the applicable SG604 specifications. Specifications are based on the corresponding Baker SterilGARD e3 SG604 platform and this cabinet's 12-inch sash and powered hydraulic-stand configuration.

Why Buy a Refurbished Baker SterilGARD e3 SG604M?

The Baker SterilGARD e3 SG604M is a substantial 6-foot Class II Type A2 biosafety cabinet designed for laboratories that need a large containment workspace and dependable long-term performance. This particular cabinet adds two valuable features to the standard 6-foot platform: a 12-inch working sash opening and a push-button electric/hydraulic adjustable-height stand.

For this cabinet, the “M” designation does not change the applicable SG604 specifications. Laboratories searching specifically for an SG604M can therefore benefit from the same large work chamber, stainless steel construction, airflow-management technology, and Class II Type A2 containment platform associated with the corresponding SG604.

The hydraulic stand makes this particular cabinet considerably more adaptable than an SG604M installed at a fixed working height. Multiple researchers can adjust the work surface to better accommodate their height and preferred working position, while the 12-inch sash opening provides generous vertical access for transferring materials and appropriately sized equipment into the chamber.

For biotechnology, pharmaceutical, cell culture, vaccine, cell and gene therapy, university, and other biological research facilities, a professionally refurbished SG604M can provide a high-capacity containment workstation while reducing acquisition cost compared with purchasing a similarly equipped new BSC.

Refurbishment & Testing Process

Every Baker SterilGARD e3 SG604M offered by American Instrument Exchange undergoes a detailed inspection, cleaning, refurbishment, and functional testing process prior to shipment.

Our technicians evaluate the cabinet's electrical systems, controls, blower operation, airflow-related functions, alarms, lighting, sash mechanism, stainless steel work chamber, and filtration system. On this particular configuration, the powered hydraulic stand is also operated and evaluated to confirm proper raising and lowering of the cabinet.

Unless otherwise specified, new HEPA filters are installed at our facility before shipment.

Components requiring repair or replacement are addressed as part of the refurbishment process, and the cabinet is prepared for installation and subsequent field certification at the customer's facility.

Our objective is not simply to determine whether a used BSC powers on. A refurbished biosafety cabinet should be prepared to return to productive laboratory service and successfully complete the appropriate certification procedures following installation.

This Baker SG604M is backed by a 90-day warranty from American Instrument Exchange.

Certification Readiness

The Baker SterilGARD e3 SG604M is a Class II Type A2 biosafety cabinet designed to provide personnel, product, and environmental protection when properly installed, operated, and certified.

Field certification should be performed after installation and before the cabinet is placed into biological service. Certification evaluates critical operating characteristics including inflow and downflow performance, HEPA filter integrity, airflow patterns, alarms, and other applicable containment-related functions.

Because this SG604M is specifically configured with a 12-inch working opening, certification should be performed at the cabinet's designated operating sash position. A 12-inch-opening cabinet should not simply be treated as though it were an 8-inch SG604 with the window raised farther.

Certification should also be repeated at appropriate intervals and following events that can affect cabinet performance, including relocation, HEPA filter replacement, or significant service.

For laboratories throughout Greater Boston and New England, AIE Laboratory Services provides biosafety cabinet certification, preventative maintenance, troubleshooting, repair, HEPA filter replacement, decontamination, and related field services.

Shipping & Installation

The Baker SG604M with powered hydraulic stand is a large and heavy laboratory system that requires appropriate planning before delivery.

The cabinet itself weighs approximately 771 lb, while the powered lift assembly adds approximately 222 lb, bringing the combined cabinet and lift weight to roughly 993 lb.

Doorways, hallways, elevators, loading areas, ceiling clearances, floor conditions, electrical service, and the final installation location should therefore be evaluated before shipment.

The hydraulic lift can provide an advantage during positioning because the cabinet can be lowered, reducing its overall height and center of gravity. This does not eliminate the need for proper rigging and material-handling procedures, but it can make this configuration more adaptable than a large cabinet permanently installed at a single height.

The final operating location should also be evaluated for doors, HVAC registers, pedestrian traffic, and other sources of disruptive air movement that could affect containment performance.

American Instrument Exchange can assist with freight coordination, inside delivery, equipment placement, and installation planning when required. Once the SG604M has been positioned at its final location, it should be field certified before biological use.

Related Laboratory Equipment

The Baker SterilGARD e3 SG604M fits particularly well into larger cell culture, biotechnology, pharmaceutical, vaccine-development, and cell and gene therapy workflows.

The cabinet can be paired with CO₂ incubators for maintaining cell cultures, refrigerated centrifuges for sample harvesting and processing, laboratory refrigerators for media and reagent storage, and ultra-low temperature freezers for long-term preservation of biological materials.

Inverted microscopes, laboratory autoclaves, cryogenic storage systems, water baths, and additional biosafety cabinets can further support complete laboratory workflows.

American Instrument Exchange maintains a broad inventory of professionally refurbished laboratory equipment, allowing laboratories outfitting or expanding a facility to source multiple pieces of compatible equipment through a single supplier.

Baker SterilGARD e3 SG604M Frequently Asked Questions

What type of biosafety cabinet is the Baker SG604M?

The Baker SterilGARD e3 SG604M is a 6-foot Class II Type A2 biosafety cabinet.

It is designed to provide personnel, product, and environmental protection during appropriate biological procedures when properly installed, operated, and certified.

This particular SG604M is equipped with a 12-inch working sash opening and push-button electric/hydraulic adjustable-height stand.

What does the “M” mean on the Baker SG604M?

This particular cabinet carries the SG604M model designation.

For this SG604M, the “M” does not change the applicable specifications from the corresponding Baker SG604 platform. The cabinet retains the same fundamental 6-foot SterilGARD e3 Class II Type A2 specifications.

Identifying the SG604M designation is still important because laboratories may search by the exact model number found on an existing cabinet, equipment inventory, certification record, or asset tag.

What is the difference between a Baker SG604M and SG604?

For this SG604M, there is no material difference in the applicable technical specifications compared with the corresponding SG604.

Both use Baker's large 6-foot SterilGARD e3 Class II Type A2 platform.

When comparing individual refurbished cabinets, laboratories should focus on the actual configuration—including sash opening, stand type, electrical requirements, accessories, filtration, condition, and service history—rather than assuming the “M” designation indicates different containment performance.

Can a Baker SG604M replace an SG604?

Potentially, yes.

Because the SG604M in this configuration uses the same applicable SG604 specifications, it may be a logical replacement for an existing SG604 when dimensions, electrical requirements, sash configuration, stand configuration, accessories, and laboratory requirements are compatible.

The specific installation should still be evaluated rather than assuming interchangeability solely from the model number.

American Instrument Exchange can help laboratories compare an existing SG604 or SG604M with available replacement cabinets.

Can an SG604 replace an existing SG604M?

Potentially, yes.

For this SG604M, the “M” designation does not create a different fundamental cabinet specification. A comparably configured SG604 may therefore be a practical replacement.

However, an existing laboratory may depend on specific features such as the 12-inch sash opening, powered adjustable-height stand, plumbing connections, electrical configuration, or other accessories.

Those details should be compared before selecting a replacement.

Is the Baker SG604M a 6-foot biosafety cabinet?

Yes. The SG604M is a large 6-foot SterilGARD e3 cabinet.

It provides an approximately 70-inch-wide interior chamber and approximately 68 inches of usable work-surface width.

This additional space can be valuable for higher-throughput procedures, large sample batches, numerous culture vessels, and workflows requiring more materials inside the containment area.

Does this Baker SG604M have an adjustable-height stand?

Yes. This particular SG604M is installed on a powered electric/hydraulic adjustable-height stand.

Push-button controls allow the cabinet to be raised or lowered, giving laboratories greater flexibility in establishing an appropriate working height for different researchers and procedures.

This is significantly different from an SG604M installed on a conventional fixed-height stand.

How does the hydraulic stand on the Baker SG604M work?

The stand uses an electrically powered hydraulic system to raise and lower the cabinet.

The lift provides continuous height adjustment rather than restricting the user to only several predetermined positions. This allows the work surface to be positioned more appropriately for different operators and workflows.

Once the cabinet has been positioned, the hydraulic system is designed to maintain the selected height even when power to the lift is removed.

How much weight can the Baker SG604M hydraulic stand support?

The powered lift configuration is rated for a gross lift capacity of approximately 1,000 lb.

The SG604 cabinet weighs approximately 771 lb, while the powered lift assembly adds roughly 222 lb, producing a combined equipment weight of approximately 993 lb.

Because of this weight, appropriate material-handling equipment and experienced personnel should be used when installing or relocating the cabinet.

Why would a laboratory want an adjustable-height SG604M?

Researchers differ considerably in height, posture, and preferred working position.

With a conventional fixed-height BSC, every operator must adapt to essentially the same work-surface position. A powered adjustable-height SG604M allows the laboratory to adapt the cabinet to the operator instead.

This can be particularly valuable in shared research facilities, university core laboratories, pharmaceutical laboratories, multi-shift operations, and other environments where numerous researchers use the same BSC.

Is the adjustable-height stand useful for laboratory accessibility?

It can be.

A powered stand gives laboratories additional flexibility when configuring a BSC workstation around individual physical and ergonomic requirements.

Accessibility should always be evaluated for the specific operator and facility, but the ability to adjust the actual work-surface height provides an option unavailable with a conventional fixed stand.

Can the Baker SG604M be used for both seated and standing work?

The powered stand provides considerably more flexibility for seated and standing workflows than a fixed-height cabinet.

The appropriate height should be selected based on the operator, procedure, posture, laboratory setup, and safe access to the cabinet.

For shared laboratories, the ability to reposition the work surface can be especially valuable when operators change throughout the day.

Does this Baker SG604M have a 12-inch sash opening?

Yes. This SG604M is specifically configured with a 12-inch working sash opening.

Baker offered additional working-access heights on the SterilGARD e3 platform, so sash configuration should always be verified when comparing refurbished cabinets.

What is the advantage of the 12-inch sash opening?

The 12-inch opening provides greater vertical access to the work chamber than an 8-inch or 10-inch configuration.

The additional clearance can make it easier to transfer taller vessels, racks, appropriately sized instruments, and other materials into and out of the BSC.

It can also simplify setup and breakdown of more complex workflows.

Can I simply raise the sash higher than 12 inches while working?

The SG604M should be operated at its designated and certified working sash position.

The front opening is an integral part of BSC airflow performance. Raising the sash beyond its designated operating position can alter the airflow conditions at the front opening.

The 12-inch aperture on this cabinet is a designed working configuration, not permission to operate the BSC at arbitrary sash heights.

Does the 12-inch sash affect airflow?

Sash-opening dimensions are part of the cabinet's airflow design.

A larger opening changes the area through which protective inflow must be maintained. For that reason, a 12-inch SG604M should be certified and operated as its intended 12-inch configuration rather than applying assumptions from an 8-inch model.

Field certification after installation verifies the actual airflow and containment performance of the cabinet.

Is the Baker SG604M suitable for cell culture?

Yes. The SG604M is well suited to mammalian cell culture, tissue culture, stem cell research, and related procedures requiring Class II Type A2 containment.

The large 6-foot work area can be particularly useful for higher-throughput cell culture environments involving numerous flasks, plates, pipettes, media containers, racks, and other materials.

The additional space should still be organized carefully so that materials do not obstruct critical airflow grilles.

Is the Baker SG604M suitable for cell and gene therapy laboratories?

The SG604M can be useful for many cell and gene therapy research, process-development, and related workflows requiring Class II Type A2 containment.

Its large chamber provides considerable room for organizing materials and establishing defined work zones.

Facilities operating under GMP or other validated requirements should evaluate the exact cabinet configuration, cleaning requirements, certification procedures, facility standards, and intended process before selecting equipment.

Does the Baker SG604M have a stainless steel interior?

Yes. The applicable SG604 platform uses a 304 stainless steel work chamber and work surface.

Stainless steel provides a durable, cleanable interior well suited to frequent use in cell culture, pharmaceutical, biotechnology, and other biological research environments.

What is ReadySAFE mode on the Baker SG604M?

ReadySAFE is Baker's reduced-energy operating mode for periods when the cabinet is not actively being used.

The SterilGARD e3 platform can continue operating with the viewscreen closed while maintaining its A2 operating condition, allowing normal operation to be resumed without starting from a fully shut-down cabinet.

This can reduce energy consumption, noise, and unnecessary filter loading during periods of inactivity.

What is StediFLOW on a Baker SterilGARD e3?

StediFLOW is Baker's self-adjusting motor and airflow-management technology used on the SterilGARD e3 platform.

The system is designed to compensate as operating conditions and filter resistance change, helping maintain appropriate cabinet airflow while improving energy efficiency and extending filter life.

It does not eliminate the need for routine field certification.

Are new HEPA filters installed in this refurbished Baker SG604M?

Unless otherwise specified, American Instrument Exchange installs new HEPA filters before shipment.

The cabinet is also professionally cleaned, inspected, refurbished, and functionally tested before delivery.

After installation at the customer's facility, the SG604M should be field certified before biological use.

Does the Baker SG604M need to be certified after delivery?

Yes.

The cabinet should be field certified after installation and before being placed into biological service. Transportation, placement, room airflow, filter installation, and other factors can affect BSC performance.

Periodic recertification should also be incorporated into the laboratory's ongoing biosafety and preventative-maintenance program.

Can AIE Laboratory Services certify a Baker SG604M?

Yes. For laboratories throughout Greater Boston and New England, AIE Laboratory Services provides biosafety cabinet certification, preventative maintenance, troubleshooting, repair, HEPA filter replacement, decontamination, and related field services.

The cabinet does not need to have been purchased from American Instrument Exchange for AIE Laboratory Services to evaluate or service it.

Can AIE Laboratory Services repair a Baker SG604M?

Yes. An existing SG604M may be a good candidate for repair depending on its condition and the problem involved.

Issues involving controls, alarms, blowers, electrical components, sash mechanisms, airflow systems, HEPA filters, or other serviceable components do not automatically mean that the cabinet must be replaced.

For laboratories throughout New England, AIE Laboratory Services can evaluate an SG604M and determine what repairs may be appropriate.

Can AIE Laboratory Services repair the hydraulic stand on an SG604M?

A malfunctioning hydraulic stand does not automatically mean that the entire SG604M needs to be replaced.

Problems involving lift controls, electrical components, switches, hydraulic components, or associated hardware should be evaluated to determine the cause and whether repair is practical.

AIE Laboratory Services can evaluate the cabinet and powered stand for laboratories throughout New England. Repair options will depend on the specific problem, condition of the lift, and availability of required components.

My Baker SG604M will not raise or lower. Do I need a new biosafety cabinet?

Not necessarily.

The powered stand and containment cabinet perform different functions. A failure of the hydraulic lift does not automatically indicate that the BSC itself has reached the end of its useful life.

If the cabinet remains structurally sound and can continue to meet its containment and certification requirements, repairing the lift may be considerably more practical than replacing an otherwise serviceable SG604M.

The system should be evaluated before making a replacement decision.

Is an older Baker SG604M worth repairing?

In many cases, yes.

A 6-foot SG604M represents a substantial laboratory asset. Replacing one can involve not only the purchase price of another cabinet but also removal, freight, rigging, installation, and certification.

Problems involving HEPA filters, controls, alarms, blowers, sash components, electrical systems, or the hydraulic stand do not necessarily justify replacing the complete cabinet.

The decision should be based on overall cabinet condition, repair cost, parts availability, filtration condition, and whether the BSC can continue to meet certification requirements.

I purchased my SG604M somewhere else. Can AIE Laboratory Services still service it?

Yes.

A Baker SG604M does not need to have been purchased from American Instrument Exchange for AIE Laboratory Services to certify, troubleshoot, maintain, or repair it.

This can be particularly useful for laboratories operating several Baker BSCs acquired at different times or from different suppliers.

Can American Instrument Exchange help replace an older Baker SG604M?

Yes.

If an existing SG604M has reached the point where replacement is more practical than repair, American Instrument Exchange can help identify an appropriate refurbished biosafety cabinet.

Because the “M” designation does not change the applicable specifications on this cabinet, a comparably configured SG604 may also be worth considering when an exact SG604M is unavailable.

The replacement should still be evaluated for cabinet dimensions, 12-inch versus other sash openings, stand configuration, electrical requirements, accessories, and installation requirements.

Do I need another SG604M specifically to replace my SG604M?

Not necessarily.

The exact model designation can be useful for equipment standardization and asset management, but the replacement decision should focus primarily on the actual technical configuration required by the laboratory.

A compatible SG604 with the appropriate dimensions, sash opening, stand, electrical configuration, and other required features may be a practical replacement for an SG604M.

Conversely, laboratories that prefer exact model matching may wish to locate another SG604M when inventory permits.

Can American Instrument Exchange supply multiple matching Baker biosafety cabinets?

Depending on current inventory, yes.

American Instrument Exchange frequently works with laboratories outfitting new spaces, expanding cell culture capacity, or replacing several older biosafety cabinets.

When multiple identical SG604M cabinets are unavailable, closely related SG604 configurations may provide a practical way to standardize a laboratory around the same 6-foot SterilGARD e3 platform.

Customers planning multi-cabinet projects should contact American Instrument Exchange to discuss quantity, configuration, delivery requirements, and project schedule.

Why purchase this refurbished Baker SG604M from American Instrument Exchange?

This SG604M combines three characteristics that can be particularly valuable in demanding laboratories: a large 6-foot Class II Type A2 work chamber, a 12-inch working opening, and a push-button hydraulic adjustable-height stand.

American Instrument Exchange specializes in professionally refurbished laboratory equipment rather than simply reselling used equipment. This Baker SG604M is inspected, cleaned, tested, and prepared for continued laboratory service by experienced technicians.

Unless otherwise specified, new HEPA filters are installed before shipment, and the cabinet is backed by a 90-day warranty from American Instrument Exchange.

For laboratories seeking a refurbished 6-foot Baker biosafety cabinet with greater vertical access and powered height adjustment, this SG604M provides an unusually flexible workstation.

Laboratories throughout New England can also access ongoing certification, preventative maintenance, troubleshooting, HEPA filter replacement, hydraulic-stand evaluation, and BSC repair through AIE Laboratory Services, helping extend the useful life of the cabinet after installation.
