Bellco Cell-Production Roller Apparatus

Item: 4584B ROLLER


All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

Contact Us

Call 978-521-2221
to request information & pricing for item 4584B ROLLER

90-Day Warranty

American Instrument Exchange
Contact us for all your used lab equipment needs

1023 Western Ave.
Haverhill, MA 01832

Phone: 978-521-2221
Fax: 978-521-8822


Shipping Policy

Bellco Cell-Production Roller Apparatus

  • Cat. No.: 7620-02005
  • 10 roller positions
  • All-position drive
  • 90-day warranty

The Bellco 10 Position Cell Production Roller Apparatus (CPRA) is an all-position drive variable speed 10 bottle roller apparatus used for the purpose of producing animal cells or cell products. This small sized unit is ideal for experimental and pilot-scale cell culture. The Bellco 10 Position CPRA fits Bellco Bench Top Incubators for a complete Incubated Cell Production Roller Apparatus System. Accepts Bellco Roller Bottles 110 mm & 120 mm in diameter, glass and plastic bottles up to 28cm body length.

The All-Position Drive System is a standard feature especially when using lightweight plastic bottles. Each roller is individually driven for a precise mixing of media in roller bottles. The unit features a heavy-duty DC motor and solid-state electronics for reliable operation. An analog tachometer displays bottle speed. Bellco’s unique hex-shaped shafts prevent roller slippage for positive drive. Use of this equipment is limited to conventional laboratory mixing of roller bottles.

This equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests, please let us know and we’ll work with you to make sure these requirements are addressed during testing.

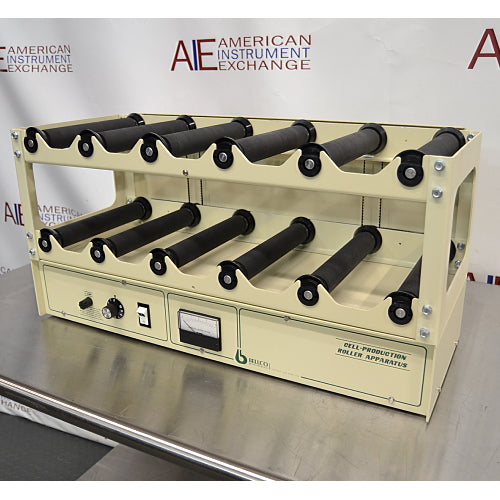

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Bellco Cell-Production Roller Apparatus - Specifications

Dimensions 31"W x 15"D x 16"H
Bottle speed 0.1 To 4 rpm
Clearance Between Decks 5.28"
Usable Roller Length 11"
Accepted bottle dimensions 4.3" & 4.7" diameter, up to 11" length
Electrical requirements 115V, 60Hz
Weight 43 lbs

For inquiries about the Bellco Cell-Production Roller Apparatus, please give us a call at 978-521-2221, or fill out the form on this page.
