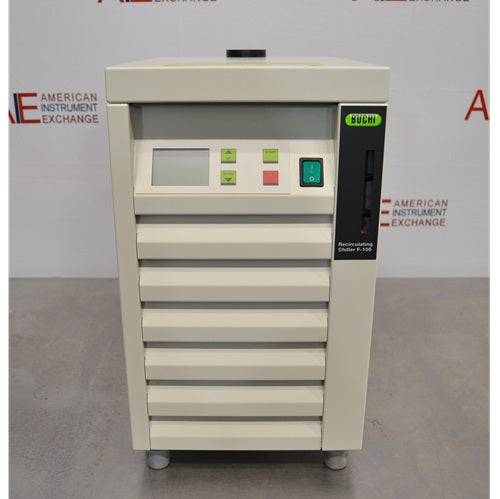

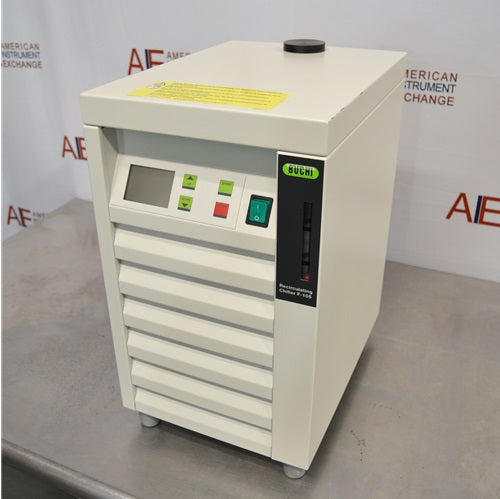

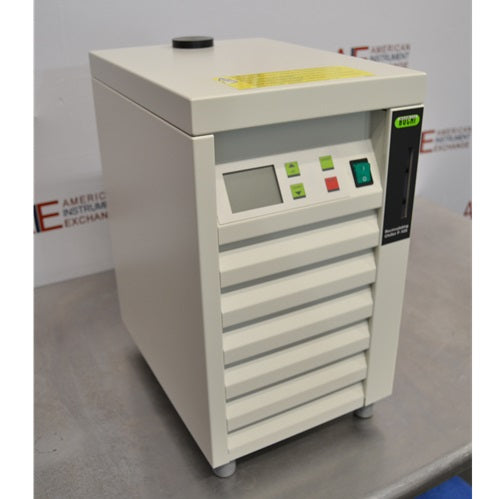

Büchi F-105 Recirculating Chiller

Brand : Buchi

Product Code : SKU 1516A CIRC

Price Match Policy

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

Buchi F-105 Recirculating Chiller

The Buchi F-105 Recirculating Chiller is a compact laboratory cooling system designed for rotary evaporation, condenser cooling, and other applications requiring a reliable source of temperature-controlled recirculating fluid. With an adjustable temperature range of -10°C to +25°C, cooling capacity up to 530 W at +15°C, a 3 L reservoir, and an integrated circulation pump, the F-105 provides efficient closed-loop cooling while eliminating the continuous water consumption associated with tap-water-cooled condensers.

Designed specifically for integration with Buchi laboratory equipment, the F-105 is an excellent companion to Buchi Rotavapor systems and can also support compatible condensers and other laboratory equipment within its cooling and circulation capabilities. Its compact footprint helps conserve valuable laboratory space while providing consistent cooling conditions for solvent condensation and recovery.

Available used and refurbished from American Instrument Exchange, this Buchi F-105 is inspected and tested for refrigeration, circulation, temperature control, and overall operating performance. A 90-day warranty is included.

Key Features

-10°C to +25°C adjustable temperature range
530 W cooling capacity at +15°C
390 W cooling capacity at +10°C
120 W cooling capacity at 0°C
Approximately ±1°C temperature accuracy
3 L coolant reservoir
Approximately 2.5 L/min pump flow
Approximately 0.6 bar pump pressure
Digital temperature display with 0.1°C resolution
Closed-loop coolant circulation
Compact 280 × 500 mm footprint
Designed for rotary evaporator condenser cooling
Compatible with Buchi laboratory evaporation systems
Reduces or eliminates once-through cooling-water consumption
Integrated compressor-based refrigeration
Refurbished and tested by American Instrument Exchange
90-day warranty included

Overview

The Buchi F-105 is a dedicated refrigerated recirculating chiller designed to provide temperature-controlled coolant to compatible external laboratory equipment.

Instead of continuously supplying a condenser or instrument with fresh tap water, the F-105 circulates coolant through a closed loop. Fluid leaves the chiller, passes through the connected equipment where it absorbs heat, and then returns to the F-105. The refrigeration system removes the accumulated heat before recirculating the coolant.

This arrangement is particularly advantageous for rotary evaporation.

Effective rotary evaporation depends on maintaining a sufficiently cold condenser to capture solvent vapor after it leaves the evaporation flask. Consistent coolant temperature can improve condensation performance, support solvent recovery, and reduce dependence on facility-water temperature.

Buchi designed the F-105 as a compact cooling solution for laboratory evaporation systems. Its 3 L reservoir and relatively small footprint make it particularly appropriate for a single rotary evaporator or similar moderate-load application.

Key Specifications

Specification	Details
Manufacturer	Buchi
Model	F-105
Equipment Type	Refrigerated recirculating chiller
Temperature Range	-10°C to +25°C
Temperature Accuracy	Approx. ±1°C
Display Resolution	0.1°C
Cooling Capacity at +15°C	Approx. 530 W
Cooling Capacity at +10°C	Approx. 390 W
Cooling Capacity at 0°C	Approx. 120 W
Cooling Capacity at -10°C	Approx. 10 W
Reservoir Volume	3 L
Pump Flow Rate	Approx. 2.5 L/min
Pump Pressure	Approx. 0.6 bar
Hose Connection	8 mm
Refrigerant	R134a
Display	Digital
Refrigeration	Compressor-based
Ambient Operating Range	5°C to 35°C
Approximate Width	280 mm / 11.0 in.
Approximate Depth	500 mm / 19.7 in.
Approximate Height	420 mm / 16.5 in.
Approximate Weight	30 kg / 66 lb
Electrical Requirements	Verify individual unit nameplate
Warranty	90 days

Common Applications

The Buchi F-105 is particularly well suited for rotary evaporation and laboratory solvent-processing applications. Typical uses include rotary evaporator condenser cooling, solvent recovery, distillation, chemical synthesis, condenser cooling, extraction workflows, and other laboratory equipment requiring a moderate-capacity external coolant supply.

Rotary evaporation is the F-105's strongest application.

A rotary evaporator reduces the pressure above a liquid sample, allowing solvent to evaporate at a lower temperature. The resulting vapor must then be efficiently condensed so that the solvent can be collected rather than lost to the vacuum system.

The F-105 provides a controlled coolant source for this condenser. Compared with tap-water cooling, the chiller provides a more consistent coolant temperature and allows the same cooling fluid to be continuously reused.

The F-105 can also be used with compatible non-Buchi equipment provided the required temperature, cooling capacity, flow rate, pump pressure, and fluid connections fall within the chiller's capabilities.

Ideal Laboratory Types

The Buchi F-105 is well suited for pharmaceutical laboratories, biotechnology facilities, chemistry laboratories, medicinal chemistry groups, organic synthesis laboratories, natural-products research groups, cannabis and botanical testing laboratories where permitted, food and beverage research facilities, academic chemistry laboratories, and industrial R&D environments.

It is particularly attractive for laboratories already using Buchi rotary evaporators.

The compact configuration can also be beneficial in laboratories where bench and floor space are limited and a large process chiller would provide unnecessary cooling capacity.

Performance & Temperature Stability

The Buchi F-105 provides an adjustable temperature range from approximately -10°C to +25°C with manufacturer-specified temperature accuracy of approximately ±1°C.

Cooling capacity varies considerably with coolant temperature.

Buchi specifies approximately 530 W of cooling capacity at +15°C and approximately 390 W at +10°C. Capacity decreases to approximately 120 W at 0°C and approximately 10 W at -10°C.

This cooling curve is important when selecting the F-105 for a particular application. The -10°C minimum temperature does not mean that the chiller can remove a substantial continuous heat load while operating at -10°C.

For rotary evaporation, operating the coolant at an appropriate temperature rather than simply selecting the lowest possible setpoint can provide substantially more available refrigeration capacity.

The F-105's integrated pump provides approximately 2.5 L/min flow at up to approximately 0.6 bar pressure. Actual circulation through connected equipment will depend on tubing length, fittings, coolant viscosity, elevation, and hydraulic resistance within the condenser or instrument.

Refurbishment & Testing

This used Buchi F-105 Recirculating Chiller is refurbished and tested by American Instrument Exchange before shipment. Our technicians inspect the compressor, condenser, refrigeration circuit, circulation pump, reservoir, digital controller, display, fluid connections, electrical components, housing, and applicable safety systems.

Temperature-controlled equipment is tested using NIST-traceable probes and data loggers. The F-105 is operated under simulated laboratory conditions to evaluate temperature pull-down, refrigeration performance, circulation, temperature regulation, controller operation, and overall system reliability.

The reservoir and accessible fluid-contact components are cleaned and inspected before shipment.

Customers purchasing the F-105 for a specific rotary evaporator or other laboratory instrument are encouraged to provide the required coolant temperature, approximate heat load, circulation requirements, and intended coolant. When practical, American Instrument Exchange can incorporate customer-requested operating conditions into final testing.

A 90-day warranty is included.

Shipping & Installation

The Buchi F-105 weighs approximately 66 lb and is compact enough for relatively straightforward laboratory installation. American Instrument Exchange prepares the chiller for shipment with the coolant drained and appropriate protection for the refrigeration system, controller, housing, and fluid connections.

After installation, the F-105 should be filled with an appropriate heat-transfer fluid selected for the intended operating temperature.

Buchi specifies an ambient operating range of approximately 5°C to 35°C. The chiller should be installed on a clean, level, vibration-free surface with adequate ventilation around the air-cooled refrigeration system.

Proper airflow is especially important because the heat removed from the rotary evaporator or other connected equipment must ultimately be rejected into the surrounding laboratory through the chiller's condenser.

Coolant tubing should be appropriately sized, securely connected, and inspected for leaks before operation. The F-105 uses approximately 8 mm hose connections.

Related Equipment

American Instrument Exchange stocks a range of laboratory circulators, including Buchi recirculating chillers, refrigerated circulators, heated baths, immersion circulators, and process cooling systems. Laboratories using the F-105 may also want to compare available evaporators and extractors, including rotary evaporator systems that can be paired with recirculating chillers for efficient solvent evaporation and recovery.

Buchi F-105 Frequently Asked Questions

What is the Buchi F-105 used for?

The Buchi F-105 is a refrigerated recirculating chiller designed primarily to provide temperature-controlled coolant for rotary evaporators and other compatible laboratory equipment.

What is the temperature range of the Buchi F-105?

The F-105 provides an adjustable coolant temperature range of approximately -10°C to +25°C.

How much cooling capacity does the Buchi F-105 provide?

Cooling capacity depends on operating temperature. Buchi specifies approximately 530 W at +15°C, 390 W at +10°C, 120 W at 0°C, and approximately 10 W at -10°C.

Why does cooling capacity decrease at lower temperatures?

Mechanical refrigeration systems generally have less heat-removal capacity as the required coolant temperature decreases. This is why the F-105 can reach -10°C but cannot remove the same continuous heat load at -10°C that it can at +10°C or +15°C.

What is the reservoir capacity of the F-105?

The Buchi F-105 has an approximately 3 L internal coolant reservoir.

What are the pump specifications?

Buchi specifies approximately 2.5 L/min pump flow with maximum pressure of approximately 0.6 bar.

Can the F-105 be used with a Buchi Rotavapor?

Yes. Rotary evaporation is one of the primary applications for the F-105, and Buchi designed the chiller for integration with compatible Rotavapor systems.

Can the Buchi F-105 be used with another manufacturer's rotary evaporator?

Potentially, yes. Compatibility depends on the evaporator's required coolant temperature, heat load, flow, pressure, tubing connections, and heat-transfer fluid. The F-105 is not limited exclusively to Buchi-branded equipment.

Why use an F-105 instead of tap water with a rotary evaporator?

The F-105 recirculates coolant through a closed loop rather than continuously consuming fresh tap water. It also provides controlled coolant temperature independent of seasonal or facility-water fluctuations.

Does colder coolant always improve rotary evaporation?

Not necessarily. Lower coolant temperatures can improve condensation, but the chiller's available cooling capacity decreases substantially at lower temperatures. The appropriate setpoint depends on the solvent, vacuum conditions, evaporation rate, condenser design, and required solvent recovery.

Can the Buchi F-105 operate below 0°C?

Yes. The F-105 can be set as low as approximately -10°C when used with an appropriate heat-transfer fluid. Available cooling capacity becomes significantly lower as the operating temperature approaches -10°C.

What refrigerant does the Buchi F-105 use?

Manufacturer documentation for this generation of the F-105 specifies R134a refrigerant.

How large is the Buchi F-105?

The F-105 measures approximately 11.0 inches wide × 19.7 inches deep × 16.5 inches high and weighs approximately 66 lb.

Is the Buchi F-105 suitable for a large process reactor?

The F-105 is primarily a compact instrument chiller rather than a high-capacity process chiller. Applications with substantial continuous heat loads may require a larger recirculating chiller.

Does this refurbished Buchi F-105 include a warranty?

Yes. This used Buchi F-105 is refurbished and tested by American Instrument Exchange and includes a 90-day warranty.
