For laboratories expanding beyond research-scale cell culture, roller bottle production remains one of the most efficient and cost-effective methods for growing large numbers of adherent cells. Vaccine manufacturers, biologics developers, cell therapy laboratories, and contract manufacturing organizations continue to rely on roller bottle systems because they offer scalable production while maintaining familiar cell culture techniques. The Caron Reach-in CO2 Incubator with Roller Apparatus combines a large-capacity CO₂ incubator with an integrated roller bottle platform, creating a complete solution for high-throughput adherent cell culture.

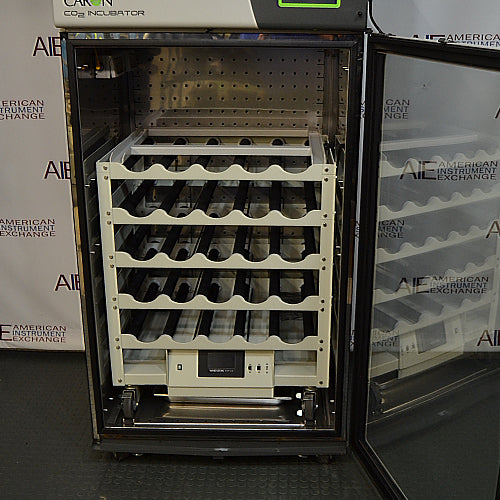

The Caron 7403 provides a 25 cubic foot (708-liter) incubation chamber equipped with precise temperature regulation, infrared CO₂ control, active humidity management, and a built-in cooling system capable of compensating for the heat generated by internal roller equipment. Installed inside the chamber, the WHEATON R2P 2.0 Roller Apparatus provides programmable bottle rotation with advanced touchscreen controls, multiple communication options, and highly accurate speed regulation for consistent cell growth across large production batches. Together, the incubator and roller apparatus provide an integrated platform for laboratories performing large-scale adherent cell culture, vaccine production, viral vector manufacturing, and other biologics applications.
While suspension cultures continue to grow in popularity, roller bottle technology remains an established method for expanding adherent cell lines used in vaccine production, viral vector manufacturing, monoclonal antibody development, and other biologics workflows. The Caron 7403-25-1 was designed specifically for these laboratories by combining a production-scale CO₂ incubator with an integrated roller bottle system inside the same controlled environment.
Unlike standard incubators that require aftermarket roller equipment, the 7403 series incorporates dedicated support for both cell rollers and shaker platforms. The chamber includes a roller ramp for simplified installation and maintains uniform environmental conditions even when internal motors generate additional heat. The integrated cooling system automatically compensates for these heat loads, allowing the incubator to maintain precise temperature control during continuous operation.
The included WHEATON R2P 2.0 system features a maintenance-free brushless DC motor, programmable rotation speeds, touchscreen operation, USB event logging, and support for modern networking protocols that allow integration into production facilities. These capabilities make the system well suited for laboratories requiring documented, repeatable cell culture processes.
Common Applications
The Caron 7403-25-1 with WHEATON R2P 2.0 Roller Apparatus is commonly used for:
Vaccine production
Viral vector manufacturing
Monoclonal antibody production
Adherent mammalian cell culture
Hybridoma expansion
Cell therapy research
Biopharmaceutical process development
Contract manufacturing
Pilot-scale biologics production
Virus propagation
Protein expression
Academic translational research
Process optimization
Industrial biotechnology
Its integrated roller bottle platform allows laboratories to increase production capacity while maintaining highly controlled incubation conditions.
Ideal Laboratory Environments
The Caron 7403-25-1 is ideally suited for biotechnology companies, vaccine manufacturers, pharmaceutical development laboratories, contract development and manufacturing organizations (CDMOs), university core facilities, and industrial research laboratories performing large-scale adherent cell culture.
Because the roller apparatus operates entirely within the incubator, researchers can expand production without sacrificing environmental stability. The integrated design also simplifies workflow by eliminating the need to install separate roller systems inside conventional incubators.
Temperature Recovery and Environmental Stability
Operating a roller bottle apparatus inside an incubator creates additional thermal loads that can challenge conventional CO₂ incubators. The Caron 7403 series addresses this issue with an integrated refrigeration system specifically designed to offset the heat generated by internal equipment such as roller apparatuses and orbital shakers.
The chamber maintains operating temperatures between 20°C and 60°C while accurately regulating CO₂ concentrations from 0% to 20% using an infrared sensor. Active airflow management distributes conditioned air uniformly throughout the chamber, helping maintain stable incubation conditions despite the continuous motion of rotating bottle systems. This allows laboratories to operate production-scale cultures without compromising environmental consistency.
Integrated Roller Bottle Production
The defining feature of this system is the factory-installed WHEATON R2P 2.0 Roller Apparatus, designed specifically for adherent cell culture production.
The R2P 2.0 utilizes a maintenance-free brushless DC motor with digitally controlled rotation accurate to 0.01 RPM, providing smooth, repeatable bottle rotation throughout extended production runs. The color touchscreen interface simplifies operation while USB event logging and network communication protocols support process documentation and integration into regulated manufacturing environments. Multiple deck configurations and scalable bottle capacity make the system adaptable to changing production requirements while preserving consistent cell growth conditions.
Sample Storage Recommendations
The Caron 7403-25-1 provides approximately 25 cubic feet (708 liters) of usable incubation space and is configured specifically for laboratories performing large-scale adherent cell culture with roller bottles. The integrated WHEATON R2P 2.0 Roller Apparatus supports continuous bottle rotation while maintaining a controlled incubation environment, allowing researchers to expand production without transferring cultures between separate systems.
In addition to roller bottle applications, the spacious chamber can accommodate cell culture flasks, multiwell plates, spinner flasks, media bottles, process development equipment, and compatible shaker platforms. The adjustable interior allows laboratories to configure the incubator for changing production requirements or mixed research workflows.
To maintain consistent environmental conditions, roller bottles and other culture vessels should be loaded evenly across the apparatus whenever possible. Balanced loading promotes smooth operation while allowing conditioned air to circulate freely throughout the chamber. Organizing cultures by production batch or harvest schedule can further improve workflow efficiency while reducing unnecessary door openings.
Energy Efficiency and Operating Costs
The Caron 7403-25-1 was engineered for continuous operation in production laboratories where equipment may remain in service around the clock. Its insulated cabinet construction, precise electronic controls, and integrated cooling system help maintain stable environmental conditions while efficiently compensating for the heat generated by internal roller equipment.
Unlike conventional incubators that may require external cooling or manual environmental adjustments when operating large roller systems, the 7403 automatically manages these additional thermal loads. This integrated approach improves temperature stability while reducing operator intervention during extended production runs.
The maintenance-free brushless DC motor used in the WHEATON R2P 2.0 Roller Apparatus also contributes to long-term reliability by eliminating many of the wear components associated with traditional motor designs. Combined with programmable controls and electronic event logging, the system supports efficient daily operation in laboratories focused on reproducibility and process consistency.
Key Specifications
Specification
Details
Manufacturer
Caron
Model
7403-25-1
Incubator Type
Reach-In CO₂ Cell Culture Incubator
Chamber Capacity
Approximately 708 L (25 cu. ft.)
Temperature Range
20°C to 60°C
CO₂ Range
0% to 20%
CO₂ Sensor
Infrared (IR)
Cooling System
Integrated Refrigeration
Humidity Control
Active Humidity Management
Chamber Material
Stainless Steel
Interior Power Outlets
Three GFCI-Protected Outlets
Access Ports
Yes
Roller Apparatus
WHEATON R2P 2.0
Roller Drive
Brushless DC Motor
Roller Speed Control
Programmable Digital Controller
Controller
Color Touchscreen
Data Logging
USB Event Logging
Communications
Ethernet / Network Compatible
Electrical Requirements
230 V
Approximate Weight
Varies by configuration
Specifications are believed to be accurate but may vary depending on factory-installed options and installed roller apparatus configuration. Please verify all specifications prior to purchase.
Frequently Asked Questions
What is the advantage of an integrated roller bottle incubator?
An integrated roller bottle incubator combines controlled CO₂ incubation and continuous bottle rotation within a single system. This eliminates the need to install aftermarket roller equipment inside a conventional incubator and provides a more consistent environment for large-scale adherent cell culture.
What types of cells are commonly grown using roller bottles?
Roller bottles are widely used for adherent mammalian cell lines, including Vero, MDCK, BHK, CHO, HEK293, fibroblasts, epithelial cells, and other cell types used in vaccine production, viral vector manufacturing, biologics development, and protein expression research.
What are the benefits of the WHEATON R2P 2.0 Roller Apparatus?
The WHEATON R2P 2.0 features a maintenance-free brushless DC motor, precise programmable rotation, a touchscreen user interface, USB event logging, and Ethernet connectivity. These features support repeatable cell culture processes while simplifying operation and documentation in research and production laboratories.
Why does the incubator include an integrated cooling system?
Continuous operation of roller bottle equipment generates additional heat inside the chamber. The Caron 7403 incorporates refrigeration specifically designed to offset these thermal loads, helping maintain stable temperature and CO₂ conditions throughout long production cycles.
Can the incubator be used without roller bottles?
Yes. Although optimized for roller bottle production, the Caron 7403 can also support other cell culture applications using compatible shelving or shaker platforms, making it a versatile incubator for laboratories with changing research or manufacturing needs.
Is this system appropriate for vaccine and biologics production?
Yes. Roller bottle technology remains widely used for vaccine manufacturing, viral propagation, monoclonal antibody production, and other biologics applications where adherent cell cultures must be expanded efficiently under tightly controlled environmental conditions.
Why is an infrared CO₂ sensor beneficial?
Infrared (IR) CO₂ sensors provide highly accurate gas measurement with rapid recovery following door openings. Because IR sensors are not affected by chamber humidity to the same extent as thermal conductivity sensors, they are well suited for demanding cell culture applications requiring precise atmospheric control.
Why purchase a refurbished Caron 7403-25-1 with WHEATON R2P 2.0 Roller Apparatus from American Instrument Exchange?
Purchasing a refurbished Caron 7403-25-1 with the integrated WHEATON R2P 2.0 Roller Apparatus from American Instrument Exchange provides laboratories with a complete production-ready cell culture platform at substantial savings compared with buying new equipment. Every system is inspected and tested prior to shipment and includes a 90-day warranty, providing confidence that it is ready to support demanding research, pilot-scale production, or biologics manufacturing workflows.
CLICK HERE to see the Caron 7403-25-1 CO2 incubator with Wheaton R2P 2.0 5-tier roller apparatus on our YouTube channel
Testing Procedures for Used and Refurbished CO₂ Laboratory Incubators Ensure Atmosphere Control, Temperature Accuracy, and Regulatory Compliance
At American Instrument Exchange, all used and refurbished CO₂ incubators undergo a multi-step testing and calibration process. These procedures are designed to ensure precise environmental control, microbial safety, and long-term reliability—critical for cell culture, IVF, tissue engineering, and pharmaceutical R&D applications.
Why Testing Used CO₂ Incubators Is Essential
Before a CO₂ incubator is redeployed into a laboratory, it must be thoroughly tested for:
• CO₂ sensor accuracy and gas concentration control
• Temperature uniformity and stability
• Humidity system function
• HEPA filtration and contamination control
• Electrical and safety compliance
Proper testing ensures viable growth environments for sensitive cultures and prevents costly contamination or culture loss in high-stakes lab environments.
Our standardized refurbishment protocol ensures used CO₂ incubators deliver laboratory grade performance at a fraction of the cost of comparable new units.
Key Testing Procedures for Refurbished and Used CO₂ Incubators
1. Initial Visual Inspection
• Inspect the exterior for corrosion, dents, or door alignment issues
• Check door gasket integrity and hinge function
• Verify presence and condition of internal shelves, water pans, and humidity trays
• Examine power cords, gas connectors, and display interfaces for signs of wear
2. Functional Startup Test
• Power on the unit and check for successful system boot
• Verify touchscreen or keypad response, and test all user-programmable settings
• Check door alarms and temperature/CO₂ alerts
3. Temperature Control and Uniformity Testing
• Use temperature probes to verify internal temperature accuracy
• Monitor temperature uniformity across multiple chamber zones
• Ensure fast recovery times after door openings
4. CO₂ Sensor Testing and Gas Delivery System Test
• Test accuracy of infrared (IR) or thermal conductivity (TC) CO₂ sensors using certified reference gas and probes/Fyrite analyzers
• Test inlet pressure regulators and gas flow control systems
• Confirm stable CO₂ levels at multiple setpoints (e.g., 5%, 10%)
• Check for proper mixing and diffusion throughout the chamber
5. Humidity and Contamination Control Testing
• Test humidity generation (via water pan or active system) and verify chamber RH levels
• Inspect HEPA filters (if equipped) and airflow systems for particulate control
• Sanitize interior and confirm antimicrobial coatings or copper components are intact
6. Electrical Safety and Compliance Check
• Ensure proper grounding and insulation of all electrical components
• Perform leak and continuity testing
• Verify the unit meets electrical safety standards for laboratory environments
7. Final Quality Assurance and Performance Validation
• Run a 24-hour performance cycle with monitored CO₂, temperature, and RH
• Document data and final readings
• Complete service report
All refurbished CO₂ incubators sold by American Instrument Exchange are tested to meet the performance demands of today's advanced laboratory workflows—ensuring safety, precision, and peace of mind with every unit.
Repair and Refurbishment Protocol for Used Laboratory Incubators Performance and Quality from American Instrument Exchange
At American Instrument Exchange, every used laboratory incubator we sell goes through a repair and refurbishment protocol. Whether it’s a standard, CO₂, or refrigerated incubator, our goal is to restore each unit to laboratory-level performance—ensuring temperature accuracy, environmental stability, and long-term reliability in your lab.
Why Choose a Refurbished Laboratory Incubator from American Instrument Exchange?
• Fully tested for performance and safety
• Backed by a warranty
• Cost-effective alternative to new equipment
• Environmentally sustainable through reuse and restoration
• Refurbished by expert technicians with decades of lab equipment experience
Step-by-Step Refurbishment Protocol
Every incubator at American Instrument Exchange follows this comprehensive, multi-stage process:
1. Initial Intake & Inspection
• Visual inspection for cosmetic wear, corrosion, dents, or broken components
• Mechanical assessment of door hinges, gaskets, seals, and chamber components
• Document any missing parts or issues requiring repair or replacement
2. Cleaning and Decontamination
• Thorough internal and external cleaning using non-abrasive solutions
• Decontamination/cleaning of surfaces to remove biological, chemical, or particulate residue
• Cleaning of removable parts (e.g., shelves, trays, etc.)
3. Mechanical and Electrical Repair
• Repair or replacement of worn mechanical components such as door latches, fans, hinges, and seals
• Evaluation and repair of control panels, switches, thermostats, and displays
• Inspection and testing of wiring, fuses, relays, and power supplies
4. Environmental Control System Assessment
• For CO₂ incubators: CO₂ sensors, regulators, and gas delivery systems are tested
• For refrigerated incubators: compressors, condensers, and cooling systems are evaluated for performance and leaks
• Fan motors and airflow systems are tested to ensure uniform environmental conditions
5. Temperature and Sensor Testing
• All temperature sensors and controllers are tested using thermometers/probes
• Uniformity and accuracy tested at multiple chamber locations
• For humidified or CO₂ incubators, humidity and CO₂ stability are verified
6. Safety System Testing
• Test of over-temperature protection systems and alarms
• Evaluation of door sensors, safety interlocks, and power failure recovery
7. Final Quality Control and Documentation
• Full performance test run over 24 hours
• Validation of setpoints for temperature, CO₂ (if applicable), and humidity (if applicable)
• Final inspection and cleaning before packaging
• Complete service report
