Edwards E-Lab-2 Vacuum Pump

Sorry, this unit has just been sold. Please contact us for alternatives.

Item: 5548K VAC PUMP

FULLY TESTED & WARRANTIED


All products ship from our 30,000 sq. ft. Haverhill, MA warehouse


Contact Us

Call 978-521-2221
to request information & pricing for item 5548K VAC PUMP

90-Day Warranty

American Instrument Exchange
Contact us for all your used lab equipment needs

1023 Western Ave.
Haverhill, MA 01832

Phone: 978-521-2221
Fax: 978-521-8822

Email: info@americaninstrument.com

Shipping Policy

Edwards E-Lab 2 Vacuum Pump

  • Chemical Resistant
  • Free air capacity: 7.5 CFM
  • Max Vacuum: 0.007 torr
  • 90-day warranty

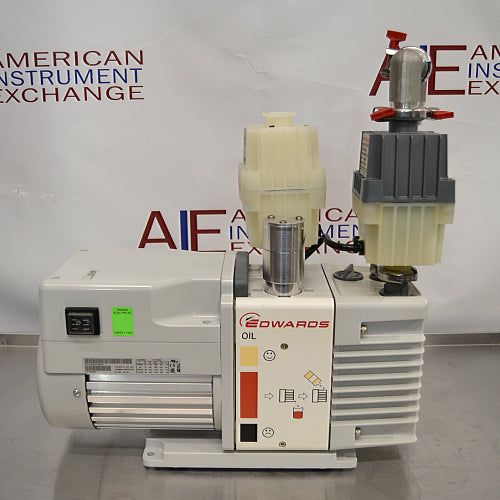

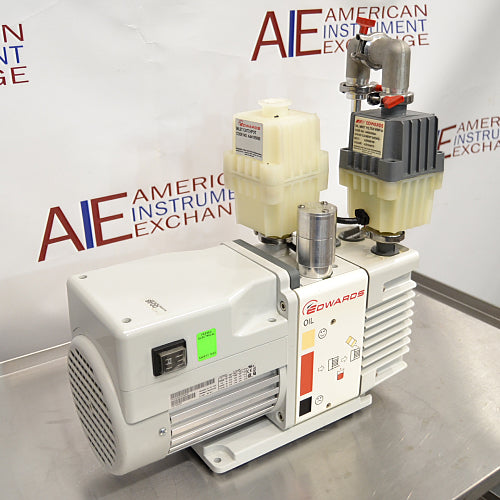

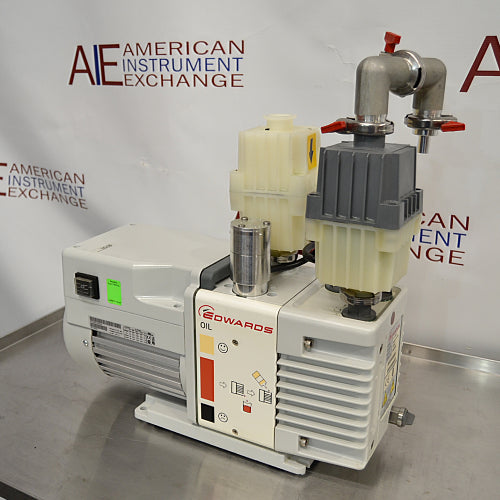

The Edwards E-Lab-2 Vacuum Pump is a complete laboratory pumping system, which has a two-stage, rotary vane vacuum pump. An oil mist filter is fitted to the outlet of the pump, to prevent the discharge of oil mist. An inlet catchpot is fitted to the pump inlet to minimize the ingress of condensable vapors into the pump.

The E-Lab-2 has a gas ballast oil return assembly which continuously returns oil trapped in the mist filter to the pump. The vacuum pumping mechanism is oil sealed. You can inspect the level and condition of the oil in the oil-box through the sight-glass. Diagrams on the side panels and on the oil change tag give guidance on when you should change the oil.

CLICK HERE to see the Edwards E-Lab 2 Rotary Vane Vacuum Pump on our YouTube channel

All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Edwards E-Lab 2 Vacuum Pump – Specifications

Free Air Displacement 2.3 cfm
Max vacuum -1.5 x 10-3 mbar
Electrical requirements 110/120 V

For inquiries about the Edwards E-Lab 2 Vacuum Pump, please give us a call at 978-521-2221, or fill out the form on this page.
