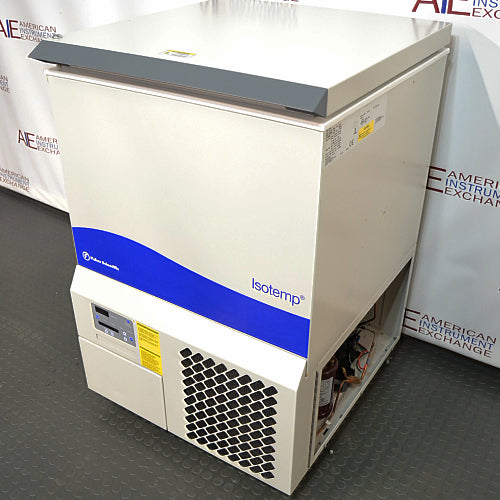

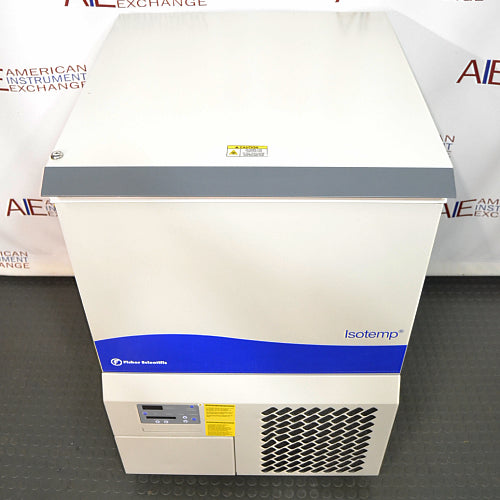

Fisher Isotemp 5150 Ultra-Low Temperature Chest Freezer
For some laboratories, protecting valuable biological samples is more important than maximizing storage capacity. When every degree matters and sample integrity takes priority, many researchers continue to choose chest-style ultralow freezers because they naturally retain cold air during routine access. The Fisher Isotemp 5150 Ultra-Low Temperature Chest Freezer was designed with that philosophy in mind, providing dependable storage from -50°C to -86°C in a compact chest configuration that minimizes temperature disturbance whenever the lid is opened.
With 3 cubic feet (85 liters) of storage capacity, the Fisher Isotemp 5150 is an excellent solution for laboratories requiring dedicated ultra-low storage for high-value samples, research collections, quality control materials, and specialty applications. Its compact footprint makes it particularly well suited for individual laboratories, hospital departments, university research groups, and facilities that need a secondary ultralow freezer close to the point of use.
Laboratories building a complete cold storage workflow often pair compact ultralow freezers with laboratory refrigerators for daily reagent storage, laboratory freezers for intermediate-temperature materials, and larger upright ultralow freezers for high-volume sample archives. The Isotemp 5150 serves a different purpose by providing exceptional thermal stability for smaller collections of critical samples.
Fisher Isotemp 5150 Ultra-Low Temperature Chest Freezer Key Features
3 cu. ft. (85 L) storage capacity
Adjustable operating temperature from -50°C to -86°C
Chest-style cabinet minimizes cold air loss
Two-stage cascade refrigeration system
Microprocessor temperature controller
Digital control panel with 12-character message display
Audible and visual alarms
RS-232 and 4–20 mA outputs for external monitoring
Manual defrost operation
Refurbished and performance tested by American Instrument Exchange
90-day warranty included
Fisher Isotemp 5150 Ultra-Low Temperature Chest Freezer Overview
Unlike upright freezers, chest ultralow freezers naturally retain cold air when opened because dense cold air remains inside the cabinet rather than spilling onto the laboratory floor. For laboratories retrieving samples throughout the day, this design helps minimize temperature fluctuations and supports rapid recovery following routine access.
The Fisher Isotemp 5150 combines this inherent thermal advantage with a dependable two-stage cascade refrigeration system, microprocessor controls, and comprehensive alarm monitoring. Its compact footprint allows laboratories to dedicate ultra-low storage to individual projects or research groups while maintaining dependable long-term sample preservation.
The Fisher Isotemp 5150 is commonly used for storing:
Cell lines
Stem cells
DNA and RNA libraries
Tissue specimens
Plasma and serum
Clinical trial samples
Protein samples
Enzymes
Vaccines
Pharmaceutical compounds
Microbial cultures
Biological reference materials
Its compact capacity makes it an excellent choice for laboratories requiring dedicated storage for a single research project, investigator, or specialty application where frequent sample access and maximum thermal stability are important.
Ideal Laboratory Types
The Isotemp 5150 is well suited for:
Academic research laboratories
Biotechnology companies
Pharmaceutical manufacturers
Hospital laboratories
Clinical research organizations
University research groups
Public health laboratories
Quality control laboratories
Its combination of compact size and chest-style thermal performance makes it especially attractive for laboratories with limited space or specialized storage requirements.
Temperature Recovery & Sample Protection
One of the greatest advantages of a chest ultralow freezer is its ability to retain cold air during routine access. Because cold air naturally settles inside the cabinet, opening the lid introduces less temperature disturbance than opening a conventional upright freezer. This design helps reduce unnecessary warming of stored samples while supporting faster recovery after lid openings.
The Fisher Isotemp 5150 combines this natural advantage with dependable cascade refrigeration, insulated cabinet construction, and programmable alarm monitoring to provide consistent long-term storage for valuable biological materials. Laboratories preserving especially sensitive collections frequently complement chest ultralow freezers with cryogenic storage systems for applications requiring liquid nitrogen preservation.
Typical Stored Materials
The Isotemp 5150 is commonly used to store:
DNA and RNA libraries
Cell lines
Stem cells
Tissue specimens
Plasma and serum
Vaccines
Protein samples
Enzymes
Pharmaceutical compounds
Clinical trial materials
Biological reference materials
Fisher Isotemp 5150 Ultra-Low Temperature Chest Freezer Key Specifications
Capacity
3 cu. ft. (85 L)
Temperature Range
Adjustable from -50°C to -86°C
Refrigeration System
Two-stage cascade refrigeration
Manual defrost
Monitoring & Controls
Microprocessor controller
Digital display
12-character message center
Audible and visual alarms
RS-232 communication
4–20 mA monitoring output
Electrical Requirements
120V, 60 Hz
Dimensions
Exterior: 28.7" W × 32.3" D × 43.8" H

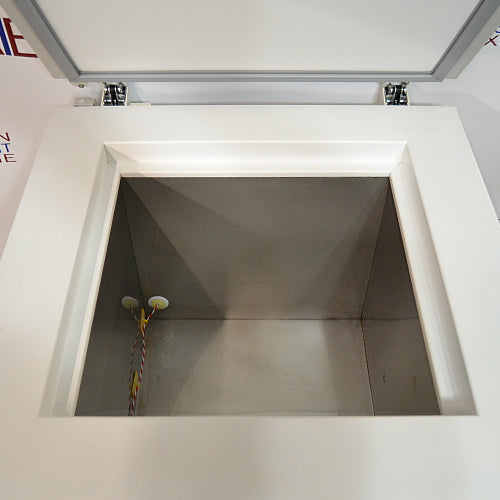

Interior: 18.5" W × 18.5" D × 16.5" H
Weight
Approximately 432 lbs.
Energy Efficiency & Operating Costs
While chest ultralow freezers are often selected for their thermal performance rather than their energy consumption, the cabinet design can reduce temperature loss during routine access, decreasing refrigeration demand following lid openings. Combined with routine preventative maintenance and condenser cleaning, the Isotemp 5150 provides dependable long-term operation for laboratories prioritizing sample protection over storage volume.
Specifications compiled from Fisher Scientific manufacturer literature and American Instrument Exchange product information.
Refurbishment & Testing Process
Every Fisher Isotemp 5150 received by American Instrument Exchange undergoes a comprehensive inspection and extended performance evaluation before shipment. Our technicians verify pull-down performance, confirm stable operation throughout the operating temperature range, inspect the cascade refrigeration system and compressors, test alarms and electronic controls, verify digital temperature accuracy, inspect lid seals and insulation, and thoroughly clean the freezer before delivery.
Shipping & Installation Considerations
The Fisher Isotemp 5150 ships by freight from American Instrument Exchange. Before delivery, laboratories should verify floor space, electrical service, and adequate ventilation around the cabinet. Because chest freezers require overhead access, laboratories should also ensure sufficient clearance above the unit for comfortable daily operation.
Frequently Asked Questions
Why choose a chest ultralow freezer instead of an upright model?
Chest freezers naturally retain cold air when the lid is opened, helping minimize temperature fluctuations during routine sample retrieval. Many laboratories choose chest-style ULTs when protecting especially valuable samples or when the freezer will be accessed frequently.
What types of samples are best suited for the Isotemp 5150?
The Isotemp 5150 is commonly used for DNA and RNA libraries, stem cells, cell lines, tissue specimens, vaccines, plasma, serum, protein samples, pharmaceutical compounds, and other biological materials requiring storage as low as -86°C.
Can the Isotemp 5150 connect to external monitoring systems?
Yes. The freezer includes RS-232 and 4–20 mA outputs, allowing connection to independent monitoring and facility management systems for additional sample security.
How is the freezer tested before shipment?
Every refurbished Fisher Isotemp 5150 is inspected, cleaned, and performance tested by American Instrument Exchange technicians to verify pull-down performance, temperature stability, alarm functionality, refrigeration performance, and overall system operation before shipment.
CLICK HEREto see the Fisher Isotemp 5150 Ultralow Chest Freezer on our YouTube channel
Testing Procedures for Used and Refurbished Ultralow Freezers Ensure -80°C Stability and Critical Sample Protection
Used and refurbished ultralow freezers from American Instrument Exchange are rigorously tested to ensure reliable long-term storage at temperatures as low as -80°C. Each unit undergoes a detailed inspection, full system evaluation, and extended runtime testing to meet the high standards required by research, clinical, and biorepository environments.
Why Testing Used Ultralow Freezers Is Essential
Before an ultralow freezer is placed back into service, it must be carefully tested for:
• Temperature stability and uniformity at ultralow levels (e.g., -70°C to -86°C)
• Cascade refrigeration system functionality and compressor health
• Seal and insulation effectiveness to prevent thermal loss
• Electrical safety, alarm functionality, and system compliance
Thorough testing helps prevent temperature excursions and equipment failure—crucial for protecting sensitive materials such as biological samples, vaccines, enzymes, and research specimens.
Our structured ULT testing protocol ensures each refurbished unit delivers dependable performance and long-term reliability.
Key Testing Procedures for Refurbished and Used Ultralow Freezers
1. Initial Visual Inspection
• Inspect external cabinet, hinges, and door gaskets for wear, corrosion, or damage
• Check power cords, plugs, and control interfaces for signs of wear or tampering
• Verify that internal racks, shelving, and chamber components are intact and operational
2. Functional Startup and Control Testing
• Power on the unit and confirm successful initialization of digital displays and alarm systems
• Test control panels, keypad responsiveness, and user-setpoint functionality
• Verify that door seals close tightly and form a secure barrier
3. Temperature and -80°C Stability Testing
• Test and evaluate internal temperature sensors thermometers/probes
• Monitor temperature performance at multiple chamber points over extended runtimes
• Confirm uniformity and stability at key setpoints, including -70°C, -80°C, and -86°C
4. Refrigeration System and Cascade Compressor Evaluation
• Test dual-stage (cascade) compressor function, startup times, and cycling behavior
• Evaluate evaporator coils, heat exchangers, and vacuum insulation panels for performance and integrity
• Check for refrigerant leaks, low-pressure faults, and abnormal compressor noise
5. Alarm and Safety System Verification
• Test high/low temperature alarms, power failure alerts, and battery backup systems (if equipped)
• Verify lockout controls, alarm delay settings, and door-open indicators
6. Final Quality Assurance and Documentation
• Run a continuous multi-day test cycle at -80°C to confirm sustained performance
• Document temperature logs, controller accuracy, and compressor behavior
• Complete a detailed service report
Dependable Performance from American Instrument Exchange
All refurbished ultralow freezers from American Instrument Exchange are tested to exacting standards for performance, safety, and reliability. With our rigorous inspection and testing procedures, you can trust your ULT freezer to deliver consistent -80°C storage from day one—ideal for research, clinical, pharmaceutical, and biobanking applications.
Repair and Refurbishment Protocol for Used Ultralow Freezers -80°C Storage Performance from American Instrument Exchange
At American Instrument Exchange, every used ultralow temperature freezer (ULT freezer) undergoes a rigorous, multi-step refurbishment protocol designed to restore reliable -80°C performance. Whether upright, chest-style, or undercounter, our refurbished ULT freezers are tested and restored to deliver the cold storage precision required for biological samples, vaccines, enzymes, and other temperature-sensitive materials.
Why Choose a Refurbished Ultralow Freezer from American Instrument Exchange?
• Fully tested for -80°C cold storage stability and compressor performance
• Backed by a warranty
• A cost-effective alternative to expensive new ULT units
• Environmentally responsible through equipment reuse and waste reduction
• Serviced by experienced technicians specializing in laboratory-grade refrigeration
Every ultralow freezer sold by American Instrument Exchange is carefully evaluated and restored through the following process:
1. Initial Intake & Inspection
• Exterior inspection for dents, corrosion, or physical damage
• Evaluation of door seals, hinges, and internal chamber components
• Documentation of missing parts or components requiring repair
2. Cleaning and Decontamination
• Comprehensive interior and exterior cleaning using non-abrasive cleaners
• Removal of dust, frost buildup, and residual contaminants
• Decontamination of all internal surfaces and removable parts like shelves and drawers
3. Mechanical and Electrical Repairs
• Replacement or repair of worn or damaged components (door latches, hinges, gaskets, etc.)
• Inspection and repair of control boards, displays, sensors, and switches
• Electrical system evaluation, including fuses, wiring, relays, and connectors
4. Ultralow Refrigeration System Assessment
• Testing of dual-stage compressors and cascade cooling system
• Evaluation of heat exchangers, evaporator coils, and vacuum insulation panels
• Inspection for refrigerant leaks, low pressure, or signs of compressor fatigue
• Verification of thermal insulation integrity
5. Temperature and Performance Testing
• Testing of internal temperature sensors and controllers
• Multi-point testing to verify chamber temperature uniformity at -80°C
• Long-duration, multi-day operational testing to ensure sustained ultralow performance
6. Safety and Compliance Checks
• Electrical safety testing and grounding verification
• Alarm function tests for high/low temperature alerts and power failure warnings
7. Final Quality Control and Documentation
• Multi-day runtime validation at -80°C
• Recording of temperature logs, compressor cycle data, and performance benchmarks
• Final inspection and service/testing report completed
Trust the Experts at American Instrument Exchange
With over 50 years in the lab equipment industry, American Instrument Exchange is your trusted source for refurbished ultralow freezers. Our certified refurbishment protocol ensures each ULT freezer delivers the precision, performance, and reliability your lab needs—at a fraction of the cost of new equipment.
