A white, upright Fisherbrand Isotemp ultra-low temperature freezer with a blue digital control panel and side handle, displayed in front of an American Instrument Exchange backdrop.

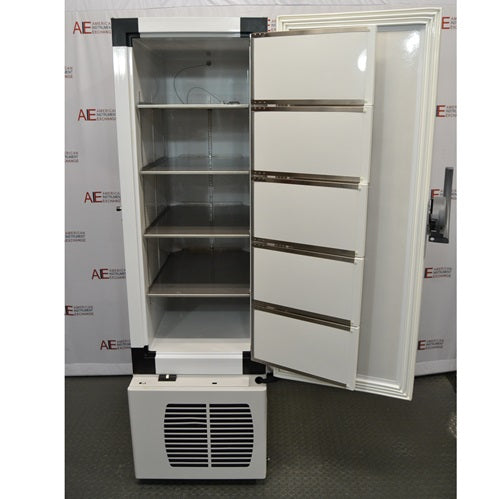

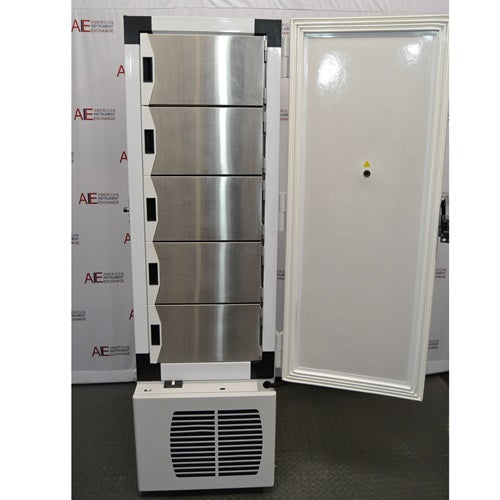

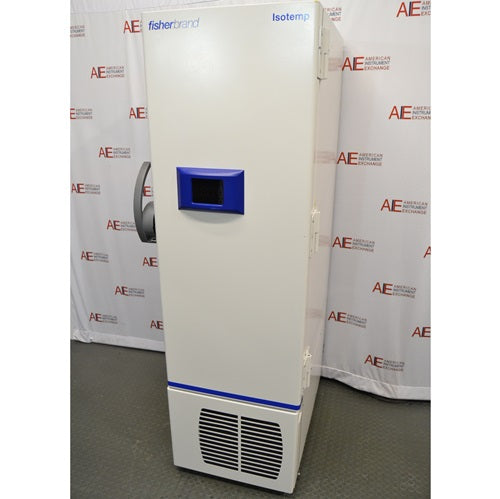

Fisher Scientific Isotemp IUE30086FA Ultralow Freezer

Product Code : SKU 2558K FREEZER

Price Match Policy

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

Fisher Scientific Isotemp IUE30086FA Ultra-Low Temperature Freezer

In an ultralow freezer, every cubic foot of storage represents valuable research. Whether preserving clinical specimens, cell lines, DNA libraries, or pharmaceutical compounds, laboratories depend on equipment that protects samples while operating efficiently around the clock. The Fisher Scientific Isotemp IUE30086FA Ultra-Low Temperature Freezer was designed to deliver dependable -86°C storage in a compact footprint, combining modern hydrocarbon refrigeration technology with excellent sample capacity and low operating costs. Specifications include a 14.9 cu. ft. (422 L) capacity, storage for up to 300 standard 2-inch cryoboxes, and an operating range of -50°C to -86°C.

Laboratories building a complete cold storage program often pair ultralow freezers with laboratory refrigerators for day-to-day reagent storage and laboratory freezers for materials that do not require -80°C preservation. Purchasing a professionally refurbished unit from American Instrument Exchange allows laboratories to acquire premium laboratory equipment while reducing capital expenditures.

Fisher Scientific Isotemp IUE30086FA Ultra-Low Temperature Freezer Key Features

14.9 cu. ft. (422 L) storage capacity
Holds up to 300 standard 2-inch cryoboxes
Adjustable operating temperature from -50°C to -86°C
Hydrocarbon refrigeration technology
Vacuum-insulated cabinet for increased storage efficiency
Capacitive touchscreen information center
Manual defrost operation
Audible and visual alarm system
Optional CO₂ or LN₂ backup compatibility
Quiet operation (approximately 53 dBA)
Refurbished and performance tested by American Instrument Exchange
90-day warranty included

Fisher Scientific Isotemp IUE30086FA Ultra-Low Temperature Freezer Overview

The IUE30086FA was developed for laboratories seeking dependable ultralow storage without sacrificing valuable floor space or increasing operating costs. Vacuum panel insulation allows the freezer to maximize internal storage capacity while maintaining a relatively compact exterior footprint, making it particularly attractive for laboratories where space is limited. Hydrocarbon refrigeration technology reduces energy consumption compared with many older refrigerant systems while also lowering heat output into the laboratory.

Cold storage rarely exists in isolation. Samples are commonly prepared inside biosafety cabinets, cultured in CO₂ incubators, processed using refrigerated centrifuges, and finally transferred into an ultralow freezer for long-term preservation. The IUE30086FA is designed to provide the dependable final stage of that workflow, helping laboratories protect valuable biological materials for years.

Common Applications

The Fisher Scientific Isotemp IUE30086FA is commonly used for long-term preservation of DNA and RNA libraries, stem cells, cell lines, tissue samples, plasma, serum, vaccines, pharmaceutical compounds, microbiological cultures, diagnostic specimens, clinical trial materials, and biological reference collections requiring storage at temperatures as low as -86°C.

Its compact footprint makes it especially well suited for departmental laboratories, satellite research facilities, hospital laboratories, and organizations adding additional ultralow capacity without dedicating space to a larger cabinet.

Laboratories requiring storage beyond the capabilities of traditional laboratory freezers often rely on ultralow freezers to provide long-term protection for irreplaceable research materials.

Ideal Laboratory Types

The IUE30086FA is an excellent choice for:

Biotechnology laboratories
Pharmaceutical manufacturers
Academic research institutions
Hospitals and clinical laboratories
Public health laboratories
Government research facilities
Contract research organizations
Cell culture laboratories
University core facilities

Its combination of compact size, energy-efficient operation, and dependable sample protection makes it particularly attractive for laboratories where both floor space and operating budgets are important considerations.

Temperature Recovery & Sample Protection

Every time an ultralow freezer is opened, warmer ambient air enters the storage chamber. The IUE30086FA is engineered to recover quickly after routine door openings while minimizing unnecessary temperature fluctuations that could affect sensitive biological materials. Vacuum insulation, hydrocarbon refrigeration technology, and insulated inner doors work together to maintain a stable storage environment during everyday laboratory use.

For laboratories preserving exceptionally valuable biological collections, ultralow freezers are often used alongside cryogenic storage systems, allowing each storage platform to be optimized for its intended application.

Typical Stored Materials

The Fisher Scientific Isotemp IUE30086FA is commonly used to store:

DNA and RNA libraries
Cell lines
Stem cells
Tissue specimens
Plasma and serum
Vaccines
Protein samples
Enzymes
Pharmaceutical compounds
Clinical trial materials
Microbial cultures
Biological reference materials

Fisher Scientific Isotemp IUE30086FA Ultra-Low Temperature Freezer Key Specifications

Capacity

14.9 cu. ft. (422 L)
Up to 300 standard 2-inch cryoboxes

Temperature Range

Adjustable from -50°C to -86°C

Refrigeration System

Hydrocarbon refrigeration technology
Manual defrost
Air-cooled condenser

Monitoring & Controls

Capacitive touchscreen display
Electronic microprocessor controls
RTD temperature probe
Alarm and event monitoring
Optional CO₂/LN₂ backup compatibility

Interior Configuration

Compatible with most standard cryobox rack systems
Two access ports
Vacuum-insulated cabinet

Electrical Requirements

115V, 60 Hz
12.6 Amp
NEMA 5-20 plug

Dimensions

Exterior: 22.99" W × 38.46" D × 77.99" H

Weight

Approximately 712 lbs. shipping weight

Energy Efficiency & Operating Costs

Ultra-low freezers operate continuously, making energy consumption a significant component of laboratory operating expenses. The IUE30086FA utilizes hydrocarbon refrigeration technology, vacuum insulation, and environmentally responsible refrigerants to reduce energy consumption while maintaining dependable ultra-low temperature performance. Lower heat rejection can reduce HVAC demand, while quiet operation allows the freezer to be installed directly within many laboratory environments rather than dedicated equipment rooms. Fisher Scientific states the platform can reduce energy use by up to 25% compared with certain earlier conventional refrigerant ULT designs.

Specifications compiled from Fisher Scientific manufacturer literature and American Instrument Exchange product information.

Refurbishment & Testing Process

Every Fisher Scientific Isotemp IUE30086FA received by American Instrument Exchange undergoes a comprehensive inspection and extended performance evaluation before shipment. Our technicians verify pull-down performance, confirm stable operation throughout the operating temperature range, inspect the refrigeration system and compressors, test alarms and touchscreen controls, evaluate door gaskets and cabinet insulation, verify temperature stability, and thoroughly clean the freezer before delivery.

This refurbishment process helps laboratories purchase professionally tested equipment with confidence while extending the useful life of high-quality laboratory instrumentation.

Shipping & Installation Considerations

The Fisher Scientific Isotemp IUE30086FA ships by freight from American Instrument Exchange. Before delivery, laboratories should verify doorway clearances, electrical service, floor loading capacity, and adequate ventilation around the cabinet. Proper installation can improve long-term reliability, maximize energy efficiency, and ensure convenient access for routine service and maintenance.

Frequently Asked Questions

How many cryoboxes can the IUE30086FA hold?

The freezer accommodates up to 300 standard 2-inch cryoboxes, making it an excellent solution for laboratories requiring substantial sample storage within a compact footprint.

Why does the IUE30086FA use hydrocarbon refrigeration?

Hydrocarbon refrigeration improves energy efficiency, reduces heat output, and utilizes environmentally responsible refrigerants while maintaining dependable ultra-low temperature performance.

Can this freezer be connected to a backup system?

Yes. The IUE30086FA is designed to support optional CO₂ or liquid nitrogen backup systems for additional sample protection during extended power interruptions or service events.

How is the freezer tested before shipment?

Every refurbished Fisher Scientific Isotemp IUE30086FA is inspected, cleaned, and performance tested by American Instrument Exchange technicians to verify pull-down performance, temperature stability, refrigeration performance, alarm functionality, and overall system operation before shipment.

Testing Procedures for Used and Refurbished Ultralow Freezers
Ensure -80°C Stability and Critical Sample Protection

Used and refurbished ultralow freezers from American Instrument Exchange are rigorously tested to ensure reliable long-term storage at temperatures as low as -80°C. Each unit undergoes a detailed inspection, full system evaluation, and extended runtime testing to meet the high standards required by research, clinical, and biorepository environments.

Why Testing Used Ultralow Freezers Is Essential

Before an ultralow freezer is placed back into service, it must be carefully tested for:
• Temperature stability and uniformity at ultralow levels (e.g., -70°C to -86°C)
• Cascade refrigeration system functionality and compressor health
• Seal and insulation effectiveness to prevent thermal loss
• Electrical safety, alarm functionality, and system compliance

Thorough testing helps prevent temperature excursions and equipment failure—crucial for protecting sensitive materials such as biological samples, vaccines, enzymes, and research specimens.
Our structured ULT testing protocol ensures each refurbished unit delivers dependable performance and long-term reliability.

Key Testing Procedures for Refurbished and Used Ultralow Freezers

1. Initial Visual Inspection

• Inspect external cabinet, hinges, and door gaskets for wear, corrosion, or damage
• Check power cords, plugs, and control interfaces for signs of wear or tampering
• Verify that internal racks, shelving, and chamber components are intact and operational

2. Functional Startup and Control Testing

• Power on the unit and confirm successful initialization of digital displays and alarm systems
• Test control panels, keypad responsiveness, and user-setpoint functionality
• Verify that door seals close tightly and form a secure barrier

3. Temperature and -80°C Stability Testing

• Test and evaluate internal temperature sensors thermometers/probes
• Monitor temperature performance at multiple chamber points over extended runtimes
• Confirm uniformity and stability at key setpoints, including -70°C, -80°C, and -86°C

4. Refrigeration System and Cascade Compressor Evaluation

• Test dual-stage (cascade) compressor function, startup times, and cycling behavior
• Evaluate evaporator coils, heat exchangers, and vacuum insulation panels for performance and integrity
• Check for refrigerant leaks, low-pressure faults, and abnormal compressor noise

5. Alarm and Safety System Verification

• Test high/low temperature alarms, power failure alerts, and battery backup systems (if equipped)
• Verify lockout controls, alarm delay settings, and door-open indicators

6. Final Quality Assurance and Documentation

• Run a continuous multi-day test cycle at -80°C to confirm sustained performance
• Document temperature logs, controller accuracy, and compressor behavior
• Complete a detailed service report

Dependable Performance from American Instrument Exchange

All refurbished ultralow freezers from American Instrument Exchange are tested to exacting standards for performance, safety, and reliability. With our rigorous inspection and testing procedures, you can trust your ULT freezer to deliver consistent -80°C storage from day one—ideal for research, clinical, pharmaceutical, and biobanking applications.

Repair and Refurbishment Protocol for Used Ultralow Freezers
-80°C Storage Performance from American Instrument Exchange

At American Instrument Exchange, every used ultralow temperature freezer (ULT freezer) undergoes a rigorous, multi-step refurbishment protocol designed to restore reliable -80°C performance. Whether upright, chest-style, or undercounter, our refurbished ULT freezers are tested and restored to deliver the cold storage precision required for biological samples, vaccines, enzymes, and other temperature-sensitive materials.

Why Choose a Refurbished Ultralow Freezer from American Instrument Exchange?

• Fully tested for -80°C cold storage stability and compressor performance
• Backed by a warranty
• A cost-effective alternative to expensive new ULT units
• Environmentally responsible through equipment reuse and waste reduction
• Serviced by experienced technicians specializing in laboratory-grade refrigeration

Step-by-Step Ultralow Freezer Refurbishment Protocol

Every ultralow freezer sold by American Instrument Exchange is carefully evaluated and restored through the following process:

1. Initial Intake & Inspection

• Exterior inspection for dents, corrosion, or physical damage
• Evaluation of door seals, hinges, and internal chamber components
• Documentation of missing parts or components requiring repair

2. Cleaning and Decontamination

• Comprehensive interior and exterior cleaning using non-abrasive cleaners
• Removal of dust, frost buildup, and residual contaminants
• Decontamination of all internal surfaces and removable parts like shelves and drawers

3. Mechanical and Electrical Repairs

• Replacement or repair of worn or damaged components (door latches, hinges, gaskets, etc.)
• Inspection and repair of control boards, displays, sensors, and switches
• Electrical system evaluation, including fuses, wiring, relays, and connectors

4. Ultralow Refrigeration System Assessment

• Testing of dual-stage compressors and cascade cooling system
• Evaluation of heat exchangers, evaporator coils, and vacuum insulation panels
• Inspection for refrigerant leaks, low pressure, or signs of compressor fatigue
• Verification of thermal insulation integrity

5. Temperature and Performance Testing

• Testing of internal temperature sensors and controllers
• Multi-point testing to verify chamber temperature uniformity at -80°C
• Long-duration, multi-day operational testing to ensure sustained ultralow performance

6. Safety and Compliance Checks

• Electrical safety testing and grounding verification
• Alarm function tests for high/low temperature alerts and power failure warnings

7. Final Quality Control and Documentation

• Multi-day runtime validation at -80°C
• Recording of temperature logs, compressor cycle data, and performance benchmarks
• Final inspection and service/testing report completed

Trust the Experts at American Instrument Exchange

With over 50 years in the lab equipment industry, American Instrument Exchange is your trusted source for refurbished ultralow freezers. Our certified refurbishment protocol ensures each ULT freezer delivers the precision, performance, and reliability your lab needs—at a fraction of the cost of new equipment.
