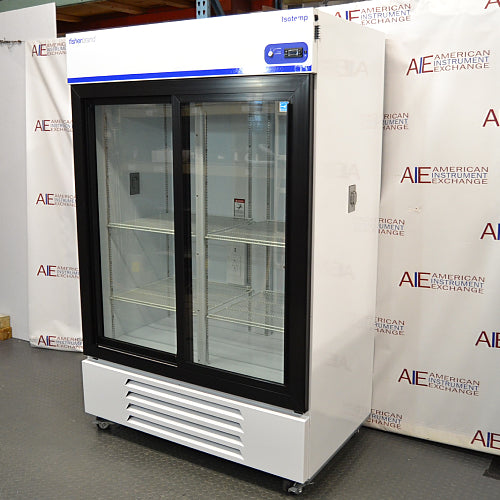

The Fisherbrand Isotemp GTFBG45CPLA Double-Door Chromatography Refrigerator is a large-capacity laboratory refrigerator designed for chromatography workflows, protein purification, refrigerated sample preparation, and storage of temperature-sensitive reagents and biological materials. Offering 45 cu. ft. of refrigerated capacity, a 2°C to 10°C operating range, two sliding double-pane glass doors, internal electrical power, and multiple access ports, the GTFBG45CPLA provides the space and specialized features needed to operate chromatography equipment within a controlled refrigerated environment.
With substantially more working space than a single-door chromatography refrigerator, this model is particularly useful for laboratories that need to accommodate larger chromatography systems, multiple columns or collection vessels, or a combination of active instrumentation and refrigerated storage.
This refurbished Fisherbrand chromatography refrigerator is tested and reconditioned by American Instrument Exchange prior to shipment and includes a 90-day warranty.
Key Features
45 cu. ft. refrigerated capacity for chromatography systems, samples, reagents, and laboratory materials
2°C to 10°C temperature range
Two sliding double-pane glass doors for convenient access and interior visibility
Stainless-steel interior and exterior for durability and easy cleaning
Internal electrical outlet for compatible chromatography equipment and instrumentation
Hydrocarbon safety sensor designed to shut off the internal outlet if a refrigerant leak is detected
Side access ports for routing tubing, cables, probes, and other connections
Digital temperature controller
Temperature, door-ajar, and power-failure alarms
Battery backup for alarm functionality during power interruptions
Remote alarm contacts for connection to compatible external monitoring systems
Keyed door locks for controlled access
LED interior lighting
Adaptive defrost system
Natural hydrocarbon refrigerant
Quiet operation and low heat output
90-day warranty from American Instrument Exchange
Overview
Chromatography refrigerators differ from conventional laboratory refrigerators because they are designed not only to store refrigerated materials, but also to accommodate equipment and experimental workflows inside the temperature-controlled chamber. The Fisherbrand Isotemp GTFBG45CPLA combines a spacious 45 cu. ft. interior with access ports and internal electrical power, making it particularly useful for laboratories performing chromatography, protein purification, and other temperature-sensitive procedures.
The large interior provides room for chromatography columns, fraction collectors, collection vessels, tubing, buffers, reagents, and compatible powered equipment. The cabinet can also be configured to provide conventional refrigerated storage when it is not being used for active chromatography work.
One of the distinguishing features of the GTFBG45CPLA is its two sliding double-pane glass doors. The sliding design allows users to access one section of the refrigerator without opening the entire front of the cabinet, while the glass construction makes it possible to inspect equipment, samples, and collection vessels without opening the doors at all.
Access ports allow tubing, electrical cables, monitoring probes, and other connections to pass between equipment inside and outside the refrigerated chamber. An internal electrical outlet provides power for compatible equipment operating within the refrigerator, helping laboratories avoid improvised cable routing through the door opening.
The combination of substantial interior capacity and chromatography-specific features makes the GTFBG45CPLA a flexible option for laboratories that need more working room than a single-door chromatography refrigerator can provide.
Common Applications
The Fisherbrand GTFBG45CPLA is well suited for protein purification, column chromatography, FPLC workflows, refrigerated fraction collection, buffer preparation and storage, sample preparation, and other temperature-sensitive analytical procedures.
Its large interior can accommodate chromatography equipment and associated supplies while maintaining refrigerated conditions throughout a procedure. This can be particularly valuable for proteins, enzymes, biological samples, and other materials whose stability may depend on maintaining lower temperatures during purification or processing.
When not being used for active chromatography work, the refrigerator can provide high-capacity storage for reagents, proteins, enzymes, media, buffers, biological samples, standards, controls, and other materials requiring refrigerated storage within its specified temperature range.
Ideal Laboratory Types
The Fisherbrand Isotemp GTFBG45CPLA is an excellent option for biotechnology laboratories, pharmaceutical research facilities, protein purification laboratories, academic research groups, biochemistry laboratories, analytical laboratories, life science facilities, and industrial R&D laboratories.
The 45 cu. ft. capacity makes this model particularly attractive for laboratories with higher sample volumes, larger chromatography systems, or multiple researchers sharing a refrigerated chromatography workspace.
It can also be a practical choice for growing laboratories that want sufficient capacity to support both current chromatography workflows and additional refrigerated storage requirements.
Performance & Temperature Uniformity
The Fisherbrand GTFBG45CPLA operates across a 2°C to 10°C temperature range, covering the refrigerated conditions commonly required for chromatography procedures, reagents, buffers, proteins, and other laboratory materials.
The glass doors allow laboratory personnel to visually monitor equipment and stored materials without opening the refrigerator, helping reduce unnecessary introduction of warmer ambient air into the cabinet. When access is required, the two-door sliding configuration allows users to open only the portion of the cabinet necessary for the task.
The refrigerator incorporates audible and visual alarm functions for temperature excursions, open-door conditions, and power failure. Battery backup helps maintain alarm functionality during power interruptions, while remote alarm contacts provide the ability to connect the refrigerator to compatible external monitoring or facility alarm systems.
For laboratories storing particularly valuable or sensitive materials, independent temperature monitoring or data logging may provide an additional layer of protection and documentation.
Sample Storage Recommendations
For routine refrigerated storage, samples, reagents, and containers should be arranged to permit adequate airflow throughout the chamber. Avoid tightly packing materials against interior air passages or positioning large containers in ways that could interfere with air circulation.
When configuring the GTFBG45CPLA for chromatography applications, sufficient clearance should be maintained around pumps, columns, fraction collectors, collection vessels, and other equipment. This helps preserve airflow while also providing researchers with adequate access to make adjustments or inspect the system during operation.
The refrigerator's access ports are particularly useful when external connections are required. Tubing, monitoring probes, electrical cables, or other compatible connections can be routed through these ports rather than through the door opening.
For high-value samples or applications requiring documented storage conditions, laboratories should consider using an independent temperature monitoring system or data logger in addition to the refrigerator's onboard controls and alarms.
Key Specifications
Specification
Fisherbrand Isotemp GTFBG45CPLA
Manufacturer
Fisherbrand
Product Line
Isotemp
Model / Catalog No.
GTFBG45CPLA
Product Type
Chromatography refrigerator
Configuration
Upright, double-door
Door Type
Two sliding double-pane glass doors
Capacity
45 cu. ft.
Temperature Range
2°C to 10°C
Exterior Dimensions
51.75"W × 32.25"D × 81.75"H
Interior Dimensions
45.75"W × 26.25"D × 62"H
Temperature Control
Digital controller
Interior Outlet
Yes
Access Ports
Yes, side access ports
Interior Lighting
LED
Door Locks
Keyed
Alarm Functions
Temperature, door ajar, and power failure
Alarm Battery Backup
Yes
Remote Alarm Contacts
Yes
Defrost
Adaptive defrost
Refrigerant
Natural hydrocarbon refrigerant
Interior Finish
Stainless steel
Exterior Finish
Stainless steel
Electrical Requirements
115V, 60 Hz
Weight
561 lbs.
Warranty
90 days from American Instrument Exchange
Energy Efficiency & Operating Costs
The Fisherbrand Isotemp GTFBG45CPLA incorporates several features intended to support efficient laboratory operation, including natural hydrocarbon refrigerant, adaptive defrost, LED interior lighting, and low-heat-output operation.
The double-pane glass doors also allow users to locate materials and visually monitor chromatography equipment before opening the cabinet. Reducing unnecessary door openings can limit the amount of warm laboratory air entering the chamber and reduce the cooling system's recovery workload.
The sliding double-door configuration provides an additional advantage on a cabinet of this size because only a portion of the refrigerator needs to be opened for many routine tasks.
Actual energy consumption will vary according to laboratory temperature, refrigerator setpoint, door-opening frequency, sample loading, and the amount and heat output of equipment operating inside the chamber.
Refurbishment & Testing
American Instrument Exchange technicians inspect, clean, test, and recondition this Fisherbrand chromatography refrigerator prior to shipment.
Temperature-controlled equipment is tested using calibrated temperature measurement equipment to verify cooling performance and the accuracy of temperature controls and readouts. The refrigeration system, controls, alarms, door hardware, gaskets, glass, electrical components, access ports, and other major components are inspected for proper operation and condition.
Hardware and components are repaired or replaced as necessary during the refurbishment process, and the refrigerator is thoroughly cleaned before shipment.
This refurbished Fisherbrand Isotemp GTFBG45CPLA is supplied with a 90-day warranty from American Instrument Exchange.
Shipping & Installation
The Fisherbrand GTFBG45CPLA is a large, full-height laboratory refrigerator weighing approximately 561 lbs. Appropriate material-handling equipment should be available when unloading and positioning the refrigerator.
Before ordering, laboratories should verify that loading docks, doorways, corridors, elevators, and other access points can accommodate the refrigerator's approximately 51.75"W × 32.25"D × 81.75"H exterior dimensions.
The double-door cabinet also requires substantially more installation space than a single-door chromatography refrigerator, so the final location should be evaluated for adequate operating and ventilation clearance.
Once positioned, the refrigerator should be installed on a level surface and connected to an appropriate 115V, 60 Hz electrical supply. Allow the cabinet to reach and stabilize at the desired operating temperature before introducing temperature-sensitive materials or beginning chromatography procedures.
Related Laboratory Equipment
American Instrument Exchange carries a wide selection of laboratory refrigerators, including general-purpose, chromatography, pharmaceutical, glass-door, and high-capacity models. Laboratories requiring lower-temperature storage can also explore our selection of laboratory freezers and ultra-low temperature freezers.
For laboratories developing complete protein purification and sample-processing workflows, American Instrument Exchange also offers refrigerated centrifuges, high-speed centrifuges, balances, water baths, shakers, incubators, and other refurbished laboratory equipment.
Frequently Asked Questions
What makes the Fisherbrand GTFBG45CPLA different from a standard double-door laboratory refrigerator?
The GTFBG45CPLA is configured specifically for chromatography applications. In addition to refrigerated storage, it provides an internal electrical outlet and access ports that allow compatible chromatography equipment, tubing, cables, probes, and other components to operate within or pass into the refrigerated chamber.
Why does this chromatography refrigerator have sliding glass doors?
The sliding doors provide convenient access to the large 45 cu. ft. chamber without requiring conventional hinged doors to swing outward into the laboratory. They also allow users to access one portion of the cabinet while limiting how much of the refrigerated interior is exposed to ambient laboratory air.
What is the advantage of the 45 cu. ft. capacity?
The larger chamber provides substantially more room for chromatography equipment, fraction collectors, columns, collection vessels, buffers, and associated supplies than a smaller single-door refrigerator. It can also support shared laboratory workflows or provide chromatography workspace and conventional refrigerated storage within the same cabinet.
Can chromatography equipment be powered inside the GTFBG45CPLA?
Yes. The refrigerator incorporates an internal electrical outlet for compatible equipment. Laboratories should confirm that any equipment installed inside the chamber is suitable for the environment and falls within the refrigerator manufacturer's electrical and operational requirements.
What does the hydrocarbon safety sensor do?
The refrigerator uses hydrocarbon refrigerant and includes a safety system designed to shut off the internal electrical outlet if a refrigerant leak is detected. This provides an additional safety measure when electrical equipment is operating inside the refrigerated chamber.
Can this refrigerator be used for FPLC or protein purification?
Yes. The combination of refrigerated working space, internal power, access ports, and glass doors makes the GTFBG45CPLA well suited for FPLC, protein purification, column chromatography, and refrigerated fraction collection workflows, provided the equipment being installed fits within the available chamber dimensions and meets applicable operating requirements.
Can the Fisherbrand GTFBG45CPLA be used for ordinary refrigerated sample storage?
Yes. The refrigerator's 2°C to 10°C operating range and 45 cu. ft. capacity also make it suitable for storing compatible reagents, buffers, proteins, enzymes, media, biological samples, standards, and other laboratory materials when the cabinet is not being used exclusively for chromatography.
Is the Fisherbrand GTFBG45CPLA tested before shipment?
Yes. American Instrument Exchange tests and reconditions refurbished laboratory refrigerators before shipment. Temperature performance, controls, alarms, refrigeration operation, door components, and other major functions are inspected and tested, and the refrigerator is thoroughly cleaned before leaving the warehouse.
Does this Fisherbrand chromatography refrigerator include a warranty?
Yes. The refurbished Fisherbrand Isotemp GTFBG45CPLA includes a 90-day warranty from American Instrument Exchange.
CLICK HERE to see the Fisherbrand Isotemp GTFBG45CPLA chromatography refrigerator on our YouTube channel
Testing Procedures for Used and Refurbished Laboratory Refrigerators Ensure Temperature Stability and Cold Storage Accuracy
Used and refurbished laboratory refrigerators from American Instrument Exchange are thoroughly tested to ensure reliable cold storage performance, temperature accuracy, and compliance with laboratory safety and storage standards. Each unit undergoes a detailed inspection and functional verification to meet the requirements of clinical, pharmaceutical, research, and industrial labs.
Why Testing Used Laboratory Refrigerators Is Essential
Before a laboratory refrigerator is reintroduced into any laboratory setting, it must be carefully tested for:
• Temperature uniformity and stability
• Cooling system integrity and compressor function
• Door seal performance and insulation effectiveness
• Electrical safety and compliance with lab standards
Thorough testing minimizes the risk of temperature excursions, product loss, and system failures—especially critical for storing reagents, vaccines, biological samples, pharmaceuticals, and temperature-sensitive materials.
Our structured testing protocol ensures refurbished lab refrigerators deliver consistent, dependable performance across all makes and models.
Key Testing Procedures for Refurbished and Used Laboratory Refrigerators
1. Initial Visual Inspection
• Check exterior surfaces, hinges, and door gaskets for wear, corrosion, or damage
• Inspect power cords, plugs, and control panels for fraying or visible defects
• Verify that shelves, racks, and internal compartments are present and functional
2. Functional Testing
• Power on the refrigerator and verify that display screens, alarms, and controls function properly
• Test door latches and sealing mechanisms to ensure secure closure and insulation
• Run preliminary temperature cycles to observe startup behavior and cooling response
3. Temperature and Stability Testing
• Test internal temperature sensors and controllers using thermometers/probes
• Monitor temperature at multiple points within the chamber over an extended period
• Verify accuracy across user-defined setpoints (e.g., +4°C, +2°C to +8°C range)
4. Cooling System and Compressor Evaluation
• Test compressor startup, cycling, and operating noise levels
• Inspect condenser coils and fans for proper function and cleanliness
• Check refrigerant pressure (if applicable) and confirm there are no leaks or system inefficiencies
5. Electrical Safety and Compliance Checks
• Ensure all internal and external electrical components are properly grounded
• Perform insulation resistance and leakage current tests 6. Final Quality Assurance Checklist
• Run full operational tests over a 24-hour period
• Document temperature logs, control responsiveness, and system performance
• Complete a detailed service report
All refurbished laboratory refrigerators from American Instrument Exchange are backed by our rigorous testing standards and quality commitment. From vaccine storage to reagent preservation, you can count on consistent cold storage performance from day one.
Repair and Refurbishment Protocol for Used Laboratory Refrigerators Cold Storage Performance from American Instrument Exchange
At American Instrument Exchange, every used laboratory refrigerator we offer is subjected to a comprehensive repair and refurbishment protocol. Whether it’s a general-purpose lab refrigerator, pharmaceutical-grade unit, or undercounter model, our goal is to restore each system to peak performance—ensuring consistent temperature control and reliable to laboratory storage standards.
Why Choose a Refurbished Laboratory Refrigerator from American Instrument Exchange?
• Fully tested for cold storage accuracy and operational safety
• Backed by a warranty
• Cost-effective alternative to new refrigeration equipment
• Sustainably refurbished to reduce environmental impact
• Serviced by expert technicians with decades of laboratory equipment experience
Step-by-Step Refurbishment Protocol
Every laboratory refrigerator from American Instrument Exchange follows a detailed, multi-stage process to ensure top-tier performance and reliability:
1. Initial Intake & Inspection
• Visual inspection for dents, corrosion, or structural damage
• Mechanical check of door hinges, gaskets, seals, and internal components
• Documentation of missing parts or areas requiring repair or replacement
2. Cleaning and Decontamination
• Internal and external cleaning using non-abrasive, lab-safe cleaners
• Decontamination/cleaning of all surfaces to remove biological or chemical residues
• Thorough cleaning of shelving, drawers, and removable interior parts
3. Mechanical and Electrical Repairs
• Replacement or repair of worn mechanical parts (door latches, seals, hinges, etc.)
• Inspection and restoration of control interfaces, thermostats, sensors, and displays
• Evaluation of wiring, relays, fuses, and power supply components for safety and integrity
4. Refrigeration System and Compressor Evaluation
• Testing of compressor function, condenser coils, and evaporators
• Inspection for refrigerant leaks and pressure performance (if applicable)
• Verification of proper airflow, fan operation, and defrost cycles
5. Temperature and Performance Testing
• Testing of temperature sensors and control boards
• Verification of temperature stability and uniformity throughout the chamber
• Testing of multiple setpoints (e.g., +2°C to +8°C) over extended operating periods
6. Safety and Compliance Checks
• Inspection of grounding and electrical insulation per lab safety standards
• Testing of alarm systems (if applicable) for temperature excursions or power failure
7. Final Quality Control and Documentation
• Multi-day operational test under real-world conditions
• Final cleaning, inspection, and performance validation
• Detailed service report with temperature logs, repair notes, and certification of refurbishment
Trust the Experts at American Instrument Exchange
With over 50 years of industry experience, American Instrument Exchange is a leading provider of high-quality refurbished laboratory equipment. Our proven laboratory refrigerator refurbishment protocol ensures consistent, accurate cold storage—so you can safeguard your samples, reagents, and research materials with confidence.
Warranty Information
All used equipment sold by American Instrument Exchange is refurbished/reconditioned, tested to meet specifications, cleaned, and comes with a 90-day warranty from the date of shipment unless otherwise specified. New products include a warranty from the manufacturer. Your warranty is only valid if you have paid your invoice. If your invoice is over 30 days old, warranty work will not be performed until your invoice is paid in full. American Instrument Exchange is not liable for any special or consequential damages that result from the use of, or the inability to use, the materials on this site or the performance of the products,
Exceptions include international sales and items that are agreed to be sold with a lesser warranty or items that are agreed to be sold “as is.”
Should there be visible shipping damage to packaging or concealed shipping damage to item(s) supplied, buyer must communicate such damage to the delivering entity or carrier upon receipt first and to American Instrument the same day item is accepted / signed for. Failure to do so voids warranty. Customer decision to involve / procure third party or OEM service other than American Instrument or AIE assigned vendors to resolve in-warranty instrument failure or defect without first placing a service call to American Instrument voids warranty.
Return & Cancellation Policy
American Instrument Exchange will authorize the return of and issue a full refund for any equipment that is not working as represented and could not be replaced or repaired to the customer’s satisfaction by AIE or a representative of AIE during the warranty period. Returns without prior authorization and an RMA number will not be accepted.
Customers are responsible for proper packaging of the equipment and all included accessories. American Instrument will pay for insurance and shipping costs. Non-inventory items bought specifically to fill customer orders may possibly be returned, but on a case by case basis.
Customers who cancel orders after refurbishing has begun or after delivery where there are no equipment performance issues may be subject to a Restocking/Cancellation Fee of 20% or more and responsible for shipping costs for both the delivery and return.
Ongoing and Extended Support Options
American Instrument Exchange is able to provide additional repair and support services outside the warranty terms for most products that sell.
For biosafety cabinets, clean benches, chemical fume hoods, and other clean air products our team at AIE Laboratory Services can provide certifications, repairs, decontaminations, and other services for customers throughout New England, and guidance and limited technical assistance for any customers in the US and Canada for new or refurbished biosafety cabinets purchased from American Instrument Exchange.
For all other products, the repair service team at American Instrument Exchange can provide both field and depot repair evaluations. We can easily schedule and coordinate the pick-up and transportation of your malfunctioning equipment. By offering hourly rates lower than most OEM service providers and eliminating travel time for technicians, we help reduce repair costs. Furthermore, our lab depot repair service minimizes or eliminates scheduling delays. Our experienced service technicians are qualified to restore your equipment to factory specifications.
Yes, all equipment from American Instrument Exchange comes with a warranty. Used/reconditioned/refurbished equipment is tested to make sure it operates to the manufacturer's specifications and comes with a 90-day warranty (unless otherwise noted). New equipment comes with a warranty from the manufacturer.
How do you test and recondition the equipment?
Testing requirements vary across all the equipment categories we sell. Temperature controlled units are tested with NIST traceable probes and data loggers. Gaskets, external housing, glass, handles, controls and control screens are all thoroughly inspected for integrity and functionality. We test all equipment using the manufacturer's parameters and specifications to confirm that the unit operates properly.
How do products ship from American Instrument Exchange?
We can ship products both nationally and internationally using a well-established network of transporters. Smaller items will ship via UPS. Larger equipment will be palletized and shipped either LTL or air-ride, depending on the specific equipment and/or delivery requirements.
Return and order cancellation policy
American Instrument Exchange will accept the return of any product that is not working as represented and could not be replaced or repaired to the customer's satisfaction during the warranty period. Customers who cancel orders after refurbishing has begun will be subject to a cancellation and restocking fee of between 20% and 40%.
Are discounts available for educational or non-profit institutions, or for bulk purchases?
Yes – call or email us today with a list of equipment you're looking for and we can potentially put together a quote that includes a discount.
How does your price matching policy work?
We strive to keep our pricing competitive and reasonable. If you find comparable items for sale at a lower price from other vendors please send us a link and or quote for the item and we'll do our best to match or beat the price.
Can I see the equipment in person before committing to a purchase?
Customers are welcome to make an appointment to view equipment in our warehouse. Given our workload we may not be able to test or clean the equipment prior to your arrival if you have not committed to an order.
1023 Western Avenue is a working warehouse, not a showroom, and customers should dress appropriately and wear closed toe shoes.
Can I ship products that I purchased elsewhere to American Instrument for repair?
Yes – please see our repair services page for more information.
