Julabo FL1703 Recirculating Chiller

Brand : Julabo

Product Code : SKU 1467O CIRC

Sold Out

⚠

Currently Unavailable

This item is temporarily out of stock. Please contact us for availability updates or explore similar alternatives below.

View Similar Equipment Call 978-521-2221

We Can Help You Find:

Similar equipment currently in stock
Alternative brands with comparable specifications
Refurbished units (fully tested & warrantied)

Price Match Policy

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

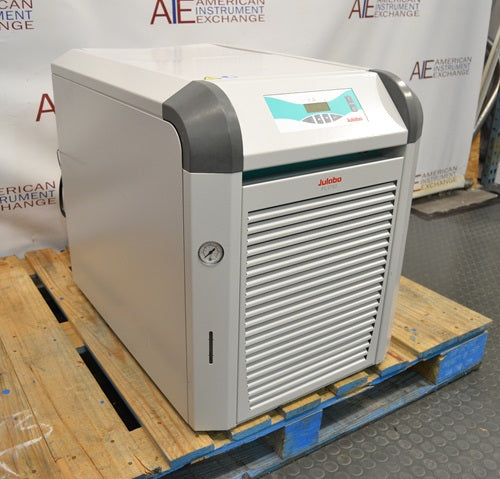

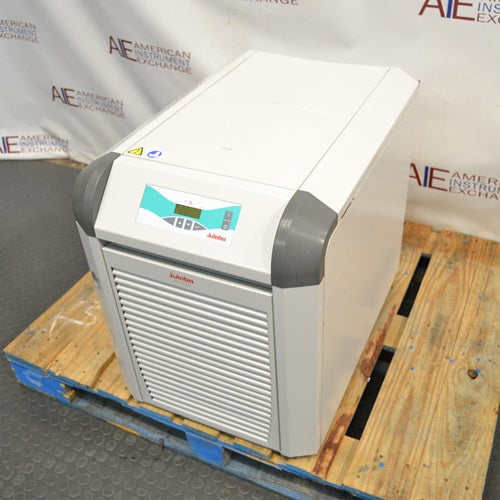

JULABO FL1703 Recirculating Chiller

The JULABO FL1703 Recirculating Chiller is a high-performance laboratory cooling system designed for reliable closed-loop temperature control of analytical instruments, chemical processes, reactors, condensers, and other heat-generating laboratory equipment. With a working temperature range of approximately -20°C to +40°C, up to 1.7 kW of cooling capacity at +20°C, circulation flow up to 40 L/min, and adjustable pump pressure from approximately 0.5 to 3 bar, the FL1703 provides significantly greater cooling and circulation capability than smaller benchtop laboratory chillers.

Available used and refurbished from American Instrument Exchange, the JULABO FL1703 provides a cost-effective alternative to purchasing a new high-capacity recirculating chiller. Each unit is inspected and tested for refrigeration, circulation, temperature control, and overall operating performance before shipment. A 90-day warranty is included.

Key Features

-20°C to +40°C working temperature range
1.7 kW cooling capacity at +20°C
Cooling capacity remains approximately 1.0 kW at 0°C
±0.5°C temperature stability
Maximum circulation flow approximately 40 L/min
Adjustable pump pressure from approximately 0.5 to 3 bar
12–17 L filling volume
Stainless-steel reservoir
Microprocessor PID temperature control
0.1°C setting and display resolution
RS232 interface
Visual and audible low-level protection
Space-efficient under-bench configuration
Refurbished and tested by American Instrument Exchange
90-day warranty included

Overview

The JULABO FL1703 is a refrigerated recirculating chiller designed primarily to remove heat from compatible external laboratory and process equipment. Temperature-controlled fluid is pumped from the chiller through the connected equipment, absorbs process heat, and then returns to the FL1703, where the refrigeration system removes the accumulated heat before recirculating the fluid.

This closed-loop arrangement provides a reusable source of temperature-controlled coolant and can eliminate or substantially reduce reliance on continuous laboratory tap-water cooling. It can also provide more consistent coolant temperature and circulation conditions than building water supplies that fluctuate with season or facility demand.

The FL1703 occupies an important position between compact instrument chillers and larger industrial process-cooling systems. Its combination of substantial refrigeration capacity and strong pump performance makes it useful for analytical equipment as well as more demanding laboratory processes.

JULABO also designed the FL1703 for installation beneath a laboratory bench. The unit does not require side ventilation openings, helping laboratories conserve valuable working space while maintaining access to controls and service points.

Key Specifications

Specification	Details
Manufacturer	JULABO
Model	FL1703
Equipment Type	Refrigerated recirculating chiller
Working Temperature Range	-20°C to +40°C
Temperature Stability	±0.5°C
Setting Resolution	0.1°C
Display Resolution	0.1°C
Cooling Capacity at +20°C	1.7 kW / 1,700 W
Cooling Capacity at +10°C	1.4 kW / 1,400 W
Cooling Capacity at 0°C	1.0 kW / 1,000 W
Cooling Capacity at -10°C	0.75 kW / 750 W
Cooling Capacity at -20°C	0.30 kW / 300 W
Maximum Pump Flow	Approx. 40 L/min
Pump Pressure	Approx. 0.5–3 bar, adjustable
Filling Volume	Approx. 12–17 L
Reservoir Material	Stainless steel
Pump Connections	G¾
Temperature Controller	Microprocessor PID
Interface	RS232
Refrigeration	Single-stage, air-cooled
Approximate Dimensions	19.7"W × 29.9"D × 25.2"H
Approximate Weight	200.6 lb / 91 kg
Electrical Requirements	Verify individual unit nameplate
Warranty	90 days

Common Applications

The JULABO FL1703 is suitable for laboratory and process applications requiring continuous removal of moderate to substantial heat loads. Typical uses include reactor temperature control, rotary evaporator and condenser cooling, analytical instrument cooling, vacuum equipment, distillation systems, chemical reaction control, materials testing, process-development equipment, laser systems, and other devices designed for external liquid cooling.

Its combination of cooling capacity and pump performance makes the FL1703 particularly useful for equipment that exceeds the capabilities of compact instrument chillers. At +20°C, the unit can remove approximately 1.7 kW of continuous heat while providing circulation flow up to approximately 40 L/min.

The FL1703 can also serve as an alternative to once-through facility water. Rather than continuously drawing and discharging fresh water, the chiller recirculates the same heat-transfer fluid through a closed cooling loop.

Ideal Laboratory Types

The JULABO FL1703 is well suited for pharmaceutical and biotechnology laboratories, chemistry and chemical-development groups, analytical laboratories, materials-science facilities, industrial R&D departments, process-development laboratories, pilot laboratories, academic research facilities, and other environments requiring dependable external equipment cooling.

Its under-bench configuration can be especially valuable in laboratories where benchtop space is limited. The relatively high pump pressure also makes the FL1703 useful for cooling circuits with longer tubing runs or greater hydraulic resistance than smaller low-pressure laboratory chillers can effectively support.

Performance & Temperature Stability

The JULABO FL1703 provides a working temperature range of approximately -20°C to +40°C with specified temperature stability of approximately ±0.5°C. A microprocessor PID controller regulates coolant temperature, while the digital display provides 0.1°C resolution.

One of the most important characteristics of the FL1703 is its published cooling-capacity curve. The system provides approximately 1.7 kW at +20°C, 1.4 kW at +10°C, 1.0 kW at 0°C, 750 W at -10°C, and 300 W at -20°C.

This distinction is important when sizing a recirculating chiller. A process generating a continuous 1 kW heat load may be compatible with the FL1703 around 0°C but would substantially exceed its available refrigeration capacity at -20°C. Buyers should therefore compare their heat load with the chiller's capacity at the actual required operating temperature rather than relying only on the maximum 1.7 kW rating.

The FL1703 also provides maximum circulation flow of approximately 40 L/min with adjustable pump pressure from approximately 0.5 to 3 bar. This combination allows the system to support a wide variety of external cooling circuits.

Actual delivered flow depends on tubing diameter and length, fittings, coolant viscosity, operating temperature, elevation changes, and resistance within the connected equipment.

Refurbishment & Testing

This used JULABO FL1703 Recirculating Chiller is refurbished and tested by American Instrument Exchange before shipment. Our technicians inspect the compressor, condenser, refrigeration circuit, circulation pump, stainless-steel reservoir, PID controller, display, fluid-level system, external connections, electrical components, housing, and applicable safety systems.

Temperature-controlled equipment is tested using NIST-traceable probes and data loggers. The FL1703 is operated under simulated laboratory conditions to evaluate temperature pull-down, refrigeration performance, circulation, temperature regulation, controller operation, alarms, and overall system reliability.

The reservoir and accessible fluid-contact components are also cleaned and inspected before shipment.

Customers purchasing the FL1703 for a specific instrument or process are encouraged to provide the required coolant temperature, approximate heat load, minimum flow, pressure requirements, and intended heat-transfer fluid. When practical, American Instrument Exchange can incorporate customer-requested operating conditions into final testing.

A 90-day warranty is included.

Shipping & Installation

The JULABO FL1703 is a substantial floor-standing or under-bench chiller weighing approximately 200 lb. American Instrument Exchange prepares the unit for commercial freight shipment with appropriate protection for the refrigeration system, controls, housing, and fluid connections.

The cooling circuit should be drained before transportation and filled with an appropriate heat-transfer fluid after installation. Fluid selection should be based on the intended operating temperature and JULABO's compatibility requirements, particularly for operation below the freezing point of water.

Installation should provide appropriate clearance for the chiller's designed airflow and convenient access to the reservoir, drain, controls, and external circulation connections.

Before connecting the FL1703 to laboratory equipment, users should confirm the required coolant temperature, flow, pressure, heat load, hose size, and fluid compatibility. The adjustable pump pressure should be set appropriately for the connected equipment rather than automatically operated at maximum pressure.

Related Equipment

American Instrument Exchange stocks a range of laboratory circulators, including JULABO recirculating chillers, refrigerated circulating baths, heated circulators, immersion coolers, and process temperature-control systems. Laboratories using the FL1703 may also require laboratory water baths, reactors and fermenters, evaporators and extractors, or other refurbished laboratory equipment.

JULABO FL1703 Frequently Asked Questions

What is the temperature range of the JULABO FL1703?

The JULABO FL1703 has a working temperature range of approximately -20°C to +40°C. An appropriate heat-transfer fluid should be used when operating at subzero temperatures.

How much cooling capacity does the JULABO FL1703 provide?

Cooling capacity depends on coolant temperature. JULABO specifies approximately 1.7 kW at +20°C, 1.4 kW at +10°C, 1.0 kW at 0°C, 750 W at -10°C, and 300 W at -20°C.

How much heat can the FL1703 remove at 0°C?

The FL1703 provides approximately 1.0 kW, or 1,000 W, of cooling capacity at a 0°C coolant temperature. This temperature-specific capacity is more useful for sizing an application than the maximum 1.7 kW rating when the process must operate near freezing.

What is the temperature stability of the FL1703?

JULABO specifies temperature stability of approximately ±0.5°C.

What is the maximum flow rate of the JULABO FL1703?

The FL1703 provides maximum circulation flow of approximately 40 L/min. Actual flow through connected equipment will depend on the resistance of the complete cooling circuit.

Is the pump pressure adjustable?

Yes. Pump pressure is adjustable from approximately 0.5 to 3 bar. This allows the circulation system to be better matched to the requirements of the connected laboratory equipment.

What is the reservoir capacity of the FL1703?

JULABO specifies a filling volume of approximately 12–17 L. The reservoir is constructed from stainless steel.

Can the JULABO FL1703 be used to cool a laboratory reactor?

Yes, provided the reactor's required coolant temperature, heat load, flow, and pressure fall within the FL1703's capabilities. The complete cooling-capacity curve should be considered when sizing the chiller for reactor applications.

Can the FL1703 be used with a rotary evaporator?

Yes. The FL1703 can provide recirculating coolant for compatible rotary evaporator condensers. Its 1.7 kW cooling capacity at +20°C also gives it considerably more heat-removal capability than many small benchtop chillers.

Can the FL1703 replace tap-water cooling?

For compatible equipment, yes. The FL1703 recirculates coolant through a closed loop, which can significantly reduce water consumption compared with continuously supplying equipment with fresh facility water.

Can the JULABO FL1703 operate continuously?

Yes. The FL1703 was designed for continuous laboratory and process cooling applications when properly installed, filled, and operated within its specified conditions.

Does the FL1703 have computer connectivity?

Yes. The FL1703 includes an RS232 interface for compatible external communication and control applications.

Can the JULABO FL1703 be installed under a laboratory bench?

Yes. Its configuration was designed for under-bench installation, and the absence of side ventilation openings helps conserve laboratory space. Proper airflow and service access should still be maintained.

Is the JULABO FL1703 still manufactured?

The FL1703 is a discontinued JULABO model. Used and refurbished FL1703 chillers can remain a practical option for laboratories that need its combination of cooling capacity, pump performance, and temperature range without purchasing a new process chiller.

Does this refurbished JULABO FL1703 include a warranty?

Yes. This used JULABO FL1703 is refurbished and tested by American Instrument Exchange and includes a 90-day warranty.
