Labconco Cell Logic bio cab

Labconco Purifier Cell Logic Biosafety Cabinet

• Cat. No. 3430930
• 3’ Wide
• Scope-Ready
• New HEPA filters included
• 90-day warranty

The Labconco Purifier Cell Logic are specially designed with cell researchers in mind, while also providing protection from hazardous particulates such as agents that require biosafety level 1, 2, or 3 containment. Laminar flow cabinets are designed to discharge HEPA-filtered exhaust air directly into the laboratory. Filter monitoring system uses an electronically commutated motor (ECM) to precisely control airflow without the need for airflow sensors. The motor is programmed to consistently deliver the precise volume of air required, even as filters load. The ECM consumes up to 60% less energy than conventional motors.

All contaminated ducts are under or surrounded by negative pressure. The negative pressure plenums capture any contamination, and force the air through the HEPA filter, preventing its escape into the laboratory. Supply and exhaust HEPA filters are 99.99% efficient.

Angled, tempered safety glass sash with counterbalanced, anti-racking mechanism is sloped at 10° for closer, more comfortable viewing than vertical sashes offer. The sash may be fully closed when the cabinet is not in use. Large 21.7" (54 cm) sash opening height and 27.0" (69 cm) viewing height offer greater viewing area and easy access for loading and cleaning. LCD information center is mounted on the interior right-side wall in the user's line of sight for at-a-glance monitoring of cabinet conditions. Unobstructed work area includes a hermetically sealed type 304 stainless steel liner and removable stamped, one-piece dished work surface with lift knobs. Contain-Air negative pressure channel draws air in, preventing loss of containment at the top of the sash.

Nominal inflow velocity of air is 105 fpm (0.5 m/s), nominal downflow velocity of air is 55 fpm (0.3 m/s), resulting in approximately 70% air recirculation.

Our technicians test each bio safety cabinet to ensure that the controls and blower motor work properly. Unless otherwise specified all bio safety cabinets come with new HEPA filters installed by our technicians at our facility prior to shipment. Our testing procedure includes all the elements of a bio safety cabinet certification in order to ensure that the unit will pass certification once it is at your site.

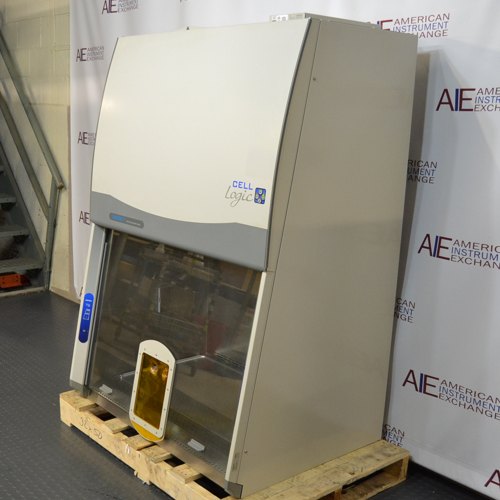

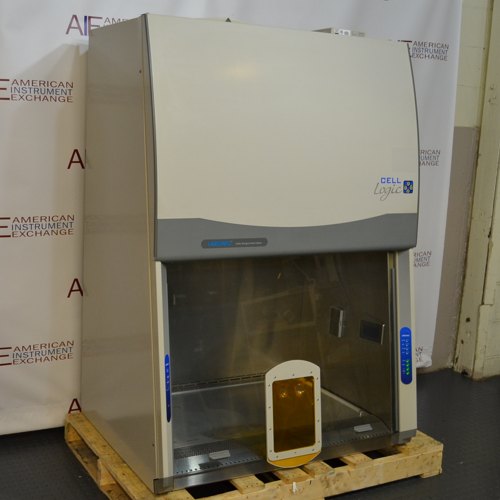

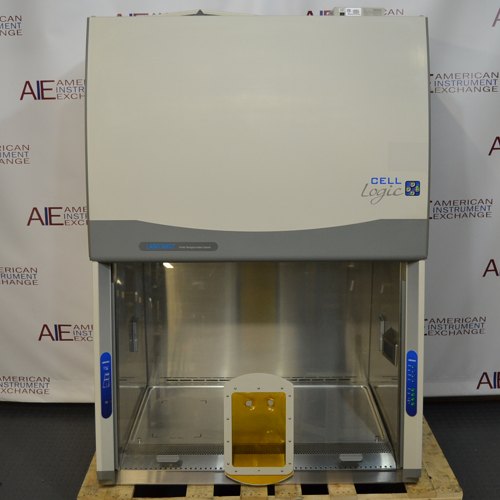

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Labconco Purifier Cell Logic Biosafety Cabinet – Specifications

For inquiries about the Labconco Purifier Cell Logic Biosafety Cabinet, please give us a call at 978-521-2221, or fill out the form on this page.
