The Labconco FlaskScrubber Vantage 422101010 Glassware Washer is a high-performance automated laboratory washing system designed for contamination-sensitive research and routine cleaning of narrow-neck flasks, bottles, beakers, graduated cylinders, general laboratory glassware, and reusable labware. Combining direct-injection spindle washing, wash temperatures up to 93°C / 199°F, steam-assisted cleaning, programmable purified-water rinses, and HEPA-filtered forced-air drying, the FlaskScrubber Vantage provides laboratories with a highly repeatable alternative to manual glassware washing.
Unlike conventional laboratory dishwashers that rely primarily on spray-arm action, the FlaskScrubber Vantage includes a 36-position stainless-steel lower spindle rack that directs wash and rinse water into the interior of narrow-neck vessels. This makes it particularly effective for Erlenmeyer flasks, volumetric flasks, media bottles, reagent bottles, graduated cylinders, and other glassware that can be difficult to clean thoroughly with external spray alone.
A 5-inch full-color touchscreen running Labconco CleanWorks OS gives users extensive control over water temperature, detergent concentration, rinse-aid dispensing, wash duration, rinse duration, number of rinses, drying conditions, and other cycle parameters. The system includes 12 factory-programmed cycles and can store up to 200 user-defined programs, allowing laboratories to establish reproducible washing protocols for different contamination risks and glassware types.
The integrated CleanPoint conductivity monitoring system measures rinse-water quality and can help reduce unnecessary purified-water rinses, while USB and Ethernet connectivity support documentation and data export.

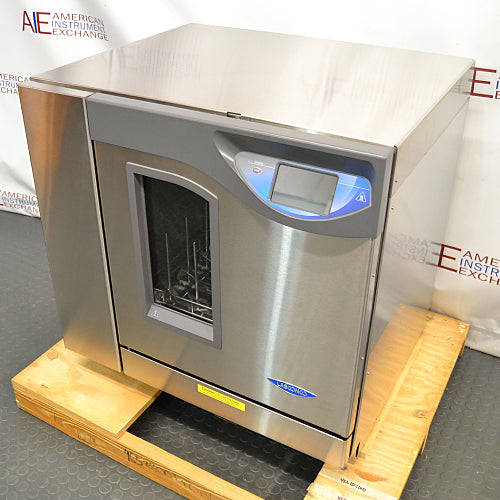

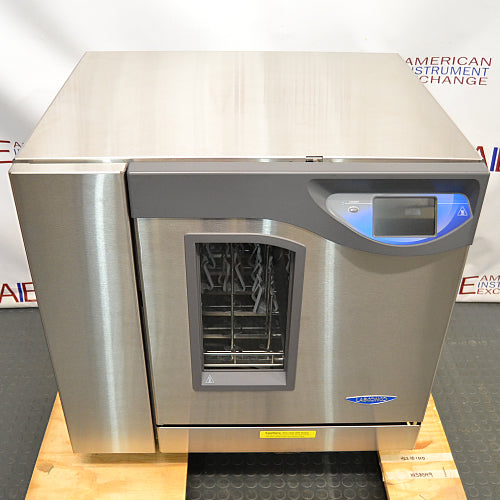

This like-new Labconco FlaskScrubber Vantage 422101010 from American Instrument Exchange is inspected and extensively operationally tested prior to shipment and includes a 90-day warranty from American Instrument Exchange.
Labconco FlaskScrubber Vantage Key Features
Model 422101010
Designed for contamination-sensitive laboratory research
Direct-injection washing for narrow-neck glassware
36-position stainless-steel lower spindle rack
Wash temperature up to 93°C / 199°F
Steam generator assists with removal of difficult residues
5-inch color touchscreen
Labconco CleanWorks OS
12 factory-programmed wash cycles
Storage for up to 200 user-defined programs
Up to 8 programmable purified-water rinses
CleanPoint conductivity monitoring
Automatic detergent dispensing
Automatic rinse-aid dispensing
HEPA-filtered forced-air drying
Drying temperatures up to 80°C / 176°F
Drying cycles programmable up to 240 minutes
HEPA filter rated 99.97% efficient at 0.3 micron
SpeedVent electronic door-latch technology
Viewing window and LED interior illumination
USB and Ethernet data output
Remote monitoring capability
Password-protected operating parameters
Delayed start up to 12 hours
304 stainless-steel washing chamber and major exterior surfaces
Lower rack and additional rack configurations available
Water consumption approximately 3.4 gallons per fill
Like-new condition
Tested by American Instrument Exchange
90-day warranty
Labconco FlaskScrubber Vantage Overview
Cleaning laboratory glassware is fundamentally different from washing ordinary dishes.
Residual proteins, culture media, lipids, salts, detergents, buffers, chemicals, and other laboratory contaminants can interfere with subsequent experiments even when glassware appears visually clean.
For contamination-sensitive laboratories, the goal is therefore not simply to remove visible residue.
A properly designed laboratory glassware washer should provide a repeatable, documentable cleaning process capable of reaching surfaces that are difficult to clean manually.
The FlaskScrubber Vantage was specifically developed for this type of work.
Its combination of spindle injection, high-temperature washing, purified-water rinsing, steam-assisted cleaning, conductivity monitoring, and HEPA-filtered drying makes it particularly well suited for laboratories where reproducibility and residual contamination control matter.
Narrow-neck and general-purpose laboratory glassware
Wash Temperature
Up to 93°C / 199°F
Drying Temperature
Up to 80°C / 176°F
Drying Time
Programmable up to 240 minutes
Drying Filtration
HEPA-filtered forced air
HEPA Efficiency
99.97% at 0.3 micron
Lower Rack
36-position spindle rack
User Interface
5-inch color touchscreen
Operating Software
CleanWorks OS
Factory Programs
12
User Programs
Up to 200
Pure Water Rinses
Up to 8 programmable rinses
Conductivity Monitoring
CleanPoint system
Viewing Window
Yes
Interior Lighting
LED
Chamber Construction
304 stainless steel
Data Output
USB / Ethernet
Remote Monitoring
Available
Water Consumption
Approx. 3.4 gal / 12.9 L per fill
Hot Water Pressure
20–120 psi
Recommended Hot Water Temperature
Approx. 120°F / 49°C
Minimum Hot Water Flow
1.25 gpm / 4.7 L/min
Minimum Pure Water Flow
0.9 gpm / 3.4 L/min
Electrical
208/230V, 50/60 Hz, single phase
Required Electrical Circuit
Dedicated 20 A circuit
AIE Listed Running Current
Approx. 11 A
Exterior Dimensions
Approx. 32.2"W x 27.8"D x 32.2–36.1"H
Weight
Approx. 294 lb.
Noise Level
62 dBA or less
Condition
Like New
AIE Warranty
90 Days
Common Applications
The Labconco FlaskScrubber Vantage is ideal for analytical chemistry, biotechnology, pharmaceutical research, microbiology, molecular biology, environmental testing, food science, quality-control laboratories, academic research, formulation development, cell-culture support, and other contamination-sensitive laboratory workflows.
It is particularly valuable for laboratories processing large quantities of reusable glassware or where inconsistent hand washing can introduce unwanted experimental variability.
Ideal Laboratory Types
The FlaskScrubber Vantage is an excellent choice for pharmaceutical companies, biotechnology laboratories, university research facilities, analytical chemistry laboratories, contract research organizations, environmental laboratories, food and beverage testing facilities, industrial quality-control laboratories, clinical research groups, and multi-user core laboratories.
It can also be especially valuable in growing laboratories where technicians are spending substantial amounts of productive time manually cleaning glassware.
Direct-Injection Spindle Washing
One of the most important advantages of the FlaskScrubber Vantage is its direct-injection spindle washing system.
Narrow-neck vessels present a particular challenge for automated cleaning.
A conventional spray arm can easily wash the exterior of a flask but may have difficulty directing enough water through a small neck to thoroughly rinse the internal surface.
The FlaskScrubber solves this problem by positioning individual injection spindles directly inside the vessels.
Pressurized wash and rinse water travels through each spindle and is directed into the interior of the glassware.
This provides direct mechanical flushing of internal surfaces rather than relying solely on water entering through the vessel opening from outside.
36-Position Lower Spindle Rack
The included lower spindle rack is constructed of 304 stainless steel and incorporates up to 36 detachable large spindles.
The rack also includes:
Glassware holders
Adjustable-height clips
Small spindles
Spindle plugs
Spindle-arm plugs
The modular arrangement allows laboratories to adapt the rack to different vessel sizes and configurations.
Unused spindle positions can be plugged so wash pressure is directed where it is needed.
Narrow-Neck Flask Washing
The FlaskScrubber Vantage is particularly effective for cleaning narrow-neck laboratory glassware such as:
Direct injection can help remove material from internal surfaces that may otherwise be difficult to reach with brushes or standard spray washing.
This makes the FlaskScrubber especially attractive for laboratories that routinely handle substantial numbers of flasks and bottles.
General-Purpose Glassware Washing
Although its spindle system gives the FlaskScrubber a particular advantage with narrow-neck vessels, the washer is not limited to flasks.
Optional standard racks, baskets, inserts, and other accessories allow the same machine to process a much broader range of laboratory items.
Potential glassware includes:
Beakers Petri dishes Test tubes Small bottles Wide-mouth containers Funnels Graduated cylinders Watch glasses Reusable laboratory accessories
This versatility can allow one washer to support several departments or different types of research.
Wash Temperatures Up to 93°C
The FlaskScrubber Vantage can heat wash water to approximately:
93°C / 199°F
High-temperature washing improves cleaning performance in several ways.
Heat can help soften and dissolve residues, improve detergent activity, remove oils and lipids, and provide a sanitizing effect on compatible laboratory glassware.
High-temperature cycles can be especially useful for:
Lipid residues
Biological media
Oils
Proteins
Difficult organic contamination
Routine sanitization
The correct temperature should always be selected according to the glassware, contaminant, and detergent being used.
Steam-Assisted Cleaning
The FlaskScrubber Vantage incorporates a steam generator that produces hot vapor during appropriate cleaning cycles.
Steam can help loosen stubborn contamination and enhance the cleaning action provided by detergent, hot water, and mechanical spray.
This can be particularly useful for residues that have:
Dried onto surfaces
Hardened during heating
Adhered to narrow-neck glassware
Accumulated in difficult-to-access locations
The combination of direct spindle injection and steam-assisted cleaning gives the FlaskScrubber Vantage a major advantage over simpler laboratory washers.
CleanWorks Operating System
The washer is controlled through Labconco's CleanWorks OS.
A large 5-inch color touchscreen provides direct access to operating parameters and system information.
Users can control variables including:
Wash temperature
Detergent amount
Rinse-aid amount
Wash duration
Rinse duration
Number of rinses
Pure-water rinses
Drying time
Drying temperature
This allows wash protocols to be matched to different research requirements rather than forcing every load through the same general-purpose cycle.
12 Factory Programs
The FlaskScrubber Vantage includes 12 factory-set programs designed for commonly encountered laboratory cleaning requirements.
These include cycles for:
Rinse Only Plastic Glass Glass Plus Life Scientific Analytical Intense Extreme Dry Only Eco Wash Clean Washer CleanPoint
Users can select an appropriate starting program and modify operating parameters when necessary.
Up to 200 User-Defined Programs
For laboratories that repeatedly process different contamination types, the ability to store up to 200 user-defined protocols can be extremely valuable.
A laboratory might maintain separate programs for:
Microbiology glassware Analytical chemistry glassware Protein research Cell-culture support Environmental sampling bottles General laboratory glassware High-contamination loads Sensitive analytical applications
Once optimized, a program can be saved and reused, helping reduce operator-to-operator variability.
Reproducible Cleaning Protocols
Manual glassware washing can vary substantially between operators.
Differences may include:
Detergent concentration
Scrubbing intensity
Water temperature
Rinse duration
Number of rinses
Final rinse-water quality
Drying conditions
An automated laboratory washer reduces many of these variables.
For laboratories working under established standard operating procedures, this can help make the cleaning process significantly more consistent.
Up to Eight Purified-Water Rinses
The FlaskScrubber Vantage can be programmed for up to eight purified-water rinses.
A purified-water final rinse is particularly useful when residual tap-water minerals or ions could affect subsequent laboratory procedures.
The washer includes its own purified-water pump, allowing it to draw from certain non-pressurized purified-water supplies when properly installed.
CleanPoint Conductivity Monitoring
The FlaskScrubber Vantage incorporates Labconco's CleanPoint conductivity monitoring system.
Conductivity provides a practical measurement of ionic contamination in rinse water.
During rinse cycles, the system can evaluate water quality and determine whether additional purified-water rinsing is necessary.
If the desired conductivity condition has already been achieved, unnecessary rinses can be skipped.
This can reduce:
Purified-water consumption
Cycle duration
Wastewater generation
Operating costs
without simply reducing the number of rinses arbitrarily.
HEPA-Filtered Forced-Air Drying
After washing and rinsing, the FlaskScrubber Vantage can dry glassware using HEPA-filtered forced air.
The HEPA filter is rated approximately:
99.97% efficient at 0.3 micron
Filtered drying air is introduced into the washing chamber and through the spindle system.
This helps limit the reintroduction of airborne particulate contamination while clean glassware dries.
Drying Up to 80°C
The forced-air drying system can operate at temperatures up to approximately:
80°C / 176°F
with drying periods programmable for as long as:
240 minutes
Temperature and drying duration can be adjusted according to the glassware being processed.
Heated drying is particularly useful for narrow-neck vessels because passive air drying can take a long time when moisture is trapped deep inside a flask or bottle.
Drying Through the Spindles
The same spindle system used to deliver wash and rinse water can also help direct drying air into narrow-neck vessels.
This is an important advantage.
A flask may appear dry externally while significant water remains trapped inside.
Forced air moving directly into the vessel accelerates internal drying and can reduce the amount of time glassware must remain on drying racks before reuse.
SpeedVent Technology
The FlaskScrubber Vantage includes an electronic door latch incorporating SpeedVent Technology.
During the drying process, controlled venting helps remove humid air from the chamber and accelerates drying.
This can reduce the amount of residual moisture remaining in glassware and improve overall cycle efficiency.
Viewing Window & Interior LED Light
This 422101010 configuration incorporates a clear tempered-safety-glass viewing window.
A bright 25-watt LED light illuminates the interior washing chamber.
Together, these features allow laboratory personnel to observe:
Spray action
Rack loading
Glassware position
Cycle progress
Potential movement of improperly secured vessels
without interrupting the washing cycle.
Automatic Detergent Dispensing
The FlaskScrubber Vantage incorporates automatic liquid-detergent dispensing.
A peristaltic pump meters detergent according to the programmed cycle.
Automated dispensing helps maintain consistent detergent concentration from load to load and reduces the risk of operators accidentally using too little or too much detergent.
The system can also accommodate appropriate powdered detergent where required.
Automatic Rinse-Aid Dispensing
A separate rinse-aid dispenser can automatically meter rinse solution during applicable cycles.
Rinse aids can help reduce surface tension, encourage water drainage, and improve drying of compatible laboratory glassware.
The amount dispensed can be controlled through the washer's operating system.
High-Flow Circulation Pump
Effective mechanical washing requires substantial water movement.
The FlaskScrubber Vantage circulation pump is rated at approximately:
112 gallons per minute / 424 L/min at 208/230V, 60 Hz
during applicable operation.
High-flow circulation allows the washer to direct substantial cleaning action through the spray arms and spindle rack.
Stainless-Steel Construction
The FlaskScrubber Vantage incorporates extensive 304 stainless-steel construction, including:
Washing chamber
Door
Exterior sides and top
Upper wash arm
Lower wash arm
Spindle rack
Stainless steel provides durable, corrosion-resistant surfaces suitable for repeated exposure to hot water and compatible laboratory detergents.
Fine-Mesh Drain Filter
A removable stainless-steel fine-mesh particle filter helps prevent larger debris from entering the drain system.
The filter can be removed without tools, simplifying routine cleaning and maintenance.
Keeping the filter clear helps maintain effective drainage and prevents debris from recirculating during subsequent cycles.
USB & Ethernet Data Output
Wash-cycle information can be exported through USB or Ethernet connectivity.
This can be valuable in facilities where cleaning processes need to be documented or reviewed.
Data capability can support:
Laboratory records
Process documentation
Troubleshooting
Quality systems
Protocol development
The exact documentation requirements for regulated facilities should be established according to the laboratory's own quality procedures.
Remote Monitoring
The Vantage platform also supports remote monitoring functions, including configurable email notifications.
This allows laboratory personnel to receive status information without remaining immediately beside the washer throughout a long cleaning and drying cycle.
For shared laboratories and centralized glassware-processing areas, this can improve workflow efficiency.
Password Protection
Operating parameters can be protected from unauthorized modification.
Password protection is useful when a laboratory has developed validated or standardized wash protocols and does not want routine users inadvertently changing critical settings.
Self-Diagnostics
The FlaskScrubber Vantage includes self-diagnostic capabilities intended to aid service personnel and operators when troubleshooting system problems.
Clear alarm displays can identify conditions requiring attention.
This is especially useful on a sophisticated washer containing:
Heating systems
Pumps
Detergent dispensers
Conductivity monitoring
Drying systems
Water valves
Electronic controls
FlaskScrubber Vantage vs. Hand Washing
Hand washing laboratory glassware may appear simple, but it requires substantial labor and can produce inconsistent results.
Technicians must manually:
Load detergent Scrub vessels Rinse repeatedly Perform purified-water rinses where necessary Drain glassware Move glassware to drying areas
The FlaskScrubber Vantage automates much of this process.
For laboratories processing significant quantities of reusable labware, automated washing can free skilled personnel for higher-value scientific work while also improving reproducibility.
FlaskScrubber vs. Conventional Laboratory Dishwasher
A conventional laboratory washer can be excellent for wide-mouth or general-purpose labware.
The FlaskScrubber Vantage adds an important feature:
direct spindle injection into narrow-neck vessels.
This makes it particularly appropriate for laboratories that frequently clean:
Flasks Media bottles Graduated cylinders Narrow-neck bottles Other difficult-to-rinse vessels
For a laboratory dominated by trays, beakers, and open labware, a standard rack system may be sufficient.
For substantial flask workloads, the FlaskScrubber spindle configuration offers a significant advantage.
Lower Standard Rack Option
The included spindle rack can be replaced with an optional Lower Standard Rack when direct spindle injection is not required.
This expands the washer's versatility for:
Beakers
Wide-mouth containers
Dishes
General-purpose glassware
Baskets and inserts
A laboratory that processes both flasks and general glassware can therefore configure the washer differently as workloads change.
Optional Upper Rack
An optional upper spindle or standard rack can be installed to increase capacity.
This enables the washer to process a broader assortment of smaller laboratory items or increase throughput when properly configured.
Rack selection should be based on vessel dimensions and the intended cleaning process.
Analytical Chemistry Applications
Residual ions, detergents, or other contaminants can interfere with sensitive analytical measurements.
The FlaskScrubber Vantage is well suited for analytical laboratories because it combines:
Controlled detergent dispensing
Multiple purified-water rinses
Conductivity monitoring
Programmable cleaning cycles
Reproducible operating conditions
These features can help laboratories establish cleaning procedures appropriate for contamination-sensitive analytical workflows.
Life Science & Biotechnology Applications
Life-science laboratories routinely generate flasks, bottles, and other reusable glassware contaminated with:
Culture media Buffers Proteins Carbohydrates Lipids Biological residues
High-temperature washing, steam-assisted cleaning, and direct spindle injection can simplify cleanup of these materials.
HEPA-filtered drying can also help limit particulate recontamination before clean glassware returns to service.
Pharmaceutical & Quality-Control Laboratories
The high degree of programmability makes the FlaskScrubber Vantage attractive for pharmaceutical research and quality-control laboratories.
Stored protocols allow cleaning conditions to be standardized across repeated loads.
USB and Ethernet data capabilities can also support laboratories that want stronger documentation of cleaning activity.
Use in a regulated or validated process should always follow the facility's established qualification and documentation requirements.
Water Requirements
Proper installation is important for achieving the washer's intended performance.
Labconco recommends a hot-water supply of approximately:
120°F / 49°C
with inlet pressure of:
20–120 psi
and a minimum hot-water flow rate of:
1.25 gpm / 4.7 L/min.
The purified-water connection should provide approximately:
0.9 gpm / 3.4 L/min
when required.
The built-in purified-water pump can accommodate certain non-pressurized purified-water sources.
Water Consumption
The FlaskScrubber Vantage uses approximately:
3.4 gallons / 12.9 liters per fill
Actual water consumption for an entire program depends on the number of wash and rinse fills selected.
The CleanPoint conductivity system can help reduce unnecessary purified-water consumption by ending rinsing once the programmed water-quality condition has been satisfied.
Electrical Requirements
This Labconco 422101010 is a:
208/230V, 50/60 Hz, single-phase configuration.
Labconco specifies a dedicated 20 A circuit for the single-phase version.
American Instrument Exchange lists the operating current of the unit at approximately 11 A.
These specifications are not contradictory: the equipment's running draw can be lower than the dedicated branch-circuit rating required for safe installation.
Electrical service should be planned according to Labconco's installation requirements and the data plate on the individual machine.
Installation Considerations
The FlaskScrubber Vantage requires more site preparation than a simple benchtop laboratory instrument.
Installation should account for:
208/230V electrical service
Dedicated electrical circuit
Hot-water connection
Purified-water connection when used
Appropriate laboratory drain
Adequate water flow and pressure
Service clearance
Level installation
Labconco laboratory glassware washers are generally designed for hardwired electrical installation unless an appropriate alternative configuration has been specified.
Refurbishment & Testing by American Instrument Exchange
Glassware washers incorporate multiple pumps, heating systems, valves, dispensers, controls, sensors, and water connections that should all be evaluated before a used machine is placed back into service.
American Instrument Exchange technicians test glassware washers through their programmed cycles multiple times.
Evaluation can include:
Wash pump operation
Spray-arm function
Spindle-rack operation
Water heating
Steam generation
Drain pump function
Water filling
Detergent dispensing
Rinse-aid dispensing
Purified-water operation
Conductivity monitoring
HEPA-filtered drying
Door latch
Touchscreen controls
Program operation
Alarm functions
Water leakage
Electrical operation
Parts are repaired or replaced as necessary during preparation.
If a customer has specific testing requirements, American Instrument Exchange can discuss those requirements before shipment.
Like-New Labconco Glassware Washers from American Instrument Exchange
Purchasing a like-new or refurbished Labconco FlaskScrubber Vantage can allow laboratories to obtain a sophisticated automated glassware-cleaning system at substantially lower cost than purchasing comparable equipment new.
The 422101010 is particularly attractive for growing biotechnology, pharmaceutical, academic, and analytical laboratories because it combines high-performance narrow-neck washing with modern touchscreen controls and data capabilities.
American Instrument Exchange supplies used and refurbished laboratory glassware washers along with centrifuges, incubators, refrigerators, freezers, ultra-low freezers, biosafety cabinets, fume hoods, freeze dryers, and other laboratory equipment.
Shipping & Installation Considerations
The Labconco FlaskScrubber Vantage measures approximately:
32.2"W x 27.8"D x 32.2–36.1"H
and weighs approximately:
294 lb.
Although designed for installation beneath laboratory casework, the washer is much heavier than a residential dishwasher and should be handled using appropriate equipment.
Before delivery, laboratories should confirm:
Equipment access route
Doorway clearance
Counter and casework dimensions
Water connections
Drain location
Purified-water availability
Electrical service
Final leveling and installation requirements
Plumbing and electrical work should be completed by appropriately qualified personnel.
Related Laboratory Equipment
Laboratories using the Labconco FlaskScrubber Vantage may also require laboratory glassware, water-purification systems, autoclaves, laboratory ovens, incubators, orbital shakers, centrifuges, biosafety cabinets, laboratory refrigerators, freezers, and other sample-preparation equipment.
American Instrument Exchange provides new, used, and refurbished laboratory equipment for biotechnology, pharmaceutical, analytical, academic, healthcare, food-science, environmental, and industrial laboratories.
What is the Labconco FlaskScrubber Vantage 422101010?
The 422101010 is a high-performance laboratory glassware washer designed for narrow-neck and general-purpose laboratory glassware, with direct-injection spindle washing, high-temperature cleaning, purified-water rinsing, and HEPA-filtered drying.
What is the maximum wash temperature?
The FlaskScrubber Vantage can heat wash water to approximately 93°C / 199°F.
Why is the FlaskScrubber particularly good for flasks?
Its spindle rack directs wash and rinse water inside narrow-neck vessels, providing much more effective internal cleaning than relying solely on an external spray arm.
How many spindle positions does the lower rack have?
The included lower spindle rack provides up to 36 large spindle positions, together with smaller spindles, clips, holders, and plugs for different glassware configurations.
Can it wash Erlenmeyer flasks?
Yes. Erlenmeyer flasks are one of the principal applications for the FlaskScrubber's direct-injection spindle system.
Can it wash volumetric flasks?
Yes, provided the vessels are compatible with the installed spindles and rack configuration.
Can the washer clean general-purpose glassware?
Yes. Optional standard racks, baskets, and inserts allow it to process many beakers, dishes, containers, and other laboratory items in addition to narrow-neck glassware.
Does the FlaskScrubber Vantage sanitize glassware?
Its wash water can reach approximately 93°C, which provides high-temperature cleaning and sanitizing capability for compatible labware. Whether that satisfies a particular laboratory sanitation requirement depends on the applicable protocol.
Does it sterilize glassware?
The FlaskScrubber Vantage is a glassware washer, not an autoclave. Laboratories requiring validated steam sterilization should use appropriate sterilization equipment.
Does the washer use steam?
Yes. An integrated steam generator produces hot vapor to help loosen stubborn laboratory contamination.
Does it use purified water?
Yes. Up to eight purified-water rinses can be programmed.
What does CleanPoint do?
CleanPoint monitors rinse-water conductivity and can reduce unnecessary purified-water rinses when the desired water-quality endpoint has already been reached.
Does the washer automatically dispense detergent?
Yes. The system includes automatic liquid-detergent dispensing and can be configured according to the selected washing protocol.
Does it automatically dispense rinse aid?
Yes. A separate rinse-aid dispensing system is included.
Does the FlaskScrubber dry glassware?
Yes. It uses HEPA-filtered forced air with drying temperatures up to approximately 80°C / 176°F.
How efficient is the drying HEPA filter?
Labconco specifies approximately 99.97% efficiency for particles 0.3 micron in size.
How long can the drying cycle run?
Drying can be programmed for up to approximately 240 minutes.
Does drying air enter the narrow-neck vessels?
Yes. Forced drying air can move through the spindle system, helping dry the interiors of compatible flasks and bottles.
How many wash programs can be stored?
The unit includes 12 factory-set programs and can store up to 200 user-defined programs.
Can wash data be exported?
Yes. The Vantage provides USB and Ethernet data output.
Does it have remote monitoring?
Yes. The Vantage platform supports remote monitoring features, including configurable email notifications.
Does the machine have a viewing window?
Yes. This configuration includes a tempered-glass viewing window and LED chamber light so users can observe the washing process.
How much water does the washer use?
The washer uses approximately 3.4 gallons / 12.9 liters per fill. Total cycle consumption depends on the programmed number of fills and rinses.
What electrical service does this unit require?
Catalog 422101010 is a 208/230V, 50/60 Hz, single-phase washer requiring a dedicated 20 A circuit.
Why does the AIE page list 11 amps if Labconco requires a 20-amp circuit?
Approximately 11 A reflects the listed operating current, while Labconco specifies a larger 20 A dedicated branch circuit for installation. Site electrical service should follow the manufacturer's installation specification.
Does it require hot water?
Yes. Labconco recommends a hot-water supply of approximately 120°F / 49°C, with appropriate pressure and flow.
Does it require purified water?
Purified water is strongly useful for applications requiring low-residue final rinsing. Installation requirements depend on whether those rinse cycles will be used.
Can it be installed under a laboratory counter?
Yes. The FlaskScrubber Vantage is designed for undercounter laboratory installation when the casework, utilities, and required clearances are appropriate.
How does American Instrument Exchange test this glassware washer?
American Instrument Exchange runs its glassware washers through programmed cycles multiple times while checking heating, pumps, spray action, controls, drainage, drying, dispensing systems, and overall operation. Parts are repaired or replaced as necessary.
What warranty is included?
This Labconco FlaskScrubber Vantage 422101010 includes a 90-day warranty from American Instrument Exchange.
CLICK HEREto see the Labconco FlaskScrubber Vantage Glassware Washer 422101010 on our YouTube channel
Testing Procedures for Used and Refurbished Laboratory Equipment
Ensure Accuracy, Safety, and Dependable Performance Across Applications
At American Instrument Exchange, all used and refurbished laboratory equipment undergoes a rigorous, multi-point testing protocol to ensure optimal performance, operational safety, and long-term reliability. Whether the equipment is destined for research, diagnostics, quality control, or production environments, our thorough inspection and testing process is designed to meet the highest standards of laboratory excellence.
Why Testing Used Lab Equipment Is Essential
Before any refurbished laboratory equipment is returned to service, it must be carefully tested to verify:
• Functional integrity and operational performance
• Setpoint accuracy and repeatability (where applicable)
• User interface responsiveness and control features
Proper testing reduces the risk of equipment failure, measurement inaccuracies, or user hazards—helping to ensure consistent results in clinical, academic, biotech, and industrial labs.
Our standardized lab equipment testing procedures are tailored to each equipment type, ensuring every unit meets manufacturer specifications and industry benchmarks.
Key Testing Procedures for Refurbished and Used Laboratory Equipment
1. Initial Visual Inspection
• Examine equipment housing for signs of wear, corrosion, or damage
• Check ports, power cords, and exterior components for tampering or deterioration
• Verify that internal and external parts (racks, shelves, connectors, accessories) are present and undamaged
2. Functional Startup and Operational Testing
• Power on the equipment and verify startup diagnostics
• Confirm functionality of displays, buttons, switches, and control panels
• Run basic functions to confirm proper response and behavior under standard operating conditions
3. Testing and Performance Verification
• Test internal sensors or control systems using industry-standard tools
• Perform operational tests to validate accuracy and consistency
• Verify key performance specifications such as temperature control, timing, speed, or measurement outputs, depending on equipment type
4. Mechanical and Electrical System Testing
• Evaluate motors, pumps, fans, or other moving parts for smooth operation
• Inspect and test wiring, relays, fuses, and circuit boards for safety and reliability
• Test power delivery and grounding compliance
5. Safety and Compliance Checks
• Ensure equipment is grounded and insulated to meet laboratory safety standards
• Test alarms, interlocks, emergency stops, or safety shutdown systems if applicable
6. Final Quality Assurance and Documentation
• Perform extended runtime testing
• Document operational logs, testing results, and any repairs or adjustments made
• Complete a final inspection, thorough cleaning, and packaging for delivery
Trusted Quality from American Instrument Exchange
With over 50 years of experience in laboratory equipment refurbishment, American Instrument Exchange is committed to delivering certified, lab-ready instruments backed by expert testing. Our testing protocols ensure that each piece of equipment—regardless of type—is safe, accurate, and dependable from day one.
Whether you're equipping a startup lab or expanding a high-throughput facility, you can count on our refurbished laboratory equipment to perform with precision and reliability.
Refurbishment Protocol for Used Laboratory Equipment from American Instrument Exchange
At American Instrument Exchange, every piece of used laboratory equipment we offer undergoes a multi-step refurbishment process. Whether it's an analytical balance, centrifuge, freezer, oven, or any other essential lab instrument, our goal is to restore each unit to peak performance—ensuring accuracy, safety, and long-term reliability in scientific, clinical, industrial, and academic environments.
Why Choose Refurbished Lab Equipment from American Instrument Exchange?
• Thoroughly tested for performance, precision, and safety
• Backed by a warranty
• A cost-effective alternative to new equipment
• Environmentally sustainable through equipment reuse and waste reduction
• Serviced by expert technicians with decades of laboratory equipment experience
Step-by-Step Refurbishment Protocol
Every instrument and system refurbished at American Instrument Exchange follows a detailed, industry-aligned process:
1. Initial Intake & Inspection
• Complete visual and structural inspection for cosmetic damage, wear, or corrosion
• Mechanical assessment of hinges, seals, fasteners, motors, and moving parts
• Missing components and damaged items are documented for repair or replacement
2. Cleaning and Decontamination
• Full internal and external cleaning using non-abrasive, lab-safe solutions
• Removal of biological, chemical, or particulate contamination
• Disassembly and cleaning of removable parts such as trays, shelves, and filters
3. Mechanical and Electrical Repair
• Replacement or repair of worn or broken mechanical parts
• Evaluation and servicing of control panels, sensors, switches, and displays
• Testing and repair of electrical wiring, fuses, circuit boards, and power supplies
4. Functional System Testing
• Assessment of all major functions specific to the equipment type (e.g., speed, temperature, force, weight, timing)
• Operation of control interfaces, programming menus, and digital displays
• Verification of stabilization time, responsiveness, and user input reliability
5. Testing and Performance Verification
• Testing of internal sensors, controllers, and measurement systems using certified tools
• Multi-point testing to ensure repeatability, accuracy, and performance consistency
• Confirmation of user-defined setpoints, timing sequences, or programmable cycles
6. Safety and Compliance Checks
• Testing of safety interlocks, alarms, and over-limit protection systems (as applicable)
• Electrical safety inspections, including grounding and insulation verification
7. Final Quality Assurance and Documentation
• Full operational testing under simulated lab conditions
• Completion of performance benchmarks, testing results, and repair logs
• Final cleaning and visual inspection
Trust the Experts at American Instrument Exchange
With over 50 years of experience in the laboratory equipment industry, American Instrument Exchange is a trusted leader in high-quality refurbished lab instruments. Our refurbishment protocols ensure that every piece of equipment we sell is lab-ready—offering the precision, performance, and durability your team can count on.
Whether you’re outfitting a new lab or expanding an existing operation, choose American Instrument Exchange for tested, warrantied, and cost-effective laboratory equipment.
Warranty Information
All used equipment sold by American Instrument Exchange is refurbished/reconditioned, tested to meet specifications, cleaned, and comes with a 90-day warranty from the date of shipment unless otherwise specified. New products include a warranty from the manufacturer. Your warranty is only valid if you have paid your invoice. If your invoice is over 30 days old, warranty work will not be performed until your invoice is paid in full. American Instrument Exchange is not liable for any special or consequential damages that result from the use of, or the inability to use, the materials on this site or the performance of the products,
Exceptions include international sales and items that are agreed to be sold with a lesser warranty or items that are agreed to be sold “as is.”
Should there be visible shipping damage to packaging or concealed shipping damage to item(s) supplied, buyer must communicate such damage to the delivering entity or carrier upon receipt first and to American Instrument the same day item is accepted / signed for. Failure to do so voids warranty. Customer decision to involve / procure third party or OEM service other than American Instrument or AIE assigned vendors to resolve in-warranty instrument failure or defect without first placing a service call to American Instrument voids warranty.
Return & Cancellation Policy
American Instrument Exchange will authorize the return of and issue a full refund for any equipment that is not working as represented and could not be replaced or repaired to the customer’s satisfaction by AIE or a representative of AIE during the warranty period. Returns without prior authorization and an RMA number will not be accepted.
Customers are responsible for proper packaging of the equipment and all included accessories. American Instrument will pay for insurance and shipping costs. Non-inventory items bought specifically to fill customer orders may possibly be returned, but on a case by case basis.
Customers who cancel orders after refurbishing has begun or after delivery where there are no equipment performance issues may be subject to a Restocking/Cancellation Fee of 20% or more and responsible for shipping costs for both the delivery and return.
Ongoing and Extended Support Options
American Instrument Exchange is able to provide additional repair and support services outside the warranty terms for most products that sell.
For biosafety cabinets, clean benches, chemical fume hoods, and other clean air products our team at AIE Laboratory Services can provide certifications, repairs, decontaminations, and other services for customers throughout New England, and guidance and limited technical assistance for any customers in the US and Canada for new or refurbished biosafety cabinets purchased from American Instrument Exchange.
For all other products, the repair service team at American Instrument Exchange can provide both field and depot repair evaluations. We can easily schedule and coordinate the pick-up and transportation of your malfunctioning equipment. By offering hourly rates lower than most OEM service providers and eliminating travel time for technicians, we help reduce repair costs. Furthermore, our lab depot repair service minimizes or eliminates scheduling delays. Our experienced service technicians are qualified to restore your equipment to factory specifications.
Yes, all equipment from American Instrument Exchange comes with a warranty. Used/reconditioned/refurbished equipment is tested to make sure it operates to the manufacturer's specifications and comes with a 90-day warranty (unless otherwise noted). New equipment comes with a warranty from the manufacturer.
How do you test and recondition the equipment?
Testing requirements vary across all the equipment categories we sell. Temperature controlled units are tested with NIST traceable probes and data loggers. Gaskets, external housing, glass, handles, controls and control screens are all thoroughly inspected for integrity and functionality. We test all equipment using the manufacturer's parameters and specifications to confirm that the unit operates properly.
How do products ship from American Instrument Exchange?
We can ship products both nationally and internationally using a well-established network of transporters. Smaller items will ship via UPS. Larger equipment will be palletized and shipped either LTL or air-ride, depending on the specific equipment and/or delivery requirements.
Return and order cancellation policy
American Instrument Exchange will accept the return of any product that is not working as represented and could not be replaced or repaired to the customer's satisfaction during the warranty period. Customers who cancel orders after refurbishing has begun will be subject to a cancellation and restocking fee of between 20% and 40%.
Are discounts available for educational or non-profit institutions, or for bulk purchases?
Yes – call or email us today with a list of equipment you're looking for and we can potentially put together a quote that includes a discount.
How does your price matching policy work?
We strive to keep our pricing competitive and reasonable. If you find comparable items for sale at a lower price from other vendors please send us a link and or quote for the item and we'll do our best to match or beat the price.
Can I see the equipment in person before committing to a purchase?
Customers are welcome to make an appointment to view equipment in our warehouse. Given our workload we may not be able to test or clean the equipment prior to your arrival if you have not committed to an order.
1023 Western Avenue is a working warehouse, not a showroom, and customers should dress appropriately and wear closed toe shoes.
Can I ship products that I purchased elsewhere to American Instrument for repair?
Yes – please see our repair services page for more information.
