Labconco Freezone 12 Plus

Sorry, this unit has just been sold. Please contact us for alternatives.

Item: 2212G F-DRY

FULLY TESTED & WARRANTIED


All products ship from our 30,000 sq. ft. Haverhill, MA warehouse


Contact Us

Call 978-521-2221
to request information & pricing for item 2212G F-DRY

90-Day Warranty

American Instrument Exchange
Contact us for all your used lab equipment needs

1023 Western Ave.
Haverhill, MA 01832

Phone: 978-521-2221
Fax: 978-521-8822

Email: info@americaninstrument.com

Shipping Policy

Labconco FreeZone Plus 12L Freeze Dryer

  • Catalog number 7960040
  • -84°C low collector temperature
  • 12L ice holding capacity
  • Includes drum manifold
  • 90-day warranty

The Labconco FreeZone Plus 12 liter freeze dryer is a console style model with a cascade refrigeration system designed to handle light to moderate loads of eutectic point samples. This system can remove up to 4L of water in a 24 hour period and includes rushed stainless steel and powder-coated steel exterior, a stainless steel collector chamber and coil and an LCD that displays system operating parameters, set-up parameters and alarm messages.

Other features include two 3/4 hp CFC-free refrigeration systems, a red alarm light, an LED vacuum and temperature wave graphs, patented moisture sensor, a vacuum control/break valve, a rear-mounted RS-232 port, an automatic start-up switch for collector cool-down and vacuum pull-down with manual override switches, a hot gas defrost and switch, a retractable collector drain line and a 3" diameter port for connection of drying accessory. Electrical configuration is 230V, 60Hz, and 9.0 amp.

 Click Here to see the Labconco FreeZone Plus 12SL on the American Instrument Exchange YouTube channel.

All of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests, please let us know and we’ll work with you to make sure these requirements are addressed during testing.

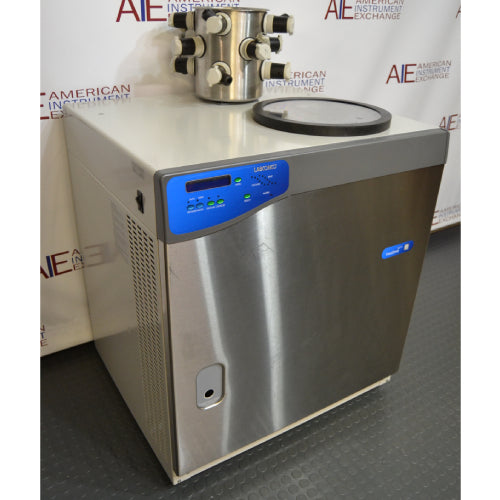

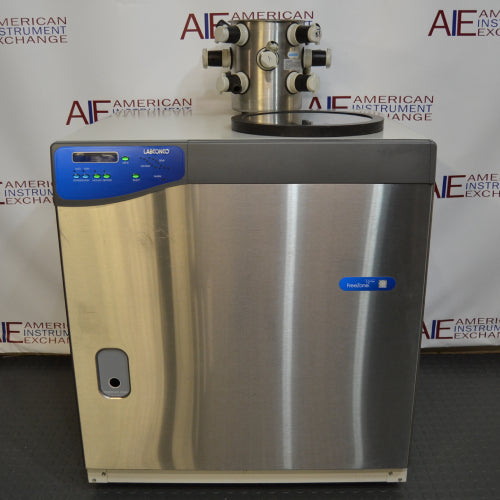

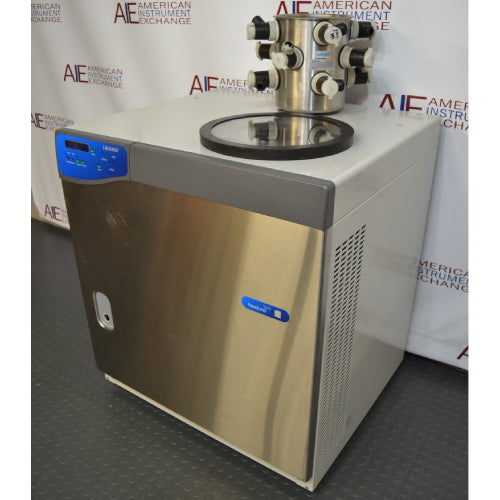

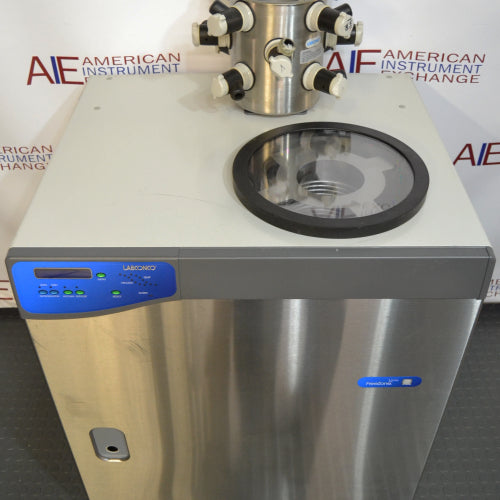

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Labconco FreeZone Plus 12L Freeze Dryer - Specifications

Exterior dimensions 32.2”W x 28”D x 36.3”H
Vacuum Pump Displacement Required 98 L/min or larger displacement
Weight 319 lbs
Power requirements 230 volts, 60 Hz, 9.0 A



For inquiries about the Labconco FreeZone Plus 12L Freeze Dryer, please give us a call at 978-521-2221, or fill out the form on this page.
