Labline 3520 Orbital Shaker

Brand : Labline

Product Code : SKU 4826A SHAKER

Price Match Policy

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

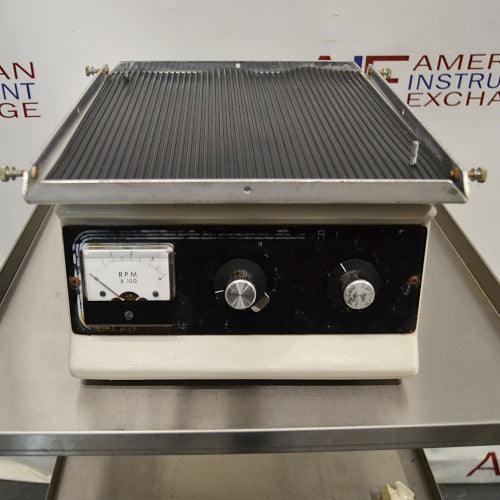

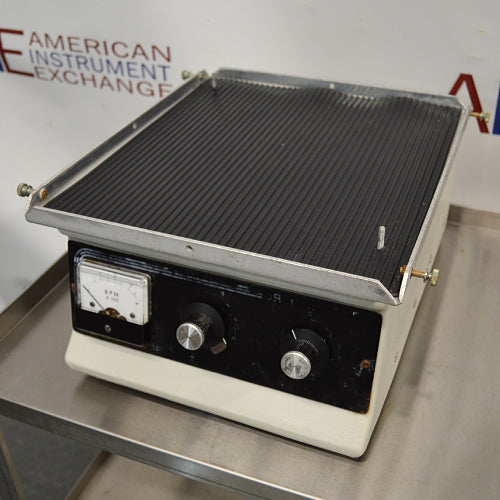

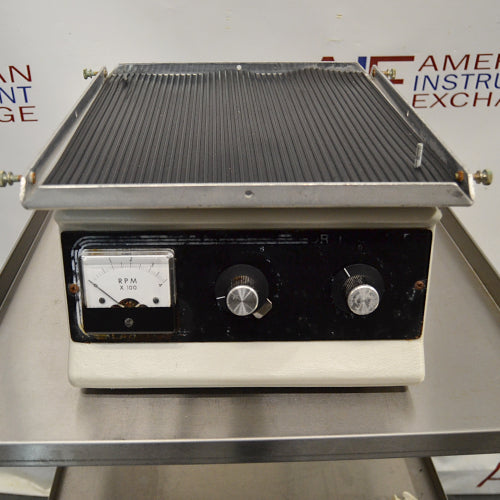

Lab-Line 3520 Orbital Shaker

The Lab-Line 3520 Orbital Shaker is a durable benchtop platform shaker designed for cell culture, bacterial suspensions, solubility studies, extraction procedures, staining and destaining, washing, sample preparation, and general laboratory mixing. With a 40–400 rpm speed range, 3/4-inch orbital motion, and compact 12 × 12-inch platform, the Model 3520 provides versatile orbital agitation without requiring the bench space of a larger laboratory shaker.

Available used and refurbished from American Instrument Exchange, this Lab-Line 3520 Orbital Shaker is inspected, cleaned, and tested prior to shipment. The unit includes a 90-day warranty from American Instrument Exchange.

Key Features

Compact benchtop orbital shaker
40–400 rpm speed range
3/4-inch / 19 mm orbital motion
12 × 12-inch platform
Solid-state speed control
Analog speed display
1–60 minute timer
Continuous-operation mode
Counterbalanced drive mechanism
Nine sealed, permanently lubricated platform bearings
Interchangeable platform design
Compatible with multiple vessel clips and platform configurations
Heavy cast-iron drive base
120 V, 50/60 Hz operation
Refurbished and tested by American Instrument Exchange
90-day warranty included

Overview

The Lab-Line 3520 is a compact, general-purpose orbital shaker built around a mechanically robust platform and drive system. Its 40–400 rpm operating range and 3/4-inch circular motion allow it to accommodate a broad range of biological, chemical, and sample-preparation procedures.

A solid-state speed control regulates the orbital speed, while the Model 3520 uses an analog meter scale for speed indication. A built-in timer allows shaking periods from 1 to 60 minutes, with a continuous mode available for procedures requiring longer operation.

The shaker's drive mechanism is counterbalanced to promote smooth orbital movement, and the platform rotates on nine sealed, permanently lubricated ball bearings. The drive is housed within a precision-machined cast-iron base supported by cushioned feet to help maintain stability during operation.

Interchangeable platforms and vessel clips allow the shaker to be configured for different laboratory containers rather than limiting it to one fixed vessel arrangement.

Key Specifications

Specification	Details
Manufacturer	Lab-Line Instruments
Model	3520
Equipment Type	Orbital platform shaker
Motion	Circular / orbital
Speed Range	40–400 rpm
Orbit	3/4 in. / approx. 19 mm
Platform Size	12 × 12 in.
Speed Control	Solid-state
Speed Display	Analog meter scale
Timer	1–60 minutes
Continuous Operation	Yes
Platform Design	Interchangeable
Dimensions	Approx. 11"W × 13.5"D × 7"H
Net Weight	Approx. 34 lb / 15.4 kg
Power Consumption	100 W
Electrical	120 VAC, 50/60 Hz
Condition	Used / Refurbished
Warranty	90 days from American Instrument Exchange

Maximum safe operating speed depends on the installed platform, vessel configuration, total load, liquid characteristics, and intended application. Users should operate the shaker only at speeds that maintain stable movement without vessel contact, sample ejection, or excessive vibration.

Common Applications

The Lab-Line 3520 can support cell culture research, bacterial suspension preparation, microbial culture procedures, solubility studies, extraction procedures, staining and destaining, washing procedures, reagent mixing, sample preparation, and other laboratory processes requiring controlled orbital movement.

Its combination of a 3/4-inch orbit and speeds up to 400 rpm provides useful flexibility for both moderate and relatively vigorous agitation. The actual mixing conditions experienced by a sample will depend on vessel geometry, liquid volume, speed, platform configuration, and other application-specific factors.

Ideal Laboratory Types

The Lab-Line 3520 is well suited for biotechnology laboratories, microbiology facilities, molecular biology groups, pharmaceutical research laboratories, academic and university laboratories, clinical research facilities, environmental laboratories, industrial laboratories, and quality-control operations.

Its compact footprint can be particularly useful in laboratories that need dependable orbital shaking capability without dedicating a large amount of bench space to the instrument.

Shaking Performance & Orbital Motion

The Lab-Line 3520 operates from approximately 40 to 400 rpm with a 3/4-inch orbital motion. A counterbalanced drive mechanism is designed to produce smooth, uniform orbital movement across the platform.

The platform is supported by nine sealed and permanently lubricated ball bearings, while the drive assembly is housed within a substantial cast-iron base. Cushioned feet help stabilize the instrument and reduce movement of the shaker itself during operation.

Maximum safe speed is application dependent. Heavier loads, unusual vessel arrangements, certain liquid characteristics, or poorly balanced samples may require operation below the shaker's 400 rpm maximum.

Users should therefore select a speed that maintains stable platform operation and prevents vessels from contacting one another or liquids from being expelled from their containers.

When transferring a procedure from another orbital shaker, both shaking speed and orbit should be considered. The Lab-Line 3520's 3/4-inch orbit may produce different mixing conditions from smaller- or larger-orbit shaker designs even when operated at the same rpm.

Platform, Flask & Vessel Compatibility

The AIE Lab-Line 3520 is equipped with a 12 × 12-inch platform. Lab-Line designed this shaker family around interchangeable platforms and offered a variety of vessel clips to accommodate different laboratory applications.

Depending on the platform and accessories installed, the shaker can be configured for Erlenmeyer flasks, bottles, culture vessels, dishes, and other suitable laboratory containers.

Actual vessel capacity should be determined from the platform and clips installed on the specific AIE unit rather than from a generalized flask-count specification. Flask diameter, clamp arrangement, working volume, total sample weight, operating speed, and load distribution can all affect practical capacity.

Customers planning to use a particular flask, bottle, culture vessel, or other container can contact American Instrument Exchange to confirm the platform and accessories included with the individual shaker.

Refurbishment & Testing

Used Lab-Line 3520 Orbital Shakers from American Instrument Exchange are inspected and tested prior to shipment. The shaking mechanism is operated for extended periods to verify reliable orbital movement and appropriate response across applicable speed settings.

Testing includes evaluation of the drive mechanism, solid-state speed control, analog speed indication, timer, continuous-operation mode, platform movement, and other applicable mechanical and electrical components. The shaker is also cleaned and cosmetically prepared as appropriate before shipment.

Customers with specific operating requirements are encouraged to discuss them with American Instrument Exchange before shipment. When practical, AIE can simulate typical intended operating conditions to help verify shaker performance for the customer's anticipated application.

Shipping & Installation

The Lab-Line 3520 measures approximately 11 inches wide by 13.5 inches deep by 7 inches high and weighs approximately 34 lb.

Despite its compact dimensions, the shaker incorporates a substantial cast-iron drive base. It should be positioned on a sturdy, level laboratory bench with sufficient clearance for the orbital movement of the platform, vessels, clamps, and other installed accessories.

Manufacturer instructions call for at least one inch of clearance around the shaker to permit unobstructed orbital movement. Loads should be distributed as evenly as practical, and vessels should be securely attached before operation.

The Model 3520 is configured for 120 VAC, 50/60 Hz operation with approximately 100 W power consumption.

Related Equipment

Laboratories using the Lab-Line 3520 may also require incubators, CO2 incubators, centrifuges, water baths, laboratory refrigerators, laboratory freezers, balances, and other laboratory shakers. American Instrument Exchange supplies used and refurbished laboratory equipment for biotechnology, pharmaceutical, academic, clinical, and industrial research laboratories.

Frequently Asked Questions

What type of shaker is the Lab-Line 3520?

The Lab-Line 3520 is a compact benchtop orbital platform shaker designed for culture, mixing, extraction, staining, washing, and other laboratory procedures requiring controlled orbital agitation.

What is the speed range of the Lab-Line 3520?

The Model 3520 operates from approximately 40 to 400 rpm.

What is the orbit diameter?

The Lab-Line 3520 uses a 3/4-inch, or approximately 19 mm, circular orbital motion.

How large is the platform?

The AIE unit is equipped with a 12 × 12-inch platform.

Does the Lab-Line 3520 have a timer?

Yes. The built-in timer can be set from 1 to 60 minutes. The shaker can also be operated continuously.

What is the difference between the Lab-Line 3518 and 3520?

The models have essentially the same shaking characteristics and are both 120 V units. One of the primary differences is speed indication: the Model 3518 uses a large LED speed display, while the Model 3520 uses an analog meter scale.

Does the Lab-Line 3520 have interchangeable platforms?

Yes. Lab-Line designed this shaker family for interchangeable platforms and offered a variety of vessel clips and platform configurations for different laboratory applications.

How many flasks can the Lab-Line 3520 hold?

There is no single flask count that applies to every Model 3520. Capacity depends on the platform and clips installed, flask dimensions, working volume, operating speed, total load, and load distribution.

Can the Lab-Line 3520 operate at 400 rpm with any load?

No. Although its nominal speed range extends to 400 rpm, the manufacturer states that maximum safe speed depends on load, the physical and chemical characteristics of the liquids being mixed, and the application. Heavy or unstable configurations may require a lower operating speed.

Can the Lab-Line 3520 be used for bacterial culture?

Yes. Its 40–400 rpm speed range and 3/4-inch orbit make it suitable for many bacterial suspension and microbial culture applications when equipped with appropriate vessel clips and operated under suitable conditions.

Is the Lab-Line 3520 a digital shaker?

No. The Model 3520 uses an analog meter scale for speed indication. The related Lab-Line 3518 uses an LED speed display.

What electrical service does the Model 3520 require?

The Lab-Line 3520 is a 120 VAC, 50/60 Hz shaker rated at approximately 100 W.

How does American Instrument Exchange test the Lab-Line 3520?

AIE operates the shaker for extended periods and checks applicable speed settings, orbital movement, timer operation, continuous mode, controls, and other mechanical and electrical functions prior to shipment.

Does this Lab-Line 3520 include a warranty?

Yes. This used and refurbished Lab-Line 3520 Orbital Shaker includes a 90-day warranty from American Instrument Exchange.
