Labsystems Multidrop DW Type 833

  • Flexible volume range
  • High-speed continuous dispensing
  • 90-day warranty

The Multidrop DW is an automated deep-well plate dispenser designed for high-throughput screening and microvolume dispensing into deep-well plates, tubes in a 96-channel rack or standard 96-well plates.

The Multidrop DW can dispense up to eight different reagents with high accuracy, precision and speed. It fills 20 μl into the entire 96-well microplate in 5 seconds or 900 μl into the entire deep-well plate in 74 seconds. With a volume range of 20 to 995 μl for deep-well plates, tubes in a 96-channel rack or 96-well plates, the Multidrop DW offers superior flexibility for a wide range of applications.

CLICK HERE to see the Labsystems Multidrop DW 833 on our YouTube channel

All reagent lines can be backflushed to the reagent bottle, minimizing the loss of expensive reagents. From 1 to 12 columns can be selected for deep-well plates, tubes in a 96-channel rack or 96-well plates. To ensure sterility and avoid cross-contamination, the dispensing cassette is detachable and autoclavable.

The Multidrop DW can be used as a standalone instrument or controlled with a PC via an RS-232 serial port.

Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests, please let us know and we’ll work with you to make sure these requirements are addressed during testing.

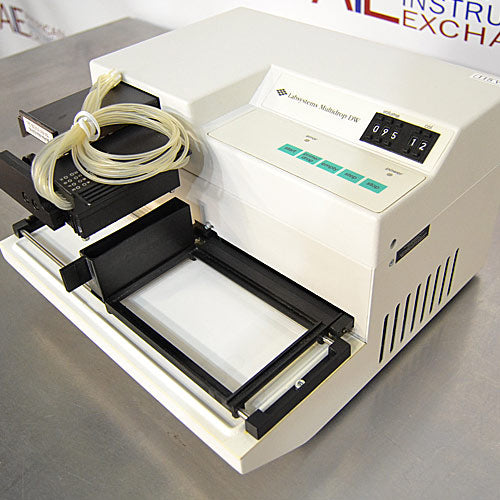

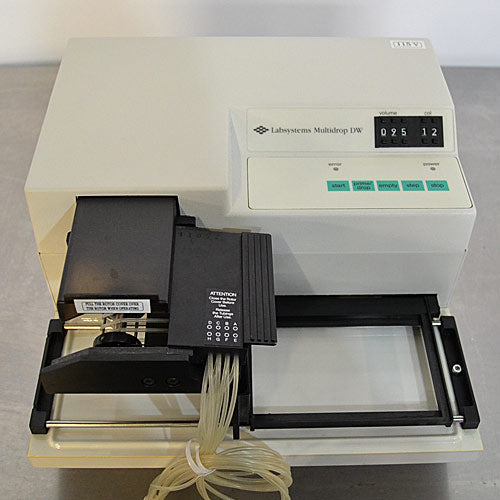

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Labsystems Multidrop DW Type 833 - Specifications

Dimensions 12”W x 12.25”D x 7.5”H
Volume range 20 uL to 995 uL
Fill rate to 20uL 5 seconds
Fill rate to 990 uL 74 seconds
Accuracy ±0.25%
