Memmert UF160plus Forced Convection Universal Oven

Memmert UF160plus Forced Convection Universal Oven

The Memmert UF160plus Forced Convection Universal Oven is a classic appliance for temperature control in science, research and material tests. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology. The UF160plus has an internal volume of 5.68 ft³ or 161 L and uses forced air circulation.

Memmert UF160 plus Universal Oven – Snapshot

• Model UF160plus
• Capacity: 5.68 ft³ or 161 L
• Temperature range: Ambient +10°C to +300°C

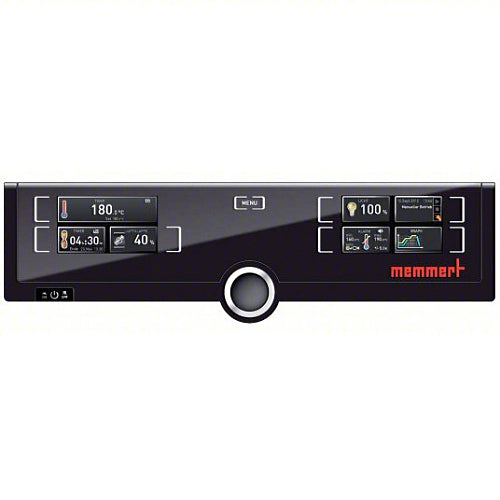

• TwinDISPLAY
• AtmoCONTROL
• Manufacturer’s warranty

Control Technology

• ControlCOCKPIT: adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays. Controls temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, program time, relative humidity, illumination, time zones, daylight-saving time
• AtmoCONTROL: Create and monitor programs. You can graphically create, modify and save programs on your computer with various parameters and transfer these to the appliance; read out, organize and document the internal log memory of appliances; configure user authorizations on USER ID USB sticks, with which the manual adjustment of individual or all parameters on the appliance can be prevented
• Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
• Adjustable Parameters: temperature (Celsius or Fahrenheit), air flap position, program time, time zones, daylight savings time
• Function SetpointWAIT: the process time does not start until the set temperature is reached
• Language Setting: German, English, Spanish, and French
• Calibration: three freely selectable temperature values

Benefits of the TwinDISPLAY

The equipment of Memmert's model variant TwinDISPLAY will leave nothing to be desired regarding function range, convenience and safety. Via the intuitive control and logging software AtmoCONTROL even complex processes can be programmed quick and easy.  Multiple overtemperature protection, visual and acoustic alarm as well as possibly sending an automatic alarm message to one or several e-mail addresses will leave you with time for things that really matter. Your work.

• Control temperature, fan speed, program time, monitor programs easily via Ethernet or USB
• Suitable for more complex applications requiring ramp programming, loops, and multiple parameters
• HeatBALANCE function for application specific adjustment of heating power distribution (balance) between the upper and lower heating groups in an adjustment range between -50 % and +50 % (does not apply to size 30, HPP110, IPP110plus, ICP, ICH))
• Displaying of already logged protocol data on the ControlCOCKPIT (max 10,000 values correspond to approx. 1 week)
• Ethernet interface on the rear of the appliance for reading out the protocol log and for uploading programmes and for online logging
• Multiple overtemperature protection: Electronic temperature monitoring TWW/TWB (protection class 3.1 or 2 resp. 3.3 for units with active cooling) and mechanical temperature limiter TB (protection class 1) acc. to. DIN 12 880, AutoSAFETY automatically adjusts to the set value within a freely adjustable tolerance range. Setting individual MIN / MAX values for over/undertemperature
• Temperature Specs
• Set temperature range: min.10°C above ambient up to +300°C
• Temperature: 2 Pt100 sensors DIN class A in a 4-wire circuit for mutual monitoring, taking over functions in case of an error
• Resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)

Safety Features

• Temperature control: adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approximately 20°C above nominal temperature
• Auto diagnostic system: for fault analysis

Textured Stainless Steel Casing

• Fully insulated stainless steel doors with 2- point locking (compression door lock)
• Rear zinc-plated steel
• On lockable castors

For many years exterior textured stainless steel has been the unmistakable feature of Memmert ovens, incubators, and climate chambers in laboratory and light-industrial settings. Memmert equipment exemplifies functional design in its most elegant and hygienic form, while still being scratch resistant, robust and durable.

Stainless steel is the ideal material for temperature control chambers and heating baths. It is particularly corrosion-resistant, hygienic, robust and recyclable without question.

Wherever Memmert ovens and heating baths are used, the superiority of high-quality stainless steel is undeniable in comparison to others that utilize coated sheet steel, which can corrode very quickly when in constant use.

For the outer housing of all Memmert appliances, textured stainless steel is used (rear walls are zinc-plated sheets). The inner chamber, sliding shelves/grids, housing, interior basin and accessories for every heating bath, stainless steel of class W-St. 1.4301 (ASTM 304) is used.

Memmert UF160plus Universal Oven - Specifications

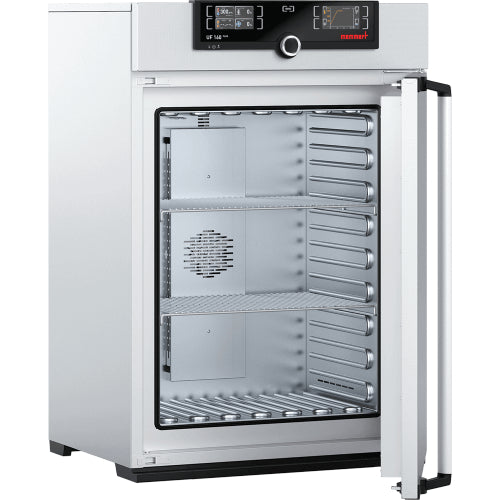

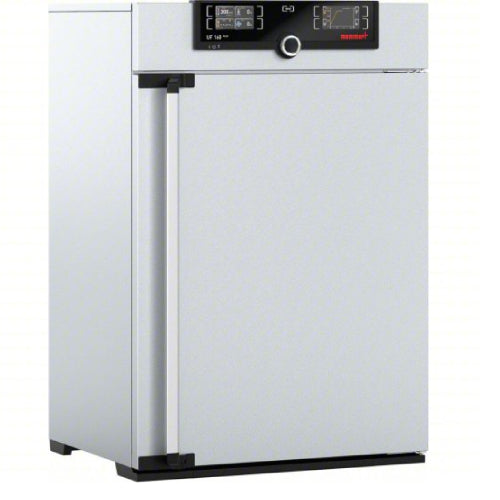

Memmert UF160plus Forced Convection Universal Oven - Pictures

The photos above represent our equipment. If you request, we will provide photos of your specific equipment after an order is in place and it arrives from Memmert.

Contact us for more information

For inquiries about the Memmert UF160plus Universal Oven, call us at 978-521-2221 or fill out the form on this page.
