Memmert UF260 Forced Convection Universal Oven
The Memmert UF260 Forced Convection Universal Oven is a classic appliance for temperature control in science, research and material tests. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology. The UF260 has an internal volume of 9.04 ft³ or 256 L and uses forced air circulation.
Memmert UF260 Universal Oven – Snapshot
- Model UF260
- Capacity: 9.04 ft³ or 256 L
- Temperature range: Ambient +10°C to +300°C
- SingleDISPLAY
- Manufacturer’s warranty
Control Technology
- ControlCOCKPIT: adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-color display
- SingleDISPLAY: Control temperature, fan speed, program time & more.
- Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
- Adjustable Parameters: temperature (Celsius or Fahrenheit), air flap position, program time, time zones, daylight savings time
- Function SetpointWAIT: the process time does not start until the set temperature is reached
- Language Setting: German, English, Spanish, and French
- Calibration: three freely selectable temperature values
Benefits of the SingleDISPLAY
Temperature, air flap position and fan speed remain at a constant value throughout your process? You have no need for ramp programming or loops? You only have to dry insensitive materials and require neither multiple overtemperature protection nor a technically complex alarm system? Then the functions of Memmert's model variant SingleDISPLAY will be perfect for your application.
- Expect outstanding precision and reliability paired with intuitive operation plus double overtemperature protection including visual alarm.
- Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, program time, time zones, daylight-saving time
- Software AtmoCONTROL for data read out and programming of the data logger via Ethernet interface (temporary trial version as free download)
- Ethernet interface on the rear of the appliance for reading out the protocol log and for online logging
- Double overtemperature protection: Electronic temperature monitoring with freely adjustable monitoring temperature, for models U, I, S with option A6 TWW/TWB (protection class 3.1 or 2), mechanical temperature limiter TB acc. to DIN 12 880
Temperature Specs
- Set temperature range: min.10°C above ambient up to +300°C
- Temperature: 1 Pt100 sensor DIN class A in 4-wire-circuit
- Resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)
Safety Features
- Temperature control: adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approximately 20°C above nominal temperature
- Auto diagnostic system: for fault analysis
Textured Stainless Steel Casing
- Fully insulated stainless steel doors with 2- point locking (compression door lock)
- Rear zinc-plated steel
- On lockable castors
For many years exterior textured stainless steel has been the unmistakable feature of Memmert ovens, incubators, and climate chambers in laboratory and light-industrial settings. Memmert equipment exemplifies functional design in its most elegant and hygienic form, while still being scratch resistant, robust and durable.
Stainless steel is the ideal material for temperature control chambers and heating baths. It is particularly corrosion-resistant, hygienic, robust and recyclable without question.
Wherever Memmert ovens and heating baths are used, the superiority of high-quality stainless steel is undeniable in comparison to others that utilize coated sheet steel, which can corrode very quickly when in constant use.
For the outer housing of all Memmert appliances, textured stainless steel is used (rear walls are zinc-plated sheets). The inner chamber, sliding shelves/grids, housing, interior basin and accessories for every heating bath, stainless steel of class W-St. 1.4301 (ASTM 304) is used.
Memmert UF260 Universal Oven - Specifications
Exterior dimensions | 32.44”W x 26.93”D x 46.57”H |
Internal dimensions | 25.20”W x 19.69”D x 31.50”H |
Capacity | 9.04 ft³ or 256 L |
Temperature range | Ambient +10°C to +300°C |
Crated weight | 354.9 lbs |

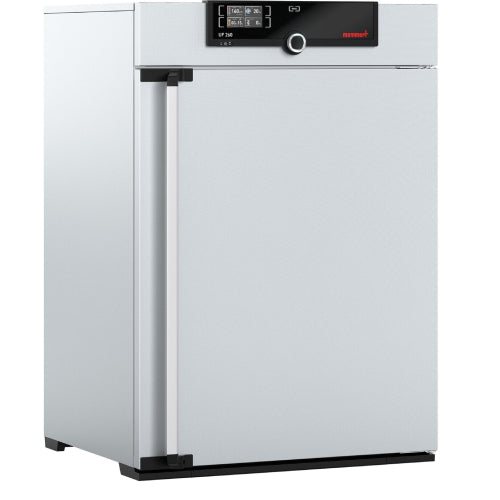

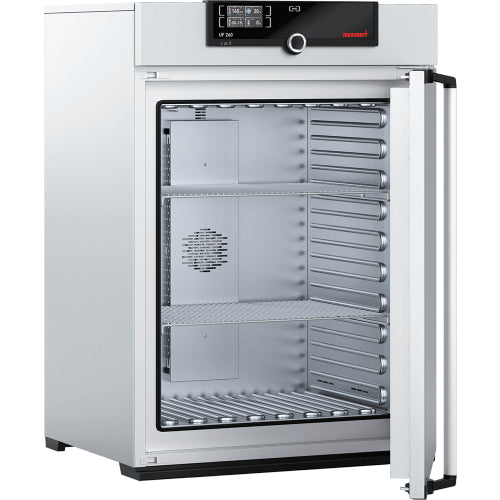

Memmert UF260 Forced Convection Universal Oven - Pictures
The photos above represent our equipment. If you request, we will provide photos of your specific equipment after an order is in place and it arrives from Memmert.
